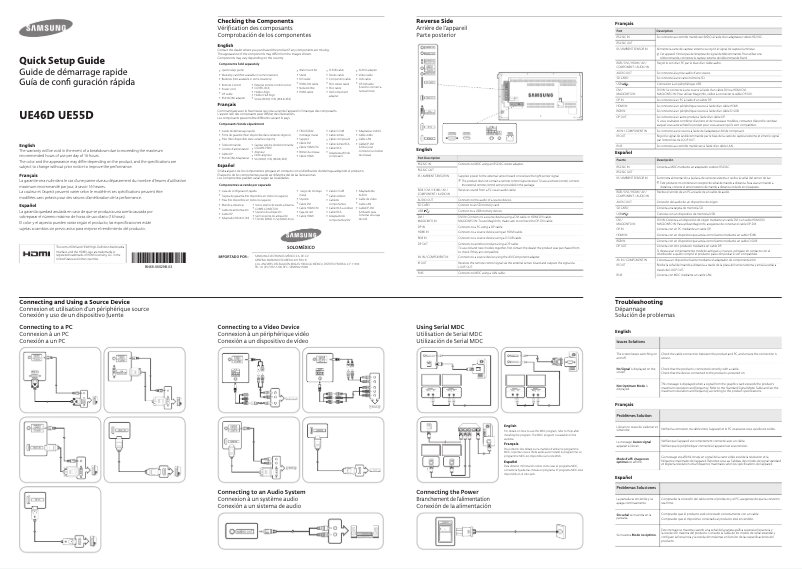

Manual of product SyncMaster UE46D
Technical Specifications SyncMaster UE46D
General Information
-
ModelSYNCMASTER UE46D
-
Brand
-
Category
-
Type
-
SKU209827
-
MPN209827
Screen
-
Display technologyLED
-
Screen size46 "
-
Screen resolution1920 x 1080 pixels
-
Screen brightness450 cd/m²
-
Type HDFull HD
-
Response time4 ms
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Number of colors displayed16.78 million colors
-
No pixel0.17675 x 0.53025 mm
-
Active display area (w x h)1018.08 x 572.67 mm
-
Screen diagonal (cm)116 cm
-
Horizontal scanning domain30 - 81 kHz
-
Vertical scanning frequency48 - 75 Hz
-
Supported graphic resolutions1920 x 1080 (HD 1080)
-
Supported video modes1080p
-
Touch screenNo
-
Panel life- h
-
LED backlightingEdge-LED BLU
-
Image format16:9
-
Color palette72 %
Connectivity
-
WifiYes
-
DisplayPorts in1
-
WifiYes
-
DisplayPorts in1
-
DisplayPorts in1
-
DisplayPorts in1
-
DisplayPorts in1
-
DisplayPorts in1
-
WifiYes
-
DisplayPorts in1
-
Quantity of DisplayPort interfaces2
-
WifiYes
-
WifiYes
-
DisplayPorts in1
-
USB Version2.0
-
WifiYes
-
WifiYes
Representation / realization
-
Integrated TV tunerNo
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
Other features
-
Quick Start GuideYes
-
RJ-45 input ports1
-
RJ-45 input ports1
-
RJ-45 input ports1
-
Quick Start GuideYes
-
Energy efficiency class (old)C
-
System on a Chip (SoC) typeSamsung SMART Signage Platform (SSSP) Gen 2
-
Maximum brightness report93 %
-
Frame width5.5 mm
-
Dot clock scan frequency148.5 MHz
Design
-
Product colorBlack
-
VESA mountYes
-
VESA standard400 x 400 mm
-
Layouthorizontal/vertical
-
Product designFlat digital signage screen
Audio
-
Built-in speakersYes
-
Number of built-in speakers2
-
Rated power of RMS20 W
Power
-
Typical electricity consumption115 W
-
Energy consumption (in standby mode)0.5 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Energy consumption (in standby mode)0.5 W
-
Consumption (max)132 W
-
Thermal dissipation1535.8 BTU/h
Technical details
-
Sustainability certificatesENERGY STAR
Computer system
-
Computer systemYes
-
Processor familyARM Cortex
-
Processor frequency1 GHz
-
Internal memory1.5 GB
-
Internal storage capacity8 GB
-
Installed operating systemlinux
-
Type of computer systemSystem on Chip (SoC)
Weight and dimensions
-
Width1030.9 mm
-
Depth29.9 mm
-
Height585.4 mm
-
Weight10000 g
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating relative humidity (H-H)10 - 80 %
-
Temperature out of operation-20 - 45 °C
-
Relative humidity rate (storage)5 - 95 %
Packaging contents
-
Batteries includedYes
-
Cables includedAC, DisplayPort
-
Batteries includedYes
-
Batteries includedYes
Packaging information
-
Package width1110 mm
-
Package depth130 mm
-
Package height668 mm
-
Package weight13000 g
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product SyncMaster UE46D specifications from brand Samsung
Generalities
The EAN code of the product Samsung SyncMaster UE46D is 8806086013956. This code allows for the unique identification of the product in the distribution system. The product model Samsung SyncMaster UE46D is SyncMaster UE46D | LH46UEDPLGC. This model ensures optimal performance and an enhanced user experience. The brand of the product Samsung SyncMaster UE46D is Samsung. This brand is known for its quality and innovation in the field of household appliances.
Representation / realization
Does the product Samsung SyncMaster UE46D have HDCP? Oui. This specification ensures the protection of digital content against unauthorized copying. The multi-display support of the product Samsung SyncMaster UE46D is Oui. This feature allows you to enhance your visual experience by connecting multiple screens simultaneously. Does the product Samsung SyncMaster UE46D have a picture-in-picture (PIP) feature? Oui. This feature allows multiple images to be displayed simultaneously, providing an enhanced visual experience. Does the product Samsung SyncMaster UE46D have a built-in TV tuner? No. This product does not allow you to receive television channels directly. Does the product Samsung SyncMaster UE46D have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings.
Design
The color of the product Samsung SyncMaster UE46D is Noir. This shade gives it a modern and elegant look. The product Samsung SyncMaster UE46D has the VESA Standard 400 x 400 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. Does the product Samsung SyncMaster UE46D have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The design of the product Samsung SyncMaster UE46D features a layout horizontale/verticale. This layout is ideal for optimizing the user experience. The design of the product Samsung SyncMaster UE46D is a pistol grip drill. This ergonomic design allows for a comfortable grip and optimal control during use.
Screen
The display technology of the product Samsung SyncMaster UE46D is LED. This technology ensures optimal image quality for an immersive visual experience. The screen resolution of the product Samsung SyncMaster UE46D is 1920 x 1080 pixels. This feature ensures optimal display quality for a pleasant visual experience. The screen size of the product Samsung SyncMaster UE46D is 46 ". This dimension allows for an optimal visual experience for all your content. The brightness of the Samsung SyncMaster UE46D screen is 450 cd/m². This feature ensures optimal visibility even in varying lighting conditions. The response time of the product Samsung SyncMaster UE46D is 4 ms. This fast response time ensures a smooth and responsive visual experience. The HD Type of the product Samsung SyncMaster UE46D is Full HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The horizontal viewing angle of the product Samsung SyncMaster UE46D is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Samsung SyncMaster UE46D is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The number of colors displayed for the product Samsung SyncMaster UE46D is 16,78 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The pixel pitch of the product Samsung SyncMaster UE46D is 0.17675 x 0.53025 mm. This pixel pitch ensures optimal display quality without distortion. The active display area of the product Samsung SyncMaster UE46D is 1018.08 x 572.67 mm. This dimension allows for an optimal visual experience for all your content. The horizontal scanning range of the product Samsung SyncMaster UE46D is 30 - 81 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Samsung SyncMaster UE46D is 48 - 75 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The screen diagonal of the product Samsung SyncMaster UE46D is 116 cm. This feature allows for an immersive and high-quality visual experience. The supported graphic resolutions of the product Samsung SyncMaster UE46D are 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The supported video mode of the product Samsung SyncMaster UE46D is 1080p. This mode allows you to enjoy optimal image quality for your videos. Does the product Samsung SyncMaster UE46D have a touchscreen? Non. The LED backlighting of the product Samsung SyncMaster UE46D contains Edge-LED BLU. This backlighting ensures optimal brightness for an enhanced visual experience. The image format of the product Samsung SyncMaster UE46D is 16:9. This format is ideal for an immersive visual experience. The color palette of the product Samsung SyncMaster UE46D is 72 %. This palette offers a variety of shades that enhance the product's aesthetics. The lifespan of the Samsung SyncMaster UE46D panel is - h. This feature ensures prolonged use and optimal performance.
Connectivity
Does the product Samsung SyncMaster UE46D have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The product Samsung SyncMaster UE46D does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of HDMI ports on the Samsung SyncMaster UE46D is 1. This detail is essential for determining compatibility with your multimedia devices. Does the product Samsung SyncMaster UE46D have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The VGA (D-Sub) input port of the Samsung SyncMaster UE46D contains 1. This port allows for easy connection with various devices, ensuring high-quality video transmission. The number of HDMI input ports on the Samsung SyncMaster UE46D is 1. These ports allow for the connection of multiple devices for an enhanced multimedia experience. The product Samsung SyncMaster UE46D has an input component of the audiovisual device (YPbPr/YCbCr) 1. This specification allows for a high-quality connection for an optimal visual experience. The number of Ethernet LAN (RJ-45) ports of the product Samsung SyncMaster UE46D is 1. These ports provide a stable and fast network connection for your devices. Does the product Samsung SyncMaster UE46D have RS-232 Interface? Oui. This interface allows for standardized serial communication, ideal for many devices. The number of USB ports of the product Samsung SyncMaster UE46D is 1. This product allows you to easily connect multiple devices. The number of DisplayPort interfaces of the product Samsung SyncMaster UE46D is 2. This specification allows for optimal connectivity with various devices. Does the product Samsung SyncMaster UE46D have an RS-232C? Oui. This specification ensures standardized connectivity for serial communications. Does the Samsung SyncMaster UE46D have an infrared port? Oui. This feature would allow wireless communication with other compatible devices. The DisplayPort of the product Samsung SyncMaster UE46D contains 1. This DisplayPort allows for an optimal connection for your multimedia devices. The USB Version of the product Samsung SyncMaster UE46D is 2.0. This USB Version allows for a fast and efficient connection with various devices. Does the Samsung SyncMaster UE46D have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The Wifi of the product Samsung SyncMaster UE46D contains Oui. This Wifi allows for a fast and reliable wireless connection for all your devices.
Other features
Does the product Samsung SyncMaster UE46D have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The RS-232 entry port of the Samsung SyncMaster UE46D contains 1. This port allows for a standard serial connection for effective communication with various devices. The RS-232 output ports of the Samsung SyncMaster UE46D contain 1. These ports enable reliable serial communication with various devices. The RJ-45 input port of the Samsung SyncMaster UE46D product contains 1. This port allows for a reliable and fast network connection. Does the product Samsung SyncMaster UE46D have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. The energy efficiency class (old) of the product Samsung SyncMaster UE46D is C. This feature indicates the level of energy performance of the product. The type of system on a chip (SoC) of the product Samsung SyncMaster UE46D is Samsung SMART Signage Platform (SSSP) Gen 2. This system allows for advanced integration of features for optimal performance. The maximum brightness ratio of the product Samsung SyncMaster UE46D is 93 %. This ratio ensures an optimal visual experience, even in varying lighting conditions. The width of the Samsung SyncMaster UE46D frame is 5.5 mm. This feature contributes to the stability and overall performance of the product. The dot clock scanning frequency of the Samsung SyncMaster UE46D product is 148.5 MHz. This feature ensures optimal display quality and smoothness in images.
Audio
Does the product Samsung SyncMaster UE46D have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The RMS rated power of the product Samsung SyncMaster UE46D is 20 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of built-in speakers of the product Samsung SyncMaster UE46D is 2. These speakers provide immersive audio quality for an optimal listening experience.
Technical details
The product Samsung SyncMaster UE46D has Sustainability Certificates: ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Power
The energy consumption in standby mode of the product Samsung SyncMaster UE46D is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The typical power consumption of the product Samsung SyncMaster UE46D is 115 W. This feature allows for the assessment of the energy efficiency of the device. The AC input frequency of the product Samsung SyncMaster UE46D is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Samsung SyncMaster UE46D is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in standby mode of the product Samsung SyncMaster UE46D is 0.5 W. This feature helps to reduce the energy impact when the device is not in use. The maximum consumption of the product Samsung SyncMaster UE46D is 132 W. This specification allows for the assessment of the energy efficiency of the device. The thermal dissipation of the product Samsung SyncMaster UE46D is 1535.8 BTU/h. This thermal dissipation ensures optimal operation and prevents overheating, thereby guaranteeing the durability and performance of the device.
Computer system
The processor family of the product Samsung SyncMaster UE46D contains ARM Cortex. This specification is essential for determining the performance and compatibility of the product. The computer system of the product Samsung SyncMaster UE46D contains Oui. This computer system is designed to provide optimal performance and high reliability. The internal memory of the product Samsung SyncMaster UE46D contains 1.5 Go. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The processor frequency of the product Samsung SyncMaster UE46D is 1 GHz. This specification determines how quickly the processor can execute instructions, thereby influencing the overall performance of the device. The internal storage capacity of the product Samsung SyncMaster UE46D is 8 Go. This capacity allows for storing a considerable amount of data, applications, and multimedia files. The installed operating system of the product Samsung SyncMaster UE46D is linux. This system allows for a smooth and intuitive user experience. The type of computer system of the product Samsung SyncMaster UE46D is Système sur puce (System on Chip ou SoC). This type of system allows for a compact and efficient integration of the essential components for the operation of the device.
Environmental conditions
The relative humidity (storage) rate of the product Samsung SyncMaster UE46D is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Samsung SyncMaster UE46D is -20 - 45 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Samsung SyncMaster UE46D has an operating relative humidity (H-H) of 10 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Samsung SyncMaster UE46D is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The depth of the product Samsung SyncMaster UE46D is 29.9 mm. This dimension allows for optimal integration into your space. The height of the product Samsung SyncMaster UE46D is 585.4 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Samsung SyncMaster UE46D is 1030.9 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Samsung SyncMaster UE46D is 10000 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging contents
Does the product Samsung SyncMaster UE46D come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. Does the product Samsung SyncMaster UE46D have a warranty card? Oui. This card allows you to benefit from additional protection for your purchase. The included cable of the product Samsung SyncMaster UE46D contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Samsung SyncMaster UE46D come with a remote control? Oui.
Packaging information
The width of the package of the product Samsung SyncMaster UE46D is 1110 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Samsung SyncMaster UE46D package is 13000 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Samsung SyncMaster UE46D is 668 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Samsung SyncMaster UE46D is 130 mm. This dimension is essential to ensure proper packaging and secure transport.
