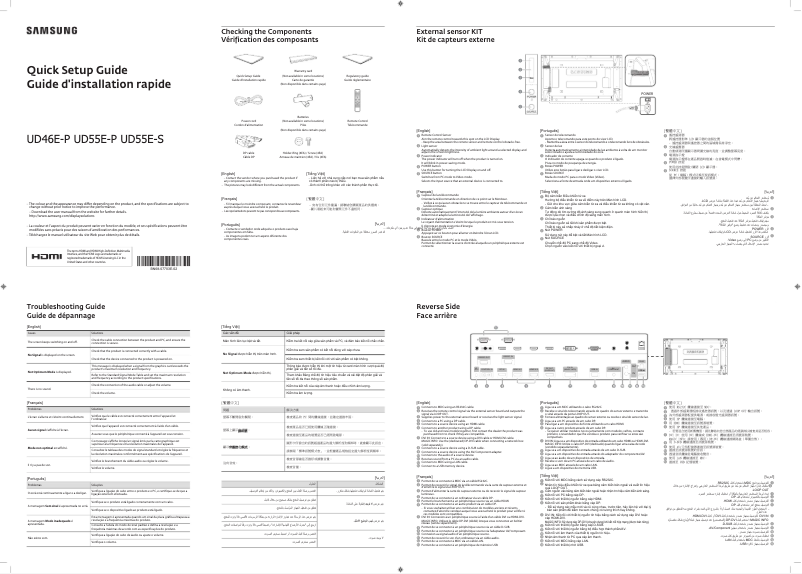

Manuals of product UD55E-S
Technical Specifications UD55E-S
General Information
-
ModelUD55E-S
-
Brand
-
Category
-
Type
-
SKU505348
-
MPN505348
Screen
-
Touch screen-
-
Screen diagonal (cm)139.7 cm
-
Display technologyLED
-
Screen size55 "
-
Screen resolution1920 x 1080 pixels
-
No pixel0.63 x 0.63 mm
-
Active display area (w x h)1209.6 x 680.4 mm
-
Contrast ratio4000:1
-
Dynamic contrast report10000:1
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Response time8 ms
-
Number of colors displayed16.78 million colors
-
Color palette65 %
-
Screen brightness700 cd/m²
-
Type HDFull HD
-
Supported graphic resolutions1920 x 1080 (HD 1080)
-
Supported video modes1080p
-
Image format16:9
-
LED backlightingDirect LED backlight
-
Horizontal scanning domain30 - 81 kHz
-
Vertical scanning frequency48 - 75 Hz
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
-
Quantity of HDMI ports2
-
Quantity of HDMI ports2
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
-
USB portNo
-
DisplayPort version1.2
Power
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption217 W
-
Electricity consumption (stop)0.5 W
-
Electricity consumption (stop)0.5 W
-
Consumption (max)297 W
-
Thermal dissipation3456.4 BTU/h
Weight and dimensions
-
Width1213.5 mm
-
Depth96.6 mm
-
Height684.3 mm
-
Weight23300 g
Packaging information
-
Package width1450 mm
-
Package depth385 mm
-
Package height903 mm
-
Package weight36900 g
Design
-
VESA mountYes
-
VESA standard600 x 400 mm
-
Frame width (top)2.3 mm
-
Frame width (top)2.3 mm
-
Frame width (side)1.2 mm
-
Product colorBlack
-
Product designDigital signage flat screen
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating relative humidity (H-H)10 - 80 %
Other features
-
Quick Start GuideYes
-
Quick Start GuideYes
-
Energy efficiency class (old)D
-
System on a Chip (SoC) typeSamsung SMART Signage Platform (SSSP) Gen 3
-
Dot clock scan frequency148.5 MHz
Representation / realization
-
Integrated TV tuner-
-
HDCP-
-
Multi-display supportedYes
-
Multi-display supportedYes
-
Service hours (hours/days)24/7
Computer system
-
Computer systemYes
-
Type of computer systemSystem on Chip (SoC)
Certificate
-
CertificationFCC (USA)
-
FCC Part 15, Subpart B class A
-
CE (Europe)
-
EN55022
-
EN55024
-
VCCI (Japan)
-
V-3 (CISPR22)
-
KCC (Korea)
-
KN22
-
KN24
-
BSMI (Taiwan)
-
CNS13438 (CISPR22)
-
C-Tick (Australia)
-
AS/NZS3548 (CISPR22)
-
CCC (China)
-
GB9254-2008
-
GB17625.1-2012
-
UL (USA)
-
UL 60950-1
-
CSA (Canada)
-
CSA C22.2 No. 60950-1
-
TUV (Germany)
-
EN60950-1
-
NEMKO (Norway)
-
EN60950-1
-
KC (Korea)
-
K60950-1
-
CCC (China)
-
GB4943.1-2011
-
PSB (Singapore)
-
IEC60950-1
-
GOST (Russia)
-
IEC60950-1
-
EN55022
-
SIQ (Slovenia)
-
IEC60950-1
-
EN55022
-
PCBC (Poland)
-
IEC60590-1
-
EN55022
-
NOM (Mexico)
-
NOM-019-SCFI-1993
-
IRAM (Argentina)
-
IEC60950-1
-
SASO (Saudi Arabia)
-
IEC60950-1
Packaging contents
-
Remote control providedYes
-
Remote control providedYes
-
Remote control providedYes
-
Cables includedAC, DisplayPort
Technical details
-
Sustainability certificatesENERGY STAR
Audio
-
Built-in speakers-
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product UD55E-S specifications from brand Samsung
Generalities
The product model Samsung UD55E-S is UD55E-S | LH55UDEOLBB. This model ensures optimal performance and an enhanced user experience. The brand of the product Samsung UD55E-S is Samsung. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Samsung UD55E-S is 8806086916721. This code allows for the unique identification of the product in the distribution system.
Power
The AC input voltage of the Samsung UD55E-S is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in standby mode of the product Samsung UD55E-S is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The typical power consumption of the product Samsung UD55E-S is 217 W. This feature allows for the assessment of the energy efficiency of the device. The AC input frequency of the product Samsung UD55E-S is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The power consumption (standby) of the product Samsung UD55E-S is 0.5 W. This feature helps to minimize energy consumption when the device is in standby mode. The maximum consumption of the product Samsung UD55E-S is 297 W. This specification allows for the assessment of the energy efficiency of the device. The thermal dissipation of the product Samsung UD55E-S is 3456.4 BTU/h. This thermal dissipation ensures optimal operation and prevents overheating, thereby guaranteeing the durability and performance of the device.
Weight and dimensions
The depth of the product Samsung UD55E-S is 96.6 mm. This dimension allows for optimal integration into your space. The width of the product Samsung UD55E-S is 1213.5 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Samsung UD55E-S is 684.3 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Samsung UD55E-S is 23300 g. This weight is ideal for ensuring optimal use and easy handling.
Connectivity
The VGA (D-Sub) input port of the Samsung UD55E-S contains 1. This port allows for easy connection with various devices, ensuring high-quality video transmission. The product Samsung UD55E-S does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of DisplayPort interfaces of the product Samsung UD55E-S is 2. This specification allows for optimal connectivity with various devices. Does the product Samsung UD55E-S have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The number of HDMI ports on the Samsung UD55E-S is 2. This detail is essential for determining compatibility with your multimedia devices. The product Samsung UD55E-S has an input component of the audiovisual device (YPbPr/YCbCr) 1. This specification allows for a high-quality connection for an optimal visual experience. Does the product Samsung UD55E-S have an RS-232C? Oui. This specification ensures standardized connectivity for serial communications. The number of Ethernet LAN (RJ-45) ports of the product Samsung UD55E-S is 1. These ports provide a stable and fast network connection for your devices. The integrated audio connector (L,R) of the product Samsung UD55E-S has 1. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The audio output (left, right) of the product Samsung UD55E-S contains 1. This specification allows for an immersive stereo sound experience. Does the product Samsung UD55E-S have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Samsung UD55E-S have a USB Port? Non. This feature allows for easy and quick connection to various devices. The product Samsung UD55E-S has DisplayPort version 1.2. This specification allows for improved connectivity for high resolutions and refresh rates.
Packaging information
The height of the package of the product Samsung UD55E-S is 903 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Samsung UD55E-S is 385 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Samsung UD55E-S is 1450 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Samsung UD55E-S package is 36900 g. This weight ensures optimal protection during transport and delivery.
Screen
The screen diagonal of the product Samsung UD55E-S is 139.7 cm. This feature allows for an immersive and high-quality visual experience. The screen size of the product Samsung UD55E-S is 55 ". This dimension allows for an optimal visual experience for all your content. The display technology of the product Samsung UD55E-S is LED. This technology ensures optimal image quality for an immersive visual experience. The screen resolution of the product Samsung UD55E-S is 1920 x 1080 pixels. This feature ensures optimal display quality for a pleasant visual experience. The pixel pitch of the product Samsung UD55E-S is 0.63 x 0.63 mm. This pixel pitch ensures optimal display quality without distortion. The active display area of the product Samsung UD55E-S is 1209.6 x 680.4 mm. This dimension allows for an optimal visual experience for all your content. The contrast ratio of the product Samsung UD55E-S is 4000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The horizontal viewing angle of the product Samsung UD55E-S is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Samsung UD55E-S is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The dynamic contrast ratio of the product Samsung UD55E-S is 10000:1. This ratio helps enhance image quality by providing deeper blacks and brighter whites. The response time of the product Samsung UD55E-S is 8 ms. This fast response time ensures a smooth and responsive visual experience. The number of colors displayed for the product Samsung UD55E-S is 16,78 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The color palette of the product Samsung UD55E-S is 65 %. This palette offers a variety of shades that enhance the product's aesthetics. The brightness of the Samsung UD55E-S screen is 700 cd/m². This feature ensures optimal visibility even in varying lighting conditions. The HD Type of the product Samsung UD55E-S is Full HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The supported graphic resolutions of the product Samsung UD55E-S are 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The supported video mode of the product Samsung UD55E-S is 1080p. This mode allows you to enjoy optimal image quality for your videos. The image format of the product Samsung UD55E-S is 16:9. This format is ideal for an immersive visual experience. Does the product Samsung UD55E-S have a touchscreen? -. The LED backlighting of the product Samsung UD55E-S contains DID de LED directe. This backlighting ensures optimal brightness for an enhanced visual experience. The horizontal scanning range of the product Samsung UD55E-S is 30 - 81 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Samsung UD55E-S is 48 - 75 Hz. This specification ensures optimal display smoothness for a pleasant visual experience.
Design
The product Samsung UD55E-S has the VESA Standard 600 x 400 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. The width of the frame at the bottom of the product Samsung UD55E-S is 2.3 mm. This feature contributes to the stability and aesthetics of the product. Does the product Samsung UD55E-S have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The width of the frame (at the top) of the product Samsung UD55E-S is 2.3 mm. This feature contributes to the aesthetics and robustness of the product. The width of the frame (side) of the product Samsung UD55E-S is 1.2 mm. This dimension contributes to the strength and overall aesthetics of the product. The color of the product Samsung UD55E-S is Noir. This shade gives it a modern and elegant look. The design of the product Samsung UD55E-S is a pistol grip drill. This ergonomic design allows for a comfortable grip and optimal control during use.
Environmental conditions
The operating temperature of the product Samsung UD55E-S is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Samsung UD55E-S has an operating relative humidity (H-H) of 10 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Other features
Does the product Samsung UD55E-S have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The type of system on a chip (SoC) of the product Samsung UD55E-S is Samsung SMART Signage Platform (SSSP) Gen 3. This system allows for advanced integration of features for optimal performance. Does the product Samsung UD55E-S have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. The energy efficiency class (old) of the product Samsung UD55E-S is D. This feature indicates the level of energy performance of the product. The dot clock scanning frequency of the Samsung UD55E-S product is 148.5 MHz. This feature ensures optimal display quality and smoothness in images.
Representation / realization
Does the product Samsung UD55E-S have a picture-in-picture (PIP) feature? Oui. This feature allows multiple images to be displayed simultaneously, providing an enhanced visual experience. Does the product Samsung UD55E-S have HDCP? -. This specification ensures the protection of digital content against unauthorized copying. The multi-display support of the product Samsung UD55E-S is Oui. This feature allows you to enhance your visual experience by connecting multiple screens simultaneously. Does the product Samsung UD55E-S have a built-in TV tuner? No. This product does not allow you to receive television channels directly. The service hours for the product Samsung UD55E-S are 24/7. These hours ensure optimal availability to meet your needs at any time.
Computer system
The computer system of the product Samsung UD55E-S contains Oui. This computer system is designed to provide optimal performance and high reliability. The type of computer system of the product Samsung UD55E-S is Système sur puce (System on Chip ou SoC). This type of system allows for a compact and efficient integration of the essential components for the operation of the device.
Certificate
The certification of the product Samsung UD55E-S contains FCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea) : KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS/NZS3548 (CISPR22), CCC (China) : GB9254-2008, GB17625.1-2012\nUL (USA): UL 60950-1, CSA (Canada): CSA C22.2 No. 60950-1, TUV (Germany): EN60950-1, NEMKO (Norway): EN60950-1, KC (Korea): K60950-1, CCC (China): GB4943.1-2011, PSB (Singapore): IEC60950-1, GOST (Russia): IEC60950-1, EN55022, SIQ (Slovenia): IEC60950-1, EN55022, PCBC (Poland): IEC60590-1, EN55022, NOM (Mexico): NOM-019-SCFI-1993, IRAM (Argentina): IEC60950-1, SASO (Saudi Arabia) : IEC60950-1. This certification guarantees compliance with the required safety and performance standards.
Technical details
The product Samsung UD55E-S has Sustainability Certificates: ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Packaging contents
Does the product Samsung UD55E-S come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. Does the product Samsung UD55E-S have a warranty card? Oui. This card allows you to benefit from additional protection for your purchase. Does the product Samsung UD55E-S come with a remote control? Oui. The included cable of the product Samsung UD55E-S contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Audio
Does the product Samsung UD55E-S have built-in speakers? -. These speakers provide an immersive and convenient audio experience.
