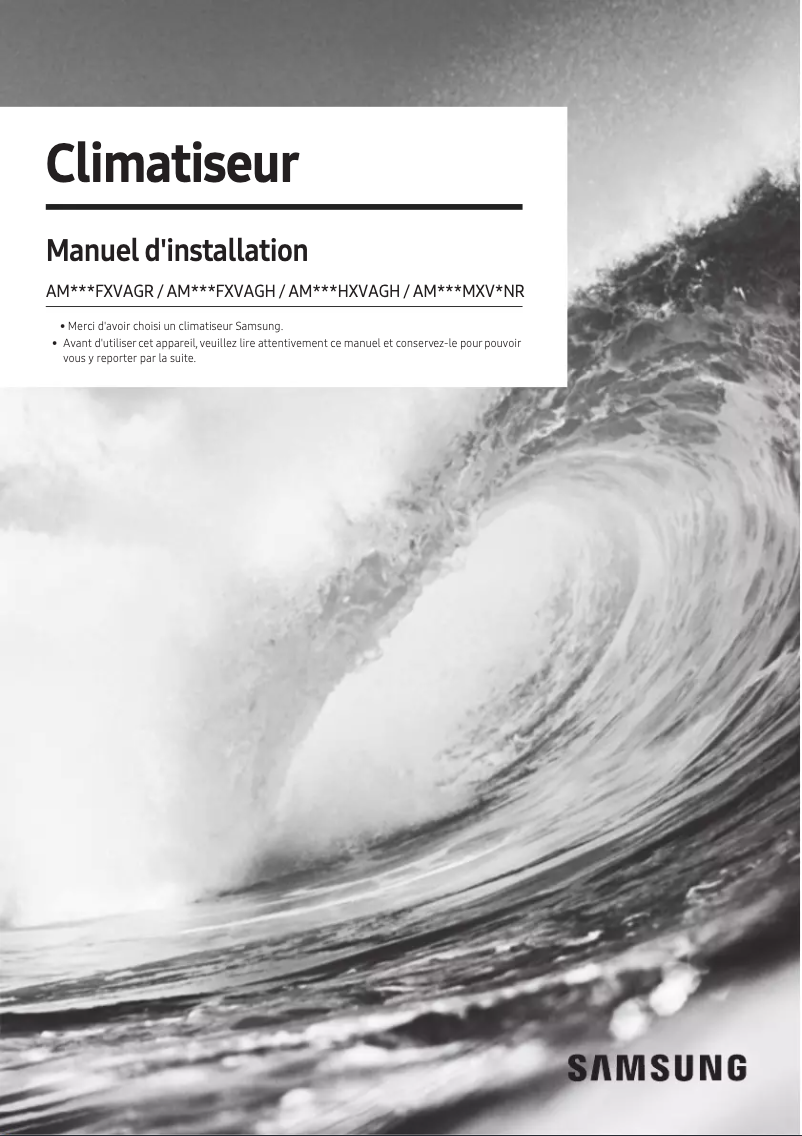

Manual of product AM160FXVAGH
Editorial note
The Samsung AM160FXVAGH stands out for its integrated converter technology, which optimizes energy consumption for increased comfort, both in cooling and heating mode. With a cooling capacity of 45,000 W and a heating capacity of 50,400 W, this device ensures exceptional performance even in extreme weather conditions. Additionally, its modern and sleek white design allows it to blend harmoniously into various interior styles while providing a functional solution. However, this model has some limitations. The lack of Multi split functionality may restrict its use in large spaces requiring multiple indoor units. Furthermore, the absence of an ionizer may impact indoor air quality by reducing purification and allergen-reducing capabilities. The seasonal efficiency specifications (SEER and SCOP) are not provided, making it difficult to assess its energy efficiency. Finally, while the noise level of the outdoor unit is reasonable, it may be considered too high for noise-sensitive users, especially in residential environments. Overall, the Samsung AM160FXVAGH offers excellent thermal comfort and an attractive design, but it is important to consider its limitations in terms of features and noise before making a choice.Score details
User experience
The user experience is enhanced by the integrated converter technology, allowing for optimized energy consumption for optimal comfort in cooling and heating mode.
Performance
With a cooling capacity of 45,000 W and heating capacity of 50,400 W, the product ensures optimal comfort even in extreme weather conditions, although the lack of features like Multi split limits its use in larger spaces.
Design
The modern and sleek white design easily integrates into various interior styles while providing a functional solution.
Battery life
The extended operating range, with temperatures from -5 to 48 °C in cooling mode and -20 to 24 °C in heating mode, ensures reliable use throughout the year.
Features
The smartphone remote support is an asset for convenient control of the device, but the absence of an ionizer and specifications on seasonal efficiency (SEER and SCOP) limits the assessment of energy efficiency.
Robustness
Although the significant weight of the outdoor unit may ensure its robustness, it can also make installation more complex and require additional resources for transport.
Usability
The noise level of the outdoor unit is reasonable but may be considered high for some users, which could affect use in noise-sensitive residential environments.
Advantages
Energy optimization with integrated converter.
Modern and elegant design, white.
High capacity: 45,000 W cooling.
Powerful heating: 50,400 W.
Operating range from -5 to 48 °C.
Reliable use from -20 to 24 °C.
Remote control via smartphone.
Disadvantages
No multi-split feature.
Absence of ionizer for air quality.
Seasonal efficiency not specified.
External noise considered high.
Complex installation due to weight.
Technical Specifications AM160FXVAGH
General Information
-
ModelAM160FXVAGH
-
Brand
-
Category
-
Type
-
SKU1231794
-
MPN1231794
Features
-
Multi split-
-
Ionizer-
-
Seasonal performance rating (cooling) (SEER)-
-
Seasonal performance rating (heating) (SCOP)-
-
Seasonal efficiency rate (heating) (SCOP) (warmest heating season)-
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)-
-
Seasonal efficiency class (heating) (heating season)-
-
TypeAir conditioning outdoor unit
-
Product colorWhite
-
Air conditioning functionsCooling, Fan, Heating
-
Remote smartphone supportYes
-
Energy efficiency of the cooling system4.09
-
Energy efficiency of the heating system4.35
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Cooling capacity in Watts (max)45000 W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in Watts (max)50400 W
-
Refresh rate (nominal)153500 BTU/h
-
Heat capacity (nominal)170600 BTU/h
-
Medium refrigerationR410A
-
Average refrigeration weight7400 g
-
Pipe length (max)200 m
-
Gas pipe diameter28.58 mm
-
Liquid pipe diameter12.7 mm
-
Remote smartphone supportYes
-
Operating temperature (cooling) (T-T)-5 - 48 °C
-
Operating temperature (heating) (T-T)-20 - 24 °C
Network
-
Wifi-
Power
-
Energy efficiency class (cooling)-
-
Energy efficiency class (heating) (SCOP) (warmer heating season)-
-
Energy efficiency class (heating) (average of a heating season)-
-
Energy efficiency class (heating) (heating season)-
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Electricity Consumption (cooling) (max)11000 W
-
Electricity Consumption (heating) (max)11500 W
-
AC input frequency50 Hz
-
AC input voltage380 - 415 V
-
Design load (heating) (cold heating season)- kW
-
Design load (heating) (cold heating season)- kW
-
Design load (heating) (cold heating season)- kW
-
Design load (heating) (cold heating season)- kW
Indoor unit
-
Noise level of the indoor unit (high speed)- dB
Outdoor unit
-
Noise level of the outdoor unit63 dB
-
Sound power level of the outdoor unit83 dB
-
Air cooling (outdoor unit)260 m³/h
-
Height of the outdoor unit1695 mm
-
Depth of the outdoor unit765 mm
-
Width of the outdoor unit1295 mm
-
Weight of the outdoor unit278000 g
-
Weight of the outer unit packaging297000 g
-
Height of the outer unit packaging1887 mm
-
Depth of the outdoor unit packaging832 mm
-
Width of the outer unit packaging1363 mm
Frequently Asked Questions
What is the BTU?
What is R-410A?
How often should I clean the filters of my Samsung air conditioner?
What is the energy rating of the Samsung AM160FXVAGH?
Is the user manual for the Samsung AM160FXVAGH available in French?
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product AM160FXVAGH specifications from brand Samsung
General Information
The model Samsung AM160FXVAGH, offered by the renowned brand Samsung, stands out for its reputation for innovation and quality in the home appliance sector. This air conditioner is designed to provide superior performance and an optimized user experience.
Features
This model is an island-type air conditioner, combining functionality and aesthetics for a harmonious interior layout. Its modern white color easily integrates into various decor styles. The Samsung AM160FXVAGH offers cooling and heating features, ensuring comfort throughout the year.
It is equipped with inverter technology, which optimizes energy consumption, thereby improving its efficiency in both heating and cooling modes. However, it is important to note that it does not have the Multi split feature, which may limit its use in large spaces requiring multiple indoor units.
In terms of performance, the air conditioner offers a maximum cooling capacity of 45,000 W and a maximum heating capacity of 50,400 W, ensuring optimal comfort even under extreme weather conditions. Its operating range extends from -5 to 48 °C for cooling and from -20 to 24 °C for heating, allowing for reliable use throughout the year.
The model does not include an ionizer, which could affect indoor air quality, and the seasonal efficiency ratings (SEER and SCOP) are not specified, making it difficult to assess its energy efficiency. The noise level of the outdoor unit is 63 dB, which may be perceived as high in residential environments.
Network
The Samsung AM160FXVAGH is also equipped with a wifi feature, allowing for fast and reliable wireless connectivity for remote control.
Power
This air conditioner has high energy efficiency, both in cooling and heating modes, although specific energy efficiency classes are not provided. It consumes up to 11,000 W in cooling mode and 11,500 W in heating mode. The AC input frequency is 50 Hz with an input voltage of 380 - 415 V, ensuring compatibility with standard electrical systems.
Indoor Unit
The noise level of the indoor unit is also a consideration, although it is not specified, it is designed to ensure acoustic comfort during use.
Outdoor Unit
The outdoor unit is designed for efficient and discreet operation, with a sound power level of 83 dB and an air flow rate of 260 m³/h, ensuring optimal air circulation. Its dimensions are suitable for easy installation: height of 1695 mm, depth of 765 mm, and width of 1295 mm. The weight of the outdoor unit is 278 kg, which may require additional resources for installation.
In summary, the Samsung AM160FXVAGH is a high-performing air conditioner with modern features, although it has some limitations regarding the Multi split functionality and the absence of an ionizer.
