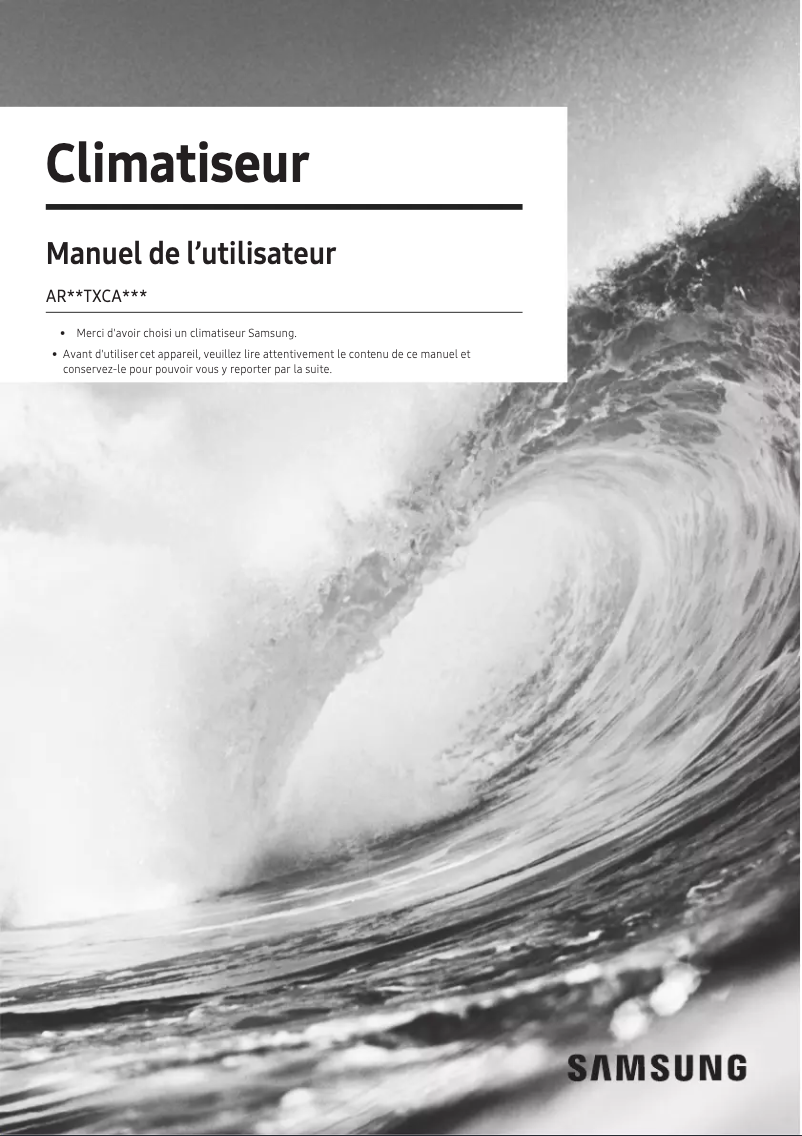

Manuals of product AR12TXCAAWKNEU
Editorial note
The Samsung AR12TXCAAWKNEU stands out for its solid performance, offering a cooling capacity of 3500 W and heating of 4000 W, thus ensuring optimal comfort throughout the year. Its energy efficiency is also remarkable, with a SEER of 8.5 and a SCOP of 5.1, allowing users to save on their energy bills. In terms of design, this device features an elegant white finish that harmoniously integrates into various interior styles. Additionally, modern features such as the comfort sleep mode and the remote control enhance the user experience, making the system easy to use. However, some drawbacks must be taken into account. The Samsung AR12TXCAAWKNEU does not have an ionizer function, which could limit air purification compared to other competing models. Furthermore, while the indoor unit's noise level is relatively low (16 dB), the outdoor unit can reach 62 dB, which could be perceived as disturbing in quiet residential environments. This model being a Mono split system, it cannot be used for multiple rooms simultaneously, thus limiting its flexibility of use. Overall, the product benefits from a good support rating, with comprehensive documentation, although improvements in clarity could be considered. In summary, the Samsung AR12TXCAAWKNEU is a good choice for those looking for an efficient and aesthetic air conditioning system, while being aware of the limitations in air purification and noise.Score details
User experience
Modern features such as the comfort sleep mode and remote control make it easy to use, thus optimizing user comfort.
Performance
With a cooling capacity of 3500 W and heating of 4000 W, this model ensures optimal comfort throughout the year.
Design
The elegant and modern design in white harmoniously integrates into various interior styles.
Value for money
The high energy efficiency, with a SEER of 8.5 and SCOP of 5.1, allows for savings on energy bills.
Robustness
Although robust, the lack of certain advanced features may reduce the perceived durability of the product.
Usability
The reduced noise level of 16 dB in cooling mode ensures discreet operation, but the noise from the outdoor unit can reach 62 dB, which could be disturbing.
Features
The absence of an ionizer function and advanced features like motion detection limits air purification and overall comfort.
Support
Documents available such as the user manual and technical sheet, providing good support for users.
Documentation
The provided documentation is comprehensive, with 72 pages, but could be improved in terms of clarity and accessibility.
Advantages
Cooling 3500 W, heating 4000 W
Energy efficiency: SEER 8.5, SCOP 5.1
Comfort standby mode and remote control included
Silent operation: 16 dB in cooling mode
Modern and elegant design in white
Disadvantages
No ionizer function for purification.
Noisy outdoor unit up to 62 dB.
Mono split system, limited use to one room.
Lack of advanced features.
Heating capacity not specified.
Technical Specifications AR12TXCAAWKNEU
General Information
-
ModelAR12TXCAAWKNEU
-
Brand
-
Category
-
Type
-
SKU1221352
-
MPN1221352
Features
-
Seasonal efficiency class (heating) (heating season)-
-
Ionizer-
-
Cooling capacity in watts (nominal)3500 W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (average of a heating season)4000 W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Seasonal performance rating (cooling) (SEER)8.5
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)5.1
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)5.1
-
Dehumidification capacity1.5 l/h
-
TypeSharing system
-
Multi splitNo
-
Product colorWhite
-
Air conditioning functionsCooling, Dehumidifying, Fan, Heating
-
Air filterYes
-
Air filterYes
-
Seasonal efficiency rate (heating) (SCOP) (warmest heating season)5.7
-
Air filterYes
-
Air filterYes
-
Display of maximum duration24 h
-
Medium refrigerationR32
-
Air filterYes
-
Air filterYes
-
Pipe length (max)15 m
-
Gas pipe diameter9.52 mm
-
Liquid pipe diameter6.35 mm
-
Air filterYes
-
Air filterYes
-
Operating temperature (cooling) (T-T)-10 - 46 °C
-
Operating temperature (heating) (T-T)-15 - 24 °C
-
Heat capacity (nominal)12000 BTU/h
-
Heat capacity (nominal)12000 BTU/h
-
Suitable for a room up to40 m²
-
Type of dual-flow systemMono split
Indoor unit
-
Type of indoor unitWall mounting
-
Noise level of the indoor unit (low speed)16 dB
-
Noise level of the indoor unit (high speed)40 dB
-
Quantity interior units1
-
Air cooling (indoor unit)726 m³/h
-
Sound power level of the indoor unit58 dB
-
Width of the inner unit889 mm
-
Depth of the indoor unit215 mm
-
Height of the indoor unit299 mm
-
Weight of the indoor unit10600 g
-
Width of the inner unit packaging950 mm
-
Depth of the indoor unit packaging290 mm
-
Height of the indoor unit packaging375 mm
-
Weight of the inner unit packaging12700 g
Outdoor unit
-
Noise level of the outdoor unit46 dB
-
Quantity outdoor units1
-
Sound power level of the outdoor unit62 dB
-
Width of the outdoor unit790 mm
-
Depth of the outdoor unit285 mm
-
Height of the outdoor unit548 mm
-
Weight of the outdoor unit32500 g
-
Width of the outer unit packaging913 mm
-
Depth of the outdoor unit packaging371 mm
-
Height of the outer unit packaging622 mm
-
Weight of the outer unit packaging34800 g
Power
-
Energy efficiency class (heating) (heating season)-
-
Hourly energy consumption (cooling)0.89 kWh
-
Hourly energy consumption (heating)0.94 kWh
-
Current (cooling)3.95 A
-
Current (heating)4.26 A
-
Energy efficiency class (cooling)A+++
-
Energy efficiency class (cooling)A+++
-
Annual energy consumption (cooling)144 kWh
-
Annual energy consumption (heating) (milder heating season)319 kWh
-
Annual energy consumption (heating) (average of a heating season)659 kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Energy efficiency rangeA+++ to D
-
Nominal load (cooling)3.5 kW
-
Nominal load (heating) (milder heating season)1.3 kW
-
Nominal load (heating) (average heating season)2.4 kW
-
Design load (heating) (cold heating season)- kW
-
AC input voltage220 - 240 V
-
AC input frequency50 Hz
-
Energy efficiency class (cooling)A+++
Network
-
WifiYes
Packaging contents
-
Remote control providedYes
Frequently Asked Questions
What is the BTU?
What does R-410A represent?
How often should I clean the filters of my Samsung air conditioner?
What is the energy rating of the Samsung AR12TXCAAWKNEU?
How can I adjust the temperature of my Samsung AR12TXCAAWKNEU air conditioner?
How do I select a specific mode on my Samsung AR12TXCAAWKNEU air conditioner?
How do I adjust the fan speed on my Samsung AR12TXCAAWKNEU air conditioner?
How do I activate the night mode on my Samsung AR12TXCAAWKNEU air conditioner?
How do I change the direction of the airflow on my Samsung AR12TXCAAWKNEU air conditioner?
What is the cooling capacity of the Samsung AR12TXCAAWKNEU?
What is the heating capacity of the Samsung AR12TXCAAWKNEU?
What is the seasonal energy efficiency ratio (cooling) of the Samsung AR12TXCAAWKNEU?
What is the seasonal performance factor (heating) of the Samsung AR12TXCAAWKNEU?
What is the noise level of the indoor unit of the Samsung AR12TXCAAWKNEU in low-speed mode?
Is the manual for the Samsung AR12TXCAAWKNEU available in French?
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product AR12TXCAAWKNEU specifications from brand Samsung
General Information
The model Samsung AR12TXCAAWKNEU is an air conditioning unit from the renowned brand Samsung, known for its innovations and quality in the home appliance sector. This model, identified by the EAN code 8806090378881, is designed to provide optimal cooling and heating performance, ensuring comfort throughout the year.
Features
With a cooling capacity of 3500 W, the Samsung AR12TXCAAWKNEU effectively maintains a pleasant temperature in your space. For heating, it has a nominal capacity of 4000 W, ensuring comfortable warmth during the cold seasons. The unit is also rated with a seasonal cooling efficiency of 8.5 (SEER) and a seasonal heating efficiency of 5.1 (SCOP), making it an energy-efficient choice.
The dehumidification capacity of 1.5 l/h helps maintain a healthy indoor environment. Its monobloc design in white allows it to blend harmoniously into various interior decors. Although it does not feature ionizer technology, it offers reliable cooling and heating functions. Additionally, the comfort standby mode optimizes usage while conserving energy.
Indoor Unit
This air conditioning unit features a wall-mounted indoor unit, with a minimum noise level of 16 dB, ensuring quiet operation. With an air circulation of 726 m³/h, it guarantees optimal thermal comfort. The dimensions of the indoor unit are 889 mm in width, 215 mm in depth, and 299 mm in height, with a weight of 10.6 kg.
Outdoor Unit
The outdoor unit operates at a sound level of 46 dB, allowing for discreet installation. Its dimensions are 790 mm in width, 285 mm in depth, and 548 mm in height, with a weight of 32.5 kg. This ensures optimal performance while minimizing noise disturbances.
Power
The hourly energy consumption is 0.89 kWh in cooling mode and 0.94 kWh in heating mode. The unit operates with an input voltage of 220 - 240 V and a frequency of 50 Hz, ensuring compatibility with standard electrical installations. The energy efficiency class is rated A+++, indicating optimal and economical performance.
Network
The Samsung AR12TXCAAWKNEU is equipped with Wi-Fi functionality, allowing for quick wireless connection for easier control.
Package Contents
This model comes with a remote control, providing additional convenience for use.
