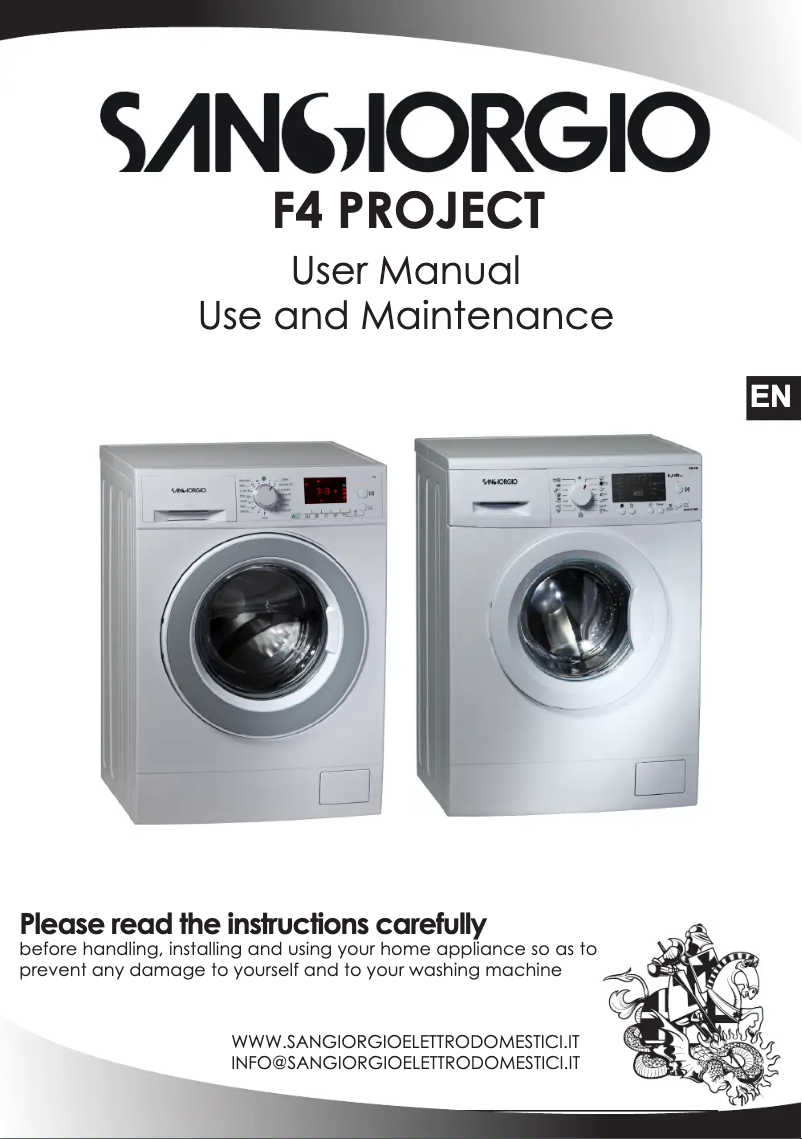

Manuals of product F814DISC
Editorial note
The SanGiorgio F814DISC washing machine stands out with its 8 kg washing capacity, ideal for families, allowing for large amounts of laundry to be handled at once. Its integrated LED screen offers a clear and intuitive interface, making it easy to select from the 19 varied washing programs suitable for all types of textiles. Additionally, its maximum spin speed of 1400 rpm ensures well-spun laundry, thus reducing drying time. The modern and elegant design in silver color harmoniously fits into various interior decoration styles, adding a contemporary touch to your space. However, some drawbacks are worth mentioning. The energy efficiency class D may not be suitable for environmentally conscious users, leading to higher energy consumption in the long run. Furthermore, the spin noise level of 79 dB may be perceived as bothersome in quiet environments. The lack of a load balancing system could result in excessive vibrations during spin cycles, thus impacting user comfort. Finally, while the weight of 70 kg ensures robustness, it complicates the installation and movement of the appliance, especially in tight spaces. Overall, the user experience is positive, supported by a good value for money, despite some limitations. The available documents, such as the user manual and the technical sheet, provide good support for users, thus facilitating the handling of this appliance.Score details
User experience
The user experience is very positive thanks to the integrated LED screen that offers a clear and intuitive interface, making it easy to select washing programs.
Performance
The performance is satisfactory with a washing capacity of 8 kg and a maximum spin speed of 1400 rpm, although the energy efficiency class D may be a downside for some users.
Design
The modern and elegant design in silver color fits harmoniously into various interior decoration styles.
Value for money
The value for money is fair considering the 19 varied washing programs, although the lack of a load balancing system may affect the user experience.
Usability
The use is generally easy, but the weight of 70 kg can complicate the installation and movement of the machine, especially in tight spaces.
Robustness
The robustness is satisfactory, but the absence of a load balancing system can lead to excessive vibrations during spin cycles.
Support
The available documents, such as the user manual and technical sheet, are helpful and provide good support for users.
Documentation
The documentation is comprehensive with 43 pages, offering detailed information on the use and maintenance of the device.
Advantages
8 kg capacity for large families
Clear and intuitive LED display
19 varied washing programs
Spin speed of 1400 rpm for dry laundry
Delay start for more flexibility
Modern design in silver color
Disadvantages
Energy efficiency rated D
High spin noise level (79 dB)
No load balancing system
Weight of 70 kg, difficult to move
Potentially insufficient washing programs
Technical Specifications F814DISC
General Information
-
ModelF814DISC
-
Brand
-
Category
-
Type
-
SKU1955411
-
MPN1955411
Design
-
Device placementFree pose
-
Loading typeFront load
-
Product colorMoney
-
Converter technologyYes
-
Screen typeLED
-
Order typeButtons, Rotary
-
Hinge location of doorLeft
-
Opening the doorSide opening
-
Color of the doorBlack
-
Type of doorTempered glass
-
Drum typePearl
-
Converter technologyYes
-
Door opening angle160 °
-
Drum volume56 L
Representation / realization
-
AquaStop function-
-
Nominal capacity8 kg
-
Maximum spin speed1400 rpm
-
Spin efficiency classB
-
Number of washing programs19
-
Sound emission classC
-
Noise level (spin)79 dB
-
Noise level (washing)- dB
-
Detachment optionYes
-
Detachment optionYes
-
Cycle duration (max)224 min
-
Washing programsColour, Cotton, Delicate/silk, Eco, Hygiene/anti-allergy, Intensive/outdoor, Jeans/denim, Pre-wash, Quick 30°C, Rinse, Spin, Sport, Synthetics, Wool
-
Detachment optionYes
-
Detachment optionYes
-
Detachment optionYes
-
Detachment optionYes
-
Detachment optionYes
-
Detachment optionYes
-
Detachment optionYes
Ergonomics
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
-
Sound alarmYes
Power
-
Energy efficiency classD
-
Energy efficiency rangeA to G
-
Energy consumption per 100 cycles72 kWh
-
Energy consumption per wash0.71 kWh
-
Water consumption per cycle42 L
-
Electricity consumption (stop)0.09 W
-
Energy consumption (standby mode)0.36 W
-
Electricity consumption (residual)2.8 W
-
AC input voltage220-240 V
-
AC input frequency50 Hz
-
Current10 A
-
Connected charge2200 W
Weight and dimensions
-
Door diameter480 mm
-
Width600 mm
-
Depth560 mm
-
Height840 mm
-
Weight70000 g
Packaging information
-
Package height850 mm
-
Package width630 mm
-
Package depth590 mm
-
Package weight71000 g
Sustainability
-
Sustainability certificatesVDE
Frequently Asked Questions
What temperature should I use to wash my clothes?
Is it necessary to use a descaling product for my washing machine?
How can I avoid bad odors in my washing machine?
What is the weight of the SanGiorgio F814DISC?
What is the height of the SanGiorgio F814DISC?
What is the width of the SanGiorgio F814DISC?
What is the depth of the SanGiorgio F814DISC?
What is the energy rating of the SanGiorgio F814DISC?
Is the manual for the SanGiorgio F814DISC available in French?
Similar products
More product categories from brand SanGiorgio
More product types from brand SanGiorgio
Presentation of product F814DISC specifications from brand SanGiorgio
General Information
The SanGiorgio F814DISC model, from the renowned brand SanGiorgio, stands out for its quality and innovations in the home appliance sector. This model is designed to offer optimal performance and an enriching user experience. The EAN code, 8033675153841, allows for unique identification within distribution systems.
Design
The SanGiorgio F814DISC features an integrated design, promoting efficient use while preserving the aesthetics of your space. With a front loading system, this appliance is designed to maximize available space. Its silver finish gives it a modern look. It is equipped with an LED screen, ensuring a clear and intuitive interface for program selection. The controls, consisting of buttons and a rotary selector, facilitate its use. The door, with a hinge located at the bottom and a side opening, allows for easy access. Additionally, the black door adds a touch of elegance. The Pearl type drum is not only innovative but also efficient, optimizing washing performance. The integrated inverter technology enhances energy conversion, and the 160° opening angle allows for optimal accessibility. With a drum volume of 56 L, this appliance can handle a large amount of laundry at once.
Performance
With a nominal capacity of 8 kg, the SanGiorgio F814DISC is ideal for families. Its maximum spin speed of 1400 rpm ensures well-spun laundry, reducing drying time. Rated B for spin efficiency, it guarantees good performance. The 19 washing programs offered adjust to various types of textiles, ensuring appropriate care for each item. Its spin noise level is 79 dB, suitable for most environments, although it may be perceived as loud in quiet spaces. The delayed start function allows you to schedule the machine's start at your convenience, adding flexibility to its use.
Ergonomics
The SanGiorgio F814DISC incorporates practical features such as child safety, auto-diagnosis to detect technical issues, and a filter cleanliness indicator. The remaining time indicator and program progress indicator enhance time management. The dosage assistant facilitates the correct dosing of laundry products, while the automatic lock ensures increased safety. The adjustable feet allow for height adjustment of the appliance for optimal comfort.
Consumption and Durability
Rated D for energy efficiency, the SanGiorgio F814DISC has an energy consumption of 72 kWh for 100 cycles and 0.71 kWh per wash, which may lead to higher electricity costs in the long run. Its water consumption is 42 L per cycle, optimizing resource use. The product is also equipped with sustainability certificates, ensuring it meets high standards for energy efficiency.
Dimensions and Weight
The dimensions of the SanGiorgio F814DISC are designed for optimal integration: 600 mm wide, 560 mm deep, and 840 mm high. The door diameter is 480 mm, facilitating access. With a weight of 70 kg, installation may be more complex, requiring special attention in tight spaces.
Packaging Information
The package dimensions are 850 mm high, 630 mm wide, and 590 mm deep, weighing 71 kg. These characteristics ensure adequate transport and storage.
