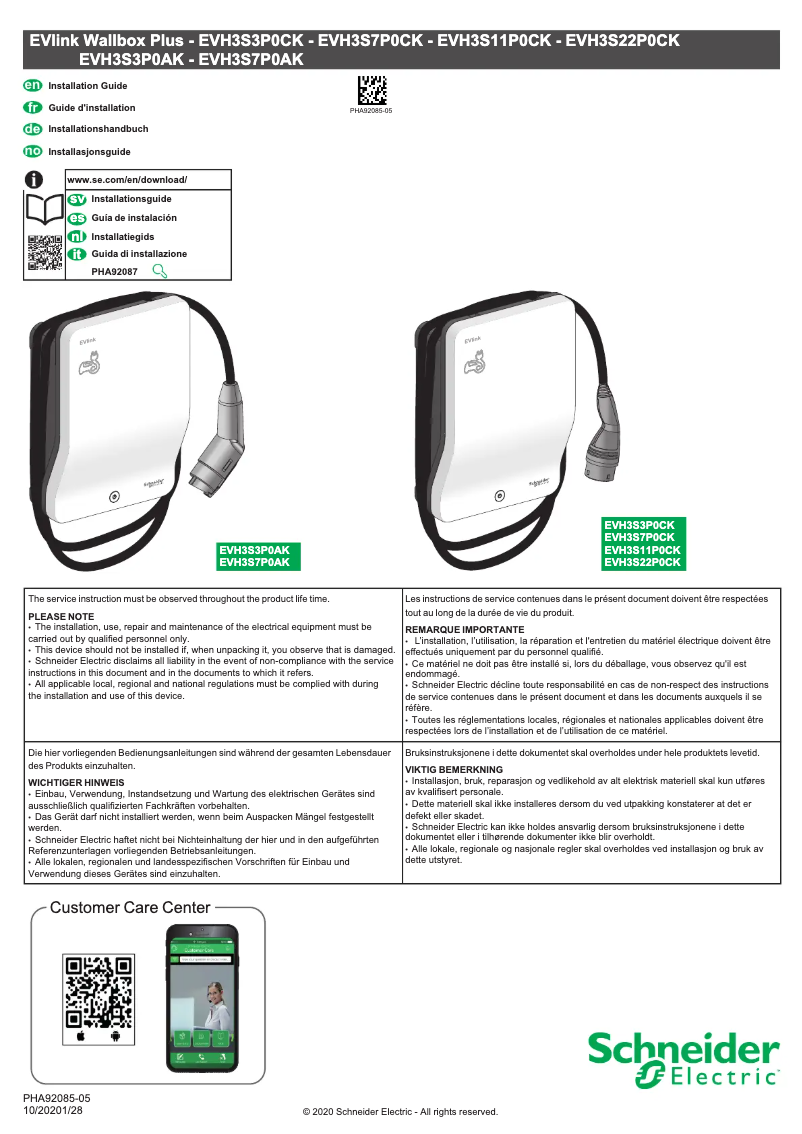

Manual of product EVH3S3P0AK
Editorial note
The Schneider EVH3S3P0AK is a product that stands out for its optimal performance, offering a maximum operating current of 16 A, ensuring safe and efficient use. Its robust design, with an IP54 protection rating and IK10 shock resistance, guarantees durability and reliability in various environments, which is essential for prolonged use. However, it has some drawbacks. Its maximum power of 3.7 kW may prove insufficient for certain devices requiring a higher load, thus limiting its use in some situations. Additionally, while the built-in screen is an asset, it could become a potential point of failure, compromising the device's reliability. Its weight of 7600 g may also make installation or relocation more difficult, especially for those seeking a lighter solution. The integrated 4 m charging cable offers some flexibility, but it may not be sufficient for installations in larger spaces. Finally, while its modern design in gray and white is appealing, it may not suit all decors, limiting aesthetic integration options. Overall, the product complies with safety and durability standards, which reassures its use. However, it is important to consider its limitations to ensure it meets the specific needs of each user.Score details
User experience
The user experience is generally positive, with a built-in screen that facilitates use, although it could be a potential failure point.
Performance
The product offers optimal performance with a maximum operating current of 16 A, but its maximum power of 3.7 kW may be insufficient for some devices requiring a higher charge.
Robustness
The product features a robust design with an IP54 protection rating and IK10 shock resistance, ensuring durability and reliability in various environments.
Usability
The integrated 4 m charging cable offers flexibility and convenience, but may not be sufficient for installations in larger spaces.
Design
Although the gray and white design is modern, it may not suit all decors, limiting aesthetic integration options.
Value for money
The product meets safety standards, but its weight of 7600 g may make installation or relocation more difficult, especially for users looking for a lightweight solution.
Advantages
Maximum current of 16 A, safe use
Compliant with IEC 61851-1 and RoHS standards
IP54 protection rating, robust and durable
Integrated 4 m charging cable
Use between -30 and 50 °C
Disadvantages
Maximum power of 3.7 kW limited
Built-in screen, potential failure risk
Weight of 7600 g, difficult to move
4 m charging cable insufficient
Gray and white color not very adaptable
Technical Specifications EVH3S3P0AK
General Information
-
ModelEVH3S3P0AK
-
Brand
-
Category
-
Type
-
SKU1664498
-
MPN1664498
Power
-
Maximum operating current per phase16 A
-
Maximum operating current (single-phase)3.7 kW
-
Number of phases1
-
Single-phase output voltage supported220,240 V
Features
-
Quantity1 piece(s)
-
Vehicle connection sheetType 1
-
Power supply typeSector
-
Supported grounding systemIT, TN-S, TT
-
Quantity of sockets1
-
CertificationIEC 61851-1
-
International Protection Code (IP)IEC 61851-22
-
Code for protection against mechanical impactIEC 62196-1
-
IEC 62196-2
-
CB
-
IP54
-
IK10
Design
-
Material of the case/body-
-
Built-in screen-
-
Case colorGrey
-
Mounting typeWhite
-
Integrated charging cableWall
-
Cable colorYes
-
Black
Technical details
-
Compliance with sustainabilityYes
-
Does not containMercury
-
Sustainability certificatesCE, REACH, RoHS
Weight and dimensions
-
Length of the charging cable4 m
-
Width330 mm
-
Depth170 mm
-
Height480 mm
-
Weight7600 g
-
Package weight8800 g
-
Package width395 mm
-
Package depth534 mm
-
Package height250 mm
Environmental conditions
-
Operating temperature-30 - 50 °C
-
Temperature out of operation-40 - 80 °C
-
Operating relative humidity (H-H)5 - 95 %
Frequently Asked Questions
What is the weight of the Schneider EVH3S3P0AK?
What certifications does the Schneider EVH3S3P0AK have?
What is the height of the Schneider EVH3S3P0AK?
What are the width dimensions of the Schneider EVH3S3P0AK?
What is the depth of the Schneider EVH3S3P0AK?
Is the manual for the Schneider EVH3S3P0AK available in French?
Similar products
More product categories from brand Schneider
More product types from brand Schneider
Presentation of product EVH3S3P0AK specifications from brand Schneider
General Information
The product Schneider EVH3S3P0AK is designed by the renowned brand Schneider, known for its commitment to quality and innovation in the home appliance sector. This model, designated as EVH3S3P0AK, promises high-level performance while providing an optimized user experience.
Power
The Schneider EVH3S3P0AK operates with a maximum current of 16 A per phase, ensuring safe and efficient use. Its maximum power is limited to 3.7 kW, which defines the electrical capacity it can support. This device is designed to operate in single-phase mode with an output voltage of 220-240 V, ensuring compatibility with standard electrical systems.
Features
This product is delivered in one single unit, specifying the number of included elements. It is equipped with a Type 1 connection plug, essential for optimal charging. The Schneider EVH3S3P0AK uses a mains power supply and is compatible with grounding systems IT, TN-S, TT. Additionally, it is certified according to several safety standards, including IEC 61851-1, IEC 61851-22, IEC 62196-1, IEC 62196-2, and has an IP54 protection rating, ensuring good resistance to moisture and solid bodies. Its shock resistance is certified by an IK10 code, providing durability and reliability even in harsh environments.
Design
The casing of the Schneider EVH3S3P0AK comes in gray and white colors, giving it a modern and robust appearance. Its wall-mounted design facilitates installation, while the integrated screen offers a practical user interface. This model also includes a 4 m charging cable, allowing flexibility when charging devices. The color of the cable is black, ensuring aesthetic integration in various environments.
Technical Details
In terms of durability, the Schneider EVH3S3P0AK complies with environmental standards, ensuring a reduced impact. It is free of mercury, making it safe for the user. The obtained sustainability certificates include CE, REACH, RoHS, attesting to its energy efficiency and compliance with ecological standards.
Weight and Dimensions
The dimensions of the Schneider EVH3S3P0AK are as follows: 330 mm wide, 170 mm deep, and 480 mm high, allowing for easy integration into various spaces. Its weight is 7600 g, facilitating its use while remaining robust enough for prolonged use. The package weighs 8800 g and has dimensions of 395 mm wide, 534 mm deep, and 250 mm high, ensuring adequate protection during transport.
Environmental Conditions
This product operates within a temperature range of -30 to 50 °C, allowing it to adapt to various environments. Outside of its operation, it can withstand temperatures between -40 and 80 °C without suffering damage. A relative humidity of operation of 5 to 95 % is also supported, ensuring optimal operation in a wide range of ambient humidity levels.
