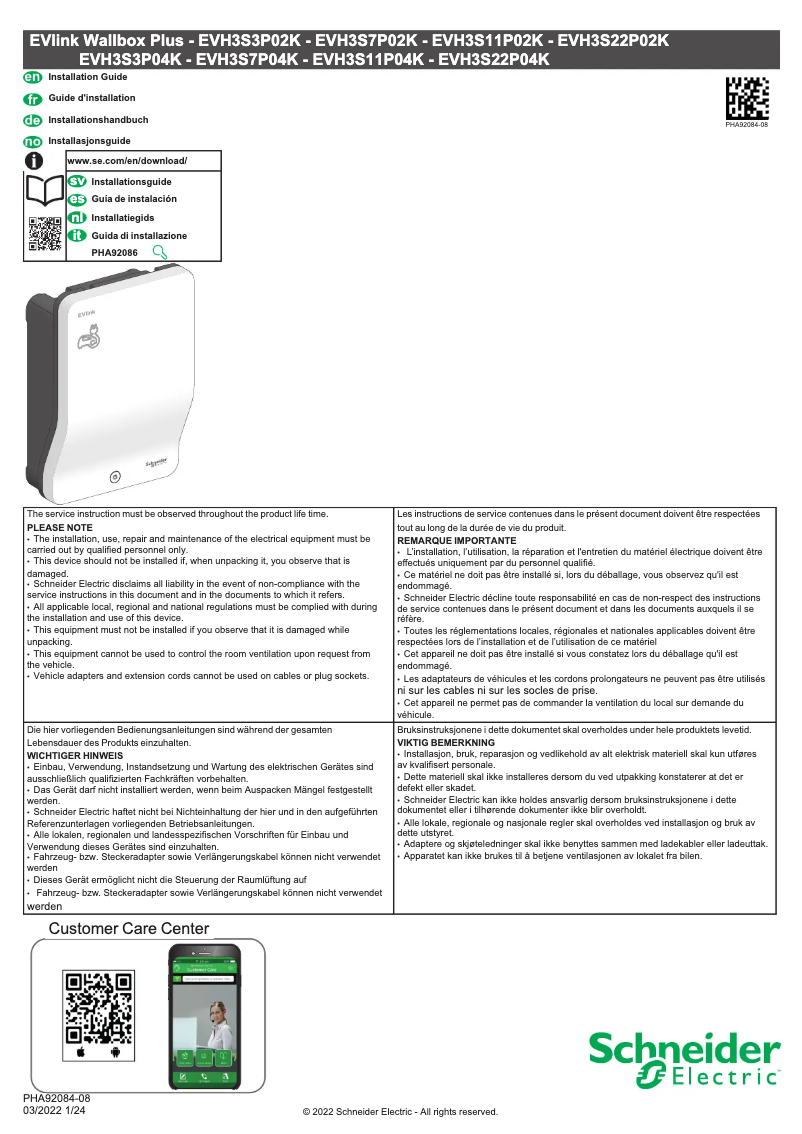

Manual of product EVlink Wallbox Plus EVH3S3P02K
Editorial note
The Schneider EVlink Wallbox Plus EVH3S3P02K stands out for its high charging performance, offering a maximum power of 7400 W that allows for fast and efficient recharging of electric vehicles. Its robust and elegant design, with an IP54 protection rating, ensures adequate protection against dust and moisture, making this model suitable for various environments. Another strong point is its ability to operate in extreme conditions, with an operating temperature range from -30 to 50 °C, which ensures reliability even in challenging weather situations. Additionally, its installation is facilitated by a wall-mounted design, thus optimizing the available space. However, some aspects may pose a problem. Weighing 5700 g, handling and installation can be complicated, especially for one person. Furthermore, while the charging power is satisfactory for most users, it may not be suitable for those with vehicles requiring higher power. Additionally, the IP54 protection may limit its use in very humid environments or those exposed to significant water splashes. Finally, the reputation of the Schneider brand, known for its quality and innovation, ensures an enhanced user experience. However, it is important to consider these drawbacks before making a choice, particularly regarding the installation location and charging power requirements.Score details
Performance
The charging performance is high with a maximum power of 7400 W, allowing for fast and efficient recharging of electric vehicles.
Design
The design is robust and elegant, with an IP54 protection rating that ensures optimal protection against dust and moisture.
Robustness
The product is capable of operating in extreme conditions, with an operating temperature ranging from -30 to 50 °C, thus ensuring reliability in various environments.
Usability
Installation is easy and quick thanks to its wall-mounted design, optimizing space while providing practical use, although the weight of 5700 g may complicate handling.
Value for money
Although the maximum charging power is satisfactory for many users, it may not be sufficient for some electric vehicles requiring higher power.
Support
The Schneider brand is recognized for its quality and innovation, thus providing an enhanced user experience and optimal performance.
Features
The IP54 protection, while adequate, may limit use in very humid environments or those exposed to significant water splashes.
Advantages
Fast charging up to 7400 W
IP54 protection against dust and moisture
Operates from -30 to 50 °C
Easy and quick wall installation
Recognized brand for quality and innovation
Disadvantages
Weight of 5700 g, difficult to handle
Charging power limited to 7400 W
IP54 protection, not ideal for humidity
Wall mounting requires a specific location
Reduced efficiency at very low temperatures
Technical Specifications EVlink Wallbox Plus EVH3S3P02K
General Information
-
ModelEVLINK WALLBOX PLUS EVH3S3P02K
-
Brand
-
Category
-
Type
-
SKU1808394
-
MPN1808394
Weight and dimensions
-
Height480 mm
-
Width331.5 mm
-
Package depth395 mm
-
Package width534 mm
-
Package weight8800 g
-
Depth170 mm
-
Weight5700 g
-
Package height250 mm
Power
-
Number of phases1
-
Maximum loading power7400 W
Environmental conditions
-
Temperature out of operation-40 - 80 °C
-
Operating temperature-30 - 50 °C
-
Operating relative humidity (H-H)5 - 95 %
Design
-
Case colorGrey
-
Mounting typeWhite
-
Wall
Features
-
International Protection Code (IP)IP54
-
Quantity1 piece(s)
-
Power supply typeSector
Frequently Asked Questions
What is the weight of the Schneider EVlink Wallbox Plus EVH3S3P02K model?
What is the height of the Schneider EVlink Wallbox Plus EVH3S3P02K model?
What is the width of the Schneider EVlink Wallbox Plus EVH3S3P02K model?
What is the depth of the Schneider EVlink Wallbox Plus EVH3S3P02K model?
Is the user manual for the Schneider EVlink Wallbox Plus EVH3S3P02K available in French?
Similar products
More product categories from brand Schneider
More product types from brand Schneider
Presentation of product EVlink Wallbox Plus EVH3S3P02K specifications from brand Schneider
General Information
The Schneider EVlink Wallbox Plus EVH3S3P02K is a charging device for electric vehicles, designed by the brand Schneider, known for its commitment to quality and innovation in the home appliance sector. This model ensures high performance and an optimal user experience, making electric vehicle charging more accessible and efficient.
Weight and Dimensions
With a height of 480 mm, a width of 331.5 mm, and a depth of 170 mm, the Schneider EVlink Wallbox Plus easily integrates into various environments. The package has dimensions of 534 mm in width, 395 mm in depth, and 250 mm in height, weighing 8800 g in total. The weight of the product itself is 5700 g, allowing for reasonable handling, although assistance may be required during installation.
Power
This model operates on 1 phase and offers a maximum charging power of 7400 W. This capacity ensures fast and efficient charging, although some users of vehicles requiring higher power may find this limiting.
Environmental Conditions
The Schneider EVlink Wallbox Plus is designed to operate within a temperature range of -30 to 50 °C and can withstand non-operating temperatures of -40 to 80 °C. With a relative humidity of operation between 5 and 95 %, this device is suitable for various environments, ensuring its reliability even in extreme conditions.
Design
The casing of the Schneider EVlink Wallbox Plus features a gray and white finish, providing a modern and robust touch. Designed for wall mounting, it facilitates installation and optimizes space usage, which is particularly useful in confined environments.
Features
This model has an IP54 protection rating, offering adequate protection against dust and moisture. The product is sold as 1 piece and operates with mains power, ensuring consistent and efficient performance.
