Editorial note
The Smeg PL292DB dishwasher stands out for its integrated and customizable design, allowing for aesthetic harmonization with your interior while optimizing space. Its ergonomic features, such as adjustable feet and adjustable baskets, contribute to an overall positive user experience. Additionally, with a capacity of 13 place settings and several washing programs, this model adapts to various needs, thus offering good value for money. However, some aspects may detract from the overall experience. The energy efficiency class D is a weak point, potentially leading to higher energy costs in the long run. Furthermore, the cycle duration of 250 minutes may seem long for some users, which could slow down household task management. The lack of an automatic door opening feature may also make accessing the inside of the dishwasher less convenient. Finally, although the noise level of 49 dB is acceptable, it may be perceived as slightly loud in very quiet environments. Despite these drawbacks, safety features such as AquaStop technology and overflow protection add considerable value to this appliance. The available support documents, such as the user manual and the technical sheet, complete the package by providing a good level of support to users.Score details
User experience
The user experience is generally positive thanks to ergonomic features like adjustable feet and adjustable baskets, but the lack of an automatic door opening can detract from practicality.
Performance
The energy efficiency class D is a weak point, potentially leading to higher energy costs in the long term. Additionally, the cycle duration of 250 minutes is relatively long.
Battery life
Although the product is designed to optimize water and energy consumption, the D class may limit long-term savings.
Design
The integrated and customizable design is a major asset, allowing for aesthetic harmony with the interior while optimizing space.
Value for money
With a capacity of 13 place settings and several washing programs, the value for money is reasonable, although some users may find it insufficient for large families.
Features
Features such as AquaStop technology and overflow protection add considerable value in terms of safety, while the variety of washing programs meets the diverse needs of users.
Usability
Usability is facilitated by practical options, although the noise level of 49 dB may be bothersome in very quiet environments.
Support
The available documents, such as the user manual and technical data sheet, provide a good level of support for users.
Advantages
Integrated and customizable design for your interior.
Ergonomics with adjustable legs and baskets.
Capacity of 13 place settings, multiple programs.
AquaStop technology for leak protection.
Optimized water and energy savings.
Disadvantages
Energy efficiency D, high energy costs.
No automatic door opening.
Washing cycle of 250 minutes.
Noise level of 49 dB, slightly noisy.
Capacity of 13 place settings, insufficient for large families.
Technical Specifications PL292DB
General Information
-
ModelPL292DB
-
Brand
-
Category
-
Type
-
SKU1463374
-
MPN1463374
Design
-
Device placementSemi-integrated
-
Product sizeMaximum size (60 cm)
-
Self-balancing hingeYes
-
Color of the doorNot applicable
-
Control panel colorWhite
-
Order typeButtons
-
Self-balancing hingeYes
-
Self-balancing hingeYes
-
Self-balancing hingeYes
-
Cable length1.4 m
-
Number of steam baskets2 Number of baskets
-
Self-balancing hingeYes
-
Adjustable height upper basket3
-
Upper basket supportFixed
-
Maximum dish size (upper basket)250 mm
-
Maximum dish size (lower basket)300 mm
-
Cutlery compartment typeBasket
-
Self-balancing hingeYes
Ergonomics
-
Automatic door openingYes
-
Adjustment of the feet70 mm
-
Automatic door openingYes
-
Automatic door openingYes
-
Automatic door openingYes
-
Automatic door openingYes
Power
-

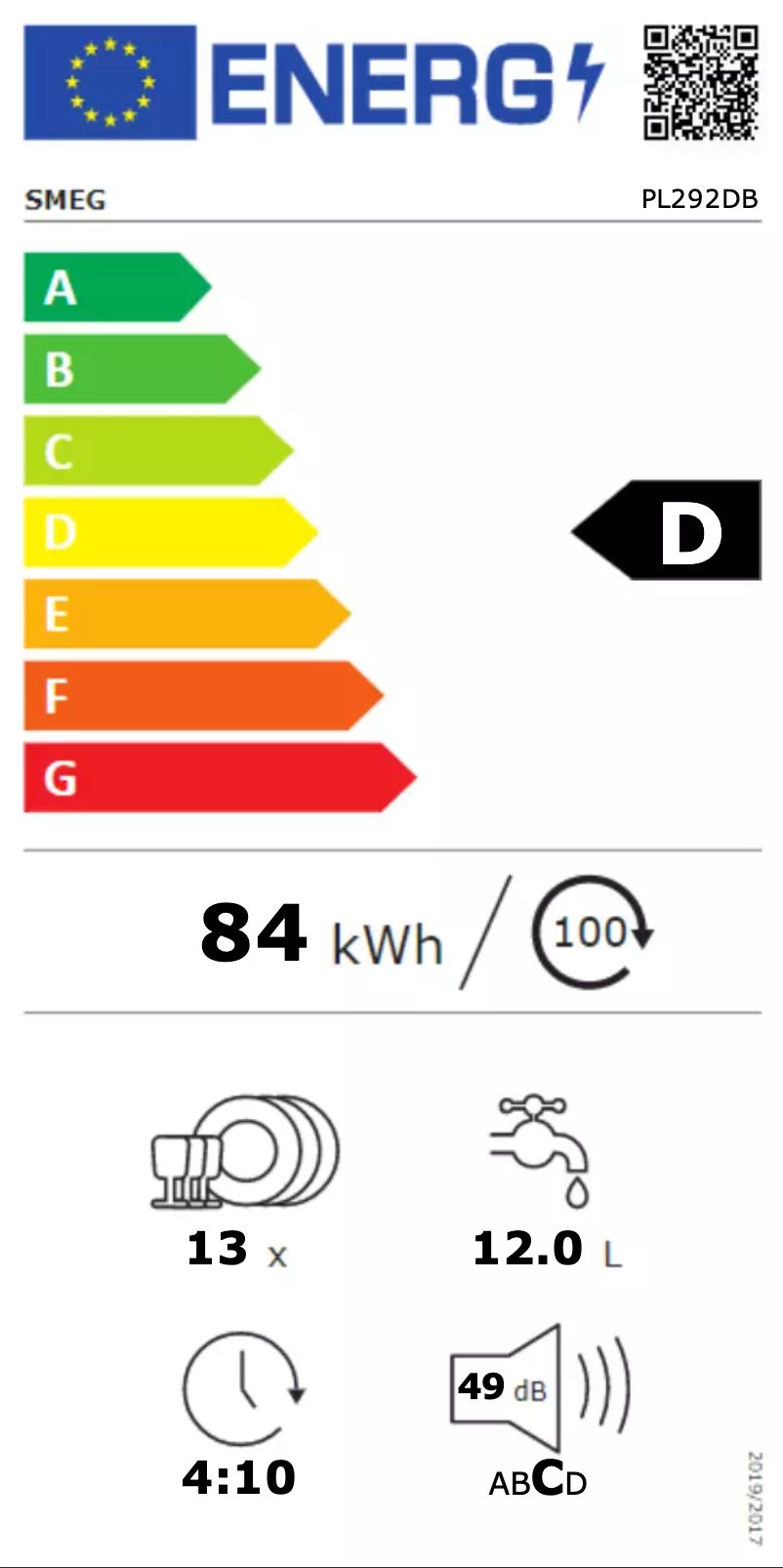

Energy efficiency classD
-
Energy efficiency rangeA to G
-
Energy consumption per cycle0.835 kWh
-
Water consumption per cycle12 L
-
Energy consumption per 100 cycles84 kWh
-
Connected charge1800 W
-
Electricity consumption (stop)0.5 W
-
AC input voltage220 - 240 V
-
AC input frequency50 Hz
-
Current10 A
Representation / realization
-
Number of covers13 place settings
-
Number of washing programs5
-
Sound emission classC
-
Sound level49 dB
-
Washing programsEco, Intensive, Mixed, Soak
-
Drying systemCondensation
-
Temperature (max)70 °C
-
Cycle duration250 min
-
Overflow protectionYes
-
Delayed departure9 h
-
Overflow protectionYes
-
Overflow protectionYes
-
Overflow protectionYes
-
Overflow protectionYes
-
Overflow protectionYes
Weight and dimensions
-
Width598 mm
-
Depth570 mm
-
Height818 mm
-
Installation compartment width600 mm
-
Installation compartment depth575 mm
-
The height of the installation compartments (min)820 mm
-
Depth when the door is open1146 mm
Frequently Asked Questions
What should I do if my dishwasher emits a bad smell?
Should I rinse the dishes before loading them into the dishwasher?
How much detergent should I use?
How do I add softening salt to my dishwasher?
What is the height of the Smeg PL292DB?
What is the width of the Smeg PL292DB?
What is the depth of the Smeg PL292DB?
What is the energy label of the Smeg PL292DB?
Is the manual for the Smeg PL292DB available in French?
Similar products
More product categories from brand Smeg
Household appliances Smeg
Home appliances Smeg
Interior Smeg
Other Smeg
Audio Smeg
More product types from brand Smeg
Presentation of product PL292DB specifications from brand Smeg
General Information
The Smeg PL292DB is a dishwasher from the Smeg brand, known for its commitment to innovation and quality in the home appliance sector. This model, identified by the EAN code 8017709307073, is designed to provide reliable performance and an enhanced user experience.
Design
Designed for integrated placement, the Smeg PL292DB has dimensions of 60 cm, perfect for fitting into various environments. Its custom panels, ready to use, allow for a unique touch in your kitchen. The dishwasher door features a neutral shade, while the control panel is white, bringing a modern aesthetic. The button controls and the integrated display make it easy to use. Additionally, it is equipped with a water softener to enhance comfort and durability of installations. Its hidden heating element ensures an aesthetic and safe use.
Ergonomics
The Smeg PL292DB is equipped with adjustable feet for easy adaptation to the desired height. It also includes a sound alarm to signal emergencies and a rinse indicator to simplify its use. The salt indicator allows monitoring of the salt level, although the lack of an automatic door opening requires manual handling for access inside.
Power
Rated in category D for energy efficiency, the Smeg PL292DB shows an energy consumption of 0.835 kWh per cycle and uses 12 L of water. Its energy consumption for 100 cycles is 84 kWh, with a connected load of 1800 W. In standby mode, it consumes only 0.5 W, and it operates with an input voltage of 220 - 240 V and a frequency of 50 Hz.
Capacity / Performance
This dishwasher can accommodate 13 place settings, making it suitable for family or friend meals. It offers 5 wash programs, including options like Eco, Intensive, Mixed, and Soak, ensuring optimal cleanliness for various types of dishes. Its drying system uses condensation to optimize the efficiency of the process. The maximum wash temperature reaches 70 °C, and the duration of a cycle is 250 minutes. The 9 h delayed start allows for flexible use, while the AquaStop feature prevents water leaks.
Weight and Dimensions
For optimal integration, the Smeg PL292DB measures 598 mm in width, 570 mm in depth, and 818 mm in height. The installation compartment requires a width of 600 mm and a depth of 575 mm, with a minimum height of 820 mm. When the door is open, the depth reaches 1146 mm, ensuring practical use of the appliance.
