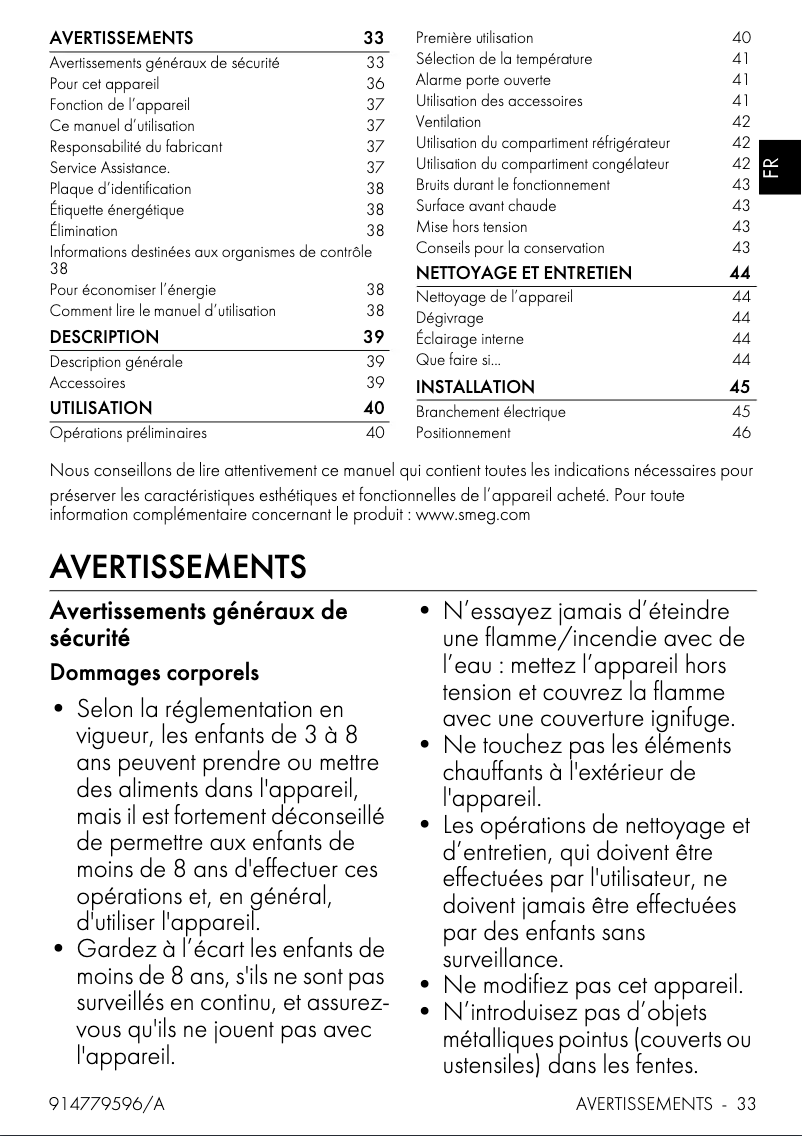

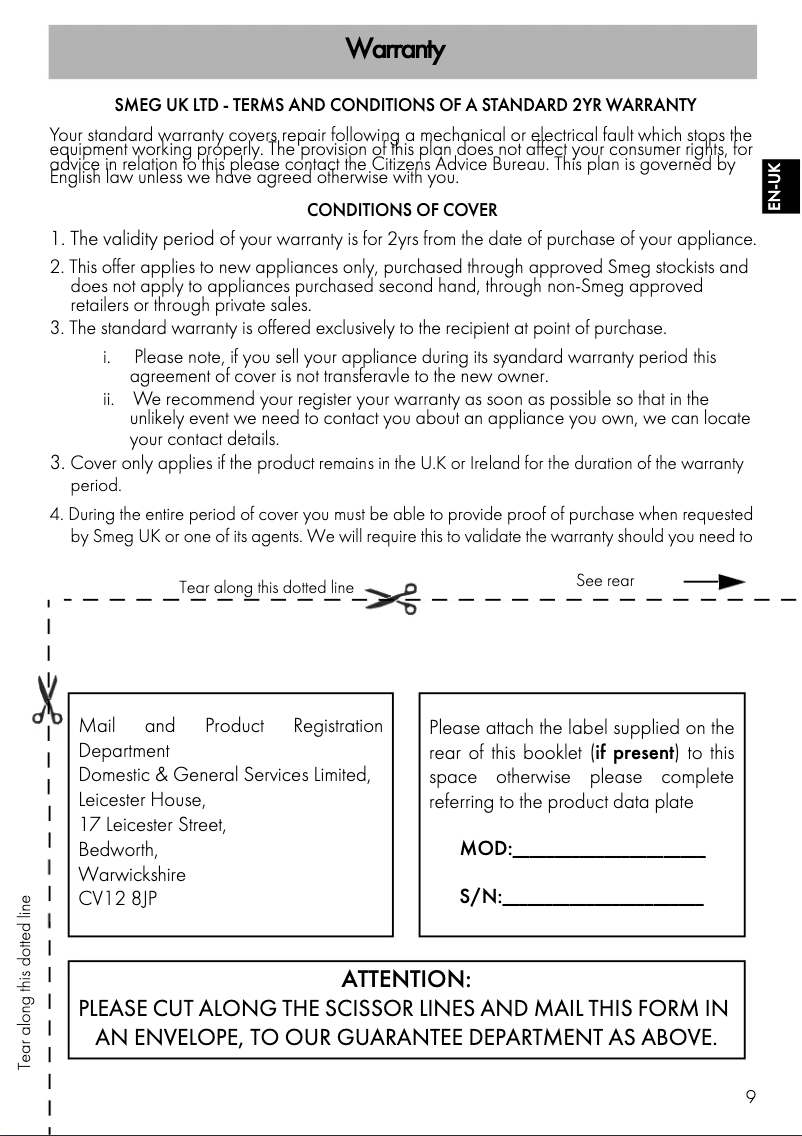

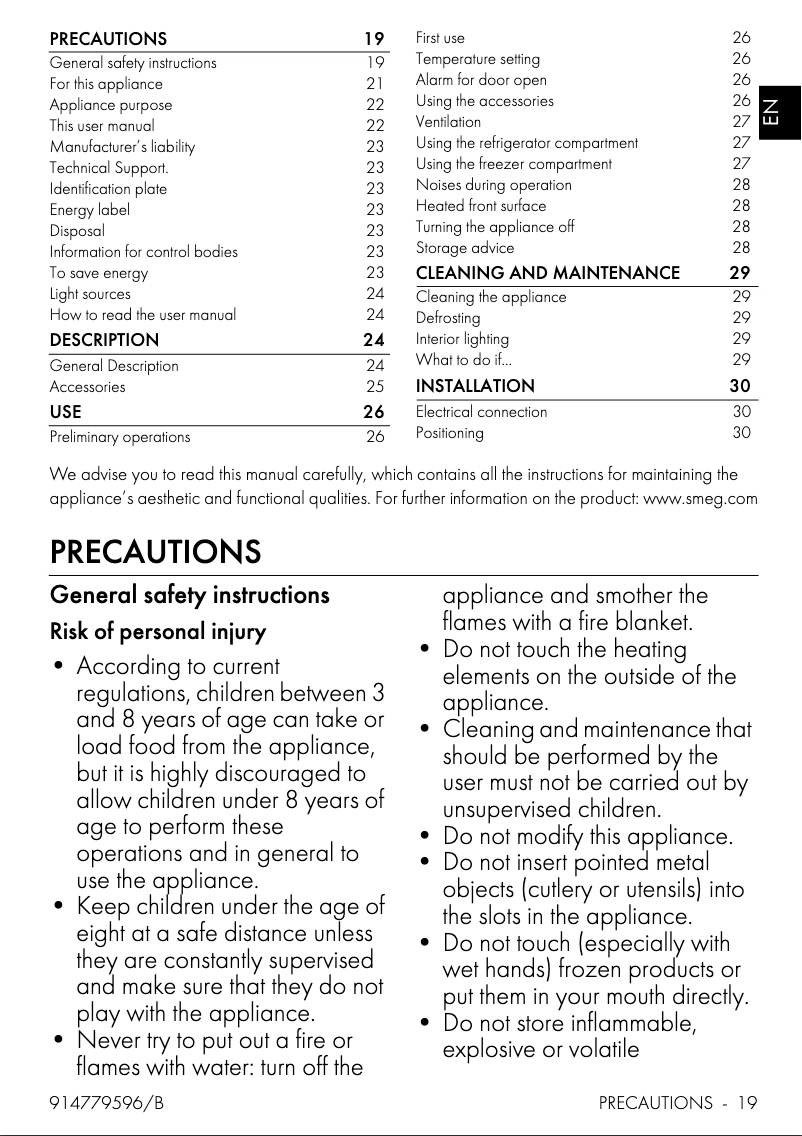

Manuals of product FAB30LPB5
Editorial note
The Smeg FAB30LPB5 refrigerator combines elegance and functionality with its modern light blue design that adds a touch of sophistication to any kitchen. Its net capacity of 222 L, accompanied by 3 shelves and a vegetable drawer, allows for optimal food organization, making it easier to access your fresh products. Additionally, it is rated A+++, ensuring reduced energy consumption and contributing to savings on your electricity bill while being environmentally friendly. However, the Smeg FAB30LPB5 has some drawbacks. The lack of an automatic defrost system (No Frost) requires regular manual maintenance, which can be seen as tedious. Moreover, its freezing capacity, limited to 4 kg/24h, may not be sufficient for large families. Although its design is attractive, the light blue color may not match all interior decor styles. The noise level of 37 dB, while acceptable, may disturb some users sensitive to noise, especially in open spaces. Finally, its weight of 78.6 kg can complicate the installation and movement of the appliance. In summary, the Smeg FAB30LPB5 is an ideal choice for those looking for a refrigerator that is both aesthetically pleasing and energy-efficient, but it may not be suitable for everyone due to its freezing capacity and required maintenance.Score details
Design
The elegant and modern design of the Smeg FAB30LPB5, with its light blue color, adds a touch of sophistication to the kitchen and integrates harmoniously into the space.
Usability
The optimal organization with 3 shelves/bins and 1 vegetable drawer allows for efficient food storage, making access to fresh products easier.
energy_efficiency
Rated A+++, this refrigerator ensures reduced energy consumption, contributing to savings on the electricity bill while being environmentally friendly.
Features
The installation flexibility thanks to the reversible doors and its integrated design is an asset, although the lack of an automatic defrost system requires manual maintenance.
Performance
The freezing capacity limited to 4 kg/24h may be insufficient for large families, and the noise level of 37 dB may be perceived as bothersome by some users.
Robustness
The weight of 78.6 kg can make the installation and movement of the appliance difficult, especially in tight spaces, which can be a disadvantage for some users.
Advantages
Modern and elegant design in light blue
Efficient organization with shelves and drawer
Energy class A+++ for energy savings
Reversible doors for installation flexibility
LED lighting for better visibility of food
Open door alarm for increased security
Disadvantages
No automatic defrosting, manual defrosting required.
Freezing capacity limited to 4 kg/24h.
Light blue color not very adaptable to all styles.
Noise level of 37 dB sometimes bothersome.
Weight of 78.6 kg, difficult to move.
Technical Specifications FAB30LPB5
General Information
-
ModelFAB30LPB5
-
Brand
-
Category
-
Type
-
SKU1300614
-
MPN1300614
Design
-
Custom panels ready to use-
-
Device placementFree placement
-
Product colorBlue
-
Color nameLight blue
-
Converter technologyYes
-
Hinge location of doorLeft
-
Converter technologyYes
-
Built-in screenNo
-
Number of shelves/bins in the refrigerator2
-
Number of compressors1
-
Refrigerator door compartments3
-
Converter technologyYes
-
Shelf materialGlass
-
Device placementFree placement
-
Product colorBlue
-
Color nameLight blue
-
Hinge location of doorLeft
-
Built-in screenNo
-
Built-in screenNo
-
Shelf materialGlass
-
Order typeRotating
-
Medium refrigerationR600a
-
Average refrigeration weight70 g
-
Number of compressors1
-
Converter technologyYes
-
Door opening angle90 °
Representation / realization
-
Multiple air flow system-
-
Ice maker-
-
Vacation function-
-
Net capacity of the refrigerator222 L
-
Total gross capacity298 L
-
Climate classST-T
-
Sound level37 dB
-
Frost protection systemNo
-
Very cold operating optionYes
-
Very cold operating optionYes
-
Climate classSN-T
-
Sound level37 dB
-
Total net capacity294 L
-
Total gross capacity298 L
-
Minimum operating temperature10 °C
-
Maximum operating temperature43 °C
-
Sound emission classC
Cool zone
-
New compartment areaYes
-
New compartment areaYes
-
Net capacity of the new compartment area193 L
Ergonomics
-
Temperature alarm-
-
Adjustable feetYes
-
Type of lampLED
-
Adjustable feetYes
-
Adjustable feetYes
-
Adjustable feetYes
-
Cable length135 m
-
Adjustable feetYes
-
Adjustable feetYes
-
Cable length1.35 m
-
Adjustment of the feet15 mm
Power
-
Energy efficiency class (old)A+++
-
Annual energy consumption156 kWh
-
Connected charge100 W
-
AC input voltage220 - 240 V
-
AC input frequency50 - 60 Hz
-
Annual energy consumption156 kWh
-
Connected charge100 W
-
AC input voltage220 - 240 V
-
AC input frequency50 - 60 Hz
-
Current0.8 A
-

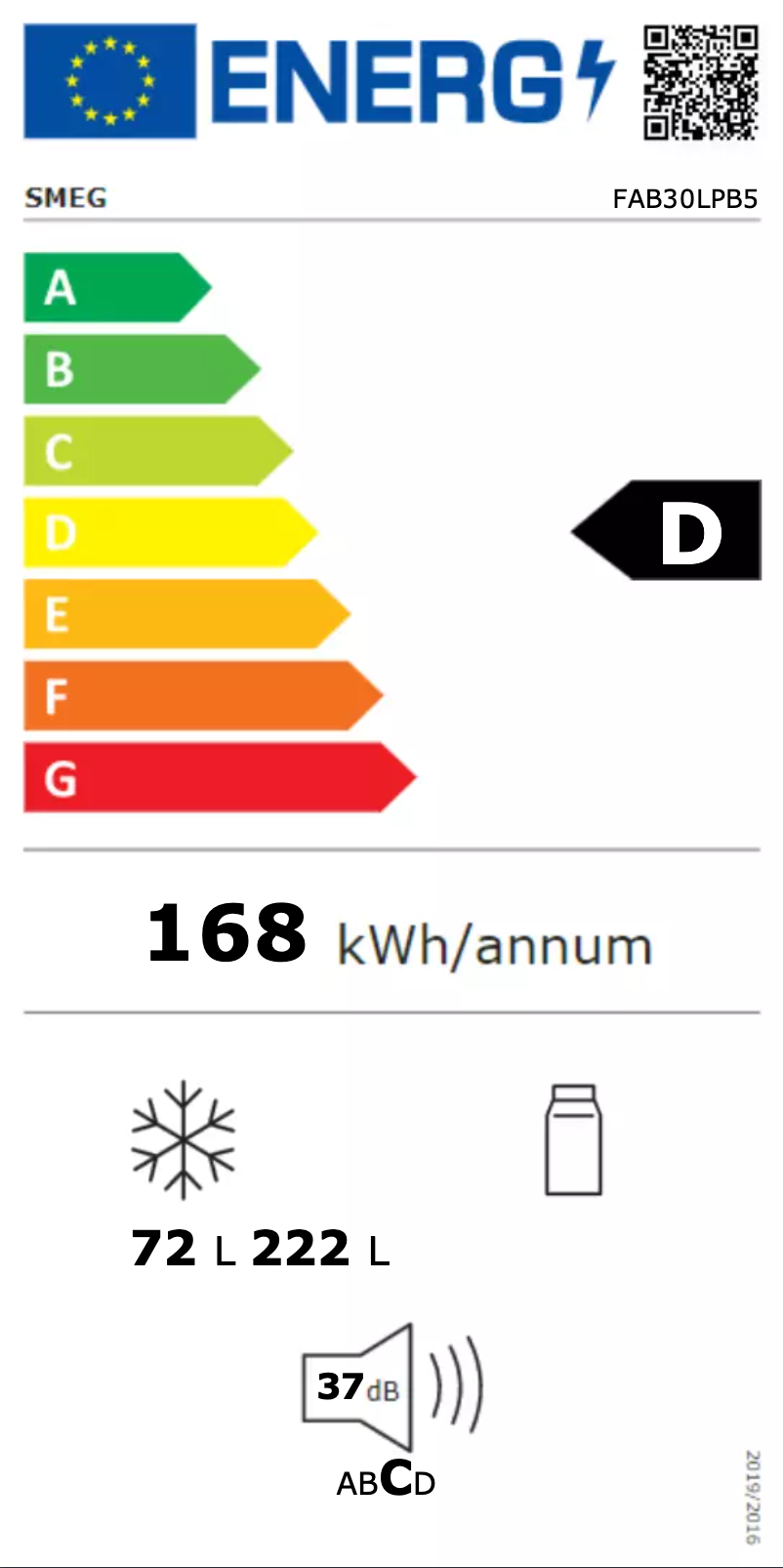

Energy efficiency classD
-
Energy efficiency rangeA to G
Weight and dimensions
-
Height1720 mm
-
Width601 mm
-
Depth without handle728 mm
-
Weight78600 g
-
Height1720 mm
-
Width601 mm
-
Depth without handle728 mm
-
Weight78600 g
-
Depth without handle728 mm
-
Width with door open926 mm
-
Depth when the door is open1197 mm
Refrigerator
-
Very cold operating option-
-
Refrigerator door compartments3
-
Number of vegetable drawers1
-
Refrigerator door compartments3
-
Antibacterial coatingYes
-
Net capacity of the refrigerator222 L
-
Gross capacity of the refrigerator298 L
-
Antibacterial coatingYes
-
Type of lampLED
-
No frost (refrigerator)No
-
Antibacterial coatingYes
-
Number of removable shelves2
-
Antibacterial coatingYes
Other features
-
Multiple air flow system-
-
Frost protection systemNo
-
ThermostatYes
-
Country of originItaly
Freezer
-
Quick freeze function-
-
Location of the ice compartmentPlaced at the top
-
Net capacity of the freezer72 L
-
Freezing capacity4 kg/24h
-
Autonomy in case of power failure30 h
-
Number of stars (indicates preservation possibilities)4*
-
No Frost (freezer)No
-
Number of shelves/bins in the freezer1
Packaging information
-
Package height1815 mm
-
Package weight92400 g
-
Package width685 mm
-
Package depth860 mm
Technical details
-
Reduction of the chemical tax (Sweden)0
-
Chemical tax (Sweden)Yes
Frequently Asked Questions
How can I prevent water accumulation on the glass shelves of my refrigerator?
What should I do if unpleasant odors are coming from my refrigerator?
What space should I allow around my refrigerator?
What does the term R-410A refer to?
What is the weight of the Smeg FAB30LPB5?
What is the height of the Smeg FAB30LPB5?
What is the width of the Smeg FAB30LPB5?
What is the depth of the Smeg FAB30LPB5?
What is the energy rating of the Smeg FAB30LPB5?
Is the manual for the Smeg FAB30LPB5 available in French?
Similar products
More product categories from brand Smeg
Household appliances Smeg
Home appliances Smeg
Interior Smeg
Other Smeg
Audio Smeg
More product types from brand Smeg
Presentation of product FAB30LPB5 specifications from brand Smeg
General Information
The Smeg FAB30LPB5 is a refrigerator from the Smeg brand, known for its commitment to quality and innovation in the home appliance sector. This model, designated by the code FAB30LPB5, ensures reliable performance while providing a pleasant user experience. The EAN code 8017709297688 uniquely identifies this product within the distribution network.
Design
This refrigerator features a built-in design, allowing for a harmonious installation in various kitchens. Its light blue color adds a touch of modernity and elegance. Additionally, the ready-to-use custom panels allow you to adapt the refrigerator to your style. The door hinge, located at the bottom, ensures smooth opening. The reversible doors offer installation flexibility, while the integrated screen enhances interaction with the appliance. This model includes 3 shelves/bins and 1 vegetable drawer, promoting a smart organization of food. The tempered glass shelves combine aesthetics and robustness.
Technical Specifications
The Smeg FAB30LPB5 has a net capacity of 222 L and a gross capacity of 298 L, ideal for a family's needs. Its climate class ST-T ensures optimal performance in different environmental conditions. With a noise level of 37 dB, it operates while respecting your auditory comfort. This model is equipped with a thermostat for precise temperature control and uses R600a refrigeration for improved efficiency.
Ergonomics and Safety
The refrigerator features an LED interior light, providing increased visibility of stored food. For added safety, an alarm signals prolonged door opening. The adjustable feet, with a height of 15 mm, allow you to adjust the appliance according to your needs.
Energy and Performance
The Smeg FAB30LPB5 is rated A+++ for energy efficiency, ensuring a low annual energy consumption of 156 kWh. Its connected load is 100 W, with an input voltage of 220 - 240 V and a frequency of 50 - 60 Hz.
Dimensions and Weight
The dimensions of the refrigerator are 1720 mm in height, 601 mm in width, and 728 mm in depth. It weighs approximately 78.6 kg, making it easy to transport and install.
Freezer
The freezer compartment is located at the top and offers a net capacity of 72 L, capable of freezing up to 4 kg/24h. It guarantees a backup time of 30 h in case of a power outage, ensuring the safety of your frozen foods.
Packaging Information
The package dimensions are 1815 mm in height, 685 mm in width, and 860 mm in depth, with a total weight of 92.4 kg.
Technical Details
The Smeg FAB30LPB5 is exempt from chemical tax in Sweden, contributing to more responsible consumption. This product does not have an anti-frost system.
