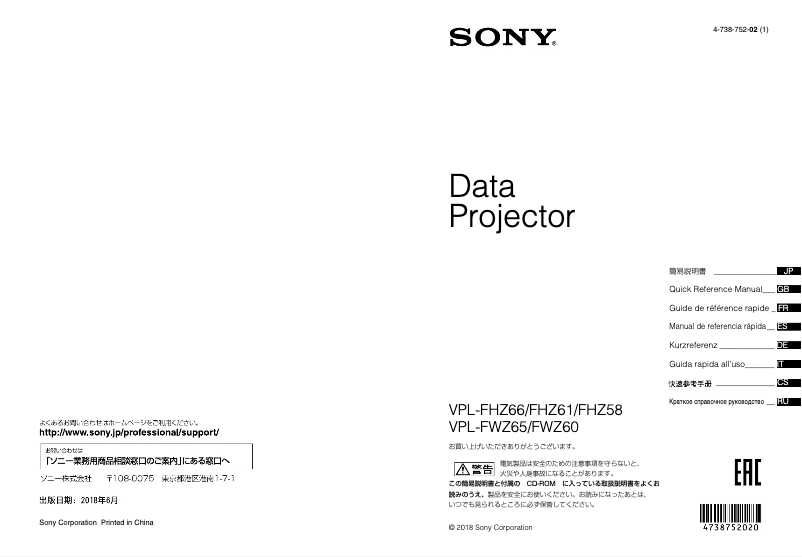

Manuals of product VPL-FHZ61
Technical Specifications VPL-FHZ61
General Information
-
ModelVPL-FHZ61
-
Brand
-
Category
-
Type
-
SKU1058069
-
MPN1058069
Projector
-
Contrast ratio-
-
Projection technology3LCD
-
Native resolution of the projectorWUXGA (1920x1200)
-
Image format16:10
-
Projector brightness5100 ANSI lumens
-
Projector brightness (eco mode)3500 ANSI lumens
-
Horizontal synchronization (min)15 kHz
-
Horizontal synchronization (max)92 kHz
-
Vertical synchronization (min)0.048 kHz
-
Vertical synchronization (max)0.092 kHz
-
Correction of the trapezium, vertical-30 - 30 °
-
Correction of the trapezium, vertical-30 - 30 °
-
Compatible screen size40 - 600 "
-
Projection distance- m
-
Thermal dissipation1392 BTU/h
-
Dynamic contrast report500000:1
Objective system
-
Zoom ratio1.6:1
-
Projection ratio1.39 - 2.23:1
-
Focal length- mm
Light source
-
Lifespan of the light source20000 h
Video
-
Analog signal format systemNTSC 3.58
-
Full HDNTSC 4.43
-
3D CompatibilityPAL
-
Supported video modesPAL 60
-
PAL M
-
PAL N
-
SECAM
-
Yes
-
No
-
480i
-
480p
-
576i
-
576p
-
720p
-
1080i
Technical details
-
Focal length- mm
-
Lamp lifespan20000 h
-
Power of the bulb- W
-
Contrast ratio500000:1
-
Analog signal format systemNTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
-
3D CompatibilityNo
-
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i
Connectivity
-
Composite video input-
-
Input component of the audiovisual device (YPbPr/YCbCr)-
-
Quantity of USB 2.0 Ports-
-
S-Video Input-
-
Number of VGA (D-Sub) ports2
-
Audio Output (Left, Right)1
-
Power entry sectorYes
-
Audio Output (Left, Right)1
-
Audio Output (Left, Right)1
-
Power entry sectorYes
-
Serial interface typeRS-232
Network
-
Smart TV-
-
Wifi-
-
Number of Ethernet LAN ports (RJ-45)2
-
Ethernet/LANYes
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
Other features
-
RS-232 port1
Storage support
-
Built-in memory card readerNo
Features
-
Sound level28 dB
Packaging contents
-
Remote control providedYes
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-10 - 60 °C
-
Relative humidity rate (storage)20 - 80 %
-
Relative humidity rate (storage)20 - 80 %
Power
-
Power supplySector
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption408 W
-
Energy consumption (standby mode)0.5 W
Multimedia
-
Built-in speakers-
Design
-
Product typeCeiling-mounted projector
-
Product colorBlack
-
PositioningCeiling
Screen
-
Built-in screenNo
Weight and dimensions
-
Weight16000 g
-
Width460 mm
-
Depth515 mm
-
Height169 mm
Similar products
More product categories from brand Sony
Audio Sony
Television and multimedia Sony
Computers and accessories Sony
Camera and photography Sony
Other Sony
Phones Sony
Software Sony
Interior Sony
More product types from brand Sony
Presentation of product VPL-FHZ61 specifications from brand Sony
Light source
The lifespan of the light source of the product Sony VPL-FHZ61 is 20000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting.
Objective system
The focal length of the product Sony VPL-FHZ61 is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The zoom ratio of the product Sony VPL-FHZ61 is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The projection ratio of the product Sony VPL-FHZ61 is 1.39 - 2.23:1. This ratio determines the distance at which the projected image will be displayed relative to the screen size.
Generalities
The brand of the product Sony VPL-FHZ61 is Sony. This brand is known for its quality and innovation in the field of household appliances. The product model Sony VPL-FHZ61 is VPL-FHZ61 | VPL-FHZ61/B. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Sony VPL-FHZ61 is 4548736083530, 5054444149240. This code allows for the unique identification of the product in the distribution system.
Video
The analog signal format system of the product Sony VPL-FHZ61 contains NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The supported video mode of the product Sony VPL-FHZ61 is 480i, 480p, 576i, 576p, 720p, 1080i. This mode allows you to enjoy optimal image quality for your videos. Does the product Sony VPL-FHZ61 have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product Sony VPL-FHZ61 have 3D Compatibility? No. This product does not support 3D technology.
Technical details
The focal length of the product Sony VPL-FHZ61 is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The contrast ratio of the product Sony VPL-FHZ61 is 500000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The analog signal format system of the product Sony VPL-FHZ61 contains NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The supported video mode of the product Sony VPL-FHZ61 is 480i, 480p, 576i, 576p, 720p, 1080i. This mode allows you to enjoy optimal image quality for your videos. Does the product Sony VPL-FHZ61 have 3D Compatibility? No. This product does not support 3D technology. The lifespan of the lamp of the product Sony VPL-FHZ61 is 20000 h. This feature ensures prolonged and economical use. The power of the bulb of the product Sony VPL-FHZ61 is - W. This specification ensures optimal lighting for your needs.
Projector
The projector Sony VPL-FHZ61 features a 3LCD projection technology. This technology ensures optimal image quality and an immersive visual experience. The native resolution of the product Sony VPL-FHZ61 is WUXGA (1920x1200). This feature ensures optimal image quality for your presentations and entertainment. The image format of the product Sony VPL-FHZ61 is 16:10. This format is ideal for an immersive visual experience. The brightness of the product Sony VPL-FHZ61 is 5100 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The Sony VPL-FHZ61 projector has a brightness of 3200 ANSI lumens in eco mode. This performance allows for clear and bright images, even in low-light environments. The contrast ratio of the product Sony VPL-FHZ61 is -. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The horizontal synchronization (min) of the product is 15 kHz. This specification ensures optimal performance for your projections. The vertical sync (min) of the product Sony VPL-FHZ61 is 0.048 kHz. This specification ensures smooth and lag-free display performance. The vertical synchronization (max) of the product Sony VPL-FHZ61 is 0.092 kHz. This feature allows for a smooth and lag-free image, ideal for presentations and videos. The correction of the trapezoid, horizontal, of the product Sony VPL-FHZ61 is -30 - 30 °. This feature allows for adjusting the projected image for better accuracy and optimal rendering. The horizontal synchronization (max) of the product is 92 kHz. This specification ensures optimal performance for your projections. The product Sony VPL-FHZ61 features trapezoidal correction, vertical of -30 - 30 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The compatible screen size of the product Sony VPL-FHZ61 is 40 - 600 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The projection distance of the product Sony VPL-FHZ61 is - m. This specification allows for optimizing the visual experience based on the available space. The thermal dissipation of the product Sony VPL-FHZ61 is 1392 BTU/h. This thermal dissipation ensures optimal operation and prevents overheating, thereby guaranteeing the durability and performance of the device. The dynamic contrast ratio of the product Sony VPL-FHZ61 is 500000:1. This ratio helps enhance image quality by providing deeper blacks and brighter whites.
Other features
The RS-232 port of the Sony VPL-FHZ61 contains 1. This port is essential for ensuring reliable serial communication with other devices.
Storage support
Does the Sony VPL-FHZ61 have a built-in memory card reader? Non. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Network
Is the product Sony VPL-FHZ61 a Smart TV? No. This television does not have smart features to access apps or the Internet. The number of Ethernet LAN (RJ-45) ports of the product Sony VPL-FHZ61 is 2. These ports provide a stable and fast network connection for your devices. The Wifi of the product Sony VPL-FHZ61 contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Sony VPL-FHZ61 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The data transfer rate of the product Sony VPL-FHZ61 is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs.
Features
The noise level of the product Sony VPL-FHZ61 is 28 dB. This noise level allows for pleasant use without excessive noise disturbances.
Packaging contents
Does the product Sony VPL-FHZ61 come with a remote control? Oui.
Connectivity
The number of HDMI ports on the Sony VPL-FHZ61 is 1. This detail is essential for determining compatibility with your multimedia devices. The product Sony VPL-FHZ61 has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The number of VGA (D-Sub) ports on the Sony VPL-FHZ61 is 2. This port allows for easy connection with various devices and monitors. The product Sony VPL-FHZ61 has an input component of the audiovisual device (YPbPr/YCbCr) -. This specification allows for a high-quality connection for an optimal visual experience. Does the product Sony VPL-FHZ61 have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The number of USB 2.0 ports on the Sony VPL-FHZ61 is -. These ports allow for a fast and efficient connection for your devices. The product Sony VPL-FHZ61 has an S-Video input. This input allows you to connect video devices with enhanced image quality. The integrated audio connector (L,R) of the product Sony VPL-FHZ61 has 1. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The audio output (left, right) of the product Sony VPL-FHZ61 contains 1. This specification allows for an immersive stereo sound experience. Does the product Sony VPL-FHZ61 have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device. The serial interface type of the product Sony VPL-FHZ61 is RS-232. This type of interface allows for effective communication between different devices.
Environmental conditions
The operating temperature of the product Sony VPL-FHZ61 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Sony VPL-FHZ61 is 20 - 80 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Sony VPL-FHZ61 has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Sony VPL-FHZ61 is -10 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Multimedia
Does the product Sony VPL-FHZ61 have built-in speakers? -. These speakers provide an immersive and convenient audio experience.
Power
The AC input voltage of the Sony VPL-FHZ61 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The power supply of the product Sony VPL-FHZ61 is Secteur. This power supply ensures optimal autonomy for prolonged use. The AC input frequency of the product Sony VPL-FHZ61 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The typical power consumption of the product Sony VPL-FHZ61 is 408 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product Sony VPL-FHZ61 is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings.
Design
The positioning of the product Sony VPL-FHZ61 is Plafond. This positioning allows for optimizing its use and ensuring an optimal user experience. The color of the product Sony VPL-FHZ61 is Noir. This shade gives it a modern and elegant look. The product type of Sony VPL-FHZ61 is Projecteur monté au plafond. This product is ideal for an immersive and comfortable audio experience.
Screen
The Sony VPL-FHZ61 has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device.
Weight and dimensions
The width of the product Sony VPL-FHZ61 is 460 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Sony VPL-FHZ61 is 16000 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Sony VPL-FHZ61 is 515 mm. This dimension allows for optimal integration into your space. The height of the product Sony VPL-FHZ61 is 169 mm. This dimension is essential to ensure that the product fits perfectly in your space.
