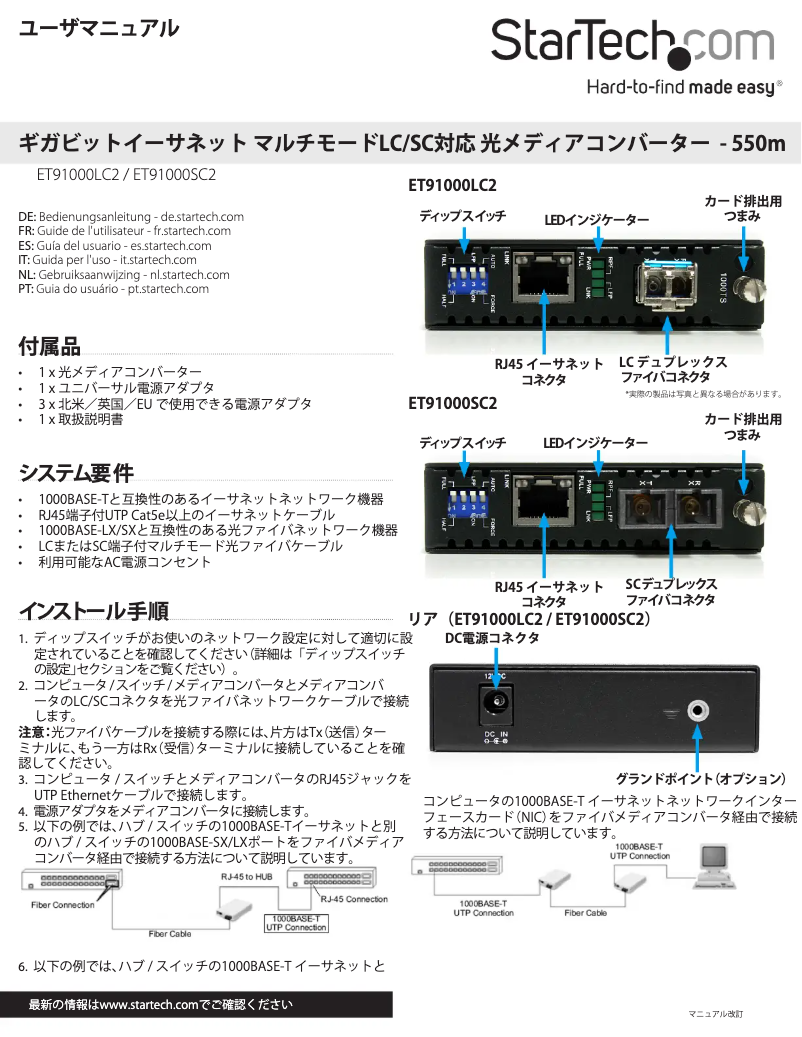

Manual of product ET91000SC2
Editorial note
The StarTech.com ET91000SC2 stands out with its impressive technical features, including a transfer rate of 2000 Mbit/s and a maximum transfer distance of 550 meters. These specifications ensure fast and reliable network performance, ideal for users with high bandwidth needs. The robust steel casing structure provides the product with increased durability, ensuring it withstands daily wear while maintaining a sleek appearance. However, the product has some drawbacks. With a single Ethernet LAN port, connectivity for multiple devices simultaneously may be limited. Additionally, the lack of Power over Ethernet (PoE) ports means that extra power cables may be necessary. The weight of 562 g may also pose challenges when installing in tight spaces. Finally, the operating temperature range, limited to 0 - 60 °C, may not be suitable for all work environments, especially in extreme conditions. In terms of user experience, the Auto MDI/MDI-X feature simplifies setup and enhances the overall use of the device. Performance, while solid, could be restricted for certain applications due to the lack of wavelength multiplexing support. The extensive compatibility with an input voltage range of 115 - 230 V contributes to good value for money, despite these limitations. In summary, the StarTech.com ET91000SC2 is a high-performing and robust product that, despite some connectivity and installation restrictions, remains an excellent option for those seeking a reliable and efficient network solution.Score details
User experience
The user experience is enhanced by the Auto MDI/MDI-X feature that simplifies setup. However, the presence of only one Ethernet port may limit connectivity.
Performance
The high transfer rate of 2000 Mbit/s and the maximum transfer distance of 550 m ensure solid performance. Nevertheless, the lack of support for wavelength multiplexing may restrict certain applications.
Design
The steel casing gives the product increased durability. However, its weight of 562 g may be perceived as relatively heavy for installation in tight spaces.
Value for money
The extensive compatibility with an input voltage range of 115 - 230 V and the robust features justify a good value for money, although some limitations exist.
Usability
Ease of use is enhanced by automatic connection detection, but the lack of PoE ports may require additional power cables.
Robustness
The product is designed to withstand daily wear and tear, and its durability certifications ensure that it meets high standards.
Advantages
Maximum speed of 2000 Mbit/s
Durable steel casing
Compatible with 115 - 230 V
Automatic connection detection
Operates up to 550 m distance
Disadvantages
One Ethernet LAN port available
No Power over Ethernet (PoE)
No support for wavelength multiplexing
Weight of 562 g, difficult to install
Limited operating temperature range
Technical Specifications ET91000SC2
General Information
-
ModelET91000SC2
-
Brand
-
Category
-
Type
-
SKU2000613
-
MPN2000613
Network
-
Maximum data transfer rate2000 Mbit/s
-
Auto MDI/MDI-XYes
-
Duplex systemFull, Half
-
Type of Ethernet interfaceGigabit Ethernet
Connectivity
-
Fiber optic connectorSC
-
Connectivity technologyWired
-
Number of Ethernet LAN ports (RJ-45)1
-
Power over Ethernet (PoE) Number of ports0
Features
-
InternalNo
-
Product colorBlack
-
Material of the case/bodySteel
Representation / realization
-
Wavelength850 nm
-
Maximum transfer distance550 m
-
Fiber mode structureMultimode
-
Mean time between failures65000 h
-
Wavelength multiplexingNo
Weight and dimensions
-
Weight562 g
-
Width90 mm
-
Depth150 mm
-
Height25 mm
Power
-
Output voltage12 V
-
Output current1.6 A
-
Typical electricity consumption4 W
-
External power adapterYes
-
Input current0.36 A
-
Type of socketType M
-
Input voltage115 - 230 V
Environmental conditions
-
Operating temperature0 - 60 °C
-
Temperature out of operation-10 - 70 °C
-
Operating relative humidity (H-H)10 - 90 %
Certificate
-
CertificationCE
-
FCC
Packaging information
-
Package weight766 g
-
Package height89 mm
-
Package width205 mm
-
Package depth138 mm
Packaging contents
-
Power adapter includedYes
-
Power adapter includedYes
Sustainability
-
Sustainability certificatesRoHS
Logistics data
-
Harmonized System Code85176990
Frequently Asked Questions
What is the weight of the StarTech.com ET91000SC2?
What are the certifications of the StarTech.com ET91000SC2?
What is the height of the StarTech.com ET91000SC2?
What is the width of the StarTech.com ET91000SC2?
What is the depth of the StarTech.com ET91000SC2?
Is the manual for the StarTech.com ET91000SC2 available in French?
Similar products
More product categories from brand StarTech.com
More product types from brand StarTech.com
Presentation of product ET91000SC2 specifications from brand StarTech.com
General Information
The StarTech.com ET91000SC2 is a product from the brand StarTech.com, known for its commitment to quality and innovation in the field of electronic equipment. This model, identified by the code ET91000SC2, is designed to provide optimal performance and an enhanced user experience. The associated EAN code for this product, which includes several variants, allows for its unique identification in distribution systems.
Network
The StarTech.com ET91000SC2 guarantees a maximum data transfer rate of 2000 Mbit/s, ensuring a fast and efficient connection suitable for the needs of demanding users. Thanks to its Auto MDI/MDI-X functionality, the product automatically detects the type of connection, making configuration easier. Additionally, it is equipped with a Gigabit Ethernet interface, allowing for high-performance network connections.
Connectivity
This model features an SC type fiber optic connector, essential for fast and reliable data transmission. The product operates on a wired connectivity technology, offering flexibility of use without the constraints of wireless connections. It includes an Ethernet LAN (RJ-45) port, ensuring a stable connection, although the lack of Power over Ethernet (PoE) ports limits direct power supply to network devices.
Features
The StarTech.com ET91000SC2 has no internal components, making it simple and efficient. Its Black color gives it a modern appearance, while its steel casing ensures durability and resistance to daily wear.
Performance / Implementation
With a wavelength of 850 nm and a maximum transfer distance of 550 m, this product is optimized for quality data transmission over long distances. Its fiber structure is of the multimode type, allowing for low attenuation. The mean time between failures is estimated at 65000 hours, ensuring reliability and durability. Note that this model does not support wavelength multiplexing.
Weight and Dimensions
The StarTech.com ET91000SC2 weighs 562 g, making it relatively lightweight for a device of this type. Its dimensions are suitable for optimal integration: 90 mm in width, 150 mm in depth, and 25 mm in height.
Power
The output voltage is 12 V with a current of 1.6 A, allowing for efficient operation. Its typical power consumption is 4 W, contributing to its energy efficiency. It also comes with an external power adapter for immediate use. The input voltage is compatible with standard norms, ranging from 115 - 230 V.
Environmental Conditions
The StarTech.com ET91000SC2 is designed to operate within a temperature range of 0 to 60 °C and can withstand non-operating temperatures of -10 to 70 °C. Its operating relative humidity is between 10 and 90 %, ensuring optimal use in various environments.
Certification
The product is certified compliant with CE and FCC standards, attesting to its safety and performance.
Packaging Information
The total weight of the package is 766 g, ensuring adequate protection during transport. The packaging dimensions are 89 mm in height, 205 mm in width, and 138 mm in depth, essential for optimal storage and transport.
Contents of the Package
The StarTech.com ET91000SC2 comes with a user manual for clear instructions, as well as a power adapter for immediate setup.
Durability
The product complies with RoHS durability standards, ensuring environmentally friendly manufacturing.
Logistics Data
The harmonized system code for the StarTech.com ET91000SC2 is 85176990, allowing for unique identification in international trade.
