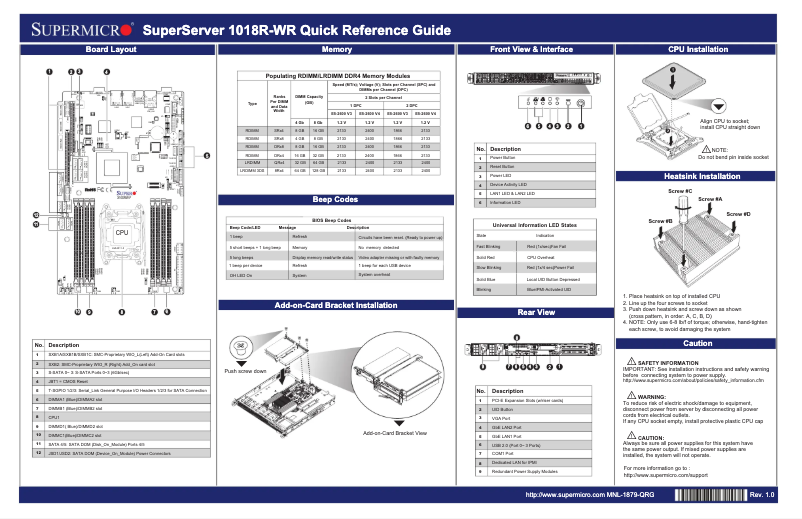

Manuals of product SuperServer 1018R-WR
Technical Specifications SuperServer 1018R-WR
General Information
-
ModelSUPERSERVER 1018R-WR
-
Brand
-
Category
-
Type
-
SKU1790742
-
MPN1790742
Processor
-
Processor socket (processor receptacle)LGA 2011 (Socket R)
-
Intel® Xeon SeriesE5-2600
-
Compatible processorsIntel® Xeon®
-
Maximum cache55 MB
-
Number of supported processors1
-
Processor familyIntel
-
Motherboard chipsetIntel® C612
Memory
-
Maximum internal memory1000 GB
-
ECCYes
-
Supported memory typesDDR4-SDRAM
-
Memory support288-pin DIMM
-
Bus Memory72 bit
-
Number of DIMM slots8
-
Voltage memory1.2 V
-
Support for RDIMM clock speeds1600,1866,2133,2400 MHz
-
Maximum RDIMM memory256 GB
-
Supported DIMM sizes4GB, 8GB, 16GB, 32GB, 64GB
Extension connectors
-
PCI Express x8 slots1
-
Version of PCI Express locations3.0
-
PCI Express x16 slots2
Network
-
Local Area Network (LAN) ControllerIntel® I350-AM2
-
Ethernet/LANYes
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Copper Ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
-
Type of Ethernet interfaceFast Ethernet, Gigabit Ethernet
Connectivity
-
IPMI LAN Port (RJ-45)Yes
-
Number of SATA III connectors10
-
Quantity of USB 2.0 Ports2
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports4
-
Quantity of USB 2.0 Ports2
-
Number of VGA (D-Sub) ports1
-
Number of VGA (D-Sub) ports1
Storage support
-
Supported storage disk sizes2.5 "
-
Number of supported storage units
-
RAID Levels2
-
Hard drive bays allowing hot swap
-
Supported storage reader interfaces0, 1,10
-
-
No
-
-
SATA III
Power
-
Number of installed redundant power supplies1
-
Power supply400 W
-
Redundant power supply (RPS)Yes
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Design
-
Chassis typeRack (1 U)
-
Product colorBlack
-
Fan diameter40 mm
-
Number of fans4 fan(s)
-
IndicatorsHDD, Network, Power
Graphique
-
Graphics adapter model includedAspeed AST2400
Features
-
Monitoring of PC functionalityFAN
-
LED
-
Temperature
-
Voltage
Weight and dimensions
-
Height43 mm
-
Width437 mm
-
Depth429 mm
-
Weight7030 g
BIOS
-
Memory capacity of the BIOS128 Mbit
-
BIOS TypeEEPROM
-
ACPI Version4.0
-
BIOS FeaturesAPM 1.2, PCI 2.3, SMBIOS 2.7.1, UEFI
Packaging information
-
Provided softwareSuperDoctor 5
-
Watch Dog
Technical details
-
Sustainability certificatesRoHS
Environmental conditions
-
Operating temperature10 - 35 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)8 - 90 %
-
Relative humidity rate (storage)5 - 95 %
Logistics data
-
Harmonized System Code84714100
Similar products
More product categories from brand Supermicro
More product types from brand Supermicro
Presentation of product SuperServer 1018R-WR specifications from brand Supermicro
Extension connectors
The product Supermicro SuperServer 1018R-WR has 6 PCI Express x8 slots. These slots allow for a fast and efficient connection of expansion cards to enhance your system's performance. The version of the PCI Express slots of the Supermicro SuperServer 1018R-WR is 3.0. This specification ensures optimal compatibility with modern components. The Supermicro SuperServer 1018R-WR has 1 PCI Express x16 slot. This type of expansion connector allows for the installation of graphics cards and other high-performance peripherals to enhance your system's capabilities.
Generalities
The brand of the product Supermicro SuperServer 1018R-WR is Supermicro. This brand is known for its quality and innovation in the field of household appliances. The product model Supermicro SuperServer 1018R-WR is SuperServer 1018R-WR | SYS-1018R-WR. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Supermicro SuperServer 1018R-WR is 0672042233977. This code allows for the unique identification of the product in the distribution system.
Memory
The maximum internal memory of the product Supermicro SuperServer 1018R-WR is 1000 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files. Does the product Supermicro SuperServer 1018R-WR have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The type of memory supported by the product Supermicro SuperServer 1018R-WR is DDR4-SDRAM. This type of memory ensures optimal performance for your applications. The memory support of the product Supermicro SuperServer 1018R-WR is 288-pin DIMM. This support is designed to provide optimal performance and compatibility with various systems. The memory Bus of the product Supermicro SuperServer 1018R-WR has 72 bit. This specification is essential to ensure fast and efficient communication between the different components of the system. The number of DIMM slots for the Supermicro SuperServer 1018R-WR product is 8. This number determines the memory expansion capacity of your system. The voltage memory of the product Supermicro SuperServer 1018R-WR is 1.2 V. This specification ensures optimal performance and compatibility with modern systems. The support for the RDIMM clock speeds of the Supermicro SuperServer 1018R-WR product is 1600,1866,2133,2400 MHz. This support allows for optimizing the system's performance and responsiveness. The product Supermicro SuperServer 1018R-WR has a maximum RDIMM memory of 256 Go. This specification ensures optimal performance for your demanding applications. The supported DIMM sizes of the product Supermicro SuperServer 1018R-WR are 4GB, 8GB, 16GB, 32GB, 64GB. These sizes allow for flexibility in increasing memory according to the user's needs.
Network
The local area network (LAN) controller of the product Supermicro SuperServer 1018R-WR has Intel® I350-AM2. This controller ensures a stable and fast connection to the network, thereby optimizing the performance of your system. The copper Ethernet wiring of the product Supermicro SuperServer 1018R-WR contains 10BASE-T, 100BASE-TX, 1000BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. Does the product Supermicro SuperServer 1018R-WR have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The data transfer rate of the product Supermicro SuperServer 1018R-WR is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The Ethernet interface type of the product Supermicro SuperServer 1018R-WR is Fast Ethernet, Gigabit Ethernet. This type of interface allows for fast and efficient network connections.
Processor
The processor socket of the Supermicro SuperServer 1018R-WR contains LGA 2011 (Socket R). This socket is designed to ensure an optimal connection between the processor and the motherboard. The compatible processor of the product Supermicro SuperServer 1018R-WR contains Intel® Xeon®. This processor ensures optimal performance for your computing needs. The maximum cache of the product Supermicro SuperServer 1018R-WR is 55 Mo. This cache helps optimize performance by temporarily storing the most frequently used data. The Supermicro SuperServer 1018R-WR processor contains Intel® Xeon Series, including high-performance models suited for demanding work environments. The number of supported processors for the product Supermicro SuperServer 1018R-WR is 1. This number determines the processing capacity and overall performance of the device. The processor family of the product Supermicro SuperServer 1018R-WR contains Intel. This specification is essential for determining the performance and compatibility of the product. The motherboard of the product Supermicro SuperServer 1018R-WR contains Intel® C612. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance.
Connectivity
Does the product Supermicro SuperServer 1018R-WR have an IPMI LAN port (RJ-45)? Oui. This port allows for efficient and secure remote management of systems. The number of Ethernet LAN (RJ-45) ports of the product Supermicro SuperServer 1018R-WR is 2. These ports provide a stable and fast network connection for your devices. The product Supermicro SuperServer 1018R-WR has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of SATA III connectors of the product Supermicro SuperServer 1018R-WR is 10. These connectors allow for a fast and efficient connection of hard drives and SSDs. The number of USB 2.0 ports on the Supermicro SuperServer 1018R-WR is 2. These ports allow for a fast and efficient connection for your devices. The number of serial ports of the product Supermicro SuperServer 1018R-WR is 1. This number of serial ports allows for efficient connectivity for your devices. The number of VGA (D-Sub) ports on the Supermicro SuperServer 1018R-WR is 1. This port allows for easy connection with various devices and monitors.
Storage support
The storage support of the product Supermicro SuperServer 1018R-WR includes supported disk sizes of 2.5 ". These sizes provide great flexibility to meet your storage needs. The RAID levels of the Supermicro SuperServer 1018R-WR product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. The number of storage units supported by the product Supermicro SuperServer 1018R-WR is 2. This feature allows for optimizing the management of your data and ensuring enhanced performance. Does the Supermicro SuperServer 1018R-WR have hard drive bays that allow for hot swapping? Non. These bays facilitate the exchange of disks without shutting down the system, thus providing increased flexibility and availability. The storage support of the product Supermicro SuperServer 1018R-WR contains supported storage reader interfaces: Série ATA III. These interfaces ensure optimal compatibility with various storage devices.
Power
The number of redundant power supplies installed for the product Supermicro SuperServer 1018R-WR is 1. This feature ensures service continuity in the event of a power supply failure. The AC input voltage of the Supermicro SuperServer 1018R-WR is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. Does the product Supermicro SuperServer 1018R-WR have redundant power supply (RPS)? No. This feature is essential to ensure service continuity in case of failure of the main power supply. The power supply of the product Supermicro SuperServer 1018R-WR is 400 W. This power supply ensures optimal performance for all your needs. The AC input frequency of the product Supermicro SuperServer 1018R-WR is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Graphique
The included graphics adapter model of the Supermicro SuperServer 1018R-WR product contains Aspeed AST2400. This model ensures optimal graphics performance for your multimedia needs.
Features
The monitoring system for the proper functioning of the product Supermicro SuperServer 1018R-WR includes FAN, Temperature, Voltage. This system ensures optimal performance by monitoring the essential parameters of your computer.
Design
The color of the product Supermicro SuperServer 1018R-WR is Noir. This shade gives it a modern and elegant look. The chassis type of the product Supermicro SuperServer 1018R-WR is Rack (1 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The number of fans of the product Supermicro SuperServer 1018R-WR is 4 ventilateur(s). This design allows for better air circulation and optimal performance. The diameter of the Supermicro SuperServer 1018R-WR fan is 40 mm. This diameter is essential for ensuring optimal air circulation. Does the product Supermicro SuperServer 1018R-WR have indicators? HDD, Network, Power. These indicators allow you to visualize the operating status of the device.
Weight and dimensions
The height of the product Supermicro SuperServer 1018R-WR is 43 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Supermicro SuperServer 1018R-WR is 429 mm. This dimension allows for optimal integration into your space. The width of the product Supermicro SuperServer 1018R-WR is 437 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Supermicro SuperServer 1018R-WR is 7030 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The software provided with the product Supermicro SuperServer 1018R-WR contains SuperDoctor 5, Watch Dog. This software enhances the user experience and optimizes the device's performance.
BIOS
The BIOS type of the product Supermicro SuperServer 1018R-WR is EEPROM. This type of BIOS is essential for the proper functioning and compatibility of your system. The ACPI version of the product Supermicro SuperServer 1018R-WR is 4.0. This version ensures advanced power management and sleep features. The memory capacity of the BIOS of the product Supermicro SuperServer 1018R-WR is 128 Mbit. This specification ensures optimal performance and efficient management of system resources. The BIOS features of the product Supermicro SuperServer 1018R-WR are APM 1.2, PCI 2.3, SMBIOS 2.7.1, UEFI. These features ensure optimal compatibility and efficient management of system resources.
Logistics data
The Harmonized System code for the product Supermicro SuperServer 1018R-WR is 84714100. This code allows for the unique identification of goods in international trade.
Technical details
The product Supermicro SuperServer 1018R-WR has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Environmental conditions
The operating temperature of the product Supermicro SuperServer 1018R-WR is 10 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Supermicro SuperServer 1018R-WR is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Supermicro SuperServer 1018R-WR is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Supermicro SuperServer 1018R-WR has an operating relative humidity (H-H) of 8 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
