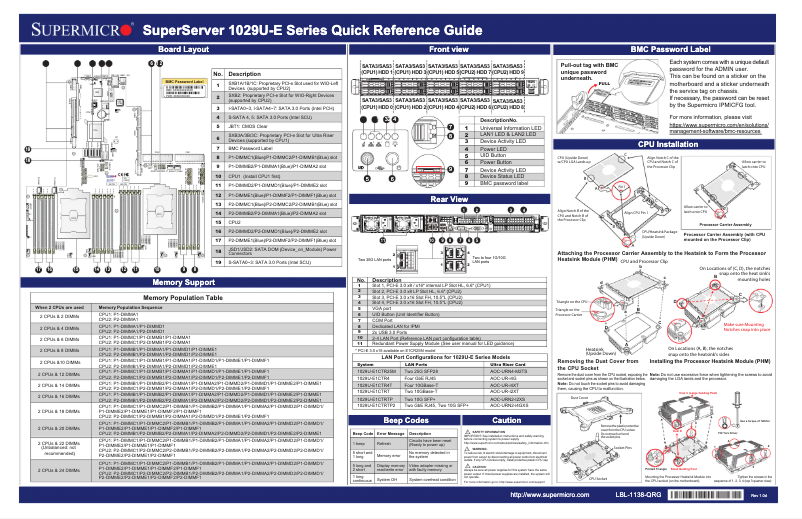

Manuals of product SuperServer 1029U-E1CR25M
Technical Specifications SuperServer 1029U-E1CR25M
General Information
-
ModelSUPERSERVER 1029U-E1CR25M
-
Brand
-
Category
-
Type
-
SKU1790755
-
MPN1790755
Processor
-
Integrated into the processorNo
-
Compatible processorsIntel® Xeon®
-
Motherboard chipsetIntel® C621
-
Processor socket (processor receptacle)LGA 3647 (Socket P)
-
Number of supported processors2
-
Computer bus10.4 GT/s
-
Compatible processorsIntel® Xeon®
Design
-
Number of fans8 fan(s)
-
Built-in power buttonYes
-
Product colorBlack
-
Chassis typeRack (1 U)
-
Built-in power buttonYes
Special features of the processor
-
Intelligent Platform Management Interface (IPMI) SupportYes
Features
-
Monitoring of PC functionalityCPU
-
FAN
-
Temperature
-
Voltage
Memory
-
Number of DIMM slots24
-
ECCYes
-
Maximum RDIMM memory3072 GB
-
Voltage memory1.2 V
-
Supported memory typesDDR4-SDRAM
-
Maximum RDIMM memory3072 GB
-
Support for RDIMM clock speeds2133,2400,2666 MHz
Storage support
-
RAID Levels0
-
Number of berries 2.51.5
-
Hard drive bays allowing hot swap10
-
Supported storage disk sizes10
-
Supported storage reader interfacesYes
-
Number of berries 2.52.5 "
-
Serial Attached SCSI (SAS)-3, Serial ATA III
-
10
Network
-
LAN Ethernet: data transfer rate25000 Mbit/s
-
Ethernet/LANYes
Connectivity
-
Quantity of USB 2.0 Ports0
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports5
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of VGA (D-Sub) ports2
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of SAS ports10
-
IPMI LAN Port (RJ-45)Yes
Extension connectors
-
PCI Express x16 slot(s) (Gen 3.x)3
-
PCI Express x 8 slots (Gen. 3.x)2
Graphique
-
Graphics adapter model includedAspeed AST2500
Power
-
Number of supported redundant power supplies2
-
Number of supported redundant power supplies2
-
Power supply750 W
-
Redundant power supply (RPS)Yes
-
DC output current (+12V)62.5 A
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
80 PLUS Certification80 PLUS Platinum
Environmental conditions
-
Operating temperature10 - 35 °C
-
Temperature out of operation-40 - 60 °C
-
Operating relative humidity (H-H)8 - 90 %
-
Relative humidity rate (storage)5 - 95 %
BIOS
-
Memory capacity of the BIOS32 Mbit
-
BIOS TypeAMI
Weight and dimensions
-
Width437 mm
-
Depth707 mm
-
Height43 mm
-
Weight11800 g
Packaging information
-
Package weight18600 g
Technical details
-
Sustainability certificatesRoHS
Similar products
More product categories from brand Supermicro
More product types from brand Supermicro
Presentation of product SuperServer 1029U-E1CR25M specifications from brand Supermicro
Special features of the processor
Does the product Supermicro SuperServer 1029U-E1CR25M support the IPMI intelligent management platform? Oui. This feature allows for advanced management and remote control of servers.
Design
The number of fans of the product Supermicro SuperServer 1029U-E1CR25M is 8 ventilateur(s). This design allows for better air circulation and optimal performance. Does the product Supermicro SuperServer 1029U-E1CR25M have indicators? Oui. These indicators allow you to visualize the operating status of the device. The chassis type of the product Supermicro SuperServer 1029U-E1CR25M is Rack (1 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The color of the product Supermicro SuperServer 1029U-E1CR25M is Noir. This shade gives it a modern and elegant look. Does the product Supermicro SuperServer 1029U-E1CR25M have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device.
Generalities
The brand of the product Supermicro SuperServer 1029U-E1CR25M is Supermicro. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Supermicro SuperServer 1029U-E1CR25M is 0672042279951. This code allows for the unique identification of the product in the distribution system. The product model Supermicro SuperServer 1029U-E1CR25M is SuperServer 1029U-E1CR25M | SYS-1029U-E1CR25M. This model ensures optimal performance and an enhanced user experience.
Processor
The technical detail "Integrated into the processor" of the product Supermicro SuperServer 1029U-E1CR25M is Non. This essential component ensures optimal performance and increased efficiency. The processor family of the product Supermicro SuperServer 1029U-E1CR25M contains Intel® Xeon®. This specification is essential for determining the performance and compatibility of the product. The motherboard of the product Supermicro SuperServer 1029U-E1CR25M contains Intel® C621. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance. The processor socket of the Supermicro SuperServer 1029U-E1CR25M contains LGA 3647 (Socket P). This socket is designed to ensure an optimal connection between the processor and the motherboard. The number of supported processors for the product Supermicro SuperServer 1029U-E1CR25M is 2. This number determines the processing capacity and overall performance of the device. The computer bus of the product Supermicro SuperServer 1029U-E1CR25M has 10.4 GT/s. This bus allows for fast communication between the different components of the system. The compatible processor of the product Supermicro SuperServer 1029U-E1CR25M contains Intel® Xeon®. This processor ensures optimal performance for your computing needs.
Features
The monitoring system for the proper functioning of the product Supermicro SuperServer 1029U-E1CR25M includes FAN, Temperature, Voltage. This system ensures optimal performance by monitoring the essential parameters of your computer.
Network
Does the product Supermicro SuperServer 1029U-E1CR25M have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The data transfer rate of the product Supermicro SuperServer 1029U-E1CR25M is 25000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs.
Memory
The number of DIMM slots for the Supermicro SuperServer 1029U-E1CR25M product is 24. This number determines the memory expansion capacity of your system. The maximum internal memory of the product Supermicro SuperServer 1029U-E1CR25M is 3072 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files. Does the product Supermicro SuperServer 1029U-E1CR25M have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The voltage memory of the product Supermicro SuperServer 1029U-E1CR25M is 1.2 V. This specification ensures optimal performance and compatibility with modern systems. The type of memory supported by the product Supermicro SuperServer 1029U-E1CR25M is DDR4-SDRAM. This type of memory ensures optimal performance for your applications. The product Supermicro SuperServer 1029U-E1CR25M has a maximum RDIMM memory of 3072 Go. This specification ensures optimal performance for your demanding applications. The support for the RDIMM clock speeds of the Supermicro SuperServer 1029U-E1CR25M product is 2133,2400,2666 MHz. This support allows for optimizing the system's performance and responsiveness.
Storage support
The RAID levels of the Supermicro SuperServer 1029U-E1CR25M product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. The storage support of the product Supermicro SuperServer 1029U-E1CR25M includes supported disk sizes of 2.5 ". These sizes provide great flexibility to meet your storage needs. Does the Supermicro SuperServer 1029U-E1CR25M have hard drive bays that allow for hot swapping? Oui. These bays facilitate the exchange of disks without shutting down the system, thus providing increased flexibility and availability. The number of storage units supported by the product Supermicro SuperServer 1029U-E1CR25M is 10. This feature allows for optimizing the management of your data and ensuring enhanced performance. The storage support of the product Supermicro SuperServer 1029U-E1CR25M contains supported storage reader interfaces: Serial Attached SCSI (SAS)-3, Serial ATA III. These interfaces ensure optimal compatibility with various storage devices. The number of 2.5" bays of the product Supermicro SuperServer 1029U-E1CR25M is 10. This design allows for better space management and performance optimization.
Extension connectors
The PCI Express x 8 slots (Gen. 3.x) of the product Supermicro SuperServer 1029U-E1CR25M contains 2. This type of connectivity allows for high bandwidth for optimal performance. The PCI Express x16 slot(s) of the product Supermicro SuperServer 1029U-E1CR25M contains 3. This expansion connector allows for fast and efficient communication with graphics cards and other peripherals.
Graphique
The included graphics adapter model of the Supermicro SuperServer 1029U-E1CR25M product contains Aspeed AST2500. This model ensures optimal graphics performance for your multimedia needs.
Connectivity
The number of USB 2.0 ports on the Supermicro SuperServer 1029U-E1CR25M is 0. These ports allow for a fast and efficient connection for your devices. The number of serial ports of the product Supermicro SuperServer 1029U-E1CR25M is 1. This number of serial ports allows for efficient connectivity for your devices. The number of VGA (D-Sub) ports on the Supermicro SuperServer 1029U-E1CR25M is 2. This port allows for easy connection with various devices and monitors. The product Supermicro SuperServer 1029U-E1CR25M has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of Ethernet LAN (RJ-45) ports of the product Supermicro SuperServer 1029U-E1CR25M is 1. These ports provide a stable and fast network connection for your devices. The number of SAS ports of the product Supermicro SuperServer 1029U-E1CR25M is 10. This high number of ports allows for optimal connectivity and efficient data management. Does the product Supermicro SuperServer 1029U-E1CR25M have an IPMI LAN port (RJ-45)? Oui. This port allows for efficient and secure remote management of systems.
BIOS
The memory capacity of the BIOS of the product Supermicro SuperServer 1029U-E1CR25M is 32 Mbit. This specification ensures optimal performance and efficient management of system resources. The BIOS type of the product Supermicro SuperServer 1029U-E1CR25M is AMI. This type of BIOS is essential for the proper functioning and compatibility of your system.
Environmental conditions
The operating temperature of the product Supermicro SuperServer 1029U-E1CR25M is 10 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Supermicro SuperServer 1029U-E1CR25M has an operating relative humidity (H-H) of 8 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Supermicro SuperServer 1029U-E1CR25M is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Supermicro SuperServer 1029U-E1CR25M is -40 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Power
The power supply of the product Supermicro SuperServer 1029U-E1CR25M is 750 W. This power supply ensures optimal performance for all your needs. Does the product Supermicro SuperServer 1029U-E1CR25M have redundant power supply (RPS)? No. This feature is essential to ensure service continuity in case of failure of the main power supply. The number of redundant power supplies installed for the product Supermicro SuperServer 1029U-E1CR25M is 2. This feature ensures service continuity in the event of a power supply failure. The number of redundant power supplies supported by the product Supermicro SuperServer 1029U-E1CR25M is 2. This feature ensures service continuity in the event of a power supply failure. The DC output current (+12V) of the Supermicro SuperServer 1029U-E1CR25M is 62.5 A. This current ensures optimal performance for your power supply needs. The AC input voltage of the Supermicro SuperServer 1029U-E1CR25M is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Supermicro SuperServer 1029U-E1CR25M is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The product Supermicro SuperServer 1029U-E1CR25M has the 80 PLUS 80 PLUS Platinum certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs.
Weight and dimensions
The depth of the product Supermicro SuperServer 1029U-E1CR25M is 707 mm. This dimension allows for optimal integration into your space. The width of the product Supermicro SuperServer 1029U-E1CR25M is 437 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Supermicro SuperServer 1029U-E1CR25M is 43 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Supermicro SuperServer 1029U-E1CR25M is 11800 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The weight of the Supermicro SuperServer 1029U-E1CR25M package is 18600 g. This weight ensures optimal protection during transport and delivery.
Technical details
The product Supermicro SuperServer 1029U-E1CR25M has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
