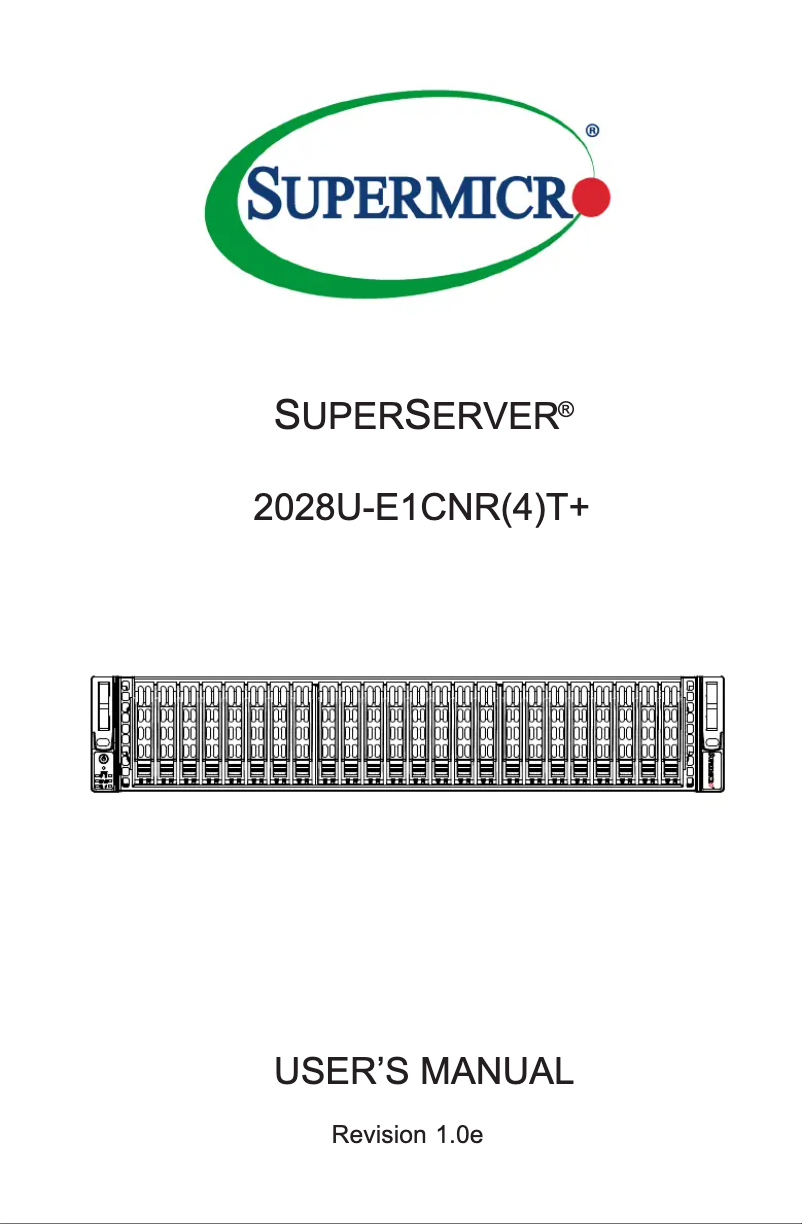

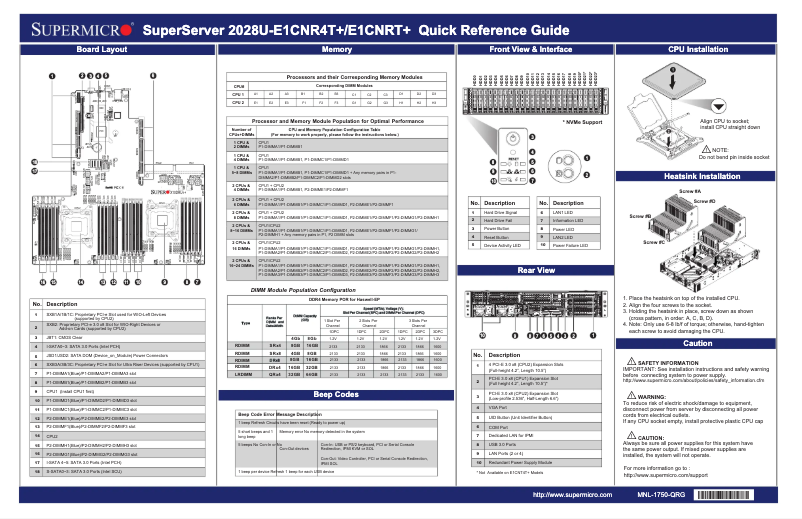

Manuals of product SuperServer 2028U-E1CNRT+
Technical Specifications SuperServer 2028U-E1CNRT+
General Information
-
ModelSUPERSERVER 2028U-E1CNRT+
-
Brand
-
Category
-
Type
-
SKU1828771
-
MPN1828771
Processor
-
Integrated into the processorNo
-
Motherboard chipsetIntel® C612
-
Processor socket (processor receptacle)LGA 2011 (Socket R)
-
Number of supported processors2
-
Compatible processorsIntel® Xeon®
-
Intel® Xeon SeriesE5-2600
-
Computer bus9.6 GT/s
-
Bus system typeQuickPath Interconnect (QPI)
-
Maximum cache55 MB
Design
-
Chassis typeRack (2 U)
-
Product colorBlack
-
IndicatorsHDD, Network, Power
-
Included heat sinkYes
-
Included heat sinkYes
-
Included heat sinkYes
-
Number of fans4 fan(s)
-
Fan diameter80 mm
-
CertificationUL/cUL/CB/BSMI/CE/CCC
Technical details
-
Sustainability certificatesRoHS
Power
-
80 PLUS Certification80 PLUS Titanium
-
Power supply1000 W
-
Redundant power supply (RPS)Yes
-
Number of installed redundant power supplies1
-
Input current5 - 9.8 A
-
DC output current (+12V)83 A
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Features
-
Monitoring of PC functionalityCPU
-
BMC integrated with IPMIFAN
-
LED
-
Temperature
-
Voltage
-
Yes
Special features of the processor
-
Intelligent Platform Management Interface (IPMI) SupportYes
Memory
-
Number of DIMM slots24
-
ECCYes
-
Maximum internal memory3000 GB
-
Voltage memory1.2 V
-
Supported memory typesDDR4-SDRAM
-
Maximum RDIMM memory1500 GB
-
Support for RDIMM clock speeds1600,1866,2133,2400 MHz
-
Supported DIMM sizes1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB
-
Memory support288-pin DIMM
-
Bus Memory72 bit
Storage support
-
RAID Levels0
-
Hard drive bays allowing hot swap1.5
-
Number of supported storage units6
-
Supported storage reader interfaces10
-
Supported storage disk sizes50
-
Supported storage drive types60
-
Yes
-
24
-
Serial Attached SCSI (SAS)-3
-
2.5 "
-
HDD & SSD
Network
-
Local Area Network (LAN) ControllerIntel X540, Realtek RTL8211E
-
Copper Ethernet cabling technology10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
-
LAN Ethernet: data transfer rate10,100,1000,10000 Mbit/s
-
Ethernet/LANYes
-
Type of Ethernet interface10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity
-
Number of Ethernet LAN ports (RJ-45)2
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports3
-
Quantity of USB 2.0 Ports0
-
Number of Ethernet LAN ports (RJ-45)2
-
IPMI LAN Port (RJ-45)Yes
-
Number of SAS ports24
-
Number of serial ports1
Extension connectors
-
PCI Express x8 slots7
-
Version of PCI Express locations3.0
Weight and dimensions
-
Power supply dimensions (l x W x h)73.5 x 203 x 40 mm
-
Width437 mm
-
Depth705.3 mm
-
Height89 mm
-
Weight16400 g
Environmental conditions
-
Operating temperature10 - 35 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)8 - 90 %
-
Relative humidity rate (storage)5 - 95 %
Graphique
-
Graphics adapter model includedAspeed AST2400
BIOS
-
BIOS TypeFRIEND
-
Memory capacity of the BIOS16 Mbit
-
ACPI Version4.0
-
UEFI Version2.3.1
-
System Management BIOS (SMBIOS) version2.7.1
-
Plug and PlayYes
-
BIOS FeaturesAPM 1.2, PCI 2.3, Plug & Play, SMBIOS 2.7.1, UEFI
Packaging information
-
Package weight32700 g
Logistics data
-
Harmonized System Code84714100
Similar products
More product categories from brand Supermicro
More product types from brand Supermicro
Presentation of product SuperServer 2028U-E1CNRT+ specifications from brand Supermicro
Generalities
The EAN code of the product Supermicro SuperServer 2028U-E1CNRT+ is 0672042180455, 0672042201181. This code allows for the unique identification of the product in the distribution system. The product model Supermicro SuperServer 2028U-E1CNRT+ is SuperServer 2028U-E1CNRT+ | SYS-2028U-E1CNRT+. This model ensures optimal performance and an enhanced user experience. The brand of the product Supermicro SuperServer 2028U-E1CNRT+ is Supermicro. This brand is known for its quality and innovation in the field of household appliances.
Technical details
The product Supermicro SuperServer 2028U-E1CNRT+ has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Processor
The technical detail "Integrated into the processor" of the product Supermicro SuperServer 2028U-E1CNRT+ is Non. This essential component ensures optimal performance and increased efficiency. The processor socket of the Supermicro SuperServer 2028U-E1CNRT+ contains LGA 2011 (Socket R). This socket is designed to ensure an optimal connection between the processor and the motherboard. The motherboard of the product Supermicro SuperServer 2028U-E1CNRT+ contains Intel® C612. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance. The number of supported processors for the product Supermicro SuperServer 2028U-E1CNRT+ is 2. This number determines the processing capacity and overall performance of the device. The Supermicro SuperServer 2028U-E1CNRT+ processor contains Intel® Xeon Series, including high-performance models suited for demanding work environments. The compatible processor of the product Supermicro SuperServer 2028U-E1CNRT+ contains Intel® Xeon®. This processor ensures optimal performance for your computing needs. The computer bus of the product Supermicro SuperServer 2028U-E1CNRT+ has 9.6 GT/s. This bus allows for fast communication between the different components of the system. The bus system type of the product Supermicro SuperServer 2028U-E1CNRT+ is QuickPath Interconnect (QPI). This type of bus allows for fast and efficient communication between the processor and other system components. The maximum cache of the product Supermicro SuperServer 2028U-E1CNRT+ is 55 Mo. This cache helps optimize performance by temporarily storing the most frequently used data.
Design
Does the product Supermicro SuperServer 2028U-E1CNRT+ have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. Does the product Supermicro SuperServer 2028U-E1CNRT+ have indicators? HDD, Network, Power. These indicators allow you to visualize the operating status of the device. The color of the product Supermicro SuperServer 2028U-E1CNRT+ is Noir. This shade gives it a modern and elegant look. The chassis type of the product Supermicro SuperServer 2028U-E1CNRT+ is Rack (2 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. Does the product Supermicro SuperServer 2028U-E1CNRT+ have a Reset Button? Oui. This button allows you to easily reset the product settings. The number of fans of the product Supermicro SuperServer 2028U-E1CNRT+ is 4 ventilateur(s). This design allows for better air circulation and optimal performance. Does the Supermicro SuperServer 2028U-E1CNRT+ come with a heatsink included? Oui. This essential component ensures optimal heat management for enhanced performance. The certification of the product Supermicro SuperServer 2028U-E1CNRT+ contains UL/cUL/CB/BSMI/CE/CCC. This certification guarantees compliance with the required safety and performance standards. The diameter of the Supermicro SuperServer 2028U-E1CNRT+ fan is 80 mm. This diameter is essential for ensuring optimal air circulation.
Features
Does the product Supermicro SuperServer 2028U-E1CNRT+ have an integrated BMC with IPMI? Oui. This feature allows for efficient and secure remote management of servers. The monitoring system for the proper functioning of the product Supermicro SuperServer 2028U-E1CNRT+ includes FAN, Temperature, Voltage. This system ensures optimal performance by monitoring the essential parameters of your computer.
Special features of the processor
Does the product Supermicro SuperServer 2028U-E1CNRT+ support the IPMI intelligent management platform? Oui. This feature allows for advanced management and remote control of servers.
Power
The product Supermicro SuperServer 2028U-E1CNRT+ has the 80 PLUS 80 PLUS Titanium certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The power supply of the product Supermicro SuperServer 2028U-E1CNRT+ is 1000 W. This power supply ensures optimal performance for all your needs. The number of redundant power supplies installed for the product Supermicro SuperServer 2028U-E1CNRT+ is 1. This feature ensures service continuity in the event of a power supply failure. Does the product Supermicro SuperServer 2028U-E1CNRT+ have redundant power supply (RPS)? No. This feature is essential to ensure service continuity in case of failure of the main power supply. The input current of the product Supermicro SuperServer 2028U-E1CNRT+ is 5 - 9.8 A. This input current ensures optimal performance and increased energy efficiency. The DC output current (+12V) of the Supermicro SuperServer 2028U-E1CNRT+ is 83 A. This current ensures optimal performance for your power supply needs. The AC input voltage of the Supermicro SuperServer 2028U-E1CNRT+ is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Supermicro SuperServer 2028U-E1CNRT+ is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Network
The local area network (LAN) controller of the product Supermicro SuperServer 2028U-E1CNRT+ has Intel X540, Realtek RTL8211E. This controller ensures a stable and fast connection to the network, thereby optimizing the performance of your system. Does the product Supermicro SuperServer 2028U-E1CNRT+ have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The data transfer rate of the product Supermicro SuperServer 2028U-E1CNRT+ is 10,100,1000,10000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The copper Ethernet wiring of the product Supermicro SuperServer 2028U-E1CNRT+ contains 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. The Ethernet interface type of the product Supermicro SuperServer 2028U-E1CNRT+ is 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. This type of interface allows for fast and efficient network connections.
Memory
The maximum internal memory of the product Supermicro SuperServer 2028U-E1CNRT+ is 3000 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files. Does the product Supermicro SuperServer 2028U-E1CNRT+ have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The number of DIMM slots for the Supermicro SuperServer 2028U-E1CNRT+ product is 24. This number determines the memory expansion capacity of your system. The voltage memory of the product Supermicro SuperServer 2028U-E1CNRT+ is 1.2 V. This specification ensures optimal performance and compatibility with modern systems. The type of memory supported by the product Supermicro SuperServer 2028U-E1CNRT+ is DDR4-SDRAM. This type of memory ensures optimal performance for your applications. The support for the RDIMM clock speeds of the Supermicro SuperServer 2028U-E1CNRT+ product is 1600,1866,2133,2400 MHz. This support allows for optimizing the system's performance and responsiveness. The supported DIMM sizes of the product Supermicro SuperServer 2028U-E1CNRT+ are 1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB. These sizes allow for flexibility in increasing memory according to the user's needs. The product Supermicro SuperServer 2028U-E1CNRT+ has a maximum RDIMM memory of 1500 Go. This specification ensures optimal performance for your demanding applications. The memory support of the product Supermicro SuperServer 2028U-E1CNRT+ is 288-pin DIMM. This support is designed to provide optimal performance and compatibility with various systems. The memory Bus of the product Supermicro SuperServer 2028U-E1CNRT+ has 72 bit. This specification is essential to ensure fast and efficient communication between the different components of the system.
Storage support
The number of storage units supported by the product Supermicro SuperServer 2028U-E1CNRT+ is 24. This feature allows for optimizing the management of your data and ensuring enhanced performance. The RAID levels of the Supermicro SuperServer 2028U-E1CNRT+ product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. Does the Supermicro SuperServer 2028U-E1CNRT+ have hard drive bays that allow for hot swapping? Oui. These bays facilitate the exchange of disks without shutting down the system, thus providing increased flexibility and availability. The storage support of the product Supermicro SuperServer 2028U-E1CNRT+ contains supported storage reader interfaces: Serial Attached SCSI (SAS)-3. These interfaces ensure optimal compatibility with various storage devices. The storage support of the product Supermicro SuperServer 2028U-E1CNRT+ includes supported disk sizes of 2.5 ". These sizes provide great flexibility to meet your storage needs. The type of storage drives supported by the product Supermicro SuperServer 2028U-E1CNRT+ is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs.
Extension connectors
The product Supermicro SuperServer 2028U-E1CNRT+ has 6 PCI Express x8 slots. These slots allow for a fast and efficient connection of expansion cards to enhance your system's performance. The version of the PCI Express slots of the Supermicro SuperServer 2028U-E1CNRT+ is 3.0. This specification ensures optimal compatibility with modern components.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Supermicro SuperServer 2028U-E1CNRT+ is 2. These ports provide a stable and fast network connection for your devices. The number of USB 2.0 ports on the Supermicro SuperServer 2028U-E1CNRT+ is 0. These ports allow for a fast and efficient connection for your devices. The product Supermicro SuperServer 2028U-E1CNRT+ has 2 internal USB 3.2 Gen 1 (3.1 Gen 1) ports. These ports allow for fast and efficient connectivity for your devices. The product Supermicro SuperServer 2028U-E1CNRT+ has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. Does the product Supermicro SuperServer 2028U-E1CNRT+ have an IPMI LAN port (RJ-45)? Oui. This port allows for efficient and secure remote management of systems. The number of SAS ports of the product Supermicro SuperServer 2028U-E1CNRT+ is 24. This high number of ports allows for optimal connectivity and efficient data management. The number of serial ports of the product Supermicro SuperServer 2028U-E1CNRT+ is 1. This number of serial ports allows for efficient connectivity for your devices.
Weight and dimensions
The product Supermicro SuperServer 2028U-E1CNRT+ has power supply dimensions (l x W x h) of 73.5 x 203 x 40 mm. These dimensions allow for optimal integration into various spaces. The width of the product Supermicro SuperServer 2028U-E1CNRT+ is 437 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Supermicro SuperServer 2028U-E1CNRT+ is 705.3 mm. This dimension allows for optimal integration into your space. The height of the product Supermicro SuperServer 2028U-E1CNRT+ is 89 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Supermicro SuperServer 2028U-E1CNRT+ is 16400 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The product Supermicro SuperServer 2028U-E1CNRT+ has an operating relative humidity (H-H) of 8 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Supermicro SuperServer 2028U-E1CNRT+ is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Supermicro SuperServer 2028U-E1CNRT+ is 10 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Supermicro SuperServer 2028U-E1CNRT+ is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Graphique
The included graphics adapter model of the Supermicro SuperServer 2028U-E1CNRT+ product contains Aspeed AST2400. This model ensures optimal graphics performance for your multimedia needs.
Packaging information
The weight of the Supermicro SuperServer 2028U-E1CNRT+ package is 32700 g. This weight ensures optimal protection during transport and delivery.
BIOS
The ACPI version of the product Supermicro SuperServer 2028U-E1CNRT+ is 4.0. This version ensures advanced power management and sleep features. The memory capacity of the BIOS of the product Supermicro SuperServer 2028U-E1CNRT+ is 16 Mbit. This specification ensures optimal performance and efficient management of system resources. The BIOS type of the product Supermicro SuperServer 2028U-E1CNRT+ is AMI. This type of BIOS is essential for the proper functioning and compatibility of your system. The UEFI version of the product Supermicro SuperServer 2028U-E1CNRT+ is 2.3.1. This version allows for better boot management and advanced features. The system management BIOS (SMBIOS) version of the product Supermicro SuperServer 2028U-E1CNRT+ is 2.7.1. This specification ensures optimal compatibility and performance for the system. Does the product Supermicro SuperServer 2028U-E1CNRT+ have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The BIOS features of the product Supermicro SuperServer 2028U-E1CNRT+ are APM 1.2, PCI 2.3, Plug & Play, SMBIOS 2.7.1, UEFI. These features ensure optimal compatibility and efficient management of system resources.
Logistics data
The Harmonized System code for the product Supermicro SuperServer 2028U-E1CNRT+ is 84714100. This code allows for the unique identification of goods in international trade.
