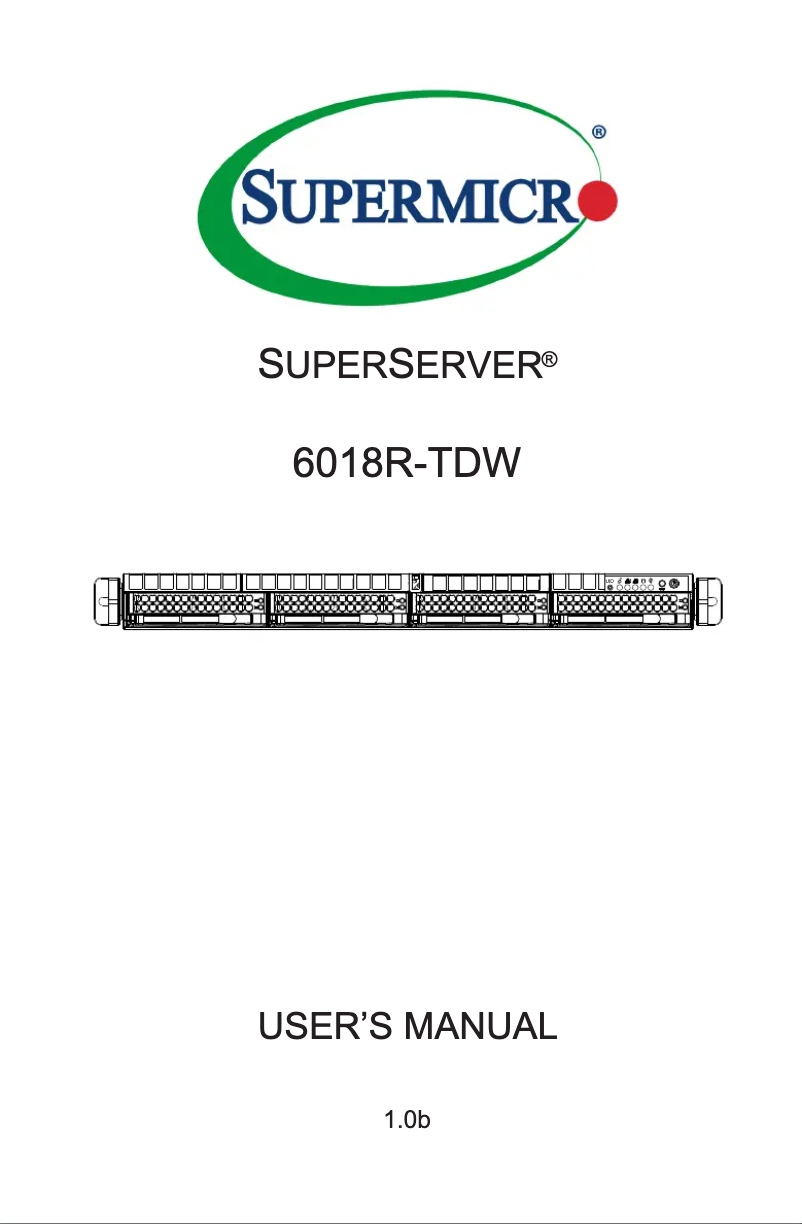

Manuals of product SuperServer 6018R-TDW
Technical Specifications SuperServer 6018R-TDW
General Information
-
ModelSUPERSERVER 6018R-TDW
-
Brand
-
Category
-
Type
-
SKU1790868
-
MPN1790868
Processor
-
Number of supported processors-
-
Motherboard chipset-
-
Processor socket (processor receptacle)LGA 2011-v3
-
Processor familyIntel
-
Compatible processorsIntel® Xeon®
-
Intel® Xeon SeriesE5-2600
-
Computer bus9.6 GT/s
-
Maximum cache45 MB
Memory
-
Number of DIMM slots16
-
ECCYes
-
Maximum internal memory1000 GB
-
Voltage memory1.2 V
-
Supported memory typesDDR4-SDRAM
-
Maximum RDIMM memory512 GB
Storage support
-
RAID Levels0
-
Number of supported storage units1.5
-
Supported storage reader interfaces10
-
Hard drive bays allowing hot swap4
-
Supported storage disk sizesATA III Series
-
Yes
-
3.5 "
Network
-
Local Area Network (LAN) ControllerIntel I350, Realtek RTL8211E
-
Copper Ethernet cabling technology1000BASE-T, 100BASE-TX, 10GBASE-T
-
LAN Ethernet: data transfer rate100,1000,10000 Mbit/s
-
Ethernet/LANYes
-
Type of Ethernet interface10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity
-
Number of VGA (D-Sub) ports1
-
Quantity of USB 2.0 Ports2
-
Number of VGA (D-Sub) ports1
-
Number of Ethernet LAN ports (RJ-45)3
-
IPMI LAN Port (RJ-45)Yes
-
Number of SATA III connectors4
Extension connectors
-
PCI Express x16 slots2
Graphique
-
Graphics adapter model includedAspeed AST2400
Design
-
Chassis typeRack (1 U)
-
Product colorBlack
-
IndicatorsYes
-
Number of fans5 fan(s)
-
Fan diameter40 mm
Technical details
-
Sustainability certificatesRoHS
Power
-
Power supply600 W
-
AC input frequency50 - 60 Hz
-
AC input voltage100 - 240 V
-
DC output current (+5V)18 A
-
DC output current (+12V)49 A
Environmental conditions
-
Operating temperature5 - 40 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)8 - 90 %
-
Relative humidity rate (storage)5 - 95 %
Weight and dimensions
-
Width437 mm
-
Depth650 mm
-
Height43 mm
-
Weight20090 g
BIOS
-
Memory capacity of the BIOS128 Mbit
-
BIOS FeaturesAPM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI
Similar products
More product categories from brand Supermicro
More product types from brand Supermicro
Presentation of product SuperServer 6018R-TDW specifications from brand Supermicro
Storage support
The RAID levels of the Supermicro SuperServer 6018R-TDW product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. The storage support of the product Supermicro SuperServer 6018R-TDW contains supported storage reader interfaces: Série ATA III. These interfaces ensure optimal compatibility with various storage devices. The number of storage units supported by the product Supermicro SuperServer 6018R-TDW is 4. This feature allows for optimizing the management of your data and ensuring enhanced performance. Does the Supermicro SuperServer 6018R-TDW have hard drive bays that allow for hot swapping? Oui. These bays facilitate the exchange of disks without shutting down the system, thus providing increased flexibility and availability. The storage support of the product Supermicro SuperServer 6018R-TDW includes supported disk sizes of 3.5 ". These sizes provide great flexibility to meet your storage needs.
Memory
The number of DIMM slots for the Supermicro SuperServer 6018R-TDW product is 16. This number determines the memory expansion capacity of your system. Does the product Supermicro SuperServer 6018R-TDW have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The voltage memory of the product Supermicro SuperServer 6018R-TDW is 1.2 V. This specification ensures optimal performance and compatibility with modern systems. The maximum internal memory of the product Supermicro SuperServer 6018R-TDW is 1000 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files. The type of memory supported by the product Supermicro SuperServer 6018R-TDW is DDR4-SDRAM. This type of memory ensures optimal performance for your applications. The product Supermicro SuperServer 6018R-TDW has a maximum RDIMM memory of 512 Go. This specification ensures optimal performance for your demanding applications.
Generalities
The brand of the product Supermicro SuperServer 6018R-TDW is Supermicro. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Supermicro SuperServer 6018R-TDW is 0672042168651. This code allows for the unique identification of the product in the distribution system. The product model Supermicro SuperServer 6018R-TDW is SuperServer 6018R-TDW | SYS-6018R-TDW. This model ensures optimal performance and an enhanced user experience.
Processor
The processor socket of the Supermicro SuperServer 6018R-TDW contains LGA 2011-v3. This socket is designed to ensure an optimal connection between the processor and the motherboard. The compatible processor of the product Supermicro SuperServer 6018R-TDW contains Intel® Xeon®. This processor ensures optimal performance for your computing needs. The number of supported processors for the product Supermicro SuperServer 6018R-TDW is -. This number determines the processing capacity and overall performance of the device. The processor family of the product Supermicro SuperServer 6018R-TDW contains Intel. This specification is essential for determining the performance and compatibility of the product. The Supermicro SuperServer 6018R-TDW processor contains Intel® Xeon Series, including high-performance models suited for demanding work environments. The computer bus of the product Supermicro SuperServer 6018R-TDW has 9.6 GT/s. This bus allows for fast communication between the different components of the system. The motherboard of the product Supermicro SuperServer 6018R-TDW contains -. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance. The maximum cache of the product Supermicro SuperServer 6018R-TDW is 45 Mo. This cache helps optimize performance by temporarily storing the most frequently used data.
Network
The local area network (LAN) controller of the product Supermicro SuperServer 6018R-TDW has Intel I350, Realtek RTL8211E. This controller ensures a stable and fast connection to the network, thereby optimizing the performance of your system. The copper Ethernet wiring of the product Supermicro SuperServer 6018R-TDW contains 1000BASE-T, 100BASE-TX, 10GBASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. The data transfer rate of the product Supermicro SuperServer 6018R-TDW is 100,1000,10000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the product Supermicro SuperServer 6018R-TDW have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Supermicro SuperServer 6018R-TDW is 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. This type of interface allows for fast and efficient network connections.
Connectivity
The number of USB 2.0 ports on the Supermicro SuperServer 6018R-TDW is 2. These ports allow for a fast and efficient connection for your devices. The number of serial ports of the product Supermicro SuperServer 6018R-TDW is 1. This number of serial ports allows for efficient connectivity for your devices. The number of Ethernet LAN (RJ-45) ports of the product Supermicro SuperServer 6018R-TDW is 3. These ports provide a stable and fast network connection for your devices. The number of VGA (D-Sub) ports on the Supermicro SuperServer 6018R-TDW is 1. This port allows for easy connection with various devices and monitors. Does the product Supermicro SuperServer 6018R-TDW have an IPMI LAN port (RJ-45)? Oui. This port allows for efficient and secure remote management of systems. The number of SATA III connectors of the product Supermicro SuperServer 6018R-TDW is 4. These connectors allow for a fast and efficient connection of hard drives and SSDs.
Graphique
The included graphics adapter model of the Supermicro SuperServer 6018R-TDW product contains Aspeed AST2400. This model ensures optimal graphics performance for your multimedia needs.
Extension connectors
The Supermicro SuperServer 6018R-TDW has 1 PCI Express x16 slot. This type of expansion connector allows for the installation of graphics cards and other high-performance peripherals to enhance your system's capabilities.
Technical details
The product Supermicro SuperServer 6018R-TDW has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Design
The chassis type of the product Supermicro SuperServer 6018R-TDW is Rack (1 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The color of the product Supermicro SuperServer 6018R-TDW is Noir. This shade gives it a modern and elegant look. The number of fans of the product Supermicro SuperServer 6018R-TDW is 5 ventilateur(s). This design allows for better air circulation and optimal performance. Does the product Supermicro SuperServer 6018R-TDW have indicators? Oui. These indicators allow you to visualize the operating status of the device. The diameter of the Supermicro SuperServer 6018R-TDW fan is 40 mm. This diameter is essential for ensuring optimal air circulation.
Power
The power supply of the product Supermicro SuperServer 6018R-TDW is 600 W. This power supply ensures optimal performance for all your needs. The DC output current (+5V) of the Supermicro SuperServer 6018R-TDW is 18 A. This current provides efficient power for various electronic devices. The AC input voltage of the Supermicro SuperServer 6018R-TDW is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Supermicro SuperServer 6018R-TDW is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The DC output current (+12V) of the Supermicro SuperServer 6018R-TDW is 49 A. This current ensures optimal performance for your power supply needs.
Weight and dimensions
The width of the product Supermicro SuperServer 6018R-TDW is 437 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Supermicro SuperServer 6018R-TDW is 43 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Supermicro SuperServer 6018R-TDW is 20090 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Supermicro SuperServer 6018R-TDW is 650 mm. This dimension allows for optimal integration into your space.
Environmental conditions
The operating temperature of the product Supermicro SuperServer 6018R-TDW is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Supermicro SuperServer 6018R-TDW has an operating relative humidity (H-H) of 8 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Supermicro SuperServer 6018R-TDW is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Supermicro SuperServer 6018R-TDW is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
BIOS
The memory capacity of the BIOS of the product Supermicro SuperServer 6018R-TDW is 128 Mbit. This specification ensures optimal performance and efficient management of system resources. The BIOS features of the product Supermicro SuperServer 6018R-TDW are APM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI. These features ensure optimal compatibility and efficient management of system resources.
