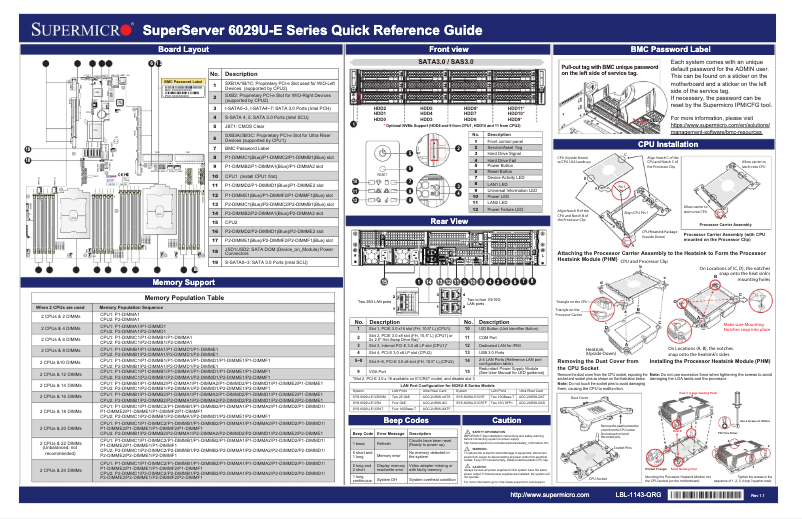

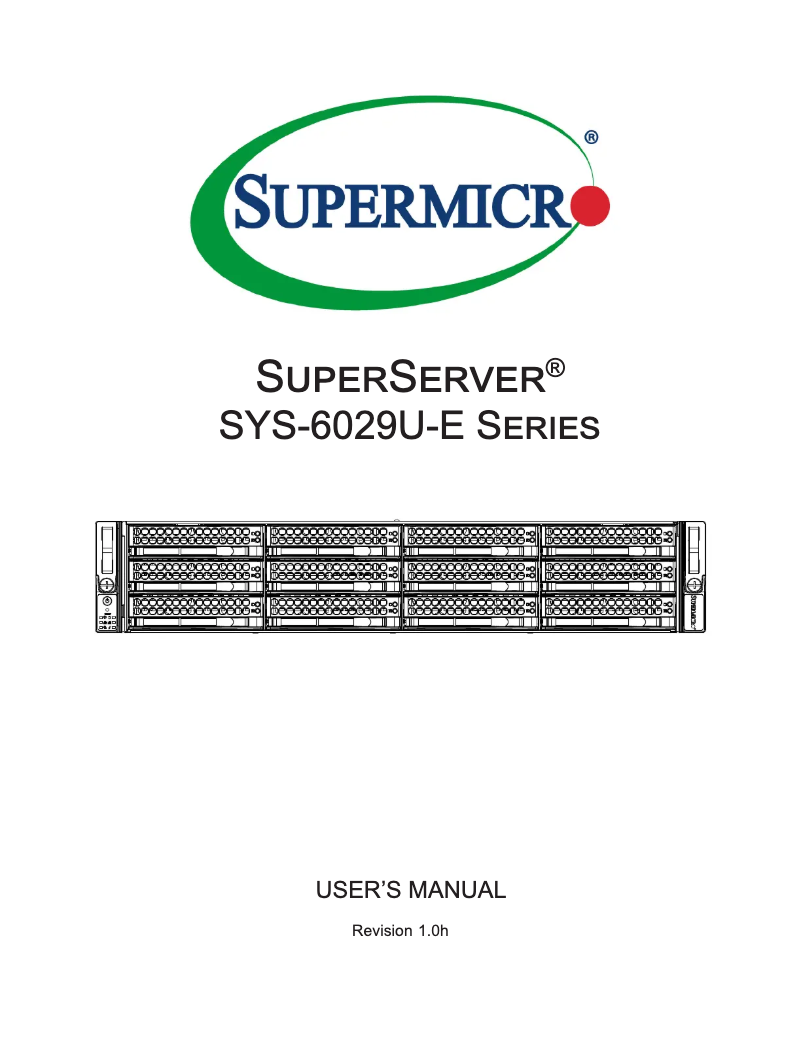

Manuals of product SuperServer 6029U-E1CR25M
Technical Specifications SuperServer 6029U-E1CR25M
General Information
-
ModelSUPERSERVER 6029U-E1CR25M
-
Brand
-
Category
-
Type
-
SKU1813850
-
MPN1813850
Processor
-
Integrated into the processorNo
-
Compatible processorsIntel® Xeon®
-
Motherboard chipsetIntel® C621
-
Processor socket (processor receptacle)LGA 3647 (Socket P)
-
Number of supported processors2
-
Compatible processorsIntel® Xeon®
-
Computer bus10.4 GT/s
Design
-
Number of fans4 fan(s)
-
Built-in power buttonYes
-
Product colorBlack
-
Chassis typeRack (2 U)
-
Built-in power buttonYes
Special features of the processor
-
Intelligent Platform Management Interface (IPMI) SupportYes
Features
-
Monitoring of PC functionalityCPU
-
FAN
-
Temperature
-
Voltage
Memory
-
Number of DIMM slots24
-
ECCYes
-
Maximum RDIMM memory3072 GB
-
Voltage memory1.2 V
-
Supported memory typesDDR4-SDRAM
-
Maximum RDIMM memory3072 GB
-
Support for RDIMM clock speeds2133, 2400, 2666 MHz
Storage support
-
RAID Levels0
-
Number of 3.5" consoles1.5
-
Hard drive bays allowing hot swap10
-
Supported storage disk sizes12
-
Supported storage reader interfacesYes
-
Number of 3.5" consoles3.5 "
-
Serial Attached SCSI (SAS)-3, Serial ATA III
-
12
Network
-
LAN Ethernet: data transfer rate25000 Mbit/s
-
Ethernet/LANYes
Connectivity
-
Quantity of USB 2.0 Ports0
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports3
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of VGA (D-Sub) ports2
-
Number of Ethernet LAN ports (RJ-45)1
-
IPMI LAN Port (RJ-45)Yes
-
Number of SAS ports12
Extension connectors
-
PCI Express x16 slot(s) (Gen 3.x)1
-
PCI Express x 8 slots (Gen. 3.x)7
Graphique
-
Graphics adapter model includedAspeed AST2500
Power
-
Number of supported redundant power supplies2
-
Number of supported redundant power supplies2
-
Power supply1000 W
-
Redundant power supply (RPS)Yes
-
DC output current (+12V)83 A
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
80 PLUS Certification80 PLUS Titanium
Environmental conditions
-
Operating temperature10 - 35 °C
-
Temperature out of operation-40 - 60 °C
-
Operating relative humidity (H-H)8 - 90 %
-
Relative humidity rate (storage)5 - 95 %
BIOS
-
Memory capacity of the BIOS32 Mbit
-
BIOS TypeAMI
Weight and dimensions
-
Width437 mm
-
Depth723 mm
-
Height89 mm
-
Weight16400 g
Packaging information
-
Package weight32700 g
Similar products
More product categories from brand Supermicro
More product types from brand Supermicro
Presentation of product SuperServer 6029U-E1CR25M specifications from brand Supermicro
Generalities
The brand of the product Supermicro SuperServer 6029U-E1CR25M is Supermicro. This brand is known for its quality and innovation in the field of household appliances. The product model Supermicro SuperServer 6029U-E1CR25M is SuperServer 6029U-E1CR25M | SYS-6029U-E1CR25M. This model ensures optimal performance and an enhanced user experience.
Special features of the processor
Does the product Supermicro SuperServer 6029U-E1CR25M support the IPMI intelligent management platform? Oui. This feature allows for advanced management and remote control of servers.
Design
The chassis type of the product Supermicro SuperServer 6029U-E1CR25M is Rack (2 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The number of fans of the product Supermicro SuperServer 6029U-E1CR25M is 4 ventilateur(s). This design allows for better air circulation and optimal performance. The color of the product Supermicro SuperServer 6029U-E1CR25M is Noir. This shade gives it a modern and elegant look. Does the product Supermicro SuperServer 6029U-E1CR25M have indicators? Oui. These indicators allow you to visualize the operating status of the device. Does the product Supermicro SuperServer 6029U-E1CR25M have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device.
Processor
The technical detail "Integrated into the processor" of the product Supermicro SuperServer 6029U-E1CR25M is Non. This essential component ensures optimal performance and increased efficiency. The motherboard of the product Supermicro SuperServer 6029U-E1CR25M contains Intel® C621. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance. The processor family of the product Supermicro SuperServer 6029U-E1CR25M contains Intel® Xeon®. This specification is essential for determining the performance and compatibility of the product. The processor socket of the Supermicro SuperServer 6029U-E1CR25M contains LGA 3647 (Socket P). This socket is designed to ensure an optimal connection between the processor and the motherboard. The number of supported processors for the product Supermicro SuperServer 6029U-E1CR25M is 2. This number determines the processing capacity and overall performance of the device. The compatible processor of the product Supermicro SuperServer 6029U-E1CR25M contains Intel® Xeon®. This processor ensures optimal performance for your computing needs. The computer bus of the product Supermicro SuperServer 6029U-E1CR25M has 10.4 GT/s. This bus allows for fast communication between the different components of the system.
Features
The monitoring system for the proper functioning of the product Supermicro SuperServer 6029U-E1CR25M includes FAN, Temperature, Voltage. This system ensures optimal performance by monitoring the essential parameters of your computer.
Network
The data transfer rate of the product Supermicro SuperServer 6029U-E1CR25M is 25000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the product Supermicro SuperServer 6029U-E1CR25M have Ethernet/LAN? Oui. This specification determines the network connectivity of the product.
Storage support
The RAID levels of the Supermicro SuperServer 6029U-E1CR25M product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. Does the Supermicro SuperServer 6029U-E1CR25M have hard drive bays that allow for hot swapping? Oui. These bays facilitate the exchange of disks without shutting down the system, thus providing increased flexibility and availability. The number of storage units supported by the product Supermicro SuperServer 6029U-E1CR25M is 12. This feature allows for optimizing the management of your data and ensuring enhanced performance. The storage support of the product Supermicro SuperServer 6029U-E1CR25M includes supported disk sizes of 3.5 ". These sizes provide great flexibility to meet your storage needs. The storage support of the product Supermicro SuperServer 6029U-E1CR25M contains supported storage reader interfaces: Serial Attached SCSI (SAS)-3, Serial ATA III. These interfaces ensure optimal compatibility with various storage devices. The number of 3.5" consoles of the product Supermicro SuperServer 6029U-E1CR25M is 12. This design allows for an optimized and user-friendly experience.
Memory
The number of DIMM slots for the Supermicro SuperServer 6029U-E1CR25M product is 24. This number determines the memory expansion capacity of your system. Does the product Supermicro SuperServer 6029U-E1CR25M have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The maximum internal memory of the product Supermicro SuperServer 6029U-E1CR25M is 3072 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files. The voltage memory of the product Supermicro SuperServer 6029U-E1CR25M is 1.2 V. This specification ensures optimal performance and compatibility with modern systems. The type of memory supported by the product Supermicro SuperServer 6029U-E1CR25M is DDR4-SDRAM. This type of memory ensures optimal performance for your applications. The support for the RDIMM clock speeds of the Supermicro SuperServer 6029U-E1CR25M product is 2133,2400,2666 MHz. This support allows for optimizing the system's performance and responsiveness. The product Supermicro SuperServer 6029U-E1CR25M has a maximum RDIMM memory of 3072 Go. This specification ensures optimal performance for your demanding applications.
Connectivity
The number of serial ports of the product Supermicro SuperServer 6029U-E1CR25M is 1. This number of serial ports allows for efficient connectivity for your devices. The product Supermicro SuperServer 6029U-E1CR25M has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of USB 2.0 ports on the Supermicro SuperServer 6029U-E1CR25M is 0. These ports allow for a fast and efficient connection for your devices. The number of VGA (D-Sub) ports on the Supermicro SuperServer 6029U-E1CR25M is 2. This port allows for easy connection with various devices and monitors. The number of Ethernet LAN (RJ-45) ports of the product Supermicro SuperServer 6029U-E1CR25M is 1. These ports provide a stable and fast network connection for your devices. Does the product Supermicro SuperServer 6029U-E1CR25M have an IPMI LAN port (RJ-45)? Oui. This port allows for efficient and secure remote management of systems. The number of SAS ports of the product Supermicro SuperServer 6029U-E1CR25M is 12. This high number of ports allows for optimal connectivity and efficient data management.
Graphique
The included graphics adapter model of the Supermicro SuperServer 6029U-E1CR25M product contains Aspeed AST2500. This model ensures optimal graphics performance for your multimedia needs.
Extension connectors
The PCI Express x16 slot(s) of the product Supermicro SuperServer 6029U-E1CR25M contains 1. This expansion connector allows for fast and efficient communication with graphics cards and other peripherals. The PCI Express x 8 slots (Gen. 3.x) of the product Supermicro SuperServer 6029U-E1CR25M contains 7. This type of connectivity allows for high bandwidth for optimal performance.
Environmental conditions
The operating temperature of the product Supermicro SuperServer 6029U-E1CR25M is 10 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Supermicro SuperServer 6029U-E1CR25M is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Supermicro SuperServer 6029U-E1CR25M has an operating relative humidity (H-H) of 8 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Supermicro SuperServer 6029U-E1CR25M is -40 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
BIOS
The memory capacity of the BIOS of the product Supermicro SuperServer 6029U-E1CR25M is 32 Mbit. This specification ensures optimal performance and efficient management of system resources. The BIOS type of the product Supermicro SuperServer 6029U-E1CR25M is AMI. This type of BIOS is essential for the proper functioning and compatibility of your system.
Weight and dimensions
The width of the product Supermicro SuperServer 6029U-E1CR25M is 437 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Supermicro SuperServer 6029U-E1CR25M is 89 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Supermicro SuperServer 6029U-E1CR25M is 723 mm. This dimension allows for optimal integration into your space. The weight of the product Supermicro SuperServer 6029U-E1CR25M is 16400 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The weight of the Supermicro SuperServer 6029U-E1CR25M package is 32700 g. This weight ensures optimal protection during transport and delivery.
Power
The number of redundant power supplies installed for the product Supermicro SuperServer 6029U-E1CR25M is 2. This feature ensures service continuity in the event of a power supply failure. Does the product Supermicro SuperServer 6029U-E1CR25M have redundant power supply (RPS)? No. This feature is essential to ensure service continuity in case of failure of the main power supply. The power supply of the product Supermicro SuperServer 6029U-E1CR25M is 1000 W. This power supply ensures optimal performance for all your needs. The number of redundant power supplies supported by the product Supermicro SuperServer 6029U-E1CR25M is 2. This feature ensures service continuity in the event of a power supply failure. The DC output current (+12V) of the Supermicro SuperServer 6029U-E1CR25M is 83 A. This current ensures optimal performance for your power supply needs. The product Supermicro SuperServer 6029U-E1CR25M has the 80 PLUS 80 PLUS Titanium certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The AC input voltage of the Supermicro SuperServer 6029U-E1CR25M is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Supermicro SuperServer 6029U-E1CR25M is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
