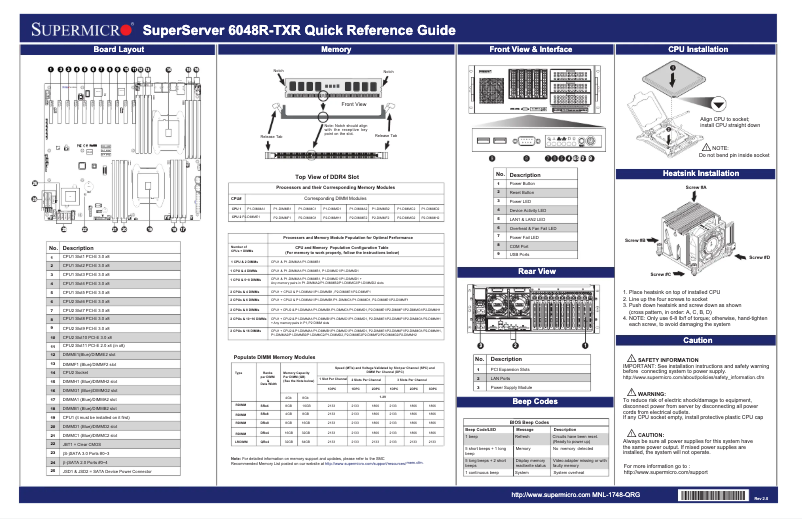

Manuals of product SuperServer 6048R-TXR
Technical Specifications SuperServer 6048R-TXR
General Information
-
ModelSUPERSERVER 6048R-TXR
-
Brand
-
Category
-
Type
-
SKU1790856
-
MPN1790856
Processor
-
Integrated into the processorNo
-
Compatible processorsIntel® Xeon®
-
Processor socket (processor receptacle)LGA 2011 (Socket R)
-
Number of supported processors2
-
Computer bus9.6 GT/s
-
Bus system typeQuickPath Interconnect (QPI)
-
Maximum cache55 MB
-
Compatible processorsIntel® Xeon®
-
Motherboard chipsetIntel® C612
Memory
-
Number of DIMM slots16
-
Memory support288-pin DIMM
-
Maximum internal memory2048 GB
-
ECCYes
-
Voltage memory1.2 V
-
Supported memory typesDDR4-SDRAM
-
Maximum RDIMM memory512 GB
-
Supported DIMM sizes4GB, 8GB, 16GB, 32GB
-
Support for RDIMM clock speeds1600, 1866, 2133, 2400 MHz
-
Bus Memory72 bit
Storage support
-
RAID Levels0
-
Number of supported storage units1.5
-
Hard drive bays allowing hot swap10
-
Supported storage disk sizes10
-
Supported storage reader interfacesYes
-
3.5 "
-
SATA III
Network
-
Local Area Network (LAN) ControllerIntel I350, Realtek RTL8201N
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Copper Ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
-
Ethernet/LANYes
-
Type of Ethernet interfaceFast Ethernet, Gigabit Ethernet
Connectivity
-
Quantity of USB 2.0 Ports4
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports5
-
Number of VGA (D-Sub) ports1
-
Number of serial ports2
-
IPMI LAN Port (RJ-45)Yes
-
Number of serial ports2
-
Number of SATA III connectors10
Graphique
-
Graphics adapter model includedAspeed AST2400
BIOS
-
BIOS TypeEEPROM
-
Memory capacity of the BIOS128 Mbit
-
ACPI Version4.0
-
BIOS FeaturesPCI 2.3, SMBIOS 2.7.1, UEFI
Design
-
Chassis typeRack (4 U)
-
Product colorBlack
-
IndicatorsHDD, LAN, Power, Power fail
-
Number of fans3 fan(s)
-
CertificationUL/cUL/CB/CE/BSMI/CCC
-
Platinum
Technical details
-
Sustainability certificatesRoHS
Features
-
TPM chip (Trusted Platform Module)Yes
-
Version of the TPM (Trusted Platform Module) chip1.2
Extension connectors
-
PCI Express x 8 slots (Gen. 3.x)10
-
PCI Express x 8 slots (Gen. 2.x)2
Power
-
Power supply600 W
-
Number of main power supplies1
-
Redundant power supply (RPS)Yes
-
Number of main power supplies1
-
DC output current (+12V)50 A
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Environmental conditions
-
Operating temperature10 - 35 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)8 - 90 %
-
Relative humidity rate (storage)5 - 95 %
Weight and dimensions
-
Width437 mm
-
Depth525 mm
-
Height178 mm
-
Weight22200 g
Logistics data
-
Harmonized System Code84714100
Similar products
More product categories from brand Supermicro
More product types from brand Supermicro
Presentation of product SuperServer 6048R-TXR specifications from brand Supermicro
Storage support
The RAID levels of the Supermicro SuperServer 6048R-TXR product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. The storage support of the product Supermicro SuperServer 6048R-TXR includes supported disk sizes of 3.5 ". These sizes provide great flexibility to meet your storage needs. Does the Supermicro SuperServer 6048R-TXR have hard drive bays that allow for hot swapping? Oui. These bays facilitate the exchange of disks without shutting down the system, thus providing increased flexibility and availability. The number of storage units supported by the product Supermicro SuperServer 6048R-TXR is 10. This feature allows for optimizing the management of your data and ensuring enhanced performance. The storage support of the product Supermicro SuperServer 6048R-TXR contains supported storage reader interfaces: Série ATA III. These interfaces ensure optimal compatibility with various storage devices.
Generalities
The brand of the product Supermicro SuperServer 6048R-TXR is Supermicro. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Supermicro SuperServer 6048R-TXR is 0672042186389. This code allows for the unique identification of the product in the distribution system. The product model Supermicro SuperServer 6048R-TXR is SuperServer 6048R-TXR | SYS-6048R-TXR. This model ensures optimal performance and an enhanced user experience.
Memory
The memory support of the product Supermicro SuperServer 6048R-TXR is 288-pin DIMM. This support is designed to provide optimal performance and compatibility with various systems. Does the product Supermicro SuperServer 6048R-TXR have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The number of DIMM slots for the Supermicro SuperServer 6048R-TXR product is 16. This number determines the memory expansion capacity of your system. The maximum internal memory of the product Supermicro SuperServer 6048R-TXR is 2048 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files. The voltage memory of the product Supermicro SuperServer 6048R-TXR is 1.2 V. This specification ensures optimal performance and compatibility with modern systems. The type of memory supported by the product Supermicro SuperServer 6048R-TXR is DDR4-SDRAM. This type of memory ensures optimal performance for your applications. The product Supermicro SuperServer 6048R-TXR has a maximum RDIMM memory of 512 Go. This specification ensures optimal performance for your demanding applications. The supported DIMM sizes of the product Supermicro SuperServer 6048R-TXR are 4GB, 8GB, 16GB, 32GB. These sizes allow for flexibility in increasing memory according to the user's needs. The support for the RDIMM clock speeds of the Supermicro SuperServer 6048R-TXR product is 1600,1866,2133,2400 MHz. This support allows for optimizing the system's performance and responsiveness. The memory Bus of the product Supermicro SuperServer 6048R-TXR has 72 bit. This specification is essential to ensure fast and efficient communication between the different components of the system.
Processor
The technical detail "Integrated into the processor" of the product Supermicro SuperServer 6048R-TXR is Non. This essential component ensures optimal performance and increased efficiency. The number of supported processors for the product Supermicro SuperServer 6048R-TXR is 2. This number determines the processing capacity and overall performance of the device. The processor family of the product Supermicro SuperServer 6048R-TXR contains Intel® Xeon®. This specification is essential for determining the performance and compatibility of the product. The processor socket of the Supermicro SuperServer 6048R-TXR contains LGA 2011 (Socket R). This socket is designed to ensure an optimal connection between the processor and the motherboard. The computer bus of the product Supermicro SuperServer 6048R-TXR has 9.6 GT/s. This bus allows for fast communication between the different components of the system. The bus system type of the product Supermicro SuperServer 6048R-TXR is QuickPath Interconnect (QPI). This type of bus allows for fast and efficient communication between the processor and other system components. The maximum cache of the product Supermicro SuperServer 6048R-TXR is 55 Mo. This cache helps optimize performance by temporarily storing the most frequently used data. The compatible processor of the product Supermicro SuperServer 6048R-TXR contains Intel® Xeon®. This processor ensures optimal performance for your computing needs. The motherboard of the product Supermicro SuperServer 6048R-TXR contains Intel® C612. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance.
Network
The local area network (LAN) controller of the product Supermicro SuperServer 6048R-TXR has Intel I350, Realtek RTL8201N. This controller ensures a stable and fast connection to the network, thereby optimizing the performance of your system. The data transfer rate of the product Supermicro SuperServer 6048R-TXR is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the product Supermicro SuperServer 6048R-TXR have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The copper Ethernet wiring of the product Supermicro SuperServer 6048R-TXR contains 10BASE-T, 100BASE-TX, 1000BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. The Ethernet interface type of the product Supermicro SuperServer 6048R-TXR is Fast Ethernet, Gigabit Ethernet. This type of interface allows for fast and efficient network connections.
Graphique
The included graphics adapter model of the Supermicro SuperServer 6048R-TXR product contains Aspeed AST2400. This model ensures optimal graphics performance for your multimedia needs.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Supermicro SuperServer 6048R-TXR is 2. These ports provide a stable and fast network connection for your devices. The product Supermicro SuperServer 6048R-TXR has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of USB 2.0 ports on the Supermicro SuperServer 6048R-TXR is 4. These ports allow for a fast and efficient connection for your devices. Does the product Supermicro SuperServer 6048R-TXR have an IPMI LAN port (RJ-45)? Oui. This port allows for efficient and secure remote management of systems. The number of serial ports of the product Supermicro SuperServer 6048R-TXR is 2. This number of serial ports allows for efficient connectivity for your devices. The number of VGA (D-Sub) ports on the Supermicro SuperServer 6048R-TXR is 1. This port allows for easy connection with various devices and monitors. The number of SATA III connectors of the product Supermicro SuperServer 6048R-TXR is 10. These connectors allow for a fast and efficient connection of hard drives and SSDs.
BIOS
The memory capacity of the BIOS of the product Supermicro SuperServer 6048R-TXR is 128 Mbit. This specification ensures optimal performance and efficient management of system resources. The BIOS type of the product Supermicro SuperServer 6048R-TXR is EEPROM. This type of BIOS is essential for the proper functioning and compatibility of your system. The BIOS features of the product Supermicro SuperServer 6048R-TXR are PCI 2.3, SMBIOS 2.7.1, UEFI. These features ensure optimal compatibility and efficient management of system resources. The ACPI version of the product Supermicro SuperServer 6048R-TXR is 4.0. This version ensures advanced power management and sleep features.
Design
The chassis type of the product Supermicro SuperServer 6048R-TXR is Rack (4 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. Does the product Supermicro SuperServer 6048R-TXR have indicators? HDD, LAN, Power, Power fail. These indicators allow you to visualize the operating status of the device. The color of the product Supermicro SuperServer 6048R-TXR is Noir. This shade gives it a modern and elegant look. The number of fans of the product Supermicro SuperServer 6048R-TXR is 3 ventilateur(s). This design allows for better air circulation and optimal performance. The certification of the product Supermicro SuperServer 6048R-TXR contains UL/cUL/CB/CE/BSMI/CCC\nPlatinum. This certification guarantees compliance with the required safety and performance standards.
Technical details
The product Supermicro SuperServer 6048R-TXR has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Features
Does the product Supermicro SuperServer 6048R-TXR have a TPM (Trusted Platform Module) chip? Oui. This chip provides an enhanced level of security to protect your sensitive data. The version of the TPM (Trusted Platform Module) chip of the product Supermicro SuperServer 6048R-TXR is 1.2. This version ensures an advanced level of security for the protection of sensitive data.
Extension connectors
The PCI Express x 8 slots (Gen. 2.x) of the product Supermicro SuperServer 6048R-TXR contains 2. This expansion connector allows for fast and efficient communication between the components of your system. The PCI Express x 8 slots (Gen. 3.x) of the product Supermicro SuperServer 6048R-TXR contains 10. This type of connectivity allows for high bandwidth for optimal performance.
Environmental conditions
The operating temperature of the product Supermicro SuperServer 6048R-TXR is 10 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Supermicro SuperServer 6048R-TXR has an operating relative humidity (H-H) of 8 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Supermicro SuperServer 6048R-TXR is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Supermicro SuperServer 6048R-TXR is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Power
The power supply of the product Supermicro SuperServer 6048R-TXR is 600 W. This power supply ensures optimal performance for all your needs. The number of main power supplies for the product Supermicro SuperServer 6048R-TXR is 1. This product is designed to provide optimal power and reliable performance. The number of redundant power supplies installed for the product Supermicro SuperServer 6048R-TXR is 1. This feature ensures service continuity in the event of a power supply failure. Does the product Supermicro SuperServer 6048R-TXR have redundant power supply (RPS)? No. This feature is essential to ensure service continuity in case of failure of the main power supply. The DC output current (+12V) of the Supermicro SuperServer 6048R-TXR is 50 A. This current ensures optimal performance for your power supply needs. The AC input voltage of the Supermicro SuperServer 6048R-TXR is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Supermicro SuperServer 6048R-TXR is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Weight and dimensions
The height of the product Supermicro SuperServer 6048R-TXR is 178 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Supermicro SuperServer 6048R-TXR is 525 mm. This dimension allows for optimal integration into your space. The width of the product Supermicro SuperServer 6048R-TXR is 437 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Supermicro SuperServer 6048R-TXR is 22200 g. This weight is ideal for ensuring optimal use and easy handling.
Logistics data
The Harmonized System code for the product Supermicro SuperServer 6048R-TXR is 84714100. This code allows for the unique identification of goods in international trade.
