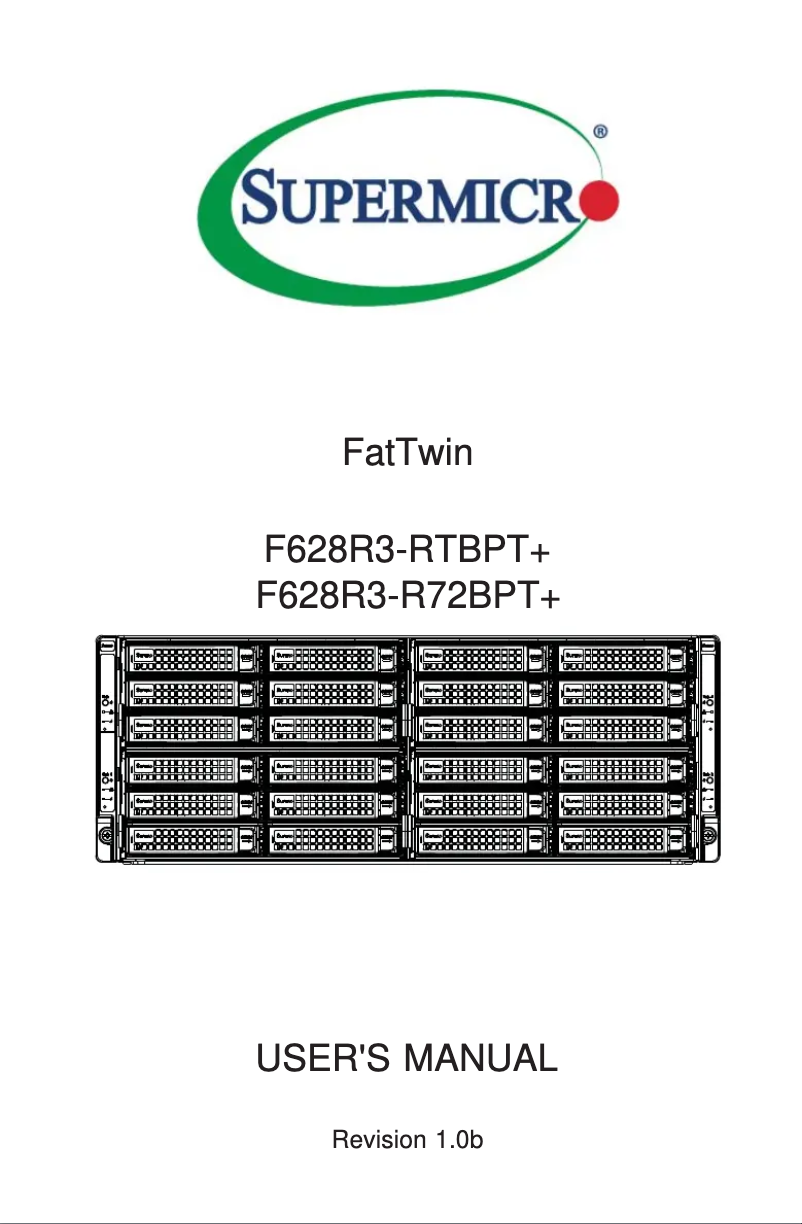

Manuals of product SuperServer F628R3-RTBPT+
Technical Specifications SuperServer F628R3-RTBPT+
General Information
-
ModelSUPERSERVER F628R3-RTBPT+
-
Brand
-
Category
-
Type
-
SKU1828980
-
MPN1828980
Processor
-
Number of supported processors-
-
Motherboard chipset-
-
Processor socket (processor receptacle)LGA 2011-v3
-
Processor familyIntel
-
Compatible processorsIntel® Xeon®
-
Intel® Xeon SeriesE5-2600
-
Computer bus96 GT/s
-
Maximum cache45 Mo
Memory
-
Number of DIMM slots16
-
ECCYes
-
Maximum internal memory512 GB
-
Voltage memory1.2 V
-
Supported memory typesDDR4-SDRAM
-
Maximum RDIMM memory32 GB
Storage support
-
RAID Levels0
-
Number of supported storage units1.5
-
Supported storage reader interfaces10
-
Hard drive bays allowing hot swap8
-
Supported storage disk sizesATA III Series
-
Yes
-
3.5 "
Network
-
Local Area Network (LAN) ControllerIntel® X540
-
Copper Ethernet cabling technology1000BASE-T, 100BASE-TX, 10GBASE-T
-
LAN Ethernet: data transfer rate100,1000,10000 Mbit/s
-
Ethernet/LANYes
-
Type of Ethernet interface10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Connectivity
-
Quantity of USB 2.0 Ports-
-
Number of VGA (D-Sub) ports1
-
Number of VGA (D-Sub) ports1
-
Number of Ethernet LAN ports (RJ-45)3
-
IPMI LAN Port (RJ-45)Yes
Extension connectors
-
PCI Express x16 slots1
Graphique
-
Graphics adapter model includedAspeed AST2400
BIOS
-
Memory capacity of the BIOS128 Mbit
-
BIOS FeaturesAPM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI
Design
-
Chassis typeRack (4 U)
-
Product colorBlack
-
IndicatorsYes
-
Number of fans2 fan(s)
-
Fan diameter80 mm
Technical details
-
Sustainability certificatesRoHS
Power
-
Power supply12880 W
-
AC input frequency50 - 60 Hz
-
AC input voltage180 - 240 V
-
DC output current (+5V)4 A
-
DC output current (+12V)106.7 A
Environmental conditions
-
Operating temperature5 - 40 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)8 - 90 %
-
Relative humidity rate (storage)5 - 95 %
Weight and dimensions
-
Width448 mm
-
Depth737 mm
-
Height177 mm
Similar products
More product categories from brand Supermicro
More product types from brand Supermicro
Presentation of product SuperServer F628R3-RTBPT+ specifications from brand Supermicro
Generalities
The brand of the product Supermicro SuperServer F628R3-RTBPT+ is Supermicro. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Supermicro SuperServer F628R3-RTBPT+ is 0672042166091. This code allows for the unique identification of the product in the distribution system. The product model Supermicro SuperServer F628R3-RTBPT+ is SuperServer F628R3-RTBPT+ | SYS-F628R3-RTBPT+. This model ensures optimal performance and an enhanced user experience.
Storage support
Does the Supermicro SuperServer F628R3-RTBPT+ have hard drive bays that allow for hot swapping? Oui. These bays facilitate the exchange of disks without shutting down the system, thus providing increased flexibility and availability. The number of storage units supported by the product Supermicro SuperServer F628R3-RTBPT+ is 8. This feature allows for optimizing the management of your data and ensuring enhanced performance. The RAID levels of the Supermicro SuperServer F628R3-RTBPT+ product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. The storage support of the product Supermicro SuperServer F628R3-RTBPT+ contains supported storage reader interfaces: Série ATA III. These interfaces ensure optimal compatibility with various storage devices. The storage support of the product Supermicro SuperServer F628R3-RTBPT+ includes supported disk sizes of 3.5 ". These sizes provide great flexibility to meet your storage needs.
Memory
The number of DIMM slots for the Supermicro SuperServer F628R3-RTBPT+ product is 16. This number determines the memory expansion capacity of your system. The maximum internal memory of the product Supermicro SuperServer F628R3-RTBPT+ is 512 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files. The voltage memory of the product Supermicro SuperServer F628R3-RTBPT+ is 1.2 V. This specification ensures optimal performance and compatibility with modern systems. Does the product Supermicro SuperServer F628R3-RTBPT+ have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The type of memory supported by the product Supermicro SuperServer F628R3-RTBPT+ is DDR4-SDRAM. This type of memory ensures optimal performance for your applications. The product Supermicro SuperServer F628R3-RTBPT+ has a maximum RDIMM memory of 32 Go. This specification ensures optimal performance for your demanding applications.
Processor
The processor socket of the Supermicro SuperServer F628R3-RTBPT+ contains LGA 2011-v3. This socket is designed to ensure an optimal connection between the processor and the motherboard. The number of supported processors for the product Supermicro SuperServer F628R3-RTBPT+ is -. This number determines the processing capacity and overall performance of the device. The processor family of the product Supermicro SuperServer F628R3-RTBPT+ contains Intel. This specification is essential for determining the performance and compatibility of the product. The compatible processor of the product Supermicro SuperServer F628R3-RTBPT+ contains Intel® Xeon®. This processor ensures optimal performance for your computing needs. The Supermicro SuperServer F628R3-RTBPT+ processor contains Intel® Xeon Series, including high-performance models suited for demanding work environments. The computer bus of the product Supermicro SuperServer F628R3-RTBPT+ has 96 GT/s. This bus allows for fast communication between the different components of the system. The motherboard of the product Supermicro SuperServer F628R3-RTBPT+ contains -. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance. The maximum cache of the product Supermicro SuperServer F628R3-RTBPT+ is 45 Mo. This cache helps optimize performance by temporarily storing the most frequently used data.
Extension connectors
The Supermicro SuperServer F628R3-RTBPT+ has 1 PCI Express x16 slot. This type of expansion connector allows for the installation of graphics cards and other high-performance peripherals to enhance your system's capabilities.
Connectivity
The number of serial ports of the product Supermicro SuperServer F628R3-RTBPT+ is 1. This number of serial ports allows for efficient connectivity for your devices. The number of Ethernet LAN (RJ-45) ports of the product Supermicro SuperServer F628R3-RTBPT+ is 3. These ports provide a stable and fast network connection for your devices. The number of VGA (D-Sub) ports on the Supermicro SuperServer F628R3-RTBPT+ is 1. This port allows for easy connection with various devices and monitors. The number of USB 2.0 ports on the Supermicro SuperServer F628R3-RTBPT+ is -. These ports allow for a fast and efficient connection for your devices. Does the product Supermicro SuperServer F628R3-RTBPT+ have an IPMI LAN port (RJ-45)? Oui. This port allows for efficient and secure remote management of systems.
Network
The local area network (LAN) controller of the product Supermicro SuperServer F628R3-RTBPT+ has Intel® X540. This controller ensures a stable and fast connection to the network, thereby optimizing the performance of your system. Does the product Supermicro SuperServer F628R3-RTBPT+ have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The data transfer rate of the product Supermicro SuperServer F628R3-RTBPT+ is 100,1000,10000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The copper Ethernet wiring of the product Supermicro SuperServer F628R3-RTBPT+ contains 1000BASE-T, 100BASE-TX, 10GBASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. The Ethernet interface type of the product Supermicro SuperServer F628R3-RTBPT+ is 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. This type of interface allows for fast and efficient network connections.
Graphique
The included graphics adapter model of the Supermicro SuperServer F628R3-RTBPT+ product contains Aspeed AST2400. This model ensures optimal graphics performance for your multimedia needs.
BIOS
The memory capacity of the BIOS of the product Supermicro SuperServer F628R3-RTBPT+ is 128 Mbit. This specification ensures optimal performance and efficient management of system resources. The BIOS features of the product Supermicro SuperServer F628R3-RTBPT+ are APM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI. These features ensure optimal compatibility and efficient management of system resources.
Design
The chassis type of the product Supermicro SuperServer F628R3-RTBPT+ is Rack (4 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. Does the product Supermicro SuperServer F628R3-RTBPT+ have indicators? Oui. These indicators allow you to visualize the operating status of the device. The color of the product Supermicro SuperServer F628R3-RTBPT+ is Noir. This shade gives it a modern and elegant look. The number of fans of the product Supermicro SuperServer F628R3-RTBPT+ is 2 ventilateur(s). This design allows for better air circulation and optimal performance. The diameter of the Supermicro SuperServer F628R3-RTBPT+ fan is 80 mm. This diameter is essential for ensuring optimal air circulation.
Technical details
The product Supermicro SuperServer F628R3-RTBPT+ has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Power
The AC input frequency of the product Supermicro SuperServer F628R3-RTBPT+ is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The DC output current (+5V) of the Supermicro SuperServer F628R3-RTBPT+ is 4 A. This current provides efficient power for various electronic devices. The power supply of the product Supermicro SuperServer F628R3-RTBPT+ is 12880 W. This power supply ensures optimal performance for all your needs. The AC input voltage of the Supermicro SuperServer F628R3-RTBPT+ is 180 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The DC output current (+12V) of the Supermicro SuperServer F628R3-RTBPT+ is 106.7 A. This current ensures optimal performance for your power supply needs.
Weight and dimensions
The width of the product Supermicro SuperServer F628R3-RTBPT+ is 448 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Supermicro SuperServer F628R3-RTBPT+ is 177 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Supermicro SuperServer F628R3-RTBPT+ is 737 mm. This dimension allows for optimal integration into your space.
Environmental conditions
The operating temperature of the product Supermicro SuperServer F628R3-RTBPT+ is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Supermicro SuperServer F628R3-RTBPT+ has an operating relative humidity (H-H) of 8 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Supermicro SuperServer F628R3-RTBPT+ is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Supermicro SuperServer F628R3-RTBPT+ is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
