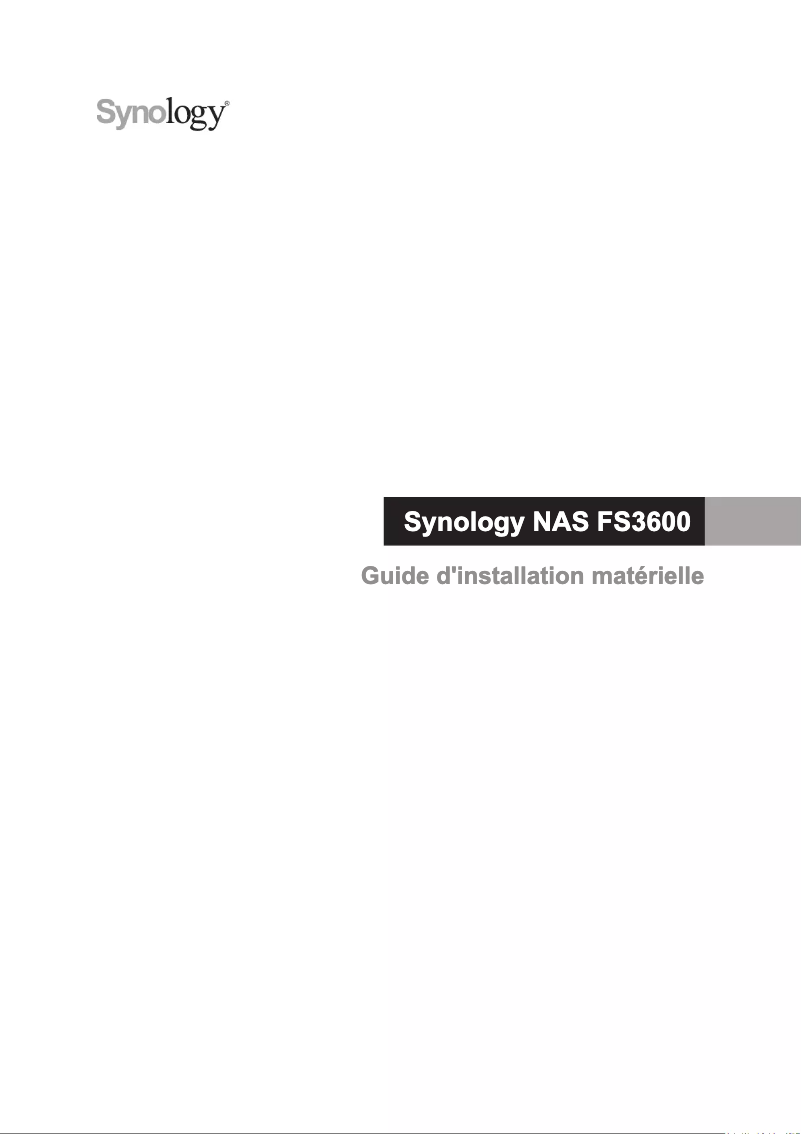

Manuals of product FS3600
Technical Specifications FS3600
General Information
-
ModelFS3600
-
Brand
-
Category
-
Type
-
SKU1282738
-
MPN1282738
Representation / realization
-
TypeNAS
-
Device classSME
-
Backup functionsCloud, USB drive
-
Backup functionYes
-
Sound level57 dB
Storage support
-
Storage unit interface-
-
Total capacity of installed storage0 To
-
Type of installed storage driveNo
-
Type of installed storage driveNo
-
Number of installed storage readers0
-
Supported storage drive typesHDD & SSD
-
Number of supported storage units24
-
Supported storage reader interfacesSerial ATA III, Serial Attached SCSI (SAS)
-
Storage reader capacity0 Go
-
Storage unit size- "
-
Hot-swappable drive baysYes
-
Hot-swappable drive baysYes
-
Supported file systemsBTRFS, FAT, HFS+, NTFS, exFAT, ext3, ext4
Processor
-
Processor manufacturerIntel
-
Processor familyIntel® Xeon® D
-
Processor modelD-1567
-
Processor frequency2.1 GHz
-
Processor Turbo Frequency2.7 GHz
-
Number of processor cores12
-
Number of processor threads24
-
Processor cache memory18 MB
-
Processor lithography14 nm
-
Processor socket (processor receptacle)BGA 1667
-
SteppingY0
-
Processor codeSR2M3
-
Computer bus- GT/s
-
Version of PCI Express locations2.0, 3.0
-
Processor operating modes64-bit
-
Processor cache memory18 MB
-
Scalability1S
-
CPU Configuration (max)1
-
PCI Express Configurations1x16, 1x4, 1x8
-
Thermal envelope (TDP, Thermal Design Power)65 W
-
Processor code nameBroadwell
-
Processor cache typeL3
-
Processor seriesIntel Xeon D-1500
-
Maximum internal memory supported by the processor128 GB
-
Processor packaging size37.5 x 37.5 mm
-
Conflict-free processorYes
Memory
-
Type of internal memoryDDR4
-
Internal memory16 GB
-
Maximum supported RAM128 GB
-
Memory locations4
-
Memory supportDIMM
Network
-
Dynamic DNS (DDNS)Yes
-
LAN Ethernet: data transfer rate10,100,1000,10000 Mbit/s
-
Dynamic DNS (DDNS)Yes
-
Supported network protocolsSMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP)
-
Dynamic DNS (DDNS)Yes
Sustainability
-
Sustainability certificatesRoHS
Design
-
Chassis typeRack (2 U)
-
Product colorBlack
-
Cooling typeActive
-
Number of fans4 fan(s)
-
Fan diameter80 mm
Environmental conditions
-
Operating temperature0 - 35 °C
-
Temperature out of operation-20 - 60 °C
-
Relative humidity rate (storage)5 - 95 %
-
Relative humidity rate (storage)5 - 95 %
Power
-
Power locationIntegrated
-
AC input frequency50 - 60 Hz
-
AC input voltage100 - 240 V
-
Number of power supplies1
-
Power Supply Unit (PSU) capacity500 W
-
Redundant power supply (RPS)Yes
Weight and dimensions
-
Width482 mm
-
Depth724 mm
-
Height88 mm
-
Weight14900 g
Connectivity
-
Number of Ethernet LAN ports (RJ-45)6
-
USB portYes
-
Fibre Channel Ports0
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
-
Fibre Channel Ports0
Software
-
Installed operating system-
Special features of the processor
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Turbo Boost Technology2.0
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Maximum number of PCI Express lanes32
-
Intel® TSX-NI Version1.00
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® TSX-NI Version1.00
-
Types of memory supported by the processorDDR3-SDRAM, DDR4-SDRAM
Other features
-
Processor ID ARK93356
Logistics data
-
Harmonized System Code84714100
Similar products
More product categories from brand Synology
More product types from brand Synology
Presentation of product FS3600 specifications from brand Synology
Generalities
The brand of the product Synology FS3600 is Synology. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Synology FS3600 is 0846504003617, 4711174723614. This code allows for the unique identification of the product in the distribution system. The product model Synology FS3600 is FS3600 | FS3600. This model ensures optimal performance and an enhanced user experience.
Representation / realization
The type of product Synology FS3600 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Synology FS3600 have a backup feature? Oui. This feature ensures the security of your data by reliably saving it. The product Synology FS3600 device class is PME. This class determines the technical characteristics and specific features of the product. The Synology FS3600 product has backup features: Cloud and iSCSI LUN, thus ensuring effective protection of your data. The noise level of the product Synology FS3600 is 57 dB. This noise level allows for pleasant use without excessive noise disturbances.
Storage support
The number of installed storage readers of the product Synology FS3600 is 0. This number determines the expansion capacity and storage flexibility of the product. The total installed storage capacity of the product Synology FS3600 is 0 To. This specification allows for the efficient management of large amounts of data. Does the product Synology FS3600 have installed storage drives? Non. The type of storage drive installed in the Synology FS3600 is Non. This drive allows you to efficiently store your data while ensuring optimal performance. The type of storage drives supported by the product Synology FS3600 is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs. The number of storage units supported by the product Synology FS3600 is 24. This feature allows for optimizing the management of your data and ensuring enhanced performance. The product Synology FS3600 has a storage unit interface: -. This interface ensures a fast and efficient connection for data transfer. The storage capacity of the Synology FS3600 is 0 Go. This capacity allows for storing a large amount of data, thus providing optimal flexibility and performance. The storage unit size of the product Synology FS3600 is - ". This specification determines compatibility with different types of storage media. Does the product Synology FS3600 have RAID Support? Oui. This support ensures data redundancy and improves storage performance. The storage support of the product Synology FS3600 contains supported storage reader interfaces: Serial ATA III, Serial Attached SCSI (SAS). These interfaces ensure optimal compatibility with various storage devices. Does the product Synology FS3600 have hot-swappable drive bays? Oui. These bays allow for easy and quick access to the drives without having to power down the system, thus providing increased flexibility and efficiency. The file systems supported by the Synology FS3600 product are FAT32, NTFS, ext3, ext4. These file systems ensure optimal compatibility with various devices and operating systems.
Network
Does the product Synology FS3600 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the product Synology FS3600 support iSCSI? Oui. This feature allows for efficient management of storage resources on the network. The supported network protocols of the product Synology FS3600 are SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP). These protocols ensure efficient and reliable communication for your networking needs. The data transfer rate of the product Synology FS3600 is 10,100,1000,10000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the product Synology FS3600 have Dynamic DNS (DDNS)? Oui. This feature allows for the automatic updating of an IP address for a domain name, thus facilitating remote access to your network.
Memory
The maximum supported memory of the product Synology FS3600 is 128 Go. This specification ensures optimal performance for your applications and daily tasks. The internal memory of the product Synology FS3600 contains 16 Go. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The internal memory of the product Synology FS3600 is DDR4. This internal memory allows you to efficiently store your data and applications. The memory locations of the product Synology FS3600 contain 4. These locations help optimize the device's performance. The memory support of the product Synology FS3600 is DIMM. This support is designed to provide optimal performance and compatibility with various systems.
Sustainability
The product Synology FS3600 has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Processor
The processor manufacturer of the product Synology FS3600 is Intel. This manufacturer is known for its performance and reliability in the field of information technology. The processor model of the product Synology FS3600 is D-1567. This model ensures optimal performance for smooth and efficient use. The processor family of the product Synology FS3600 contains Intel® Xeon® D. This specification is essential for determining the performance and compatibility of the product. The processor frequency of the product Synology FS3600 is 2.1 GHz. This specification determines how quickly the processor can execute instructions, thereby influencing the overall performance of the device. The Turbo processor frequency of the product Synology FS3600 is 2.7 GHz. This specification ensures optimal performance during demanding tasks. The number of processor cores of the product Synology FS3600 is 12. This feature allows for optimizing performance and managing multiple tasks simultaneously with efficiency. The number of processor threads of the product Synology FS3600 is 24. This feature allows for optimizing performance when executing multiple tasks simultaneously. The L3 cache of the Synology FS3600 product contains 18 Mo. This cache helps improve performance by reducing the access time to frequently used data. The lithography of the Synology FS3600 processor is 14 nm. This feature determines the fineness of the transistors, thus influencing the performance and energy efficiency of the processor. The processor socket of the Synology FS3600 contains BGA 1667. This socket is designed to ensure an optimal connection between the processor and the motherboard. The stepping of the product Synology FS3600 is Y0. This stepping determines the version of the processor, thus influencing its performance and compatibility. The processor code of the product Synology FS3600 contains SR2M3. This code is essential for identifying the technical specifications of the processor. The computer bus of the product Synology FS3600 has - GT/s. This bus allows for fast communication between the different components of the system. The version of the PCI Express slots of the Synology FS3600 is 2.0, 3.0. This specification ensures optimal compatibility with modern components. The operating mode of the Synology FS3600 processor is 64-bit. This mode allows for efficient data management and optimal performance. The cache memory of the Synology FS3600 processor contains 18 Mo. This memory helps speed up data processing by temporarily storing the most frequently used information. The processor of the product Synology FS3600 has a scalability of 1S. This feature allows for adjusting the system's performance according to growing needs. The CPU configuration (max) of the product Synology FS3600 is 1. This feature ensures optimal performance for all your applications. The PCI Express configuration of the Synology FS3600 is 1x16, 1x4, 1x8. This configuration allows for optimal flexibility and performance for applications requiring high bandwidth. The TDP (Thermal Design Power) of the product is 65 W. This specification indicates the maximum amount of heat that the processor can dissipate, thus ensuring optimal and stable operation. The code name of the processor of the product Synology FS3600 is Broadwell. This code name refers to the specific architecture that optimizes the performance and energy efficiency of the processor. The type of processor cache of the product Synology FS3600 is L3. This type of cache optimizes performance by allowing quick access to frequently used data. The product Synology FS3600 contains processor series Intel Xeon D-1500. These series offer optimized performance for a variety of applications. The maximum internal memory supported by the processor of the product Synology FS3600 is 128 Go. This specification ensures optimal performance for your applications and multitasking tasks. The package size of the processor for the product Synology FS3600 is 37.5 x 37.5 mm. This dimension allows for optimal integration into various systems. Does the product Synology FS3600 have a conflict-free Processor? Oui. This feature ensures smooth performance without interference.
Environmental conditions
The operating temperature of the product Synology FS3600 is 0 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Synology FS3600 has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Synology FS3600 is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Synology FS3600 is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Design
The chassis type of the product Synology FS3600 is Rack (2 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The color of the product Synology FS3600 is Noir. This shade gives it a modern and elegant look. The number of fans of the product Synology FS3600 is 4 ventilateur(s). This design allows for better air circulation and optimal performance. The cooling type of the product Synology FS3600 is active. This system ensures optimal temperature management for improved performance. The diameter of the Synology FS3600 fan is 80 mm. This diameter is essential for ensuring optimal air circulation.
Power
The power supply location of the product Synology FS3600 is Intégré. This type of power supply allows for optimal integration into your space. The AC input frequency of the product Synology FS3600 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Synology FS3600 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The number of power supplies for the product Synology FS3600 is 1. This specification ensures a reliable power supply that meets the product's needs. The capacity of the power supply unit (PSU) of the product Synology FS3600 is 500 W. This specification ensures adequate power for the optimal operation of the device. Does the product Synology FS3600 have redundant power supply (RPS)? No. This feature is essential to ensure service continuity in case of failure of the main power supply.
Weight and dimensions
The width of the product Synology FS3600 is 482 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Synology FS3600 is 14900 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Synology FS3600 is 724 mm. This dimension allows for optimal integration into your space. The height of the product Synology FS3600 is 88 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Software
The installed operating system of the product Synology FS3600 is -. This system allows for a smooth and intuitive user experience.
Connectivity
The product Synology FS3600 has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of USB 2.0 ports on the Synology FS3600 is 0. These ports allow for a fast and efficient connection for your devices. Does the Synology FS3600 have a USB Port? Oui. This feature allows for easy and quick connection to various devices. The number of Ethernet LAN (RJ-45) ports of the product Synology FS3600 is 6. These ports provide a stable and fast network connection for your devices. The Fibre Channel Ports connectivity of the Synology FS3600 product contains 0. This specification ensures fast and reliable communication in storage environments.
Logistics data
The Harmonized System code for the product Synology FS3600 is 84714100. This code allows for the unique identification of goods in international trade.
Other features
The product Synology FS3600 has the ARK ID of the processor 93356. This identifier allows for precise identification of the technical specifications of the processor.
Special features of the processor
The product Synology FS3600 features Intel® Turbo Boost Technology at 2.0. This technology optimizes processor performance by increasing its operating frequency when needed, thus providing a smooth and responsive user experience. Does the product Synology FS3600 have Intel® Hyper Threading Technology (Intel® HT Technology)? Oui. This technology optimizes performance by allowing each processor core to handle two threads simultaneously, thereby improving efficiency when executing multiple tasks. Does the product Synology FS3600 have the New Intel® AES instructions (Intel® AES-NI)? Oui. These instructions enhance the performance and security of encryption operations. Does the product Synology FS3600 have Intel's advanced SpeedStep technology? Oui. This technology allows for dynamic management of the processor's frequency, thereby optimizing performance while reducing energy consumption. Does the product Synology FS3600 have a Lock Bit? Oui. This feature helps secure the processor by preventing unauthorized changes. Does the product Synology FS3600 have Idle States? Oui. This feature allows the processor to reduce its power consumption when it is inactive, thereby optimizing energy efficiency. Does the product Synology FS3600 have thermal monitoring technologies? Oui. This feature allows monitoring the processor's temperature to prevent overheating and ensure optimal performance. Does the product Synology FS3600 have Intel® Enhanced Halt State? Oui. This specification allows for improved management of the processor's idle state, thereby optimizing energy consumption. Does the Synology FS3600 product have Intel® VT-x with Extended Page Tables (EPT)? Oui. This feature enables efficient virtualization and enhances the performance of virtualized environments. Does the product Synology FS3600 have the built-in options available? No. This means that this product does not offer built-in options. Does the product Synology FS3600 have Intel® Trusted Execution Technology? No. This technology aims to protect sensitive data by creating a secure execution environment. Does the product Synology FS3600 have Intel® TSX-NI? Oui. This technology enhances the performance of multithreaded applications by facilitating transaction management. The Synology FS3600 product has an Intel® Security Key. This feature enhances the security of your data and protects your personal information. Does the product Synology FS3600 have Intel® 64? Oui. This specification allows for compatibility with 64-bit architectures, thus providing optimized performance for modern applications. Does the product Synology FS3600 have Intel® Garde SE? Oui. This feature provides advanced data protection and enhanced security for your applications. Does the product Synology FS3600 have a UART? Oui. This specification allows for efficient serial communication between the processor and other devices. Does the product Synology FS3600 have Intel® Virtualization Technology for Directed I/O (VT-d)? Oui. This technology allows for more efficient management of input/output resources, thereby improving the performance of virtualized applications. The maximum number of PCI Express lanes for the product Synology FS3600 is 32. This number determines the expansion and connectivity capacity for expansion cards and other components. The product Synology FS3600 features the version of Intel® security key technology 1.00. This technology provides advanced data protection and enhances transaction security. Does the product Synology FS3600 have Intel® Virtualization Technology (VT-x)? Oui. This technology enhances the efficiency of virtual environments by optimizing processor resources. The product Synology FS3600 features the Intel® TSX-NI Version at 1.00. This version enhances the performance of multithreaded applications by optimizing transaction management. The type of memory supported by the Synology FS3600 processor is DDR3-SDRAM, DDR4-SDRAM. This type of memory helps optimize system performance.
