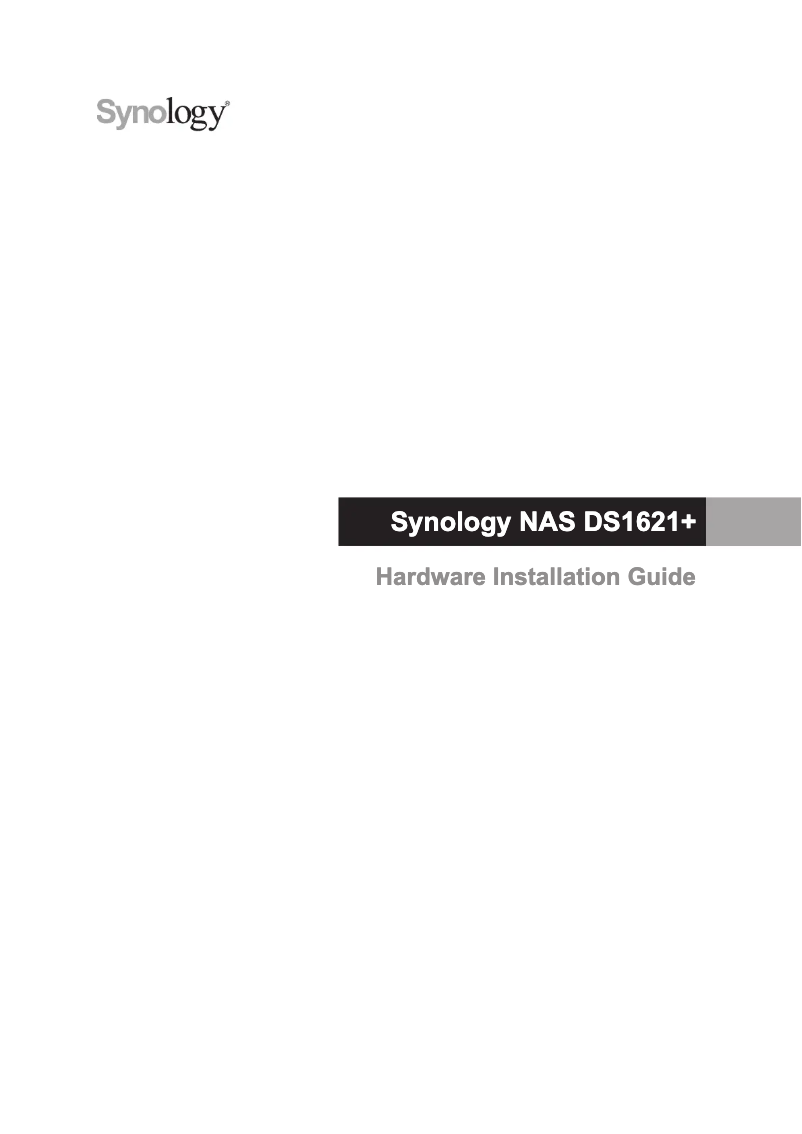

Manual of product DiskStation DS1621+
Technical Specifications DiskStation DS1621+
General Information
-
ModelDISKSTATION DS1621+
-
Brand
-
Category
-
Type
-
SKU1969248
-
MPN1969248
Representation / realization
-
Backup functionYes
-
Backup functionYes
-
Sound level25.2 dB
-
Number of users2048 user(s)
-
Backup functionYes
-
Backup functionsCloud, iSCSI LUN
-
Shared folderCIFS/AFP/NFS/FTP/WebDAV
-
Backup functionYes
-
Backup functionYes
-
Supported browsersGoogle Chrome, Firefox, Microsoft Edge, Internet Explorer, Safari
-
Backup functionYes
-
Backup functionYes
-
Backup functionYes
-
Backup functionYes
-
Security-supported algorithmHTTPS, SSH, SSL/TLS
-
TypeNAS
-
Device classHome and telework
-
Backup functionYes
Storage support
-
Maximum supported storage capacity108 To
-
Supported storage disk sizes2.5, 3.5, M.2 "
-
Storage unit size3.5 "
-
Supported storage reader interfacesSerial ATA II, Serial ATA III
-
Storage unit interfaceSATA III
-
Supported storage drive typesHDD & SSD
-
Type of installed storage driveHDD
-
Storage reader capacity2000 Go
-
Number of supported storage units8
-
Number of installed storage readers6
-
Total capacity of installed storage12 To
-
RAID supportYes
-
Supported file systemsBTRFS, FAT, HFS+, NTFS, exFAT, ext3, ext4
-
RAID supportYes
-
RAID supportYes
-
RAID supportYes
-
RAID Levels0, 1,5, 6,10, JBOD
-
RAID supportYes
-
Number of M.2 slots (M and B)2
Processor
-
Number of processor threads8
-
Number of processor cores4
-
Processor frequency2.2 GHz
-
Processor modelV1500B
-
Processor familyRyzen Embedded
-
Processor manufacturerAMD
Software
-
Support for the Windows operating systemYes
-
Support for the Windows operating systemYes
-
Installed operating systemDiskStation Manager
Power
-
Number of power supplies1
-
Power Supply Unit (PSU) capacity250 W
-
Power locationIntegrated
-
AC input frequency50 - 60 Hz
-
AC input voltage100 - 240 V
-
Power consumption (in HDD standby)25.27 W
-
Typical electricity consumption51.22 W
Network
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
iSCSI SupportYes
-
iSCSI SupportYes
-
iSCSI SupportYes
-
Supported network protocolsSMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN
-
iSCSI SupportYes
-
iSCSI SupportYes
Memory
-
ECCYes
-
Memory supportSO-DIMM
-
Memory locations2
-
Maximum supported RAM32 GB
-
Internal memory4 GB
-
Type of internal memoryDDR4
Weight and dimensions
-
Depth243 mm
-
Height166 mm
-
Width282 mm
Connectivity
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports3
-
USB portYes
-
Number of Ethernet LAN ports (RJ-45)4
-
Quantity of eSATA Ports2
-
PCI Express x 8 slots (Gen. 3.x)1
Sustainability
-
Sustainability certificatesRoHS
-
Compliance with sustainabilityYes
Packaging contents
-
Quantity of power cables1
-
Cables includedAC, LAN (RJ-45)
Design
-
Chassis typeOffice
-
Cable lock location typeKensington
-
Locking caseYes
-
IndicatorsAlarm, HDD, Power, Status
-
Locking caseYes
-
Fan diameter92 mm
-
Number of fans2 fan(s)
-
Product colorBlack
-
Cooling typeActive
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating altitude0 - 5000 m
-
Operating relative humidity (H-H)5 - 95 %
-
Temperature out of operation-20 - 60 °C
-
Operating relative humidity (H-H)5 - 95 %
Other features
-
CertificationFCC
-
BSMI
-
EAC
-
CCC
-
KC
-
VCCI
-
RCM
Similar products
More product categories from brand Synology
More product types from brand Synology
Presentation of product DiskStation DS1621+ specifications from brand Synology
Generalities
The brand of the product Synology DiskStation DS1621+ is Synology. This brand is known for its quality and innovation in the field of household appliances. The product model Synology DiskStation DS1621+ is DiskStation DS1621+ | DS1621+6XST2000VN004. This model ensures optimal performance and an enhanced user experience.
Processor
The number of processor threads of the product Synology DiskStation DS1621+ is 8. This feature allows for optimizing performance when executing multiple tasks simultaneously. The number of processor cores of the product Synology DiskStation DS1621+ is 4. This feature allows for optimizing performance and managing multiple tasks simultaneously with efficiency. The processor frequency of the product Synology DiskStation DS1621+ is 2.2 GHz. This specification determines how quickly the processor can execute instructions, thereby influencing the overall performance of the device. The processor model of the product Synology DiskStation DS1621+ is V1500B. This model ensures optimal performance for smooth and efficient use. The processor family of the product Synology DiskStation DS1621+ contains Ryzen Embedded. This specification is essential for determining the performance and compatibility of the product. The processor manufacturer of the product Synology DiskStation DS1621+ is AMD. This manufacturer is known for its performance and reliability in the field of information technology.
Software
Does the product Synology DiskStation DS1621+ support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. Does the product Synology DiskStation DS1621+ support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users. The installed operating system of the product Synology DiskStation DS1621+ is DiskStation Manager. This system allows for a smooth and intuitive user experience.
Representation / realization
Does the product Synology DiskStation DS1621+ have Shared Folder Access Rights Management? Oui. This feature allows you to control who can access shared files, thereby ensuring the security and confidentiality of the data. The noise level of the product Synology DiskStation DS1621+ is 25.2 dB. This noise level allows for pleasant use without excessive noise disturbances. The number of users of the product Synology DiskStation DS1621+ is 2048 utilisateur(s). This product is ideal for several people. Does the product Synology DiskStation DS1621+ have Image Capture? Oui. This feature allows for capturing high-quality images, thus providing an enriching visual experience. Does the product Synology DiskStation DS1621+ have multilingual support? Oui. This support allows for optimal use in multiple languages, thus facilitating access to an international audience. The Synology DiskStation DS1621+ product has backup features: Cloud and iSCSI LUN, thus ensuring effective protection of your data. The shared folder of the product Synology DiskStation DS1621+ contains CIFS/AFP/NFS/FTP/WebDAV. This shared folder allows easy and collaborative access to files among multiple users. Does the product Synology DiskStation DS1621+ have hot-swappable capability? Oui. This feature allows for the replacement of components without turning off the device, thus ensuring optimal continuity of use. Does the product Synology DiskStation DS1621+ have a system log? Oui. This log allows for tracking and recording system events for better management and optimal traceability. The browser support for the product Synology DiskStation DS1621+ includes Google Chrome, Firefox, Microsoft Edge, Internet Explorer, Safari. This feature ensures an optimal user experience on compatible platforms. Does the product Synology DiskStation DS1621+ have a built-in FTP Server? Oui. This feature allows for fast and secure file transfer, thus facilitating data management. Does the product Synology DiskStation DS1621+ have a built-in iTunes Server? Oui. This server allows for simplified management of your music library and easy access to your favorite tracks. Does the product Synology DiskStation DS1621+ have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. Does the product Synology DiskStation DS1621+ have a Reset Button? Oui. This button allows you to easily reset the product settings. The supported security algorithm of the product Synology DiskStation DS1621+ contains HTTPS, SSH, SSL/TLS. This algorithm ensures optimal protection of your data. The type of product Synology DiskStation DS1621+ is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Synology DiskStation DS1621+ device class is Domicile et télétravail. This class determines the technical characteristics and specific features of the product. Does the product Synology DiskStation DS1621+ have a backup feature? Oui. This feature ensures the security of your data by reliably saving it.
Power
The number of power supplies for the product Synology DiskStation DS1621+ is 1. This specification ensures a reliable power supply that meets the product's needs. The AC input frequency of the product Synology DiskStation DS1621+ is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The power supply location of the product Synology DiskStation DS1621+ is Intégré. This type of power supply allows for optimal integration into your space. The capacity of the power supply unit (PSU) of the product Synology DiskStation DS1621+ is 250 W. This specification ensures adequate power for the optimal operation of the device. The AC input voltage of the Synology DiskStation DS1621+ is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The power consumption in standby HDD of the product Synology DiskStation DS1621+ is 25.27 W. This specification ensures optimal energy efficiency while maintaining the necessary performance. The typical power consumption of the product Synology DiskStation DS1621+ is 51.22 W. This feature allows for the assessment of the energy efficiency of the device.
Storage support
The maximum supported storage capacity of the product Synology DiskStation DS1621+ is 108 To. This specification allows for optimizing the use of available storage space. The storage support of the product Synology DiskStation DS1621+ includes supported disk sizes of 2.5, 3.5, M.2 ". These sizes provide great flexibility to meet your storage needs. The storage support of the product Synology DiskStation DS1621+ contains supported storage reader interfaces: Serial ATA II, Serial ATA III. These interfaces ensure optimal compatibility with various storage devices. The storage unit size of the product Synology DiskStation DS1621+ is 3.5 ". This specification determines compatibility with different types of storage media. The product Synology DiskStation DS1621+ has a storage unit interface: Série ATA III. This interface ensures a fast and efficient connection for data transfer. The type of storage drives supported by the product Synology DiskStation DS1621+ is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs. The number of storage units supported by the product Synology DiskStation DS1621+ is 8. This feature allows for optimizing the management of your data and ensuring enhanced performance. The number of installed storage readers of the product Synology DiskStation DS1621+ is 6. This number determines the expansion capacity and storage flexibility of the product. The type of storage drive installed in the Synology DiskStation DS1621+ is HDD. This drive allows you to efficiently store your data while ensuring optimal performance. The storage capacity of the Synology DiskStation DS1621+ is 2000 Go. This capacity allows for storing a large amount of data, thus providing optimal flexibility and performance. The total installed storage capacity of the product Synology DiskStation DS1621+ is 12 To. This specification allows for the efficient management of large amounts of data. Does the product Synology DiskStation DS1621+ have installed storage drives? Oui. The file systems supported by the Synology DiskStation DS1621+ product are FAT32, NTFS, ext3, ext4. These file systems ensure optimal compatibility with various devices and operating systems. Does the product Synology DiskStation DS1621+ have hot-swappable drive bays? Oui. These bays allow for easy and quick access to the drives without having to power down the system, thus providing increased flexibility and efficiency. Does the product Synology DiskStation DS1621+ have online RAID Expansion? Oui. This feature allows for increasing storage capacity without interruption, thus providing enhanced flexibility and efficiency. Does the product Synology DiskStation DS1621+ have online RAID Migration? Oui. This feature allows for RAID migrations to be performed without interrupting system operation, thus ensuring optimal service continuity. The RAID levels of the Synology DiskStation DS1621+ product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. The number of M.2 (M and B) slots of the Synology DiskStation DS1621+ is 2. This product offers increased flexibility for adding additional storage solutions. Does the product Synology DiskStation DS1621+ have RAID Support? Oui. This support ensures data redundancy and improves storage performance.
Network
The data transfer rate of the product Synology DiskStation DS1621+ is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the product Synology DiskStation DS1621+ have Load Balancing System? No. This system allows for the efficient distribution of load across multiple resources to optimize performance and ensure balanced usage. Does the product Synology DiskStation DS1621+ have Link Aggregation? Oui. This feature allows for optimizing network connection management for enhanced performance. Does the product Synology DiskStation DS1621+ have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Synology DiskStation DS1621+ are SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN. These protocols ensure efficient and reliable communication for your networking needs. Is the Synology DiskStation DS1621+ product Wake-on-LAN ready? Oui. This feature allows you to wake the computer remotely over the network, providing increased flexibility and convenience. Does the product Synology DiskStation DS1621+ support iSCSI? Oui. This feature allows for efficient management of storage resources on the network.
Memory
Does the product Synology DiskStation DS1621+ have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The memory locations of the product Synology DiskStation DS1621+ contain 2. These locations help optimize the device's performance. The memory support of the product Synology DiskStation DS1621+ is SO-DIMM. This support is designed to provide optimal performance and compatibility with various systems. The maximum supported memory of the product Synology DiskStation DS1621+ is 32 Go. This specification ensures optimal performance for your applications and daily tasks. The internal memory of the product Synology DiskStation DS1621+ contains 4 Go. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The internal memory of the product Synology DiskStation DS1621+ is DDR4. This internal memory allows you to efficiently store your data and applications.
Weight and dimensions
The depth of the product Synology DiskStation DS1621+ is 243 mm. This dimension allows for optimal integration into your space. The width of the product Synology DiskStation DS1621+ is 282 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Synology DiskStation DS1621+ is 166 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Connectivity
The product Synology DiskStation DS1621+ has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of eSATA ports on the Synology DiskStation DS1621+ is 2. This port allows for a fast and efficient connection for your external storage devices. The number of Ethernet LAN (RJ-45) ports of the product Synology DiskStation DS1621+ is 4. These ports provide a stable and fast network connection for your devices. Does the Synology DiskStation DS1621+ have a USB Port? Oui. This feature allows for easy and quick connection to various devices. The PCI Express x 8 slots (Gen. 3.x) of the product Synology DiskStation DS1621+ contains 1. This type of connectivity allows for high bandwidth for optimal performance.
Sustainability
The product Synology DiskStation DS1621+ has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect. Does the product Synology DiskStation DS1621+ comply with sustainability? Oui. This product meets established sustainability standards, thereby ensuring a reduced environmental impact.
Packaging contents
The product Synology DiskStation DS1621+ contains 1 power cable. This cable is essential for ensuring the proper functioning of your device. The included cable of the product Synology DiskStation DS1621+ contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Design
Does the product Synology DiskStation DS1621+ have a cable lock port? No. This product does not have this security feature. The type of cable lock location for the product Synology DiskStation DS1621+ is Kensington. This type of lock provides optimal security to protect your device against theft. Does the product Synology DiskStation DS1621+ have indicators? Alarm, HDD, Power, Status. These indicators allow you to visualize the operating status of the device. The chassis type of the product Synology DiskStation DS1621+ is Bureau. This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. Does the product Synology DiskStation DS1621+ have a locking case? Oui. This case provides optimal security for your valuables. The diameter of the Synology DiskStation DS1621+ fan is 92 mm. This diameter is essential for ensuring optimal air circulation. The number of fans of the product Synology DiskStation DS1621+ is 2 ventilateur(s). This design allows for better air circulation and optimal performance. The cooling type of the product Synology DiskStation DS1621+ is active. This system ensures optimal temperature management for improved performance. The color of the product Synology DiskStation DS1621+ is Noir. This shade gives it a modern and elegant look.
Other features
The certification of the product Synology DiskStation DS1621+ contains FCC, BSMI, EAC, CCC, KC, VCCI, RCM. This certification guarantees compliance with the required safety and performance standards.
Environmental conditions
The relative humidity (storage) rate of the product Synology DiskStation DS1621+ is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The operating temperature of the product Synology DiskStation DS1621+ is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Synology DiskStation DS1621+ is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating altitude of the product Synology DiskStation DS1621+ is 0 - 5000 m. This specification ensures optimal performance across a wide range of altitudes. The product Synology DiskStation DS1621+ has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
