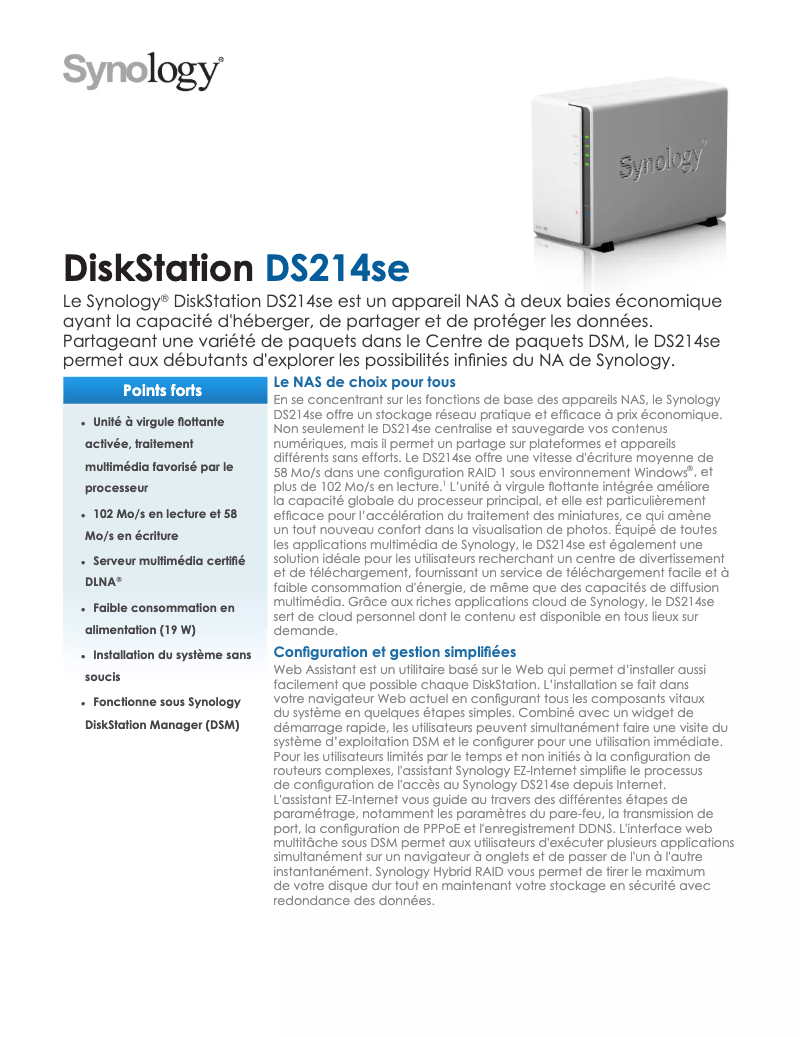

Manuals of product DiskStation DS214se
Technical Specifications DiskStation DS214se
General Information
-
ModelDISKSTATION DS214SE
-
Brand
-
Category
-
Type
-
SKU214145
-
MPN214145
Storage support
-
Total capacity of installed storage6 To
-
RAID supportYes
-
Type of installed storage driveHDD
-
Number of supported storage units2
-
Supported storage drive typesHDD & SSD
-
Number of supported storage units2
-
Maximum supported storage capacity16 To
-
Storage unit interfaceSATA III
-
Storage reader capacity3000 Go
-
Storage unit size2.5/3.5 "
-
RAID supportYes
-
RAID Levels0, 1, JBOD
-
Hot-swappable drive baysNo
-
Supported file systemsFAT, HFS+, NTFS, ext3, ext4
Software
-
Installed operating systemDiskStation Manager
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
Representation / realization
-
Security-supported algorithm256-bit AES
-
Multilingual supportYes
-
Multilingual supportYes
-
Multilingual supportYes
-
TypeNAS
-
Device classHome and telecommuting
-
Multilingual supportYes
-
Backup functionsCloud, iSCSI LUN
-
Multilingual supportYes
-
Number of users512 user(s)
-
Sound level18.4 dB
Processor
-
Processor modelArmada 370
-
Processor familyMarvell
-
Processor frequency0.8 GHz
Memory
-
Type of internal memoryDDR3
-
Internal memory0.25 GB
Network
-
DHCP server-
-
Wake-on-LAN readyYes
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
WifiNo
-
Wake-on-LAN readyYes
-
Wake-on-LAN readyYes
-
Wake-on-LAN readyYes
-
Supported network protocolsCIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN
Power
-
Power locationExternal
-
Power Supply Unit (PSU) capacity60 W
-
Number of power supplies1
-
Typical electricity consumption13.46 W
-
Energy consumption (in standby mode)4.37 W
-
AC input voltage100-240 V
-
AC input frequency50 - 60 Hz
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Quantity of USB 2.0 Ports2
-
Fibre Channel Ports0
-
Fibre Channel Ports0
Weight and dimensions
-
Width100 mm
-
Depth225.5 mm
-
Height165 mm
-
Weight870 g
Design
-
Material of the case/body-
-
Chassis typeOffice
-
Cooling typeActive
-
Product colorWhite
-
Number of fans1 fan(s)
-
Fan diameter92 mm
-
Cable anti-theft lockYes
-
Cable anti-theft lockYes
-
Built-in screenNo
-
Cable lock location typeKensington
Packaging contents
-
Quick Installation GuideYes
-
Cables includedSector
-
Quick Installation GuideYes
Environmental conditions
-
Operating temperature5 - 35 °C
-
Operating relative humidity (H-H)5 - 95 %
-
Temperature out of operation-10 - 70 °C
Sustainability
-
Sustainability certificatesRoHS
Other features
-
Certified DLNA (Digital Living New-York Alliance)Yes
Similar products
More product categories from brand Synology
More product types from brand Synology
Presentation of product DiskStation DS214se specifications from brand Synology
Generalities
The EAN code of the product Synology DiskStation DS214se is 4053162670020, 4053162670037, 4053162670044, 4053162670068, 4053162685390, 4053162686861, 5051868697968, 5051868697975, 5051868697999, 5051868967429, 5051868979842, 7613081009157, 7613081009164, 7613081009171, 7613081009188, 7613081009195, 7613081009201, 8717755651358, 8717755651365, 8717755651372. This code allows for the unique identification of the product in the distribution system. The brand of the product Synology DiskStation DS214se is Synology. This brand is known for its quality and innovation in the field of household appliances. The product model Synology DiskStation DS214se is DiskStation DS214se | DS214SE_6TB_WD_BLUE. This model ensures optimal performance and an enhanced user experience.
Software
The installed operating system of the product Synology DiskStation DS214se is DiskStation Manager. This system allows for a smooth and intuitive user experience. Does the product Synology DiskStation DS214se support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users. Does the product Synology DiskStation DS214se support the Linux operating system? Oui. This feature allows for optimal compatibility with Linux environments, thus providing increased usability flexibility. Does the product Synology DiskStation DS214se support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Representation / realization
The supported security algorithm of the product Synology DiskStation DS214se contains 256-bit AES. This algorithm ensures optimal protection of your data. Does the product Synology DiskStation DS214se have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. Does the product Synology DiskStation DS214se have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the product Synology DiskStation DS214se have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. The type of product Synology DiskStation DS214se is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Synology DiskStation DS214se device class is Domicile et télétravail. This class determines the technical characteristics and specific features of the product. Does the product Synology DiskStation DS214se have a backup feature? Oui. This feature ensures the security of your data by reliably saving it. The Synology DiskStation DS214se product has backup features: Cloud and iSCSI LUN, thus ensuring effective protection of your data. Does the product Synology DiskStation DS214se have multilingual support? Oui. This support allows for optimal use in multiple languages, thus facilitating access to an international audience. The number of users of the product Synology DiskStation DS214se is 512 utilisateur(s). This product is ideal for several people. The noise level of the product Synology DiskStation DS214se is 18.4 dB. This noise level allows for pleasant use without excessive noise disturbances.
Processor
The processor model of the product Synology DiskStation DS214se is Armada 370. This model ensures optimal performance for smooth and efficient use. The processor family of the product Synology DiskStation DS214se contains Marvell. This specification is essential for determining the performance and compatibility of the product. The processor frequency of the product Synology DiskStation DS214se is 0.8 GHz. This specification determines how quickly the processor can execute instructions, thereby influencing the overall performance of the device.
Storage support
The total installed storage capacity of the product Synology DiskStation DS214se is 6 To. This specification allows for the efficient management of large amounts of data. Does the product Synology DiskStation DS214se have installed storage drives? Oui. The number of installed storage readers of the product Synology DiskStation DS214se is 2. This number determines the expansion capacity and storage flexibility of the product. The type of storage drive installed in the Synology DiskStation DS214se is HDD. This drive allows you to efficiently store your data while ensuring optimal performance. The type of storage drives supported by the product Synology DiskStation DS214se is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs. The number of storage units supported by the product Synology DiskStation DS214se is 2. This feature allows for optimizing the management of your data and ensuring enhanced performance. The storage capacity of the Synology DiskStation DS214se is 3000 Go. This capacity allows for storing a large amount of data, thus providing optimal flexibility and performance. The maximum supported storage capacity of the product Synology DiskStation DS214se is 16 To. This specification allows for optimizing the use of available storage space. The product Synology DiskStation DS214se has a storage unit interface: Série ATA III. This interface ensures a fast and efficient connection for data transfer. The storage unit size of the product Synology DiskStation DS214se is 2.5/3.5 ". This specification determines compatibility with different types of storage media. Does the product Synology DiskStation DS214se have RAID Support? Oui. This support ensures data redundancy and improves storage performance. The RAID levels of the Synology DiskStation DS214se product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. Does the product Synology DiskStation DS214se have hot-swappable drive bays? Non. These bays allow for easy and quick access to the drives without having to power down the system, thus providing increased flexibility and efficiency. The file systems supported by the Synology DiskStation DS214se product are FAT32, NTFS, ext3, ext4. These file systems ensure optimal compatibility with various devices and operating systems.
Memory
The internal memory of the product Synology DiskStation DS214se is DDR3. This internal memory allows you to efficiently store your data and applications. The internal memory of the product Synology DiskStation DS214se contains 0.25 Go. This memory allows for the storage of a large amount of data and applications for smooth and efficient use.
Network
Does the product Synology DiskStation DS214se have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Synology DiskStation DS214se contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The DHCP client of the product Synology DiskStation DS214se is Oui. This client allows for dynamic management of IP addresses, thus facilitating the connection of devices to the network. The data transfer rate of the product Synology DiskStation DS214se is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The DHCP server of the product Synology DiskStation DS214se is -. This server allows for the dynamic assignment of IP addresses to devices on a network, thus facilitating the management of connections. Does the product Synology DiskStation DS214se support iSCSI? Oui. This feature allows for efficient management of storage resources on the network. Is the Synology DiskStation DS214se product Wake-on-LAN ready? Oui. This feature allows you to wake the computer remotely over the network, providing increased flexibility and convenience. The supported network protocols of the product Synology DiskStation DS214se are CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN. These protocols ensure efficient and reliable communication for your networking needs.
Connectivity
The number of USB 2.0 ports on the Synology DiskStation DS214se is 2. These ports allow for a fast and efficient connection for your devices. The number of Ethernet LAN (RJ-45) ports of the product Synology DiskStation DS214se is 1. These ports provide a stable and fast network connection for your devices. The Fibre Channel Ports connectivity of the Synology DiskStation DS214se product contains 0. This specification ensures fast and reliable communication in storage environments. The product Synology DiskStation DS214se has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed.
Weight and dimensions
The width of the product Synology DiskStation DS214se is 100 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Synology DiskStation DS214se is 225.5 mm. This dimension allows for optimal integration into your space. The weight of the product Synology DiskStation DS214se is 870 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Synology DiskStation DS214se is 165 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Power
The capacity of the power supply unit (PSU) of the product Synology DiskStation DS214se is 60 W. This specification ensures adequate power for the optimal operation of the device. The number of power supplies for the product Synology DiskStation DS214se is 1. This specification ensures a reliable power supply that meets the product's needs. The power supply location of the product Synology DiskStation DS214se is Externe. This type of power supply allows for optimal integration into your space. The typical power consumption of the product Synology DiskStation DS214se is 13.46 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product Synology DiskStation DS214se is 4.37 W. This feature helps to reduce the energy impact when the device is not in use. The AC input voltage of the Synology DiskStation DS214se is 100-240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Synology DiskStation DS214se is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Packaging contents
Does the product Synology DiskStation DS214se have an external power adapter? Oui. This accessory is essential for providing stable and reliable power to your devices. The included cable of the product Synology DiskStation DS214se contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Synology DiskStation DS214se have a Quick Installation Guide? Oui. This guide will help you easily install the product by following clear and concise steps.
Environmental conditions
The product Synology DiskStation DS214se has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Synology DiskStation DS214se is 5 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Synology DiskStation DS214se is -10 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Sustainability
The product Synology DiskStation DS214se has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Design
The chassis type of the product Synology DiskStation DS214se is Bureau. This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The cooling type of the product Synology DiskStation DS214se is active. This system ensures optimal temperature management for improved performance. The color of the product Synology DiskStation DS214se is Blanc. This shade gives it a modern and elegant look. The material of the product case Synology DiskStation DS214se is -. This material ensures both durability and elegance. The number of fans of the product Synology DiskStation DS214se is 1 ventilateur(s). This design allows for better air circulation and optimal performance. Does the product Synology DiskStation DS214se have a cable lock port? No. This product does not have this security feature. The Synology DiskStation DS214se has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device. The diameter of the Synology DiskStation DS214se fan is 92 mm. This diameter is essential for ensuring optimal air circulation. Does the product Synology DiskStation DS214se have indicators? Oui. These indicators allow you to visualize the operating status of the device. The type of cable lock location for the product Synology DiskStation DS214se is Kensington. This type of lock provides optimal security to protect your device against theft.
Other features
Is the product Synology DiskStation DS214se DLNA Certified (Digital Living New-York Alliance)? Oui. This certification ensures optimal compatibility with your home multimedia devices.
