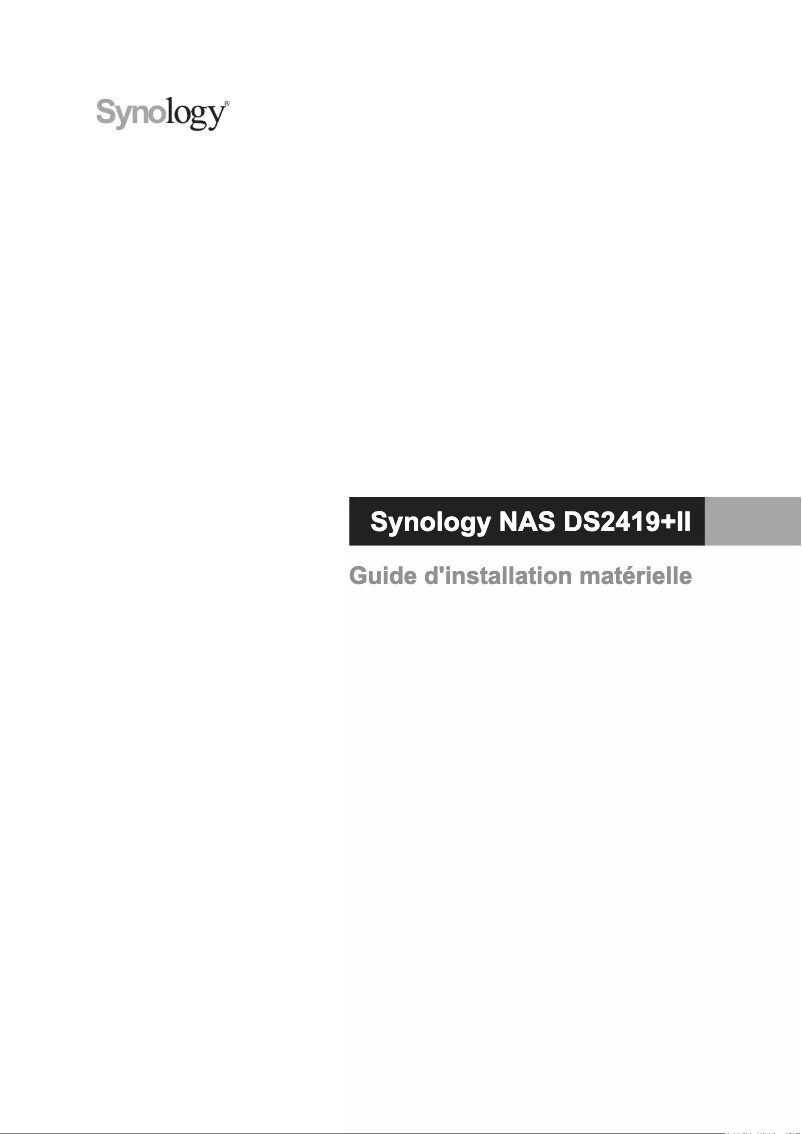

Manuals of product DiskStation DS2419+II
Technical Specifications DiskStation DS2419+II
General Information
-
ModelDISKSTATION DS2419+II
-
Brand
-
Category
-
Type
-
SKU1433349
-
MPN1433349
Processor
-
Processor modelC3538
-
Processor familyIntel Atom®
-
Processor manufacturerIntel
-
Number of processor cores4
-
Processor frequency2.1 GHz
-
CPU Configuration (max)1
-
Conflict-free processorYes
Memory
-
Type of internal memoryDDR4
-
Internal memory4 GB
-
Memory supportSO-DIMM
-
ECCNo
-
Maximum supported RAM32 GB
-
Memory locations2
Storage support
-
Storage unit interface-
-
Type of installed storage driveNo
-
Total capacity of installed storage0 To
-
Number of installed storage readers0
-
Number of supported storage units12
-
Type of installed storage driveNo
-
Supported storage drive typesHDD & SSD
-
Storage reader capacity0 Go
-
Supported storage reader interfacesSerial ATA, Serial ATA II, Serial ATA III
-
Supported storage disk sizes2.5, 3.5 "
-
Online RAID MigrationYes
-
Supported file systemsBTRFS, FAT, HFS+, NTFS, ext3, ext4
-
Online RAID MigrationYes
-
RAID Levels0, 1.5, 6, 10, JBOD
-
Online RAID MigrationYes
-
Online RAID MigrationYes
Network
-
iSCSI SupportYes
-
LAN Ethernet: data transfer rate1000 Mbit/s
-
iSCSI SupportYes
-
iSCSI SupportYes
-
Supported network protocolsSMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
-
iSCSI SupportYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)4
-
USB portYes
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
-
PCI Express x 8 slots (Gen. 3.x)1
Weight and dimensions
-
Width300 mm
-
Depth340 mm
-
Height270 mm
-
Weight9500 g
Design
-
Number of fans2 fan(s)
-
Fan diameter120 mm
-
Chassis typeTower
-
Cooling typeActive
-
Product colorBlack
Representation / realization
-
Sound level22.3 dB
-
Web-based managementYes
-
Management protocolsSMB/AFP/NFS/FTP/WebDAV
-
Web-based managementYes
-
Web-based managementYes
-
Supported browsersSafari 13+, Internet Explorer 11+, Microsoft Edge, Firefox, Google Chrome
-
Web-based managementYes
-
Web-based managementYes
-
Backup functionsCloud, iSCSI LUN
-
TypeNAS
-
Device classSME
-
Number of users1500 user(s)
-
Web-based managementYes
-
Web-based managementYes
Power
-
Power locationIntegrated
-
Power Supply Unit (PSU) capacity550 W
-
Number of power supplies1
-
AC input voltage100-240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption101.6 W
-
Power consumption (in HDD standby)43.96 W
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating relative humidity (H-H)5 - 95 %
-
Temperature out of operation-20 - 60 °C
Other features
-
CertificationFCC
-
CE
-
BSMI
-
VCCI
-
RCM
-
EAC
-
CCC
-
KC
Packaging contents
-
Cables includedAC
-
LAN (RJ-45)
Software
-
Installed operating systemDiskStation Manager
-
Support for the server operating systemWindows Server 2016
-
Windows Server 2019
Special features of the processor
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Version of Intel® security hood technology1.00
-
Version of Intel® security hood technology1.00
-
Intel® Vitalization Technology (VT-x)Yes
Logistics data
-
Harmonized System Code84714100
Similar products
More product categories from brand Synology
More product types from brand Synology
Presentation of product DiskStation DS2419+II specifications from brand Synology
Generalities
The brand of the product Synology DiskStation DS2419+II is Synology. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Synology DiskStation DS2419+II is 0846504004317, 4711174724314. This code allows for the unique identification of the product in the distribution system. The product model Synology DiskStation DS2419+II is DiskStation DS2419+II | DS2419+II. This model ensures optimal performance and an enhanced user experience.
Memory
The memory support of the product Synology DiskStation DS2419+II is SO-DIMM. This support is designed to provide optimal performance and compatibility with various systems. The internal memory of the product Synology DiskStation DS2419+II contains 4 Go. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. Does the product Synology DiskStation DS2419+II have ECC? Non. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The internal memory of the product Synology DiskStation DS2419+II is DDR4. This internal memory allows you to efficiently store your data and applications. The maximum supported memory of the product Synology DiskStation DS2419+II is 32 Go. This specification ensures optimal performance for your applications and daily tasks. The memory locations of the product Synology DiskStation DS2419+II contain 2. These locations help optimize the device's performance.
Processor
The processor model of the product Synology DiskStation DS2419+II is C3538. This model ensures optimal performance for smooth and efficient use. The processor manufacturer of the product Synology DiskStation DS2419+II is Intel. This manufacturer is known for its performance and reliability in the field of information technology. The processor family of the product Synology DiskStation DS2419+II contains Intel Atom®. This specification is essential for determining the performance and compatibility of the product. The number of processor cores of the product Synology DiskStation DS2419+II is 4. This feature allows for optimizing performance and managing multiple tasks simultaneously with efficiency. The processor frequency of the product Synology DiskStation DS2419+II is 2.1 GHz. This specification determines how quickly the processor can execute instructions, thereby influencing the overall performance of the device. The CPU configuration (max) of the product Synology DiskStation DS2419+II is 1. This feature ensures optimal performance for all your applications. Does the product Synology DiskStation DS2419+II have a conflict-free Processor? Oui. This feature ensures smooth performance without interference.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Synology DiskStation DS2419+II is 4. These ports provide a stable and fast network connection for your devices. The PCI Express x 8 slots (Gen. 3.x) of the product Synology DiskStation DS2419+II contains 1. This type of connectivity allows for high bandwidth for optimal performance. Does the Synology DiskStation DS2419+II have a USB Port? Oui. This feature allows for easy and quick connection to various devices. The product Synology DiskStation DS2419+II has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed.
Storage support
Does the product Synology DiskStation DS2419+II have installed storage drives? Non. The total installed storage capacity of the product Synology DiskStation DS2419+II is 0 To. This specification allows for the efficient management of large amounts of data. The number of storage units supported by the product Synology DiskStation DS2419+II is 12. This feature allows for optimizing the management of your data and ensuring enhanced performance. The number of installed storage readers of the product Synology DiskStation DS2419+II is 0. This number determines the expansion capacity and storage flexibility of the product. The type of storage drive installed in the Synology DiskStation DS2419+II is Non. This drive allows you to efficiently store your data while ensuring optimal performance. The type of storage drives supported by the product Synology DiskStation DS2419+II is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs. The storage capacity of the Synology DiskStation DS2419+II is 0 Go. This capacity allows for storing a large amount of data, thus providing optimal flexibility and performance. The product Synology DiskStation DS2419+II has a storage unit interface: -. This interface ensures a fast and efficient connection for data transfer. The storage support of the product Synology DiskStation DS2419+II contains supported storage reader interfaces: Serial ATA, Serial ATA II, Serial ATA III. These interfaces ensure optimal compatibility with various storage devices. The storage support of the product Synology DiskStation DS2419+II includes supported disk sizes of 2.5, 3.5 ". These sizes provide great flexibility to meet your storage needs. Does the product Synology DiskStation DS2419+II have hot-swappable drive bays? Oui. These bays allow for easy and quick access to the drives without having to power down the system, thus providing increased flexibility and efficiency. Does the product Synology DiskStation DS2419+II have RAID Support? Oui. This support ensures data redundancy and improves storage performance. The RAID levels of the Synology DiskStation DS2419+II product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. The file systems supported by the Synology DiskStation DS2419+II product are FAT32, NTFS, ext3, ext4. These file systems ensure optimal compatibility with various devices and operating systems. Does the product Synology DiskStation DS2419+II have online RAID Expansion? Oui. This feature allows for increasing storage capacity without interruption, thus providing enhanced flexibility and efficiency. Does the product Synology DiskStation DS2419+II have online RAID Migration? Oui. This feature allows for RAID migrations to be performed without interrupting system operation, thus ensuring optimal service continuity.
Network
Does the product Synology DiskStation DS2419+II have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The data transfer rate of the product Synology DiskStation DS2419+II is 1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Is the Synology DiskStation DS2419+II product Wake-on-LAN ready? Oui. This feature allows you to wake the computer remotely over the network, providing increased flexibility and convenience. Does the product Synology DiskStation DS2419+II have Link Aggregation? Oui. This feature allows for optimizing network connection management for enhanced performance. The supported network protocols of the product Synology DiskStation DS2419+II are SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV. These protocols ensure efficient and reliable communication for your networking needs. Does the product Synology DiskStation DS2419+II support iSCSI? Oui. This feature allows for efficient management of storage resources on the network.
Weight and dimensions
The height of the product Synology DiskStation DS2419+II is 270 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Synology DiskStation DS2419+II is 9500 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Synology DiskStation DS2419+II is 300 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Synology DiskStation DS2419+II is 340 mm. This dimension allows for optimal integration into your space.
Design
The diameter of the Synology DiskStation DS2419+II fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The chassis type of the product Synology DiskStation DS2419+II is Tower. This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The number of fans of the product Synology DiskStation DS2419+II is 2 ventilateur(s). This design allows for better air circulation and optimal performance. The cooling type of the product Synology DiskStation DS2419+II is active. This system ensures optimal temperature management for improved performance. The color of the product Synology DiskStation DS2419+II is Noir. This shade gives it a modern and elegant look.
Other features
The certification of the product Synology DiskStation DS2419+II contains FCC\nCE\nBSMI\nVCCI\nRCM\nEAC\nCCC\nKC. This certification guarantees compliance with the required safety and performance standards.
Environmental conditions
The operating temperature of the product Synology DiskStation DS2419+II is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Synology DiskStation DS2419+II has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Synology DiskStation DS2419+II is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Representation / realization
Does the product Synology DiskStation DS2419+II have hot-swappable capability? Oui. This feature allows for the replacement of components without turning off the device, thus ensuring optimal continuity of use. The noise level of the product Synology DiskStation DS2419+II is 22.3 dB. This noise level allows for pleasant use without excessive noise disturbances. The product management protocol Synology DiskStation DS2419+II contains SMB/AFP/NFS/FTP/WebDAV. This protocol allows for efficient and centralized management of network devices. Does the product Synology DiskStation DS2419+II have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. Does the product Synology DiskStation DS2419+II have a system log? Oui. This log allows for tracking and recording system events for better management and optimal traceability. The browser support for the product Synology DiskStation DS2419+II includes Safari 13+, Internet Explorer 11+, Microsoft Edge, Firefox, Google Chrome. This feature ensures an optimal user experience on compatible platforms. Does the product Synology DiskStation DS2419+II have a backup feature? Oui. This feature ensures the security of your data by reliably saving it. Does the product Synology DiskStation DS2419+II have multilingual support? Oui. This support allows for optimal use in multiple languages, thus facilitating access to an international audience. The Synology DiskStation DS2419+II product has backup features: Cloud and iSCSI LUN, thus ensuring effective protection of your data. The type of product Synology DiskStation DS2419+II is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Synology DiskStation DS2419+II device class is PME. This class determines the technical characteristics and specific features of the product. The number of users of the product Synology DiskStation DS2419+II is 1500 utilisateur(s). This product is ideal for several people. Does the product Synology DiskStation DS2419+II have Image Capture? Oui. This feature allows for capturing high-quality images, thus providing an enriching visual experience. The Synology DiskStation DS2419+II product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Power
The number of power supplies for the product Synology DiskStation DS2419+II is 1. This specification ensures a reliable power supply that meets the product's needs. The capacity of the power supply unit (PSU) of the product Synology DiskStation DS2419+II is 550 W. This specification ensures adequate power for the optimal operation of the device. The AC input voltage of the Synology DiskStation DS2419+II is 100-240 V. This specification ensures optimal compatibility with standard electrical systems. The power supply location of the product Synology DiskStation DS2419+II is Intégré. This type of power supply allows for optimal integration into your space. The AC input frequency of the product Synology DiskStation DS2419+II is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The typical power consumption of the product Synology DiskStation DS2419+II is 101.6 W. This feature allows for the assessment of the energy efficiency of the device. The power consumption in standby HDD of the product Synology DiskStation DS2419+II is 43.96 W. This specification ensures optimal energy efficiency while maintaining the necessary performance.
Software
The installed operating system of the product Synology DiskStation DS2419+II is DiskStation Manager. This system allows for a smooth and intuitive user experience. The server operating system support for the product Synology DiskStation DS2419+II includes Windows Server 2016, Windows Server 2019. This support ensures optimal compatibility with modern server environments.
Packaging contents
The included cable of the product Synology DiskStation DS2419+II contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Logistics data
The Harmonized System code for the product Synology DiskStation DS2419+II is 84714100. This code allows for the unique identification of goods in international trade.
Special features of the processor
Does the product Synology DiskStation DS2419+II have a Lock Bit? Oui. This feature helps secure the processor by preventing unauthorized changes. Does the product Synology DiskStation DS2419+II have the built-in options available? No. This means that this product does not offer built-in options. Does the Synology DiskStation DS2419+II product have Intel® VT-x with Extended Page Tables (EPT)? Oui. This feature enables efficient virtualization and enhances the performance of virtualized environments. Does the product Synology DiskStation DS2419+II have Intel® QuickAssist Technology? Oui. This technology accelerates data processing tasks, thereby optimizing the overall system performance. Does the product Synology DiskStation DS2419+II have Intel® Virtualization Technology for Directed I/O (VT-d)? Oui. This technology allows for more efficient management of input/output resources, thereby improving the performance of virtualized applications. Does the product Synology DiskStation DS2419+II have Intel® Secure Boot? Oui. This feature enhances system security by verifying the integrity of the software at startup. Does the product Synology DiskStation DS2419+II have Intel® Virtualization Technology (VT-x)? Oui. This technology enhances the efficiency of virtual environments by optimizing processor resources. The product Synology DiskStation DS2419+II features the version of Intel® security key technology 1.00. This technology provides advanced data protection and enhances transaction security. The version of the Intel® security hood technology for the product Synology DiskStation DS2419+II is 1.00. This specification ensures enhanced data protection and increased security for your operations.
