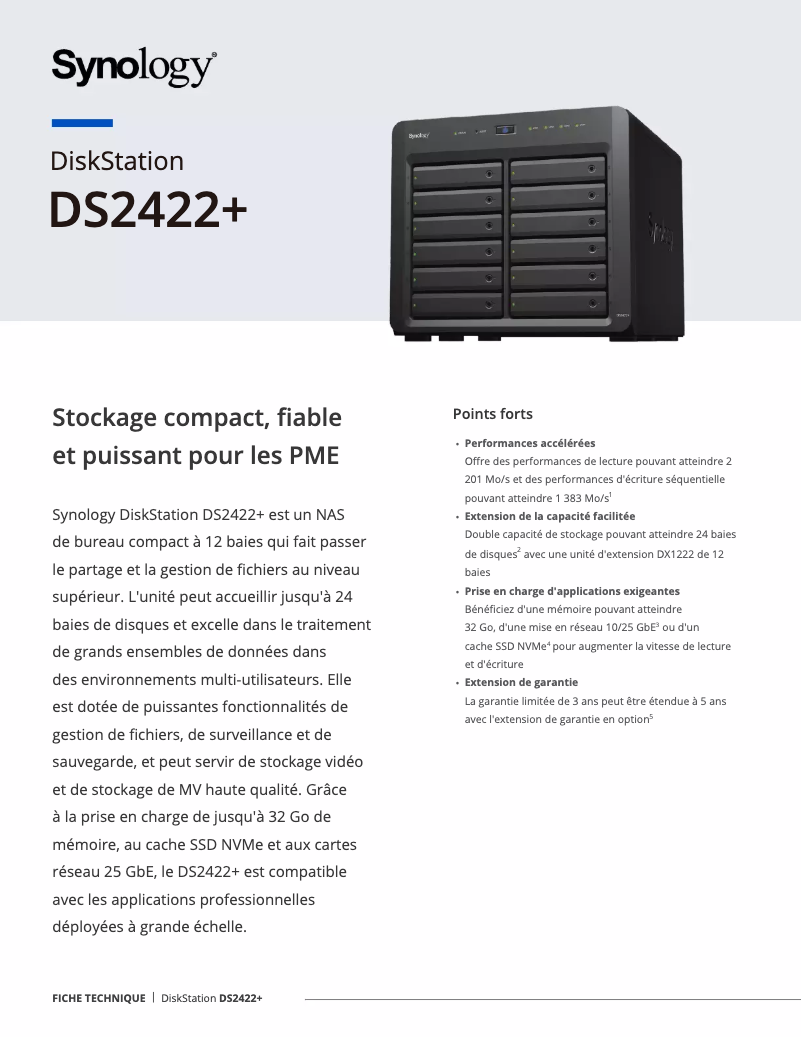

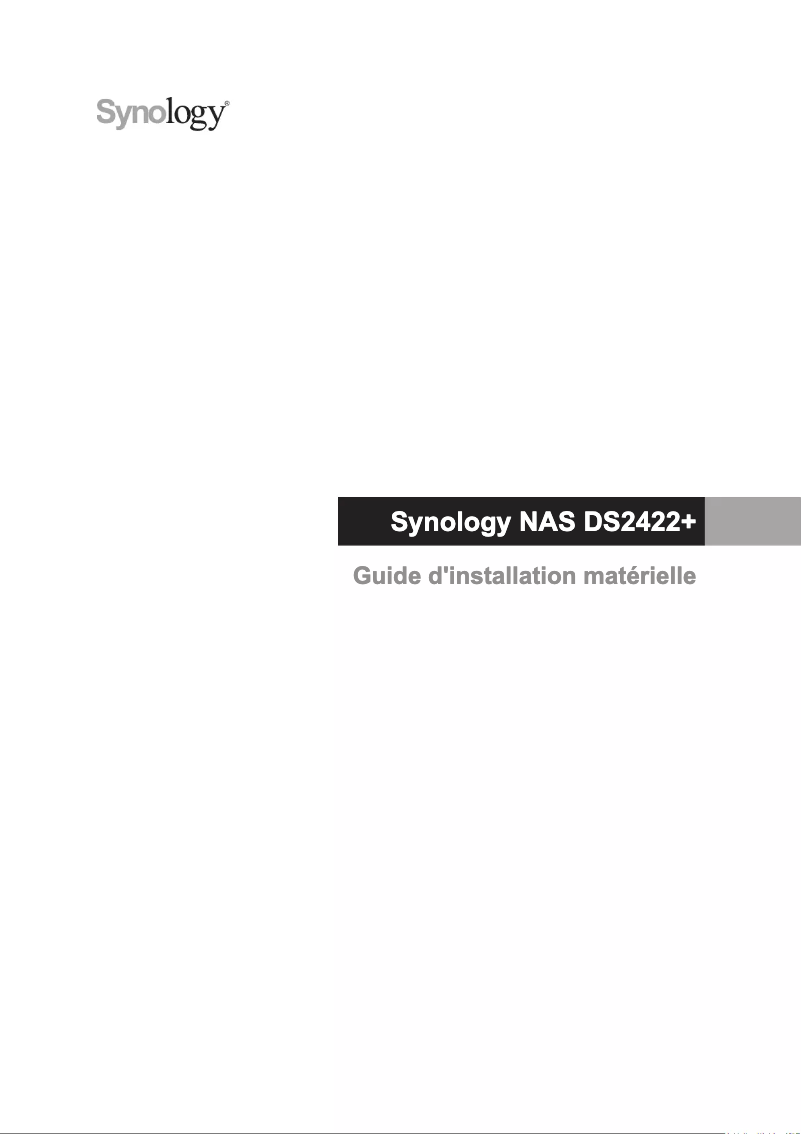

Manuals of product DiskStation DS2422+
Technical Specifications DiskStation DS2422+
General Information
-
ModelDISKSTATION DS2422+
-
Brand
-
Category
-
Type
-
SKU1497475
-
MPN1497475
Storage support
-
Total capacity of installed storage96 To
-
Storage reader capacity8000 Go
-
Hot-swappable drive baysYes
-
Number of installed storage readers12
-
Type of installed storage driveHDD
-
Number of installed storage readers12
-
Supported storage drive typesHDD & SSD
-
Supported storage reader interfacesSerial ATA II, Serial ATA III
-
Supported storage reader interfacesSerial ATA II, Serial ATA III
-
Supported storage disk sizes2.5, 3.5 "
-
Hot-swappable drive baysYes
-
RAID Levels0, 1.5, 6, 10, JBOD
-
Hot-swappable drive baysYes
-
Hot-swappable drive baysYes
-
Hot-swappable drive baysYes
-
Supported file systemsBTRFS, FAT, HFS+, NTFS, exFAT, ext3, ext4
Processor
-
Processor familyRyzen Embedded
-
Processor modelV1500B
-
Number of processor cores4
-
Processor manufacturerAMD
-
Processor frequency2.2 GHz
Software
-
Installed operating systemDiskStation Manager
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
Representation / realization
-
TypeNAS
-
Device classHome and remote work
-
Backup functionsCloud, iSCSI LUN
-
Hot exchangeYes
-
Hot exchangeYes
-
Hot exchangeYes
-
Hot exchangeYes
-
Security-supported algorithmHTTPS, SSL/TLS
-
Hot exchangeYes
-
Hot exchangeYes
-
Hot exchangeYes
-
Hot exchangeYes
-
Hot exchangeYes
-
Supported browsersGoogle Chrome, Firefox, Microsoft Edge, Safari
-
Hot exchangeYes
-
Hot exchangeYes
-
Shared folderSMB/AFP/NFS/FTP/WebDAV
Memory
-
Type of internal memoryDDR4
-
Internal memory4 GB
-
Memory frequency2666 MHz
-
Maximum supported RAM32 GB
-
Memory locations2
-
Memory supportSO-DIMM
-
ECCYes
Power
-
Power locationIntegrated
-
Power Supply Unit (PSU) capacity550 W
-
Number of power supplies1
-
Typical electricity consumption73.11 W
-
Power consumption (in HDD standby)32.12 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Network
-
Wake-on-LAN readyYes
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Wake-on-LAN readyYes
-
Wake-on-LAN readyYes
-
Supported network protocolsSMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Weight and dimensions
-
Width300 mm
-
Depth340 mm
-
Height270 mm
Connectivity
-
Number of Ethernet LAN ports (RJ-45)4
-
USB portYes
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
-
PCI Express x 8 slots (Gen. 3.x)1
Sustainability
-
Compliance with sustainabilityYes
-
Sustainability certificatesCE, RoHS
Packaging contents
-
Cables includedAC, LAN (RJ-45)
-
Quantity of power cables1
Environmental conditions
-
Operating temperature0 - 40 °C
-
Relative humidity rate (storage)5 - 95 %
-
Temperature out of operation-20 - 60 °C
-
Relative humidity rate (storage)5 - 95 %
-
Operating altitude0 - 5000 m
Design
-
Chassis typeOffice
-
Cooling typeActive
-
Product colorBlack
-
Number of fans2 fan(s)
-
Fan diameter120 mm
-
IndicatorsYes
-
IndicatorsYes
Other features
-
CertificationFCC
-
BSMI
-
VCCI
-
RCM
-
UKCA
-
EAC
-
CCC
-
KC
-
UL
Similar products
More product categories from brand Synology
More product types from brand Synology
Presentation of product DiskStation DS2422+ specifications from brand Synology
Software
Does the product Synology DiskStation DS2422+ support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users. Does the product Synology DiskStation DS2422+ support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. Does the product Synology DiskStation DS2422+ support the Linux operating system? Oui. This feature allows for optimal compatibility with Linux environments, thus providing increased usability flexibility. The installed operating system of the product Synology DiskStation DS2422+ is DiskStation Manager. This system allows for a smooth and intuitive user experience.
Generalities
The brand of the product Synology DiskStation DS2422+ is Synology. This brand is known for its quality and innovation in the field of household appliances. The product model Synology DiskStation DS2422+ is DiskStation DS2422+ | DS2422+ + 12X HAT5300-8T. This model ensures optimal performance and an enhanced user experience.
Processor
The processor family of the product Synology DiskStation DS2422+ contains Ryzen Embedded. This specification is essential for determining the performance and compatibility of the product. The processor manufacturer of the product Synology DiskStation DS2422+ is AMD. This manufacturer is known for its performance and reliability in the field of information technology. The processor model of the product Synology DiskStation DS2422+ is V1500B. This model ensures optimal performance for smooth and efficient use. The number of processor cores of the product Synology DiskStation DS2422+ is 4. This feature allows for optimizing performance and managing multiple tasks simultaneously with efficiency. The processor frequency of the product Synology DiskStation DS2422+ is 2.2 GHz. This specification determines how quickly the processor can execute instructions, thereby influencing the overall performance of the device.
Power
The power supply location of the product Synology DiskStation DS2422+ is Intégré. This type of power supply allows for optimal integration into your space. The number of power supplies for the product Synology DiskStation DS2422+ is 1. This specification ensures a reliable power supply that meets the product's needs. The capacity of the power supply unit (PSU) of the product Synology DiskStation DS2422+ is 550 W. This specification ensures adequate power for the optimal operation of the device. The typical power consumption of the product Synology DiskStation DS2422+ is 73.11 W. This feature allows for the assessment of the energy efficiency of the device. The power consumption in standby HDD of the product Synology DiskStation DS2422+ is 32.12 W. This specification ensures optimal energy efficiency while maintaining the necessary performance. The AC input voltage of the Synology DiskStation DS2422+ is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Synology DiskStation DS2422+ is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Storage support
The total installed storage capacity of the product Synology DiskStation DS2422+ is 96 To. This specification allows for the efficient management of large amounts of data. The number of storage units supported by the product Synology DiskStation DS2422+ is 12. This feature allows for optimizing the management of your data and ensuring enhanced performance. Does the product Synology DiskStation DS2422+ have installed storage drives? Oui. The storage capacity of the Synology DiskStation DS2422+ is 8000 Go. This capacity allows for storing a large amount of data, thus providing optimal flexibility and performance. The type of storage drives supported by the product Synology DiskStation DS2422+ is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs. The type of storage drive installed in the Synology DiskStation DS2422+ is HDD. This drive allows you to efficiently store your data while ensuring optimal performance. The number of installed storage readers of the product Synology DiskStation DS2422+ is 12. This number determines the expansion capacity and storage flexibility of the product. The product Synology DiskStation DS2422+ has a storage unit interface: Serial ATA II, Serial ATA III. This interface ensures a fast and efficient connection for data transfer. The storage support of the product Synology DiskStation DS2422+ contains supported storage reader interfaces: Serial ATA II, Serial ATA III. These interfaces ensure optimal compatibility with various storage devices. The storage support of the product Synology DiskStation DS2422+ includes supported disk sizes of 2.5, 3.5 ". These sizes provide great flexibility to meet your storage needs. Does the product Synology DiskStation DS2422+ have RAID Support? Oui. This support ensures data redundancy and improves storage performance. The RAID levels of the Synology DiskStation DS2422+ product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. Does the product Synology DiskStation DS2422+ have online RAID Migration? Oui. This feature allows for RAID migrations to be performed without interrupting system operation, thus ensuring optimal service continuity. Does the product Synology DiskStation DS2422+ have online RAID Expansion? Oui. This feature allows for increasing storage capacity without interruption, thus providing enhanced flexibility and efficiency. Does the product Synology DiskStation DS2422+ have hot-swappable drive bays? Oui. These bays allow for easy and quick access to the drives without having to power down the system, thus providing increased flexibility and efficiency. The file systems supported by the Synology DiskStation DS2422+ product are FAT32, NTFS, ext3, ext4. These file systems ensure optimal compatibility with various devices and operating systems.
Memory
The memory frequency of the product Synology DiskStation DS2422+ is 2666 MHz. This feature ensures optimal performance for your applications and games. The internal memory of the product Synology DiskStation DS2422+ contains 4 Go. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The maximum supported memory of the product Synology DiskStation DS2422+ is 32 Go. This specification ensures optimal performance for your applications and daily tasks. The internal memory of the product Synology DiskStation DS2422+ is DDR4. This internal memory allows you to efficiently store your data and applications. The memory locations of the product Synology DiskStation DS2422+ contain 2. These locations help optimize the device's performance. The memory support of the product Synology DiskStation DS2422+ is SO-DIMM. This support is designed to provide optimal performance and compatibility with various systems. Does the product Synology DiskStation DS2422+ have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability.
Representation / realization
The type of product Synology DiskStation DS2422+ is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The Synology DiskStation DS2422+ product has backup features: Cloud and iSCSI LUN, thus ensuring effective protection of your data. The product Synology DiskStation DS2422+ device class is Domicile et télétravail. This class determines the technical characteristics and specific features of the product. Does the product Synology DiskStation DS2422+ have a backup feature? Oui. This feature ensures the security of your data by reliably saving it. Does the product Synology DiskStation DS2422+ have multilingual support? Oui. This support allows for optimal use in multiple languages, thus facilitating access to an international audience. Does the Synology DiskStation DS2422+ product support third-party? Oui. This feature allows for easy integration with external services. Does the product Synology DiskStation DS2422+ have Image Capture? Oui. This feature allows for capturing high-quality images, thus providing an enriching visual experience. The supported security algorithm of the product Synology DiskStation DS2422+ contains HTTPS, SSL/TLS. This algorithm ensures optimal protection of your data. Does the product Synology DiskStation DS2422+ have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. Does the product Synology DiskStation DS2422+ have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the product Synology DiskStation DS2422+ have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. Does the product Synology DiskStation DS2422+ have a built-in iTunes Server? Oui. This server allows for simplified management of your music library and easy access to your favorite tracks. Does the product Synology DiskStation DS2422+ have a built-in FTP Server? Oui. This feature allows for fast and secure file transfer, thus facilitating data management. The browser support for the product Synology DiskStation DS2422+ includes Google Chrome, Firefox, Microsoft Edge, Safari. This feature ensures an optimal user experience on compatible platforms. Does the product Synology DiskStation DS2422+ have a system log? Oui. This log allows for tracking and recording system events for better management and optimal traceability. Does the product Synology DiskStation DS2422+ have hot-swappable capability? Oui. This feature allows for the replacement of components without turning off the device, thus ensuring optimal continuity of use. The shared folder of the product Synology DiskStation DS2422+ contains SMB/AFP/NFS/FTP/WebDAV. This shared folder allows easy and collaborative access to files among multiple users.
Weight and dimensions
The width of the product Synology DiskStation DS2422+ is 300 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Synology DiskStation DS2422+ is 340 mm. This dimension allows for optimal integration into your space. The height of the product Synology DiskStation DS2422+ is 270 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Sustainability
The product Synology DiskStation DS2422+ has Sustainability Certificates: CE, RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect. Does the product Synology DiskStation DS2422+ comply with sustainability? Oui. This product meets established sustainability standards, thereby ensuring a reduced environmental impact.
Connectivity
Does the Synology DiskStation DS2422+ have a USB Port? Oui. This feature allows for easy and quick connection to various devices. The PCI Express x 8 slots (Gen. 3.x) of the product Synology DiskStation DS2422+ contains 1. This type of connectivity allows for high bandwidth for optimal performance. The product Synology DiskStation DS2422+ has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of Ethernet LAN (RJ-45) ports of the product Synology DiskStation DS2422+ is 4. These ports provide a stable and fast network connection for your devices.
Network
Does the product Synology DiskStation DS2422+ support iSCSI? Oui. This feature allows for efficient management of storage resources on the network. Does the product Synology DiskStation DS2422+ have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Is the Synology DiskStation DS2422+ product Wake-on-LAN ready? Oui. This feature allows you to wake the computer remotely over the network, providing increased flexibility and convenience. The data transfer rate of the product Synology DiskStation DS2422+ is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The supported network protocols of the product Synology DiskStation DS2422+ are SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV. These protocols ensure efficient and reliable communication for your networking needs.
Packaging contents
The product Synology DiskStation DS2422+ contains 1 power cable. This cable is essential for ensuring the proper functioning of your device. The included cable of the product Synology DiskStation DS2422+ contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Environmental conditions
The operating temperature of the product Synology DiskStation DS2422+ is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Synology DiskStation DS2422+ is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Synology DiskStation DS2422+ is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Synology DiskStation DS2422+ has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating altitude of the product Synology DiskStation DS2422+ is 0 - 5000 m. This specification ensures optimal performance across a wide range of altitudes.
Other features
The certification of the product Synology DiskStation DS2422+ contains FCC, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL. This certification guarantees compliance with the required safety and performance standards.
Design
The chassis type of the product Synology DiskStation DS2422+ is Bureau. This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The color of the product Synology DiskStation DS2422+ is Noir. This shade gives it a modern and elegant look. The number of fans of the product Synology DiskStation DS2422+ is 2 ventilateur(s). This design allows for better air circulation and optimal performance. The cooling type of the product Synology DiskStation DS2422+ is active. This system ensures optimal temperature management for improved performance. The diameter of the Synology DiskStation DS2422+ fan is 120 mm. This diameter is essential for ensuring optimal air circulation. Does the product Synology DiskStation DS2422+ have a locking case? Oui. This case provides optimal security for your valuables. Does the product Synology DiskStation DS2422+ have indicators? Oui. These indicators allow you to visualize the operating status of the device.
