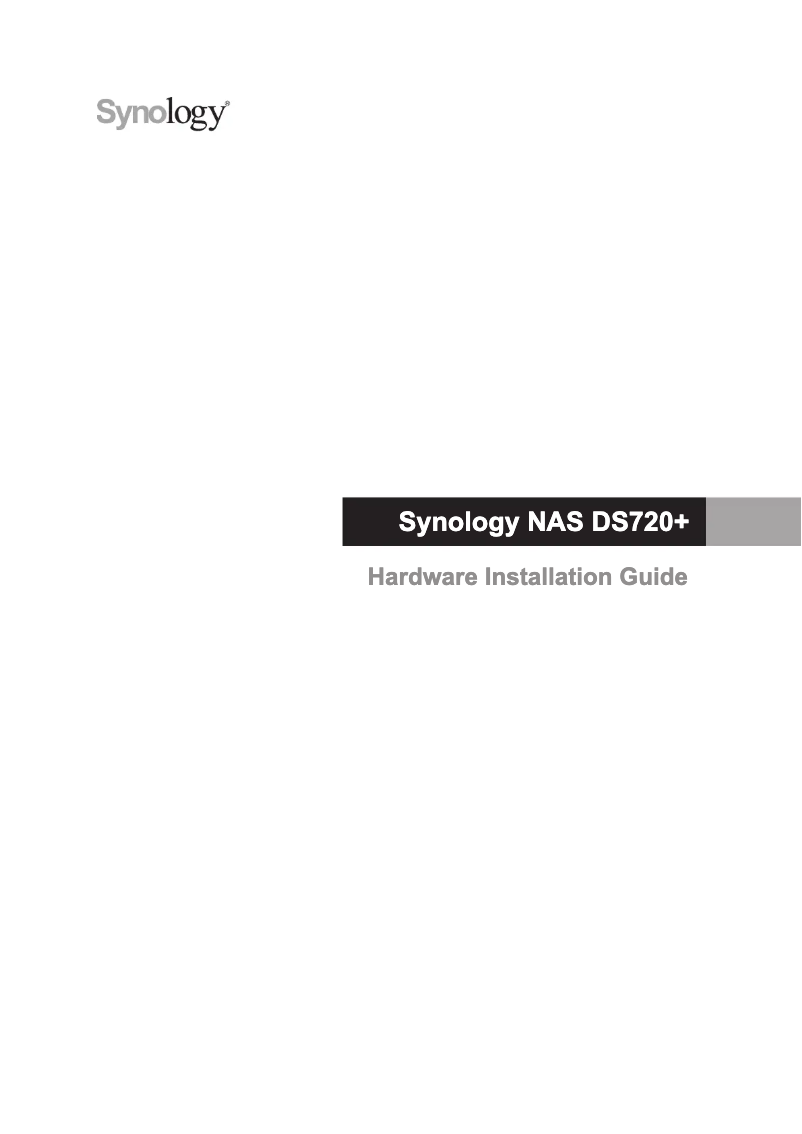

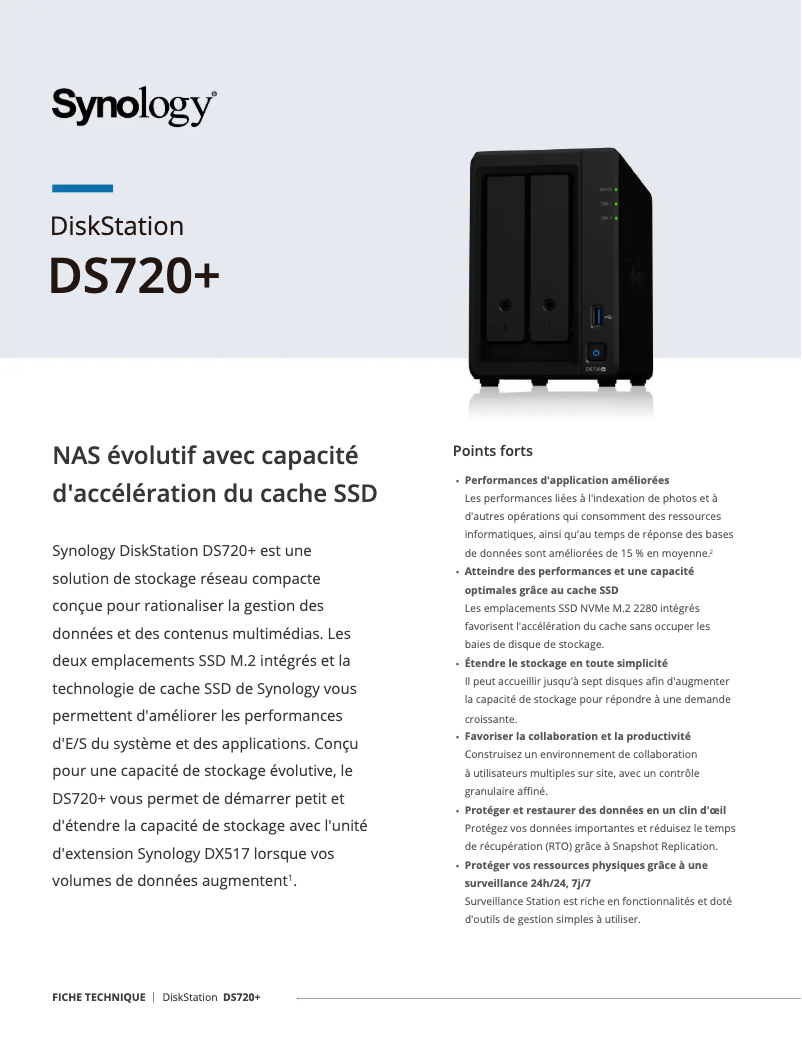

Manuals of product DiskStation DS720+
Technical Specifications DiskStation DS720+
General Information
-
ModelDISKSTATION DS720+
-
Brand
-
Category
-
Type
-
SKU1969250
-
MPN1969250
Storage support
-
Total capacity of installed storage2 To
-
Storage reader capacity1000 Go
-
Hot-swappable drive baysYes
-
Number of M.2 slots (M and B)2
-
Number of supported storage units4
-
Type of installed storage driveHDD
-
Supported storage drive typesHDD & SSD
-
Storage unit interfaceSATA III
-
Supported storage reader interfacesSerial ATA II, Serial ATA III
-
Supported storage disk sizes2.5, 3.5, M.2 "
-
Maximum supported storage capacity32 To
-
Number of M.2 slots (M and B)2
-
Hot-swappable drive baysYes
-
RAID Levels0, 1, 5, 6, 10, JBOD
-
Hot-swappable drive baysYes
-
Hot-swappable drive baysYes
-
Hot-swappable drive baysYes
-
Supported file systemsBTRFS, FAT, HFS+, NTFS, exFAT, ext3, ext4
Processor
-
Processor familyIntel® Celeron®
-
Processor modelJ4125
-
Number of processor threads4
-
Number of processor threads4
-
Processor manufacturerIntel
-
Processor frequency2 GHz
-
Processor Turbo Frequency2.7 GHz
-
Processor cache memory4 MB
-
CPU Configuration (max)1
Software
-
Installed operating systemDiskStation Manager
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
Representation / realization
-
TypeNAS
-
Device classHome and remote work
-
Password authenticationYes
-
Backup functionsCloud, iSCSI LUN
-
Password authenticationYes
-
Number of users2048 user(s)
-
Sound level18.4 dB
-
Password authenticationYes
-
Password authenticationYes
-
Password authenticationYes
-
Security-supported algorithmHTTPS, SSH, SSL/TLS
-
Password authenticationYes
-
Password authenticationYes
-
Password authenticationYes
-
Password authenticationYes
-
Supported browsersChrome, Firefox, Edge, Internet Explorer, Safari
-
Password authenticationYes
-
Password authenticationYes
-
Password authenticationYes
-
Shared folderCIFS/AFP/NFS/FTP/WebDAV
Memory
-
Type of internal memoryDDR4
-
Internal memory2 GB
-
Maximum supported RAM6 GB
-
Memory locations1
Power
-
Power locationExternal
-
Power Supply Unit (PSU) capacity65 W
-
Number of power supplies1
-
Typical electricity consumption16.44 W
-
Power consumption (in HDD standby)6.19 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Network
-
Link aggregationYes
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Link aggregationYes
-
Link aggregationYes
-
Supported network protocolsSMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
-
Link aggregationYes
Weight and dimensions
-
Width106 mm
-
Depth223 mm
-
Height166 mm
Connectivity
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
-
USB portYes
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
-
Quantity of eSATA Ports1
Sustainability
-
Compliance with sustainabilityYes
-
Sustainability certificatesRoHS
Packaging contents
-
External power adapterYes
-
Cables includedAC, LAN (RJ-45)
-
Quantity of power cables1
Environmental conditions
-
Operating temperature0 - 40 °C
-
Relative humidity rate (storage)5 - 95 %
-
Temperature out of operation-20 - 60 °C
-
Relative humidity rate (storage)5 - 95 %
-
Operating altitude0 - 5000 m
Design
-
Chassis typeOffice
-
Cooling typeActive
-
Product colorBlack
-
Number of fans1 fan(s)
-
Cable anti-theft lockYes
-
Fan diameter92 mm
-
IndicatorsHDD, Power, Status
-
Cable anti-theft lockYes
-
Cable lock location typeKensington
Other features
-
CertificationEAC
-
VCCI
-
CCC
-
RCM
-
KC
-
FCC
-
CE
-
BSMI
Special features of the processor
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
The available built-in optionsNo
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
-
Intel® Vitalization Technology (VT-x)Yes
Similar products
More product categories from brand Synology
More product types from brand Synology
Presentation of product DiskStation DS720+ specifications from brand Synology
Generalities
The brand of the product Synology DiskStation DS720+ is Synology. This brand is known for its quality and innovation in the field of household appliances. The product model Synology DiskStation DS720+ is DiskStation DS720+ | DS720+/2TB. This model ensures optimal performance and an enhanced user experience.
Software
Does the product Synology DiskStation DS720+ support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. The installed operating system of the product Synology DiskStation DS720+ is DiskStation Manager. This system allows for a smooth and intuitive user experience. Does the product Synology DiskStation DS720+ support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users.
Processor
The processor family of the product Synology DiskStation DS720+ contains Intel® Celeron®. This specification is essential for determining the performance and compatibility of the product. The processor model of the product Synology DiskStation DS720+ is J4125. This model ensures optimal performance for smooth and efficient use. The number of processor threads of the product Synology DiskStation DS720+ is 4. This feature allows for optimizing performance when executing multiple tasks simultaneously. The number of processor cores of the product Synology DiskStation DS720+ is 4. This feature allows for optimizing performance and managing multiple tasks simultaneously with efficiency. The processor manufacturer of the product Synology DiskStation DS720+ is Intel. This manufacturer is known for its performance and reliability in the field of information technology. The processor frequency of the product Synology DiskStation DS720+ is 2 GHz. This specification determines how quickly the processor can execute instructions, thereby influencing the overall performance of the device. The CPU configuration (max) of the product Synology DiskStation DS720+ is 1. This feature ensures optimal performance for all your applications. The Turbo processor frequency of the product Synology DiskStation DS720+ is 2.7 GHz. This specification ensures optimal performance during demanding tasks. The cache memory of the Synology DiskStation DS720+ processor contains 4 Mo. This memory helps speed up data processing by temporarily storing the most frequently used information.
Memory
The internal memory of the product Synology DiskStation DS720+ is DDR4. This internal memory allows you to efficiently store your data and applications. The maximum supported memory of the product Synology DiskStation DS720+ is 6 Go. This specification ensures optimal performance for your applications and daily tasks. The internal memory of the product Synology DiskStation DS720+ contains 2 Go. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The memory locations of the product Synology DiskStation DS720+ contain 1. These locations help optimize the device's performance.
Storage support
The total installed storage capacity of the product Synology DiskStation DS720+ is 2 To. This specification allows for the efficient management of large amounts of data. Does the product Synology DiskStation DS720+ have installed storage drives? Oui. The storage capacity of the Synology DiskStation DS720+ is 1000 Go. This capacity allows for storing a large amount of data, thus providing optimal flexibility and performance. The number of installed storage readers of the product Synology DiskStation DS720+ is 2. This number determines the expansion capacity and storage flexibility of the product. The number of storage units supported by the product Synology DiskStation DS720+ is 4. This feature allows for optimizing the management of your data and ensuring enhanced performance. The type of storage drive installed in the Synology DiskStation DS720+ is HDD. This drive allows you to efficiently store your data while ensuring optimal performance. The storage support of the product Synology DiskStation DS720+ contains supported storage reader interfaces: Serial ATA II, Serial ATA III. These interfaces ensure optimal compatibility with various storage devices. The storage support of the product Synology DiskStation DS720+ includes supported disk sizes of 2.5, 3.5, M.2 ". These sizes provide great flexibility to meet your storage needs. The type of storage drives supported by the product Synology DiskStation DS720+ is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs. The product Synology DiskStation DS720+ has a storage unit interface: Série ATA III. This interface ensures a fast and efficient connection for data transfer. The maximum supported storage capacity of the product Synology DiskStation DS720+ is 32 To. This specification allows for optimizing the use of available storage space. The number of M.2 (M and B) slots of the Synology DiskStation DS720+ is 2. This product offers increased flexibility for adding additional storage solutions. Does the product Synology DiskStation DS720+ have RAID Support? Oui. This support ensures data redundancy and improves storage performance. The RAID levels of the Synology DiskStation DS720+ product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. Does the product Synology DiskStation DS720+ have online RAID Migration? Oui. This feature allows for RAID migrations to be performed without interrupting system operation, thus ensuring optimal service continuity. Does the product Synology DiskStation DS720+ have online RAID Expansion? Oui. This feature allows for increasing storage capacity without interruption, thus providing enhanced flexibility and efficiency. Does the product Synology DiskStation DS720+ have hot-swappable drive bays? Oui. These bays allow for easy and quick access to the drives without having to power down the system, thus providing increased flexibility and efficiency. The file systems supported by the Synology DiskStation DS720+ product are FAT32, NTFS, ext3, ext4. These file systems ensure optimal compatibility with various devices and operating systems.
Network
Does the product Synology DiskStation DS720+ support iSCSI? Oui. This feature allows for efficient management of storage resources on the network. The data transfer rate of the product Synology DiskStation DS720+ is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the product Synology DiskStation DS720+ have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Is the Synology DiskStation DS720+ product Wake-on-LAN ready? Oui. This feature allows you to wake the computer remotely over the network, providing increased flexibility and convenience. The supported network protocols of the product Synology DiskStation DS720+ are SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV. These protocols ensure efficient and reliable communication for your networking needs. Does the product Synology DiskStation DS720+ have Link Aggregation? Oui. This feature allows for optimizing network connection management for enhanced performance.
Power
The power supply location of the product Synology DiskStation DS720+ is Externe. This type of power supply allows for optimal integration into your space. The capacity of the power supply unit (PSU) of the product Synology DiskStation DS720+ is 65 W. This specification ensures adequate power for the optimal operation of the device. The number of power supplies for the product Synology DiskStation DS720+ is 1. This specification ensures a reliable power supply that meets the product's needs. The typical power consumption of the product Synology DiskStation DS720+ is 16.44 W. This feature allows for the assessment of the energy efficiency of the device. The power consumption in standby HDD of the product Synology DiskStation DS720+ is 6.19 W. This specification ensures optimal energy efficiency while maintaining the necessary performance. The AC input voltage of the Synology DiskStation DS720+ is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Synology DiskStation DS720+ is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Sustainability
The product Synology DiskStation DS720+ has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect. Does the product Synology DiskStation DS720+ comply with sustainability? Oui. This product meets established sustainability standards, thereby ensuring a reduced environmental impact.
Weight and dimensions
The height of the product Synology DiskStation DS720+ is 166 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Synology DiskStation DS720+ is 223 mm. This dimension allows for optimal integration into your space. The width of the product Synology DiskStation DS720+ is 106 mm. This dimension is essential to ensure optimal integration into your space.
Representation / realization
The type of product Synology DiskStation DS720+ is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Synology DiskStation DS720+ device class is Domicile et télétravail. This class determines the technical characteristics and specific features of the product. Does the product Synology DiskStation DS720+ have a backup feature? Oui. This feature ensures the security of your data by reliably saving it. The Synology DiskStation DS720+ product has backup features: Cloud and iSCSI LUN, thus ensuring effective protection of your data. Does the product Synology DiskStation DS720+ have multilingual support? Oui. This support allows for optimal use in multiple languages, thus facilitating access to an international audience. The number of users of the product Synology DiskStation DS720+ is 2048 utilisateur(s). This product is ideal for several people. Does the Synology DiskStation DS720+ product support third-party? Oui. This feature allows for easy integration with external services. Does the product Synology DiskStation DS720+ have Image Capture? Oui. This feature allows for capturing high-quality images, thus providing an enriching visual experience. The noise level of the product Synology DiskStation DS720+ is 18.4 dB. This noise level allows for pleasant use without excessive noise disturbances. Does the product Synology DiskStation DS720+ have Shared Folder Access Rights Management? Oui. This feature allows you to control who can access shared files, thereby ensuring the security and confidentiality of the data. The supported security algorithm of the product Synology DiskStation DS720+ contains HTTPS, SSH, SSL/TLS. This algorithm ensures optimal protection of your data. Does the product Synology DiskStation DS720+ have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. Does the product Synology DiskStation DS720+ have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. Does the product Synology DiskStation DS720+ have a built-in FTP Server? Oui. This feature allows for fast and secure file transfer, thus facilitating data management. The browser support for the product Synology DiskStation DS720+ includes Chrome, Firefox, Edge, Internet Explorer, Safari. This feature ensures an optimal user experience on compatible platforms. Does the product Synology DiskStation DS720+ have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the product Synology DiskStation DS720+ have a system log? Oui. This log allows for tracking and recording system events for better management and optimal traceability. Does the product Synology DiskStation DS720+ have hot-swappable capability? Oui. This feature allows for the replacement of components without turning off the device, thus ensuring optimal continuity of use. Does the product Synology DiskStation DS720+ have Password Authentication? Oui. This feature provides enhanced security for users by allowing them to access their account securely. The shared folder of the product Synology DiskStation DS720+ contains CIFS/AFP/NFS/FTP/WebDAV. This shared folder allows easy and collaborative access to files among multiple users.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Synology DiskStation DS720+ is 2. These ports provide a stable and fast network connection for your devices. Does the Synology DiskStation DS720+ have a USB Port? Oui. This feature allows for easy and quick connection to various devices. The number of eSATA ports on the Synology DiskStation DS720+ is 1. This port allows for a fast and efficient connection for your external storage devices. The product Synology DiskStation DS720+ has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed.
Packaging contents
The included cable of the product Synology DiskStation DS720+ contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Synology DiskStation DS720+ have an external power adapter? Oui. This accessory is essential for providing stable and reliable power to your devices. The product Synology DiskStation DS720+ contains 1 power cable. This cable is essential for ensuring the proper functioning of your device.
Environmental conditions
The operating temperature of the product Synology DiskStation DS720+ is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Synology DiskStation DS720+ is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Synology DiskStation DS720+ has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Synology DiskStation DS720+ is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating altitude of the product Synology DiskStation DS720+ is 0 - 5000 m. This specification ensures optimal performance across a wide range of altitudes.
Other features
The certification of the product Synology DiskStation DS720+ contains EAC, VCCI, CCC, RCM, KC, FCC, CE, BSMI. This certification guarantees compliance with the required safety and performance standards.
Design
The chassis type of the product Synology DiskStation DS720+ is Bureau. This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. The color of the product Synology DiskStation DS720+ is Noir. This shade gives it a modern and elegant look. The cooling type of the product Synology DiskStation DS720+ is active. This system ensures optimal temperature management for improved performance. The number of fans of the product Synology DiskStation DS720+ is 1 ventilateur(s). This design allows for better air circulation and optimal performance. Does the product Synology DiskStation DS720+ have a locking case? Oui. This case provides optimal security for your valuables. The type of cable lock location for the product Synology DiskStation DS720+ is Kensington. This type of lock provides optimal security to protect your device against theft. The diameter of the Synology DiskStation DS720+ fan is 92 mm. This diameter is essential for ensuring optimal air circulation. Does the product Synology DiskStation DS720+ have indicators? HDD, Power, Status. These indicators allow you to visualize the operating status of the device. Does the product Synology DiskStation DS720+ have a cable lock port? No. This product does not have this security feature.
Special features of the processor
Does the product Synology DiskStation DS720+ have Idle States? Oui. This feature allows the processor to reduce its power consumption when it is inactive, thereby optimizing energy efficiency. Does the product Synology DiskStation DS720+ have a Lock Bit? Oui. This feature helps secure the processor by preventing unauthorized changes. Does the product Synology DiskStation DS720+ have Intel's advanced SpeedStep technology? Oui. This technology allows for dynamic management of the processor's frequency, thereby optimizing performance while reducing energy consumption. Does the Synology DiskStation DS720+ product have Intel® VT-x with Extended Page Tables (EPT)? Oui. This feature enables efficient virtualization and enhances the performance of virtualized environments. Does the product Synology DiskStation DS720+ have the built-in options available? No. This means that this product does not offer built-in options. Does the product Synology DiskStation DS720+ have Intel® 64? Oui. This specification allows for compatibility with 64-bit architectures, thus providing optimized performance for modern applications. Does the product Synology DiskStation DS720+ have Intel® Virtualization Technology for Directed I/O (VT-d)? Oui. This technology allows for more efficient management of input/output resources, thereby improving the performance of virtualized applications. Does the product Synology DiskStation DS720+ have Intel® Virtualization Technology (VT-x)? Oui. This technology enhances the efficiency of virtual environments by optimizing processor resources.
