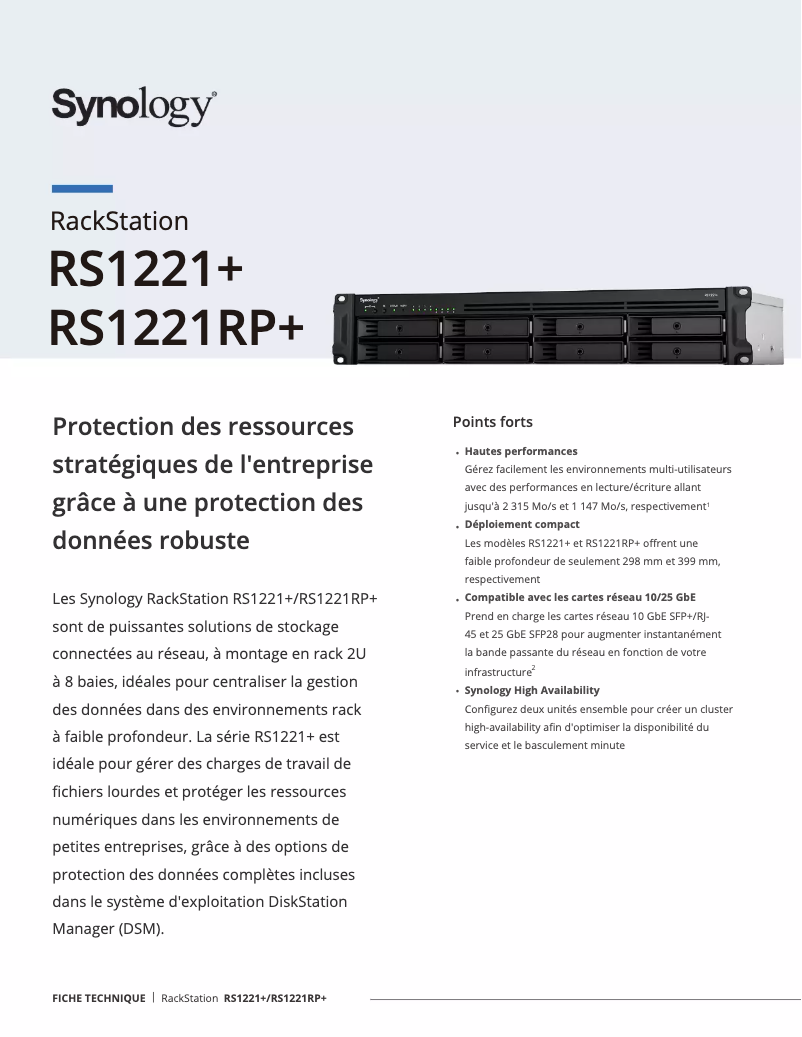

Manuals of product RackStation RS1221+
Technical Specifications RackStation RS1221+
General Information
-
ModelRACKSTATION RS1221+
-
Brand
-
Category
-
Type
-
SKU1342172
-
MPN1342172
Storage support
-
Storage unit interface-
-
Type of installed storage driveNo
-
Total capacity of installed storage0 To
-
Number of installed storage readers0
-
Number of supported storage units8
-
Type of installed storage driveNo
-
Supported storage drive typesHDD & SSD
-
Storage reader capacity0 Go
-
Supported storage reader interfacesSerial ATA II, Serial ATA III
-
Storage unit size- "
-
Supported storage disk sizes2.5, 3.5 "
-
Online RAID expansionYes
-
Supported file systemsBTRFS, FAT, HFS+, NTFS, exFAT, ext3, ext4
-
Online RAID expansionYes
-
RAID Levels0, 1.5, 6, 10, JBOD
-
Online RAID expansionYes
-
Online RAID expansionYes
Representation / realization
-
TypeNAS
-
Device classSME
-
Integrated FTP serverYes
-
Integrated FTP serverYes
-
Integrated FTP serverYes
-
Sound level25.2 dB
-
Integrated FTP serverYes
-
Shared folderAFP, CIFS/SMB, FTP, WebDAV
-
Integrated FTP serverYes
-
Integrated FTP serverYes
-
Integrated FTP serverYes
-
Backup functionsCloud, iSCSI LUN
-
Integrated FTP serverYes
-
Management protocolsSNMP
-
Integrated FTP serverYes
-
Supported browsersSafari, Chrome, Edge, Internet Explorer, Firefox
-
Integrated FTP serverYes
-
Security-supported algorithmHTTPS, SSH, SSL/TLS
Design
-
Chassis typeRack (2 U)
-
Cooling typeActive
-
Product colorBlack
-
Locking caseYes
-
IndicatorsHDD, Power, Status
-
Number of fans2 fan(s)
-
Fan diameter80 mm
Processor
-
Processor manufacturerAMD
-
Processor familyRyzen Embedded
-
Processor modelV1500B
-
Processor frequency2.2 GHz
-
Number of processor cores4
-
Graphics adapter model includedUnavailable
Memory
-
Type of internal memoryDDR4
-
Internal memory4 GB
-
Memory supportSO-DIMM
-
ECCYes
-
Memory locations2
-
Maximum supported RAM32 GB
Network
-
iSCSI SupportYes
-
LAN Ethernet: data transfer rate1000 Mbit/s
-
iSCSI SupportYes
-
iSCSI SupportYes
-
iSCSI SupportYes
-
iSCSI SupportYes
-
Supported network protocolsSMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN
Connectivity
-
Number of Ethernet LAN ports (RJ-45)4
-
USB portYes
-
Fibre Channel Ports0
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
-
Fibre Channel Ports0
-
PCI Express x 8 slots (Gen. 3.x)1
-
PCI Express x 8 slots (Gen. 3.x)1
Weight and dimensions
-
Width482 mm
-
Depth306.6 mm
-
Height88 mm
-
Weight6900 g
Power
-
Power locationIntegrated
-
Power Supply Unit (PSU) capacity250 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption49.89 W
-
Power consumption (in HDD standby)22.64 W
Environmental conditions
-
Operating temperature0 - 35 °C
-
Operating relative humidity (H-H)5 - 95 %
-
Temperature out of operation-20 - 60 °C
-
Operating altitude0 - 5000 m
Sustainability
-
Compliance with sustainabilityYes
-
Sustainability certificatesCE, RoHS
Packaging contents
-
Cables includedSector
-
Quantity of power cables2
Software
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
-
Installed operating systemDiskStation Manager
Logistics data
-
Harmonized System Code84714100
Similar products
More product categories from brand Synology
More product types from brand Synology
Presentation of product RackStation RS1221+ specifications from brand Synology
Generalities
The brand of the product Synology RackStation RS1221+ is Synology. This brand is known for its quality and innovation in the field of household appliances. The product model Synology RackStation RS1221+ is RackStation RS1221+ | RS1221+. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Synology RackStation RS1221+ is 4711174723683, 0846504003686. This code allows for the unique identification of the product in the distribution system.
Design
The chassis type of the product Synology RackStation RS1221+ is Rack (2 U). This chassis offers a robust and modern structure, ideal for optimizing space and ventilation. Does the product Synology RackStation RS1221+ have a locking case? Oui. This case provides optimal security for your valuables. The cooling type of the product Synology RackStation RS1221+ is active. This system ensures optimal temperature management for improved performance. The color of the product Synology RackStation RS1221+ is Noir. This shade gives it a modern and elegant look. Does the product Synology RackStation RS1221+ have indicators? HDD, Power, Status. These indicators allow you to visualize the operating status of the device. The number of fans of the product Synology RackStation RS1221+ is 2 ventilateur(s). This design allows for better air circulation and optimal performance. The diameter of the Synology RackStation RS1221+ fan is 80 mm. This diameter is essential for ensuring optimal air circulation.
Representation / realization
The product Synology RackStation RS1221+ device class is PME. This class determines the technical characteristics and specific features of the product. Does the product Synology RackStation RS1221+ have a backup feature? Oui. This feature ensures the security of your data by reliably saving it. The type of product Synology RackStation RS1221+ is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Synology RackStation RS1221+ have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. Does the product Synology RackStation RS1221+ have a Reset Button? Oui. This button allows you to easily reset the product settings. The noise level of the product Synology RackStation RS1221+ is 25.2 dB. This noise level allows for pleasant use without excessive noise disturbances. Does the product Synology RackStation RS1221+ have hot-swappable capability? Oui. This feature allows for the replacement of components without turning off the device, thus ensuring optimal continuity of use. The shared folder of the product Synology RackStation RS1221+ contains AFP, CIFS/SMB, FTP, WebDAV. This shared folder allows easy and collaborative access to files among multiple users. Does the product Synology RackStation RS1221+ have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. Does the product Synology RackStation RS1221+ have a system log? Oui. This log allows for tracking and recording system events for better management and optimal traceability. Does the product Synology RackStation RS1221+ have Image Capture? Oui. This feature allows for capturing high-quality images, thus providing an enriching visual experience. The Synology RackStation RS1221+ product has backup features: Cloud and iSCSI LUN, thus ensuring effective protection of your data. Does the product Synology RackStation RS1221+ have multilingual support? Oui. This support allows for optimal use in multiple languages, thus facilitating access to an international audience. The product management protocol Synology RackStation RS1221+ contains SNMP. This protocol allows for efficient and centralized management of network devices. The Synology RackStation RS1221+ product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The browser support for the product Synology RackStation RS1221+ includes Safari, Chrome, Edge, Internet Explorer, Firefox. This feature ensures an optimal user experience on compatible platforms. Does the product Synology RackStation RS1221+ have a built-in FTP Server? Oui. This feature allows for fast and secure file transfer, thus facilitating data management. The supported security algorithm of the product Synology RackStation RS1221+ contains HTTPS, SSH, SSL/TLS. This algorithm ensures optimal protection of your data.
Storage support
Does the product Synology RackStation RS1221+ have installed storage drives? Non. The total installed storage capacity of the product Synology RackStation RS1221+ is 0 To. This specification allows for the efficient management of large amounts of data. The number of storage units supported by the product Synology RackStation RS1221+ is 8. This feature allows for optimizing the management of your data and ensuring enhanced performance. The number of installed storage readers of the product Synology RackStation RS1221+ is 0. This number determines the expansion capacity and storage flexibility of the product. The type of storage drive installed in the Synology RackStation RS1221+ is Non. This drive allows you to efficiently store your data while ensuring optimal performance. The type of storage drives supported by the product Synology RackStation RS1221+ is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs. The storage support of the product Synology RackStation RS1221+ contains supported storage reader interfaces: Serial ATA II, Serial ATA III. These interfaces ensure optimal compatibility with various storage devices. The storage unit size of the product Synology RackStation RS1221+ is - ". This specification determines compatibility with different types of storage media. The product Synology RackStation RS1221+ has a storage unit interface: -. This interface ensures a fast and efficient connection for data transfer. The storage capacity of the Synology RackStation RS1221+ is 0 Go. This capacity allows for storing a large amount of data, thus providing optimal flexibility and performance. The storage support of the product Synology RackStation RS1221+ includes supported disk sizes of 2.5, 3.5 ". These sizes provide great flexibility to meet your storage needs. Does the product Synology RackStation RS1221+ have hot-swappable drive bays? Oui. These bays allow for easy and quick access to the drives without having to power down the system, thus providing increased flexibility and efficiency. The RAID levels of the Synology RackStation RS1221+ product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. Does the product Synology RackStation RS1221+ have online RAID Migration? Oui. This feature allows for RAID migrations to be performed without interrupting system operation, thus ensuring optimal service continuity. The file systems supported by the Synology RackStation RS1221+ product are FAT32, NTFS, ext3, ext4. These file systems ensure optimal compatibility with various devices and operating systems. Does the product Synology RackStation RS1221+ have RAID Support? Oui. This support ensures data redundancy and improves storage performance. Does the product Synology RackStation RS1221+ have online RAID Expansion? Oui. This feature allows for increasing storage capacity without interruption, thus providing enhanced flexibility and efficiency.
Memory
The internal memory of the product Synology RackStation RS1221+ is DDR4. This internal memory allows you to efficiently store your data and applications. Does the product Synology RackStation RS1221+ have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. The memory support of the product Synology RackStation RS1221+ is SO-DIMM. This support is designed to provide optimal performance and compatibility with various systems. The internal memory of the product Synology RackStation RS1221+ contains 4 Go. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The memory locations of the product Synology RackStation RS1221+ contain 2. These locations help optimize the device's performance. The maximum supported memory of the product Synology RackStation RS1221+ is 32 Go. This specification ensures optimal performance for your applications and daily tasks.
Processor
The processor manufacturer of the product Synology RackStation RS1221+ is AMD. This manufacturer is known for its performance and reliability in the field of information technology. The processor model of the product Synology RackStation RS1221+ is V1500B. This model ensures optimal performance for smooth and efficient use. The processor family of the product Synology RackStation RS1221+ contains Ryzen Embedded. This specification is essential for determining the performance and compatibility of the product. The processor frequency of the product Synology RackStation RS1221+ is 2.2 GHz. This specification determines how quickly the processor can execute instructions, thereby influencing the overall performance of the device. The number of processor cores of the product Synology RackStation RS1221+ is 4. This feature allows for optimizing performance and managing multiple tasks simultaneously with efficiency. The included graphics adapter model of the Synology RackStation RS1221+ product contains Indisponible. This model ensures optimal graphics performance for your multimedia needs.
Network
Does the product Synology RackStation RS1221+ have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the product Synology RackStation RS1221+ have Load Balancing System? No. This system allows for the efficient distribution of load across multiple resources to optimize performance and ensure balanced usage. Does the product Synology RackStation RS1221+ have Link Aggregation? Oui. This feature allows for optimizing network connection management for enhanced performance. The data transfer rate of the product Synology RackStation RS1221+ is 1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Is the Synology RackStation RS1221+ product Wake-on-LAN ready? Oui. This feature allows you to wake the computer remotely over the network, providing increased flexibility and convenience. Does the product Synology RackStation RS1221+ support iSCSI? Oui. This feature allows for efficient management of storage resources on the network. The supported network protocols of the product Synology RackStation RS1221+ are SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN. These protocols ensure efficient and reliable communication for your networking needs.
Weight and dimensions
The width of the product Synology RackStation RS1221+ is 482 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Synology RackStation RS1221+ is 88 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Synology RackStation RS1221+ is 6900 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Synology RackStation RS1221+ is 306.6 mm. This dimension allows for optimal integration into your space.
Power
The AC input frequency of the product Synology RackStation RS1221+ is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Synology RackStation RS1221+ is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The capacity of the power supply unit (PSU) of the product Synology RackStation RS1221+ is 250 W. This specification ensures adequate power for the optimal operation of the device. The power supply location of the product Synology RackStation RS1221+ is Intégré. This type of power supply allows for optimal integration into your space. The typical power consumption of the product Synology RackStation RS1221+ is 49.89 W. This feature allows for the assessment of the energy efficiency of the device. The power consumption in standby HDD of the product Synology RackStation RS1221+ is 22.64 W. This specification ensures optimal energy efficiency while maintaining the necessary performance.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Synology RackStation RS1221+ is 4. These ports provide a stable and fast network connection for your devices. The number of USB 2.0 ports on the Synology RackStation RS1221+ is 0. These ports allow for a fast and efficient connection for your devices. Does the Synology RackStation RS1221+ have a USB Port? Oui. This feature allows for easy and quick connection to various devices. The product Synology RackStation RS1221+ has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The Fibre Channel Ports connectivity of the Synology RackStation RS1221+ product contains 0. This specification ensures fast and reliable communication in storage environments. The number of eSATA ports on the Synology RackStation RS1221+ is 1. This port allows for a fast and efficient connection for your external storage devices. The PCI Express x 8 slots (Gen. 3.x) of the product Synology RackStation RS1221+ contains 1. This type of connectivity allows for high bandwidth for optimal performance.
Environmental conditions
The operating altitude of the product Synology RackStation RS1221+ is 0 - 5000 m. This specification ensures optimal performance across a wide range of altitudes. The product Synology RackStation RS1221+ has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Synology RackStation RS1221+ is 0 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Synology RackStation RS1221+ is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Sustainability
Does the product Synology RackStation RS1221+ comply with sustainability? Oui. This product meets established sustainability standards, thereby ensuring a reduced environmental impact. The product Synology RackStation RS1221+ has Sustainability Certificates: CE, RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Packaging contents
The included cable of the product Synology RackStation RS1221+ contains a power plug. This cable is essential for ensuring an optimal electrical connection. The product Synology RackStation RS1221+ contains 2 power cable. This cable is essential for ensuring the proper functioning of your device.
Software
Does the product Synology RackStation RS1221+ support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. The installed operating system of the product Synology RackStation RS1221+ is DiskStation Manager. This system allows for a smooth and intuitive user experience. Does the product Synology RackStation RS1221+ support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users.
Logistics data
The Harmonized System code for the product Synology RackStation RS1221+ is 84714100. This code allows for the unique identification of goods in international trade.
