Manual of product MN18Z0
Editorial note
The TCL MN18Z0 is an air conditioning system that stands out for its impressive performance and island design. With a cooling capacity of up to 20130 BTU/h, it ensures optimal comfort throughout the year. Its built-in inverter technology allows for efficient and quiet operation, significantly enhancing the user experience. Additionally, the energy efficiency class of A++ for cooling and A+ for heating helps reduce energy bills, thus offering good value for money. However, the product has some drawbacks. The lack of advanced features, such as the ionizer or Bluetooth, limits customization options and may disappoint some users. Furthermore, the noise level of both the indoor and outdoor units is not specified, which could be an issue for those sensitive to noise. The relatively high weight of the indoor unit (16 kg) may also complicate installation, although it indicates robust construction. Finally, although the product comes with a detailed user manual, some information on energy efficiency under specific conditions is lacking, which could pose challenges for users looking to optimize their consumption. Overall, the TCL MN18Z0 is a solid choice for those seeking a high-performing and aesthetically pleasing air conditioning system, despite some limitations.Score details
User experience
The user experience is overall positive thanks to the island design that optimizes space and the integrated converter technology, ensuring quiet and efficient operation.
Performance
The performance of the TCL MN18Z0 is impressive with a cooling capacity of up to 20130 BTU/h, ensuring optimal comfort throughout the year.
Design
The island design is aesthetically pleasing and easily adapts to various environments while optimizing interior space.
Value for money
With an energy efficiency class of A++ for cooling, the product allows for savings on energy bills, thus offering good value for money.
Features
The lack of advanced features like the ionizer or Bluetooth limits customization and comfort options, which could disappoint some users.
Robustness
The weight of the indoor unit is relatively high (16 kg), which may complicate installation for some people, but also indicates a robust construction.
Support
The user manual is available, but some information on energy efficiency under specific conditions is missing, which could be problematic.
Documentation

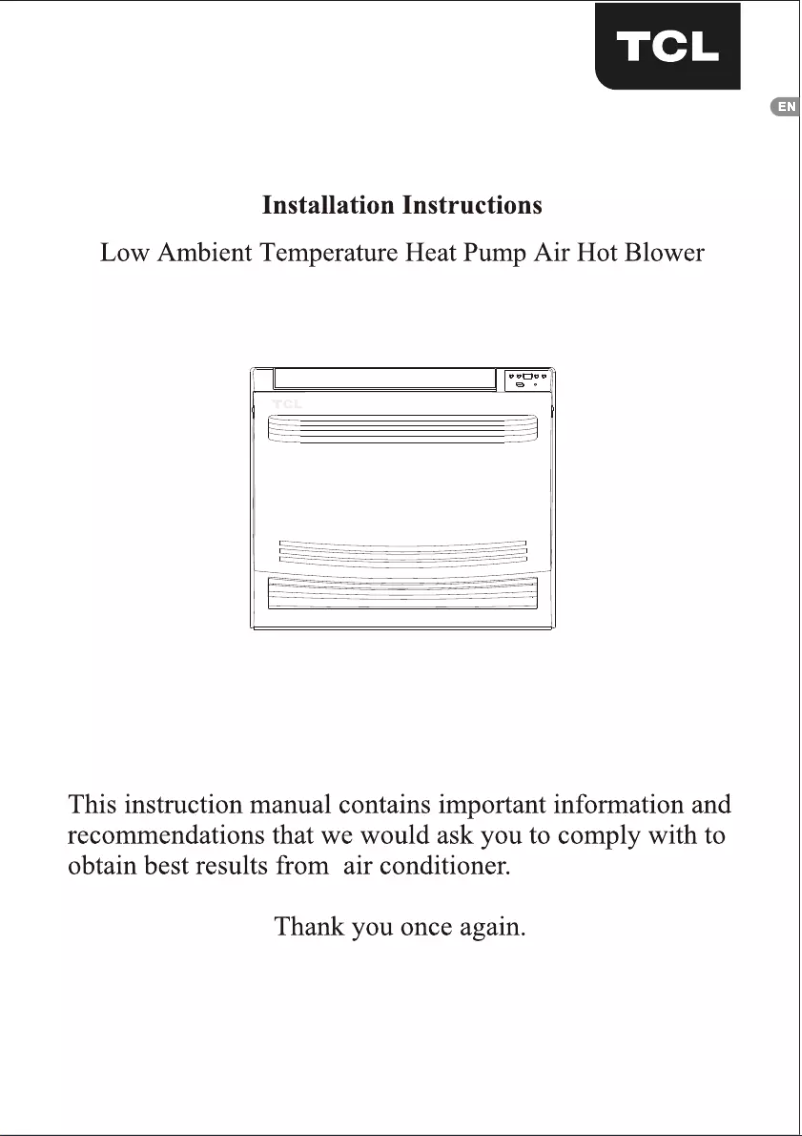

The product comes with a detailed 148-page user manual, providing good documentation for users.
Advantages
Cooling and heating up to 20130 BTU/h.
Energy efficiency A++ for cooling.
Island design optimizing interior space.
Inverter technology for efficient performance.
Dehumidification of 1.5 l/h for comfort.
Disadvantages
No advanced features like Bluetooth.
Noise level not specified.
No multi-split system available.
Heavy indoor unit (16 kg).
Insufficient information on energy efficiency.
Technical Specifications MN18Z0
General Information
-
ModelMN18Z0
-
Brand
-
Category
-
Type
-
SKU1874695
-
MPN1874695
Features
-
Seasonal efficiency rate (heating) (SCOP) (warmest heating season)-
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)-
-
Seasonal efficiency class (heating) (heating season)-
-
Ionizer-
-
TypeIndoor air conditioning unit
-
Refresh rate (nominal)17400 BTU/h
-
Heating capacity (min)4270 BTU/h
-
Cooling capacity (max)20130 BTU/h
-
Heat capacity (nominal)17500 BTU/h
-
Heating capacity (min)4270 BTU/h
-
Heating capacity (max)20740 BTU/h
-
Cooling capacity in watts (nominal)5100 W
-
Heating capacity in Watts (min)1250 W
-
Cooling capacity in Watts (max)5900 W
-
Heating capacity in watts (nominal) (warmest heating season)- W
-
Heating capacity in watts (nominal) (coldest heating season)5130 W
-
Heating capacity in watts (nominal) (coldest heating season)5130 W
-
Heating capacity in Watts (min)1250 W
-
Heating capacity in Watts (max)6080 W
-
Seasonal performance rating (cooling) (SEER)6.1
-
Seasonal performance rating (heating) (SCOP)4
-
Energy efficiency of the cooling system3.23
-
Energy efficiency of the heating system3.71
-
Dehumidification capacity1.5 l/h
-
Average refrigeration weight960 g
-
Multi splitNo
-
Product colorWhite
-
Medium refrigerationR32
-
Type of compressorRotary
-
Pipe length (max)25 m
-
Gas pipe diameter9.525 mm
-
Liquid pipe diameter6.35 mm
-
Operating temperature (cooling) (T-T)17 - 32 °C
-
Operating temperature (heating) (T-T)0 - 30 °C
-
Air conditioning functionsCooling, Dehumidifying, Heating
-
Comfort sleep modeYes
-
Comfort sleep modeYes
Power
-
Energy efficiency class (heating) (SCOP) (warmer heating season)-
-
Energy efficiency class (heating) (heating season)-
-
Nominal load (cooling)5100 kW
-
Design load (heating) (cold heating season)- kW
-
Nominal load (heating) (average heating season)4500 kW
-
Design load (heating) (cold heating season)- kW
-
Annual energy consumption (cooling)293 kWh
-
Hourly energy consumption (heating)- kWh
-
Annual energy consumption (heating) (average of a heating season)1575 kWh
-
Hourly energy consumption (heating)- kWh
-
Current13 A
-
Current (heating)0.21 A
-
Current (heating)0.21 A
-
Electricity Consumption (heating) (max)48 W
-
Electricity Consumption (heating) (max)48 W
-
Energy efficiency class (cooling)A++
-
Energy efficiency class (heating) (average of a heating season)A+
-
Hourly energy consumption (heating)- kWh
-
Hourly energy consumption (heating)- kWh
-
AC input voltage220 - 240 V
-
AC input frequency50 Hz
-
Energy efficiency rangeA+++ to D
Indoor unit
-
Air heating (indoor unit)850 m³/h
-
Air heating (indoor unit)850 m³/h
-
Fan speed of the indoor unit (heating, low speed)550 rpm
-
Fan speed of the indoor unit (heating, medium speed)700 rpm
-
Fan speed of the indoor unit (heating, high speed)880 rpm
-
Fan speed of the indoor unit (heating, low speed)550 rpm
-
Fan speed of the indoor unit (heating, medium speed)700 rpm
-
Fan speed of the indoor unit (heating, high speed)880 rpm
-
Type of indoor unitCassette
-
Noise level of the indoor unit (high speed)- dB
-
Quantity interior units1
-
Width of the inner unit700 mm
-
Depth of the indoor unit215 mm
-
Height of the indoor unit600 mm
-
Weight of the indoor unit16000 g
-
Width of the inner unit packaging775 mm
-
Depth of the indoor unit packaging280 mm
-
Height of the indoor unit packaging725 mm
Network
-
Wifi-
-
Bluetooth-
Outdoor unit
-
Noise level of the outdoor unit- dB
-
Weight of the outdoor unit- g
Frequently Asked Questions
What does the acronym BTU stand for?
What is R-410A?
How often should I clean the filters of my TCL air conditioner?
What is the energy rating of the TCL MN18Z0?
Is the user manual for the TCL MN18Z0 available in French?
Similar products
More product categories from brand TCL
More product types from brand TCL
Presentation of product MN18Z0 specifications from brand TCL
General Information
The TCL MN18Z0 is an air conditioning unit from the brand TCL, known for its innovation and reliability in the home appliance sector. This model, identified by the EAN code 8720568103259, is designed to provide optimal performance while enhancing the user experience.
Features
Featuring an island design, the TCL MN18Z0 stands out with its nominal cooling capacity of 17400 BTU/h, ensuring optimal comfort in your living space. Its performance varies with a cooling capacity that can reach up to 20130 BTU/h, while being efficient at a minimum level of 4270 BTU/h. For heating, the nominal capacity is 17500 BTU/h, with a maximum of 20740 BTU/h and a minimum of 4270 BTU/h, guaranteeing pleasant warmth during cold periods.
In terms of energy consumption, the TCL MN18Z0 has a seasonal efficiency ratio (SEER) of 6.1 for cooling and a SCOP of 4 for heating, allowing for savings on your energy bills. Its energy efficiency is also enhanced by a dehumidification system of 1.5 l/h, helping to maintain a healthy indoor environment.
This model uses the refrigerant R32 and is equipped with a rotary compressor, offering quiet and efficient performance. The operating range extends from 17 to 32 °C for cooling and from 0 to 30 °C for heating, ensuring easy adaptation to various climatic conditions.
Power
The nominal cooling capacity is 5100 kW, while for heating, it is 4500 kW in the winter season. The annual energy consumption for cooling is estimated at 293 kWh, and for heating, it reaches 1575 kWh. The energy efficiency class is A++ for cooling and A+ for heating, contributing to reduced energy consumption while maintaining optimal thermal comfort.
Indoor Unit
The indoor unit of the TCL MN18Z0 has an air circulation capacity of 850 m³/h, ensuring pleasant thermal comfort. The fan speeds range from 31 rpm to 880 rpm, allowing for quiet and efficient operation during cooling and heating. This unit is designed to harmoniously integrate into your space with optimal dimensions of 700 mm in width, 215 mm in depth, and 600 mm in height.
Outdoor Unit
Although the noise level of the outdoor unit is not specified, it is designed to operate discreetly, ideal for residential environments. Its robustness and stability are ensured by an adequate weight, facilitating its installation.
Disadvantages
This model does not offer certain advanced features such as an ionizer or Bluetooth, limiting customization options. Additionally, the absence of a multi-split system may be a drawback for those wishing to cool multiple rooms with a single unit. Finally, the weight of the indoor unit may complicate its installation for some individuals.
