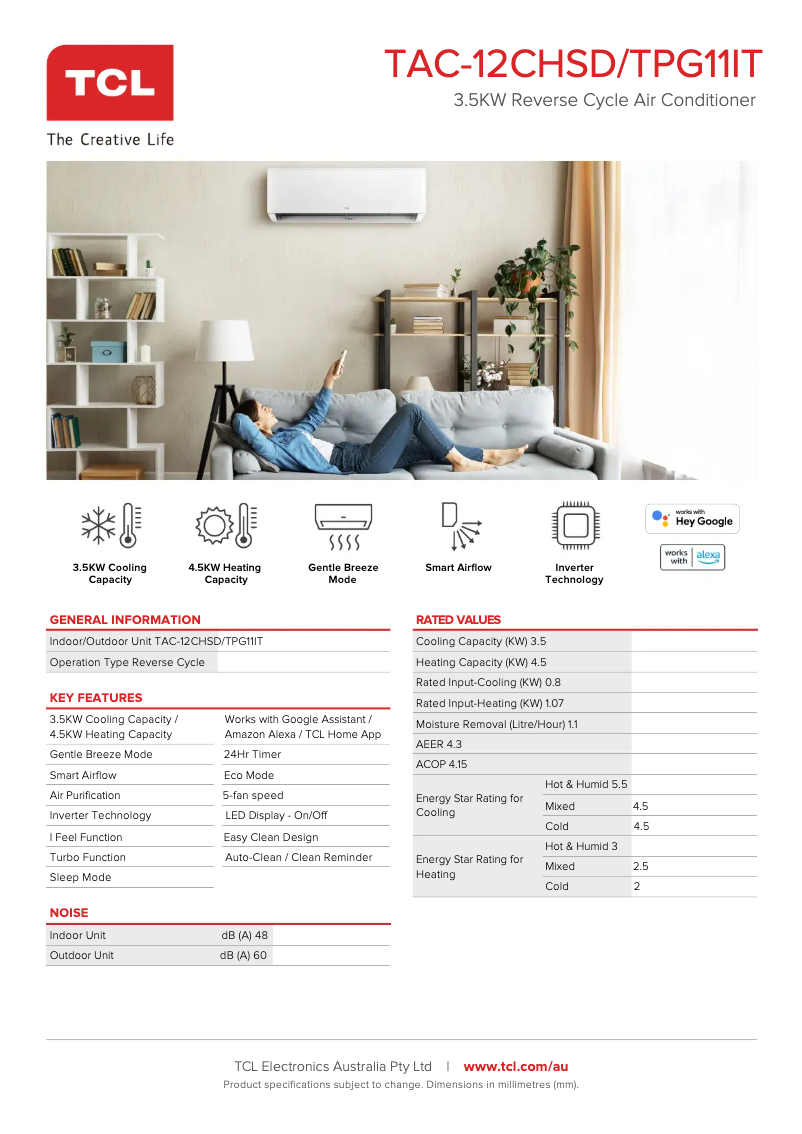

Manuals of product TAC-12CHSD/TPG11I
Editorial note
The TCL TAC-12CHSD/TPG11I is a wall-mounted air conditioner that stands out for its modern and aesthetic design, with a white finish that harmoniously integrates into any type of interior. With a cooling capacity of up to 14,725 BTU/h, this device ensures optimal thermal comfort in spaces of up to 23 m². Additionally, it is equipped with a remote smartphone holder, allowing for convenient control of the air conditioning. However, some aspects may be considered drawbacks. The model does not have a Multi split feature, limiting its ability to cool multiple rooms simultaneously. The absence of an ionizer may also affect indoor air quality, and the noise level of the outdoor unit at 50 dB can be disturbing in quiet environments. Furthermore, the energy efficiency in heating mode is not specified, making it difficult to assess its effectiveness in this function. In terms of ratings, user experience is very positive, with a score of 85 thanks to the advanced features. Performance is also appreciated, receiving a score of 80 for its cooling capacity. The design is particularly well-rated at 90, highlighting its aesthetic integration. However, the lack of certain features, such as an ionizer or inverter technology, has led to a score of 70 for features. Despite this, the robustness and customer support, with detailed documents available, are well-rated. In summary, the TCL TAC-12CHSD/TPG11I offers an effective and stylish air conditioning solution, but certain shortcomings in terms of features and noise may be factors to consider before purchase.Score details
User experience
The user experience is enhanced by advanced features such as remote smartphone support, providing convenient control of the air conditioning.
Performance
With a cooling capacity of up to 14,725 BTU/h, the TCL TAC-12CHSD/TPG11I ensures optimal thermal comfort in spaces up to 23 m².
Design
The modern and aesthetic design of the device, with its white finish, integrates harmoniously into any type of interior.
Value for money
Despite its good value for money in terms of comfort and energy efficiency, the absence of certain features like Multi split may be a drawback for some users.
Features
The model offers interesting features, but its lack of ionizer and inverter technology limits its overall effectiveness.
Robustness
The weight and construction of the outdoor unit indicate good robustness, although the noise level of 50 dB may be disturbing in quiet environments.
Support
The available documents, such as the user manual and technical sheet, provide good assistance for installation and use.
Documentation
The provided documentation is comprehensive with a total of 41 pages, offering detailed information on the use and maintenance of the device.
Advantages
Optimal comfort up to 23 m²
Energy efficiency with SEER 11.45
Modern design that fits into all interiors
Remote control via smartphone
Anti-bacterial filter for healthier air
Disadvantages
No multi-split feature.
Absence of air ionizer.
Outdoor noise of 50 dB.
Heating efficiency not specified.
No inverter technology.
Technical Specifications TAC-12CHSD/TPG11I
General Information
-
ModelTAC-12CHSD/TPG11I
-
Brand
-
Category
-
Type
-
SKU1731596
-
MPN1731596
Features
-
Multi split-
-
Converter technology-
-
Ionizer-
-
Seasonal performance rating (heating) (SCOP)-
-
Seasonal efficiency rate (heating) (SCOP) (warmest heating season)-
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)-
-
Seasonal efficiency class (heating) (heating season)-
-
Energy efficiency of the cooling system-
-
Energy efficiency of the heating system-
-
Comfort sleep mode-
-
TypeSharing system
-
Product colorWhite
-
Refresh rate (nominal)12570 BTU/h
-
Cooling capacity (min)3590 BTU/h
-
Cooling capacity (max)14725 BTU/h
-
Seasonal performance rating (cooling) (SEER)11.45
-
Suitable for a room up to23 m²
-
Medium refrigerationR410A
-
Average refrigeration weight580 g
-
Drain pipe diameter16 mm
-
Air conditioning functionscool
-
Anti-bacterial filterYes
-
Anti-bacterial filterYes
-
Anti-bacterial filterYes
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Anti-bacterial filterYes
Indoor unit
-
Type of indoor unitWall mount
-
Noise level of the indoor unit (low speed)27 dB
-
Noise level of the indoor unit (high speed)41 dB
-
Width of the inner unit808 mm
-
Depth of the indoor unit208 mm
-
Height of the indoor unit292 mm
-
Weight of the indoor unit8000 g
-
Width of the inner unit packaging890 mm
-
Depth of the indoor unit packaging265 mm
-
Height of the indoor unit packaging380 mm
-
Weight of the inner unit packaging11000 g
-
Quantity interior units1
Power
-
Energy efficiency class (cooling)-
-
Energy efficiency class (heating) (SCOP) (warmer heating season)-
-
Energy efficiency class (heating) (average of a heating season)-
-
Energy efficiency class (heating) (heating season)-
-
Electricity Consumption (cooling) (min)280 W
-
Electricity Consumption (cooling) (max)1700 W
-
Nominal load (heating) (milder heating season)- kW
-
Nominal load (heating) (milder heating season)- kW
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Nominal load (heating) (milder heating season)- kW
-
Nominal load (heating) (milder heating season)- kW
Outdoor unit
-
Noise level of the outdoor unit50 dB
-
Quantity outdoor units1
-
Width of the outdoor unit777 mm
-
Depth of the outdoor unit498 mm
-
Height of the outdoor unit290 mm
-
Weight of the outdoor unit25000 g
-
Width of the outer unit packaging818 mm
-
Depth of the outdoor unit packaging520 mm
-
Height of the outer unit packaging325 mm
-
Weight of the outer unit packaging29000 g
Network
-
Wifi-
-
Bluetooth-
Frequently Asked Questions
What is BTU?
What does R-410A represent?
How often should I clean the filters of my TCL air conditioner?
What is the energy rating of the TCL TAC-12CHSD/TPG11I?
Does the TCL TAC-12CHSD/TPG11I have a seasonal efficiency rating (cooling) of 11.45?
What is the maximum cooling capacity of the TCL TAC-12CHSD/TPG11I in BTU/h?
How many outdoor units are needed for the TCL TAC-12CHSD/TPG11I?
What is the noise level of the indoor unit of the TCL TAC-12CHSD/TPG11I in high-speed mode?
What is the minimum energy consumption of the TCL TAC-12CHSD/TPG11I in cooling mode?
How do I activate Sleep Mode on the TCL TAC-12CHSD/TPG11I air conditioner?
How do I deactivate Sleep Mode on the TCL TAC-12CHSD/TPG11I air conditioner?
Is the manual for the TCL TAC-12CHSD/TPG11I available in French?
Similar products
More product categories from brand TCL
More product types from brand TCL
Presentation of product TAC-12CHSD/TPG11I specifications from brand TCL
General Information
The TCL TAC-12CHSD/TPG11I is an air conditioner from the brand TCL, known for its innovations and quality in the home appliance sector. This model, identified by the EAN code 6931084738487, promises optimal performance and a smooth user experience.
Features
The TCL TAC-12CHSD/TPG11I is designed as a wall-mounted unit, offering both functionality and aesthetics to fit various interiors. Its white color gives it a modern look. With a nominal cooling capacity of 12,570 BTU/h and a maximum capacity of 14,725 BTU/h, it is capable of maintaining a pleasant temperature in spaces up to 23 m².
This model has a seasonal efficiency ratio (SEER) of 11.45, demonstrating its energy efficiency during cooling periods. It uses the refrigerant R410A and has an average refrigerant charge of 580 g, ensuring effective performance.
The air conditioning system offers cooling and heating functions, although it is not equipped with Multi split technology. The TCL TAC-12CHSD/TPG11I also features a smartphone holder for remote control and an integrated air filter for better air quality, although it does not include an ionizer.
Indoor Unit
This indoor unit is designed for wall mounting, making it easy to integrate into your space. With a noise level of 27 dB during normal operation and 41 dB in high mode, it ensures quiet operation. Its dimensions are 808 mm in width, 208 mm in depth, and 292 mm in height, with a weight of 8000 g.
Power
In terms of consumption, the TCL TAC-12CHSD/TPG11I consumes 280 W in cooling mode, with a maximum consumption of 1700 W. Heating power specifications are not provided, but it is important to note that energy efficiency in heating mode is not specified.
Outdoor Unit
The outdoor unit produces a noise level of 50 dB, which may be noticeable in quiet environments. It measures 777 mm in width, 498 mm in depth, and 290 mm in height, weighing 25000 g. These dimensions ensure easy installation and harmonious integration into your outdoor environment.
Network
Currently, specifications regarding wireless connectivity features such as Wifi and Bluetooth are not detailed, but these options could enhance the user experience if they were available.
