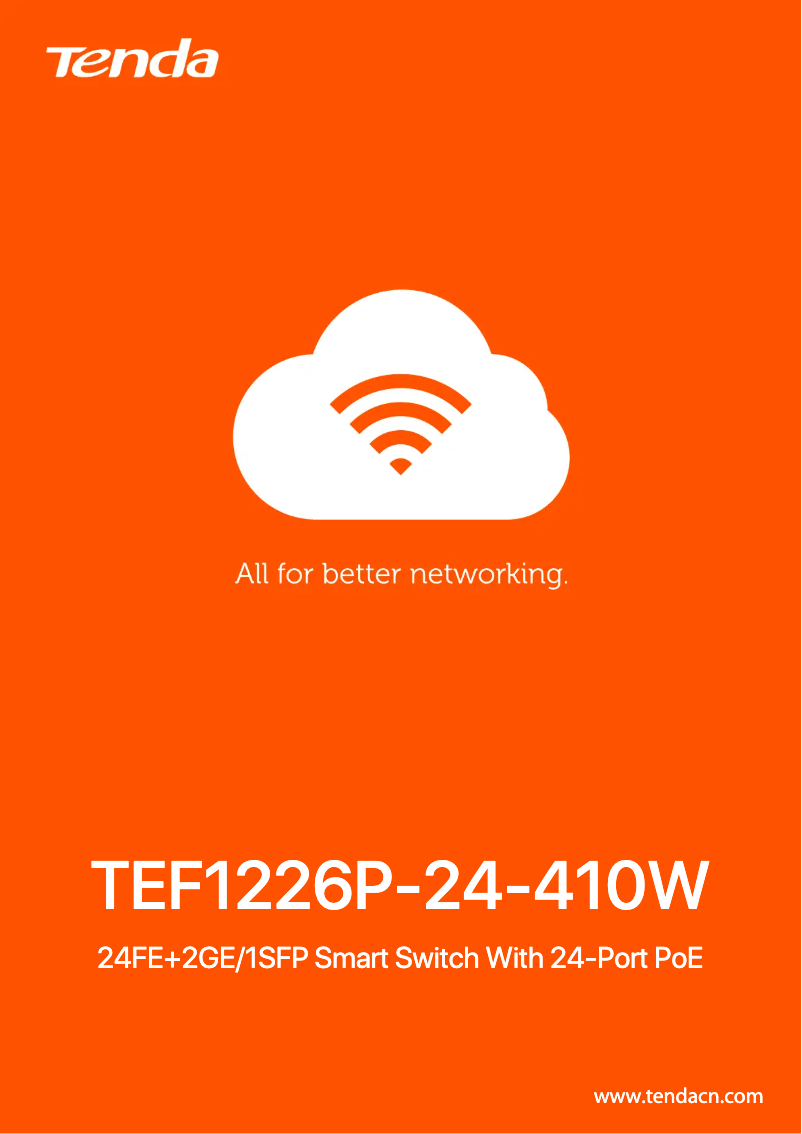

Manual of product TEF1226P-24-410W
Technical Specifications TEF1226P-24-410W
General Information
-
ModelTEF1226P-24-410W
-
Brand
-
Category
-
Type
-
SKU1517245
-
MPN1517245
Management features
-
Switch typeManaged
-
Web-based managementYes
-
Web-based managementYes
Design
-
Stackable-
-
Assembly gridYes
-
Product colorGray
-
Material of the case/bodySteel
-
IndicatorsActivity, Link, PoE, Power, System
Connectivity
-
Fast Ethernet (copper) Number of ports24
-
Basic switching RJ-45 Ethernet port typeFast Ethernet (10/100)
-
Fast Ethernet (copper) Number of ports24
-
Number of ports .Gigabit Ethernet (copper)2
-
Number of installed SFP+ modules0
-
Number of installed SFP+ modules0
-
Quantity of Combo SFP ports1
-
Fiber optic connectorSFP
Certificate
-
CertificationCCC
-
FCC
Sustainability
-
Sustainability certificatesCE
-
RoHS
Representation / realization
-
Scalable firmwareYes
Network
-
Network standardsIEEE 802.1D
-
Support 10GIEEE 802.1Q
-
Copper Ethernet cabling technologyIEEE 802.1p
-
VLAN SupportIEEE 802.1w
-
VLAN SupportIEEE 802.3
-
VLAN SupportIEEE 802.3ab
-
VLAN SupportIEEE 802.3af
-
IEEE 802.3at
-
IEEE 802.3u
-
IEEE 802.3x
-
IEEE 802.3z
-
No
-
10BASE-T
-
10BASE-TX
-
100BASE-T
-
100BASE-TX
-
1000BASE-T
-
Yes
-
Yes
-
Yes
-
Yes
Data transmission
-
MAC Directory16000 entries
-
Transfer rate6.55 Mpps
-
Switching capacity8.8 Gbit/s
Fiber optic
-
Ethernet cabling technology over fiber1000BASE-X
Power
-
Power supply includedYes
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Consumption (max)410 W
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power over Ethernet (PoE) Number of ports24
-
Power over Ethernet (PoE) powered port30 W
-
Total Power over Ethernet (PoE) Budget370 W
Security
-
IP-MAC port bindingYes
-
Security-supported algorithmSNMP, SNMPv2
-
IP-MAC port bindingYes
-
Queue scheduling algorithmsSP, Weighted Round Robin (WRR)
Environmental conditions
-
Operating temperature0 - 45 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 90 %
Weight and dimensions
-
Width440 mm
-
Depth284 mm
-
Height44 mm
Packaging contents
-
User manualYes
Packaging information
-
Type of packagingBox
Similar products
More product categories from brand Tenda
More product types from brand Tenda
Presentation of product TEF1226P-24-410W specifications from brand Tenda
Management features
Does the product Tenda TEF1226P-24-410W have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The switch type of the product Tenda TEF1226P-24-410W is Géré. This type of switch allows for advanced management and optimal control of the network. The Tenda TEF1226P-24-410W product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Generalities
The brand of the product Tenda TEF1226P-24-410W is Tenda. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Tenda TEF1226P-24-410W is 6932849431728. This code allows for the unique identification of the product in the distribution system. The product model Tenda TEF1226P-24-410W is TEF1226P-24-410W | TEF1226P-24-410W. This model ensures optimal performance and an enhanced user experience.
Design
Does the product Tenda TEF1226P-24-410W have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. Is the product Tenda TEF1226P-24-410W stackable? No. This product cannot be stacked. The color of the product Tenda TEF1226P-24-410W is Gris. This shade gives it a modern and elegant look. The material of the product case Tenda TEF1226P-24-410W is Acier. This material ensures both durability and elegance. Does the product Tenda TEF1226P-24-410W have indicators? Activity, Link, PoE, Power, System. These indicators allow you to visualize the operating status of the device.
Connectivity
The number of basic switching RJ-45 Ethernet ports of the product Tenda TEF1226P-24-410W is 24. These ports enable efficient and fast network connectivity. The basic switching RJ-45 Ethernet port type of the product Tenda TEF1226P-24-410W is Fast Ethernet (10/100). This port allows for a fast and reliable connection for your network devices. The Fast Ethernet (copper) of the product Tenda TEF1226P-24-410W contains 24 ports. This connectivity allows for fast data transmission to meet the needs of your network. The number of Gigabit Ethernet (copper) ports of the product Tenda TEF1226P-24-410W is 2. These ports provide fast and reliable connectivity for your devices. The number of SFP modules installed for the product Tenda TEF1226P-24-410W is 0. This number helps optimize connectivity and ensure efficient network performance. The number of installed SFP+ modules for the product Tenda TEF1226P-24-410W is 0. This number helps optimize connectivity and ensure high performance. The number of Combo SFP ports of the product Tenda TEF1226P-24-410W is 1. These ports allow for increased flexibility in connectivity options. The fiber optic connector of the product Tenda TEF1226P-24-410W is SFP. This connector is essential for ensuring fast and reliable data transmission in communication networks.
Certificate
The certification of the product Tenda TEF1226P-24-410W contains CCC, FCC. This certification guarantees compliance with the required safety and performance standards.
Representation / realization
Does the Tenda TEF1226P-24-410W have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance.
Sustainability
The product Tenda TEF1226P-24-410W has Sustainability Certificates: CE, RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Fiber optic
The fiber Ethernet wiring of the Tenda TEF1226P-24-410W is of type 1000BASE-X. This technology allows for high-speed data transmissions over long distances, thus providing optimal performance for modern networks.
Data transmission
The transfer rate of the product Tenda TEF1226P-24-410W is 6.55 Mpps. This high rate ensures optimal performance for your networking needs. The switching capacity of the product Tenda TEF1226P-24-410W is 8.8 Gbit/s. This specification ensures efficient data transmission. The MAC directory of the product Tenda TEF1226P-24-410W contains 16000 entrées. This directory allows for precise identification of devices on the network.
Network
The network standards of the product Tenda TEF1226P-24-410W are IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. These standards ensure optimal compatibility with various equipment and protocols. Does the product Tenda TEF1226P-24-410W have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. Does the product Tenda TEF1226P-24-410W have Port mirroring? Oui. This feature allows for duplicating traffic from one port to another, thus facilitating network analysis and monitoring. The copper Ethernet wiring of the product Tenda TEF1226P-24-410W contains 10BASE-T, 10BASE-TX, 100BASE-T, 100BASE-TX, 1000BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. Does the product Tenda TEF1226P-24-410W have Flow Control Assistance? Oui. This feature allows for efficient management of data flows and optimization of system performance. Does the product Tenda TEF1226P-24-410W have Link Aggregation? Oui. This feature allows for optimizing network connection management for enhanced performance. Does the product Tenda TEF1226P-24-410W support VLAN? Oui. This feature allows for optimized network management by segmenting traffic.
Power
The AC input voltage of the Tenda TEF1226P-24-410W is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. Does the Tenda TEF1226P-24-410W come with a power supply included? Oui. This ensures that you have everything you need for immediate use. The AC input frequency of the product Tenda TEF1226P-24-410W is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The maximum consumption of the product Tenda TEF1226P-24-410W is 410 W. This specification allows for the assessment of the energy efficiency of the device.
PoE (Power over Ethernet)
Does the Tenda TEF1226P-24-410W have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The number of Power over Ethernet (PoE) ports of the product Tenda TEF1226P-24-410W is 24. This number of ports allows for efficient and simplified connectivity to power your network devices. The product Tenda TEF1226P-24-410W has a PoE (Power over Ethernet) power port of 30 W. This feature allows compatible devices to be powered through the same Ethernet cable, thereby simplifying installation and reducing the need for additional electrical outlets. The Total Power over Ethernet (PoE) budget of the product Tenda TEF1226P-24-410W is 370 W. This budget allows for the efficient powering of multiple devices through a single network cable.
Security
Does the product Tenda TEF1226P-24-410W have IGMP Snooping? Oui. This feature allows for efficient management of multicast traffic, thereby enhancing network security and performance. The product Tenda TEF1226P-24-410W contains queue scheduling algorithms, such as SP, Weighted Round Robin (WRR), that optimize resource management and enhance system security. Does the product Tenda TEF1226P-24-410W have an IP-MAC port binding? Oui. This feature enhances network security by associating IP addresses with specific MAC addresses. The supported security algorithm of the product Tenda TEF1226P-24-410W contains SNMP, SNMPv2. This algorithm ensures optimal protection of your data.
Environmental conditions
The non-operating temperature of the product Tenda TEF1226P-24-410W is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Tenda TEF1226P-24-410W is 0 - 45 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Tenda TEF1226P-24-410W has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Tenda TEF1226P-24-410W is 5 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product.
Weight and dimensions
The width of the product Tenda TEF1226P-24-410W is 440 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Tenda TEF1226P-24-410W is 44 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Tenda TEF1226P-24-410W is 284 mm. This dimension allows for optimal integration into your space.
Packaging contents
Does the product Tenda TEF1226P-24-410W have a User Manual? Oui. This document provides clear instructions for optimal use of the product.
Packaging information
The packaging type of the product Tenda TEF1226P-24-410W is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
