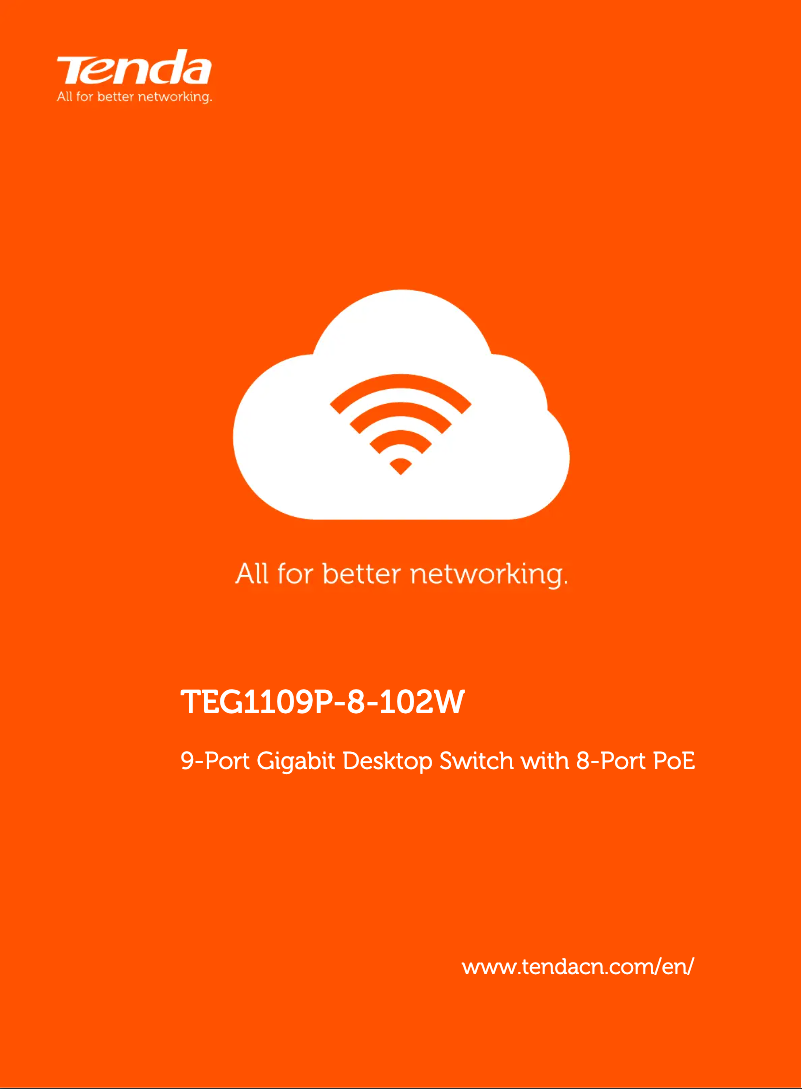

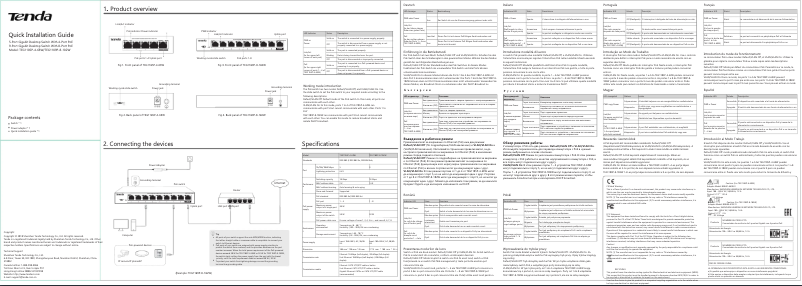

Manuals of product TEG1109P-8-102W
Technical Specifications TEG1109P-8-102W
General Information
-
ModelTEG1109P-8-102W
-
Brand
-
Category
-
Type
-
SKU1548322
-
MPN1548322
Management features
-
Switch typeUnmanaged
Certificate
-
CertificationFCC
-
CE
-
ROHS
-
CCC
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 90 %
PoE (Power over Ethernet)
-
Total Power over Ethernet (PoE) Budget92 W
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Quantity of Power Over Ethernet plus (PoE+) ports8
Power
-
Power supply included-
-
Typical electricity consumption102 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
DC input voltage51 V
-
Input current2 A
Weight and dimensions
-
Width177.5 mm
-
Depth104 mm
-
Height26 mm
Network
-
Network standardsIEEE 802.3
-
Support 10GIEEE 802.3ab
-
Automatic negotiationIEEE 802.3af
-
Automatic negotiationIEEE 802.3at
-
LAN Ethernet: data transfer rateIEEE 802.3u
-
No
-
Yes
-
Yes
-
10,100,1000 Mbit/s
Connectivity
-
Number of installed SFP modules-
-
Number of installed SFP+ modules-
-
Quantity of basic switching RJ-45 Ethernet ports9
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
Data transmission
-
Transfer rate13.39 Mpps
-
Switching capacity18 Gbit/s
-
Registration-and-reissueYes
-
MAC Directory16000 entries
Design
-
Stackable-
-
IndicatorsActivity
-
Product colorLink
-
Assembly gridPower
-
Gray
-
No
Representation / realization
-
Mean time between failures50000 h
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand Tenda
More product types from brand Tenda
Presentation of product TEG1109P-8-102W specifications from brand Tenda
Certificate
The certification of the product Tenda TEG1109P-8-102W contains FCC、CE、ROHS、CCC. This certification guarantees compliance with the required safety and performance standards.
Environmental conditions
The relative humidity (storage) rate of the product Tenda TEG1109P-8-102W is 5 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Tenda TEG1109P-8-102W has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Tenda TEG1109P-8-102W is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Tenda TEG1109P-8-102W is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Management features
The switch type of the product Tenda TEG1109P-8-102W is Non-géré. This type of switch allows for advanced management and optimal control of the network.
Generalities
The brand of the product Tenda TEG1109P-8-102W is Tenda. This brand is known for its quality and innovation in the field of household appliances. The product model Tenda TEG1109P-8-102W is TEG1109P-8-102W | TEG1109P-8-102W. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Tenda TEG1109P-8-102W is 0885397271772, 6932849431506. This code allows for the unique identification of the product in the distribution system.
PoE (Power over Ethernet)
The Total Power over Ethernet (PoE) budget of the product Tenda TEG1109P-8-102W is 92 W. This budget allows for the efficient powering of multiple devices through a single network cable. The product Tenda TEG1109P-8-102W has 8 Power Over Ethernet plus (PoE+) ports, allowing for efficient and simplified power supply to connected devices. Does the Tenda TEG1109P-8-102W have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Weight and dimensions
The width of the product Tenda TEG1109P-8-102W is 177.5 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Tenda TEG1109P-8-102W is 26 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Tenda TEG1109P-8-102W is 104 mm. This dimension allows for optimal integration into your space.
Power
The typical power consumption of the product Tenda TEG1109P-8-102W is 102 W. This feature allows for the assessment of the energy efficiency of the device. Does the Tenda TEG1109P-8-102W come with a power supply included? -. This ensures that you have everything you need for immediate use. The AC input voltage of the Tenda TEG1109P-8-102W is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Tenda TEG1109P-8-102W is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The DC input voltage of the product Tenda TEG1109P-8-102W is 51 V. This DC input voltage ensures optimal performance and compatibility with various devices. The input current of the product Tenda TEG1109P-8-102W is 2 A. This input current ensures optimal performance and increased energy efficiency.
Network
Does the product Tenda TEG1109P-8-102W have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. The network standards of the product Tenda TEG1109P-8-102W are IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. These standards ensure optimal compatibility with various equipment and protocols. Does the product Tenda TEG1109P-8-102W have automatic negotiation? Oui. This feature allows for optimizing exchanges by automating the negotiation process. Does the product Tenda TEG1109P-8-102W have Auto MDI/MDI-X? Oui. This specification allows for automatic detection of network connections, thus facilitating use and configuration. The data transfer rate of the product Tenda TEG1109P-8-102W is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs.
Data transmission
The switching capacity of the product Tenda TEG1109P-8-102W is 18 Gbit/s. This specification ensures efficient data transmission. Does the product Tenda TEG1109P-8-102W have Recording-and-rebroadcasting? Oui. This feature allows for efficient data capture and retransmission. The MAC directory of the product Tenda TEG1109P-8-102W contains 16000 entrées. This directory allows for precise identification of devices on the network. The transfer rate of the product Tenda TEG1109P-8-102W is 13.39 Mpps. This high rate ensures optimal performance for your networking needs.
Design
Does the product Tenda TEG1109P-8-102W have indicators? Activity, Link, Power. These indicators allow you to visualize the operating status of the device. Is the product Tenda TEG1109P-8-102W stackable? No. This product cannot be stacked. The color of the product Tenda TEG1109P-8-102W is Gris. This shade gives it a modern and elegant look. Does the product Tenda TEG1109P-8-102W have a mounting bracket? Non. This feature determines the compatibility and ease of installation of the product.
Representation / realization
The average time between failures of the product Tenda TEG1109P-8-102W is 50000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions.
Connectivity
The number of SFP modules installed for the product Tenda TEG1109P-8-102W is -. This number helps optimize connectivity and ensure efficient network performance. The number of basic switching RJ-45 Ethernet ports of the product Tenda TEG1109P-8-102W is 9. These ports enable efficient and fast network connectivity. The number of installed SFP+ modules for the product Tenda TEG1109P-8-102W is -. This number helps optimize connectivity and ensure high performance. The basic switching RJ-45 Ethernet port type of the product Tenda TEG1109P-8-102W is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices.
Logistics data
The Harmonized System code for the product Tenda TEG1109P-8-102W is 85176990. This code allows for the unique identification of goods in international trade.
