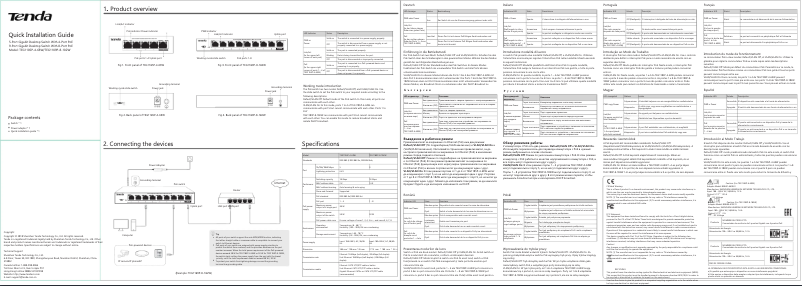

Manuals of product TEG1110PF-8-102W
Technical Specifications TEG1110PF-8-102W
General Information
-
ModelTEG1110PF-8-102W
-
Brand
-
Category
-
Type
-
SKU1577337
-
MPN1577337
Management features
-
Switch typeManaged
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports9
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
-
Number of installed SFP modules1
-
Number of installed SFP+ modules0
-
Power connectorDC-in jack
Network
-
Network standardsIEEE 802.3
-
Support 10GIEEE 802.3ab
-
LAN Ethernet: data transfer rateIEEE 802.3af
-
IEEE 802.3at
-
IEEE 802.3u
-
IEEE 802.3x
-
No
-
10,100,1000 Mbit/s
Data transmission
-
MAC Directory16000 entries
-
Switching capacity20 Gbit/s
-
Packet transfer rate (1 Gbps)14.9 pps
-
Registration-and-reissueYes
Design
-
Stackable-
-
Assembly gridNo
-
Product colorGray
-
IndicatorsLink, Power
-
Wall mountingYes
Power
-
Power supplyCC
-
Power supply includedYes
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
DC input voltage51 V
-
Input current2 A
-
Typical electricity consumption92 W
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power over Ethernet (PoE) Number of ports8
-
Power over Ethernet (PoE) powered port30 W
-
Total Power over Ethernet (PoE) Budget92 W
Environmental conditions
-
Operating temperature0 - 45 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 90 %
Weight and dimensions
-
Width177.5 mm
-
Depth104 mm
-
Height26 mm
Sustainability
-
Compliance with sustainabilityYes
-
Sustainability certificatesFederal Communications Commission (FCC), RoHS
Similar products
More product categories from brand Tenda
More product types from brand Tenda
Presentation of product TEG1110PF-8-102W specifications from brand Tenda
Generalities
The brand of the product Tenda TEG1110PF-8-102W is Tenda. This brand is known for its quality and innovation in the field of household appliances. The product model Tenda TEG1110PF-8-102W is TEG1110PF-8-102W | TEG1110PF-8-102W. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Tenda TEG1110PF-8-102W is 6932849436204. This code allows for the unique identification of the product in the distribution system.
Management features
The switch type of the product Tenda TEG1110PF-8-102W is Géré. This type of switch allows for advanced management and optimal control of the network.
Connectivity
The number of SFP modules installed for the product Tenda TEG1110PF-8-102W is 1. This number helps optimize connectivity and ensure efficient network performance. The basic switching RJ-45 Ethernet port type of the product Tenda TEG1110PF-8-102W is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices. The number of basic switching RJ-45 Ethernet ports of the product Tenda TEG1110PF-8-102W is 9. These ports enable efficient and fast network connectivity. The number of installed SFP+ modules for the product Tenda TEG1110PF-8-102W is 0. This number helps optimize connectivity and ensure high performance. The power connector of the product Tenda TEG1110PF-8-102W contains DC-in jack. This connector is essential for ensuring reliable and efficient power supply.
Network
The network standards of the product Tenda TEG1110PF-8-102W are IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. Does the product Tenda TEG1110PF-8-102W have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. The data transfer rate of the product Tenda TEG1110PF-8-102W is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs.
Data transmission
The MAC directory of the product Tenda TEG1110PF-8-102W contains 16000 entrées. This directory allows for precise identification of devices on the network. The switching capacity of the product Tenda TEG1110PF-8-102W is 20 Gbit/s. This specification ensures efficient data transmission. Does the product Tenda TEG1110PF-8-102W have Recording-and-rebroadcasting? Oui. This feature allows for efficient data capture and retransmission. The product Tenda TEG1110PF-8-102W has a packet transfer rate of 1 Gbps. This rate ensures fast and efficient data transmission, thus meeting the needs of demanding users.
Design
Does the product Tenda TEG1110PF-8-102W have indicators? Link, Power. These indicators allow you to visualize the operating status of the device. The color of the product Tenda TEG1110PF-8-102W is Gris. This shade gives it a modern and elegant look. Is the product Tenda TEG1110PF-8-102W stackable? No. This product cannot be stacked. Does the product Tenda TEG1110PF-8-102W have a mounting bracket? Non. This feature determines the compatibility and ease of installation of the product. Does the product Tenda TEG1110PF-8-102W have Wall Mounting? Oui. This feature allows the product to be mounted on the wall, thus providing space-saving and improved aesthetics.
PoE (Power over Ethernet)
The product Tenda TEG1110PF-8-102W has a PoE (Power over Ethernet) power port of 30 W. This feature allows compatible devices to be powered through the same Ethernet cable, thereby simplifying installation and reducing the need for additional electrical outlets. The number of Power over Ethernet (PoE) ports of the product Tenda TEG1110PF-8-102W is 8. This number of ports allows for efficient and simplified connectivity to power your network devices. Does the Tenda TEG1110PF-8-102W have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The Total Power over Ethernet (PoE) budget of the product Tenda TEG1110PF-8-102W is 92 W. This budget allows for the efficient powering of multiple devices through a single network cable.
Power
The power supply of the product Tenda TEG1110PF-8-102W is CC. This power supply ensures optimal autonomy for prolonged use. Does the Tenda TEG1110PF-8-102W come with a power supply included? Oui. This ensures that you have everything you need for immediate use. The AC input voltage of the Tenda TEG1110PF-8-102W is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Tenda TEG1110PF-8-102W is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The DC input voltage of the product Tenda TEG1110PF-8-102W is 51 V. This DC input voltage ensures optimal performance and compatibility with various devices. The input current of the product Tenda TEG1110PF-8-102W is 2 A. This input current ensures optimal performance and increased energy efficiency. The typical power consumption of the product Tenda TEG1110PF-8-102W is 92 W. This feature allows for the assessment of the energy efficiency of the device.
Environmental conditions
The non-operating temperature of the product Tenda TEG1110PF-8-102W is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Tenda TEG1110PF-8-102W is 0 - 45 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Tenda TEG1110PF-8-102W is 5 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Tenda TEG1110PF-8-102W has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Sustainability
The product Tenda TEG1110PF-8-102W has Sustainability Certificates: Federal Communications Commission (FCC), RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect. Does the product Tenda TEG1110PF-8-102W comply with sustainability? Oui. This product meets established sustainability standards, thereby ensuring a reduced environmental impact.
Weight and dimensions
The width of the product Tenda TEG1110PF-8-102W is 177.5 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Tenda TEG1110PF-8-102W is 104 mm. This dimension allows for optimal integration into your space. The height of the product Tenda TEG1110PF-8-102W is 26 mm. This dimension is essential to ensure that the product fits perfectly in your space.
