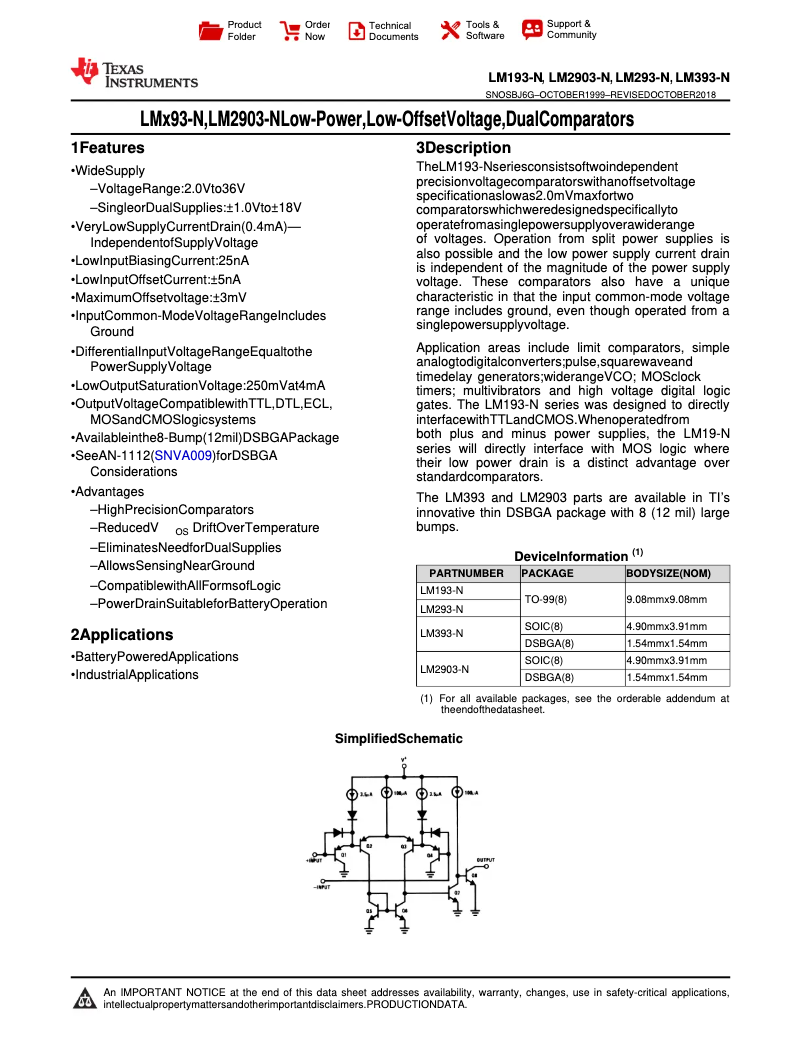

Manual of product LM2903M/NOPB
Editorial note
The Texas Instruments LM2903M/NOPB is a product that stands out for its robust design and reliable performance, thanks to a wide operating temperature range from -40 to 85 °C. This model is particularly suited for various environments, offering impressive resistance to extreme conditions with a non-operating temperature range from -65 to 150 °C. Additionally, its SOIC design with 8 pins facilitates integration into a variety of systems, which is an asset for projects requiring extensive compatibility. However, it is important to note that integrating this product can be complex for novice users, requiring specific technical knowledge. Furthermore, although the temperature range is extensive, it may not be suitable for all industrial applications. The SOIC packaging type, while optimized for transport, can make soldering the pins difficult, especially in a prototyping context. Moreover, the quantity of 95 pieces may be excessive for small-scale projects, leading to a higher initial cost for those who only need a few units. In terms of value for money, the product is less attractive for users with limited needs, and its reparability is also a point to consider, as the complexity of soldering may limit its adaptability. Despite these drawbacks, the Texas Instruments LM2903M/NOPB remains a solid choice for those seeking reliable performance and durability in varied environments.Score details
User experience
The user experience is generally positive thanks to the provided user manual, but the complexity of integration may pose a problem for inexperienced users.
Performance
The performance is excellent due to a wide operating and non-operating temperature range, but it may not be suitable for all industrial applications.
Design
The SOIC design is optimized for integration, but it may make pin replacement difficult in a prototyping context.
Value for money
The product is offered in quantities of 95 pieces, which may be excessive for small-scale projects, resulting in a higher initial cost.
repairability
Soldering the pins can be complex, limiting repairability and adaptability for some users.
Advantages
Operating temperature of -40 to 85 °C
Easy integration with 8 SOIC pins
Non-operating temperature of -65 to 150 °C
Compact dimensions for easy storage
User manual included for easy installation
Disadvantages
Complex integration for inexperienced users
Limited temperature range for certain applications
Soldering difficulty for prototyping
Excessive quantity for small-scale projects
Possible incompatibility with legacy systems
Technical Specifications LM2903M/NOPB
General Information
-
ModelLM2903M/NOPB
-
Brand
-
Category
-
Type
-
SKU1642044
-
MPN1642044
Features
-
Number of channels2 channels
-
Quantity95 piece(s)
-
Operating temperature-40 - 85 °C
-
Temperature out of operation-65 - 150 °C
-
Number of pins8
-
Type of packagingSOIC
-
TypeComparator
Weight and dimensions
-
Package depth495 mm
-
Package width8 mm
-
Package height4.064 mm
-
Width (with pins)5 mm
-
Depth3.98 mm
-
Height1.5 mm
-
Width (with pins)5 mm
-
Depth (with pins)6.19 mm
-
Height (with pins)1.75 mm
Frequently Asked Questions
What is the height dimension of the Texas Instruments LM2903M/NOPB?
What is the width dimension of the Texas Instruments LM2903M/NOPB?
What is the depth dimension of the Texas Instruments LM2903M/NOPB?
Is the manual for the Texas Instruments LM2903M/NOPB available in French?
Similar products
More product categories from brand Texas Instruments
More product types from brand Texas Instruments
Presentation of product LM2903M/NOPB specifications from brand Texas Instruments
General Information
The Texas Instruments LM2903M/NOPB is a product from the renowned brand Texas Instruments, known for its expertise and innovation in the field of electronic components. This model, designated as LM2903M/NOPB, offers reliable performance and an optimized user experience. The EAN code, 2050002121119, allows for precise identification of the product in distribution systems.
Features
This product stands out for its ability to handle 2 channels, enabling effective communication in various systems. The packaging includes 95 pieces, providing sufficient volume for large-scale projects. It operates within a range of -40 to 85 °C, ensuring stable performance in many environments. Its resistance to extreme temperatures is also noteworthy, with an exceptional operating capacity ranging from -65 to 150 °C, thus ensuring its durability.
The LM2903M/NOPB is equipped with 8 pins, facilitating its integration into various electronic systems. Its SOIC package offers adequate protection while simplifying transport and storage. Additionally, its island design allows for optimal use of space, both functionally and aesthetically.
Weight and Dimensions
The package dimensions are designed to ensure secure transport: 495 mm deep, 8 mm wide, and 4.064 mm high. As for the product itself, it measures 5 mm wide, 3.98 mm deep, and 1.5 mm high, thus ensuring easy integration into your projects. Taking the pins into account, the width remains at 5 mm, the depth at 6.19 mm, and the height at 1.75 mm, ensuring the compatibility and functionality of the device.
