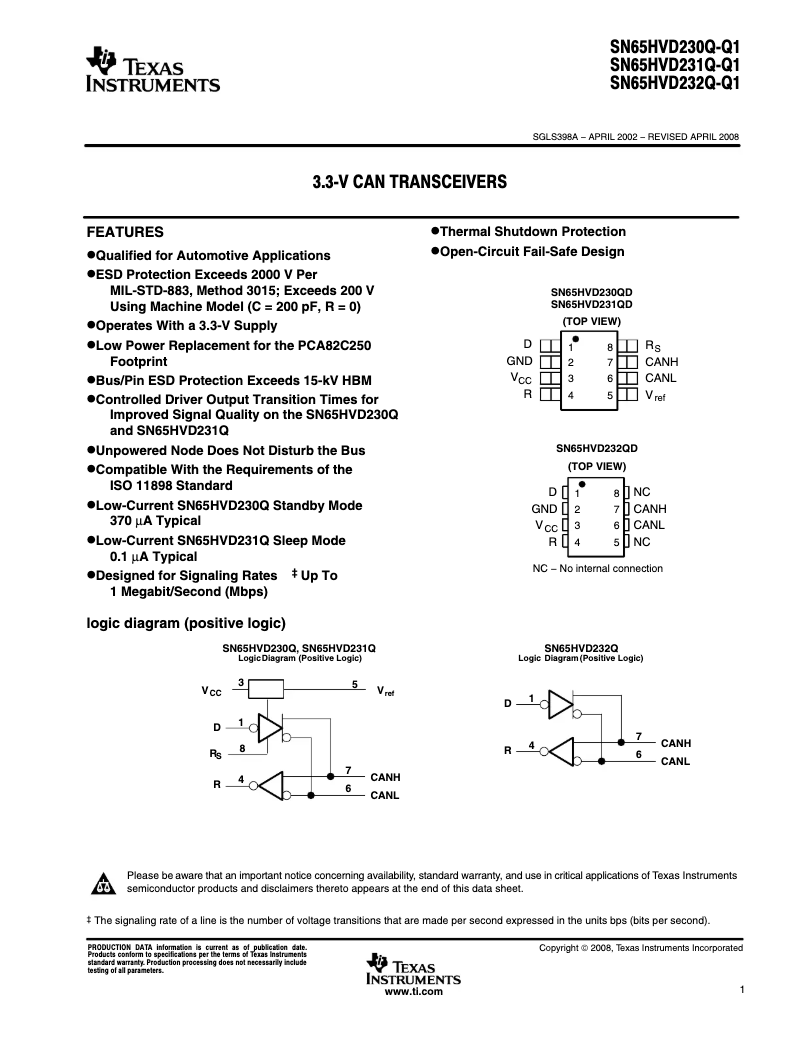

Manual of product SN65HVD230QD
Editorial note
The Texas Instruments SN65HVD230QD is a product that stands out for its resistance to extreme temperatures, operating efficiently in a range of -40 to 125 °C. This makes it an ideal choice for harsh environments, ensuring optimal performance even in adverse weather conditions. Its compact design and SOIC packaging also facilitate integration into tight spaces, which is an asset for many projects. However, some drawbacks must be considered. The small size and packaging type may pose challenges for less experienced users during installation. Additionally, with only 8 pins, the product may have limitations in terms of connectivity, restricting its use in certain applications. The quantity of 75 pieces per package may also be excessive for small-scale projects, leading to a higher initial cost and a risk of waste. In terms of quality, the product benefits from the reputation of Texas Instruments, ensuring reliability and durability. However, a lack of information on compatibility with other components could hinder some users wishing to integrate it into existing configurations. In summary, the SN65HVD230QD is a robust and high-performing solution, but it is essential to assess the specific needs of your project before adopting it.Score details
User experience
The reliability and quality of the Texas Instruments SN65HVD230QD ensure an optimal user experience, although information on compatibility with other components may be lacking.
Performance
The product operates efficiently in extreme temperature ranges, ensuring good performance in challenging environments.
Design
Its compact design with a SOIC package facilitates integration into tight spaces, but this may pose challenges for less experienced users.
Value for money
The quantity of 75 pieces per package may be excessive for some projects, leading to a higher initial cost and a risk of waste.
Usability
With only 8 pins, the product may have limitations in terms of connectivity, which could restrict its use in certain applications.
Advantages
Resistant to extreme temperatures: -40 to 125 °C
Compact and lightweight for easy installation
Recognized reliability and quality from Texas Instruments
SOIC package for optimal protection
Versatile connectivity with 8 pins
Disadvantages
Limited to extreme environments only
Difficult handling for inexperienced users
Restricted connectivity with 8 pins
Packaging of 75 pieces too bulky
Lack of information on compatibility with other components
Technical Specifications SN65HVD230QD
General Information
-
ModelSN65HVD230QD
-
Brand
-
Category
-
Type
-
SKU1642020
-
MPN1642020
Features
-
Temperature out of operation-65 - 150 °C
-
Type of packagingSOIC
-
Number of pins8
-
Operating temperature-40 - 125 °C
-
Quantity75 piece(s)
-
TypeTransceiver
Weight and dimensions
-
Package depth507 mm
-
Package width8 mm
-
Package height3.94 mm
-
Width (with pins)5 mm
-
Width (with pins)5 mm
-
Depth3.98 mm
-
Depth (with pins)6.19 mm
-
Height1.5 mm
-
Height (with pins)1.75 mm
Frequently Asked Questions
What is the height dimension of the Texas Instruments SN65HVD230QD?
What are the width dimensions of the Texas Instruments SN65HVD230QD?
What is the depth dimension of the Texas Instruments SN65HVD230QD?
Is the manual for the Texas Instruments SN65HVD230QD available in French?
Similar products
More product categories from brand Texas Instruments
More product types from brand Texas Instruments
Presentation of product SN65HVD230QD specifications from brand Texas Instruments
General Information
The Texas Instruments SN65HVD230QD is a product from the renowned brand Texas Instruments, known for its commitment to innovation and quality in the electronics sector. This model, designated SN65HVD230QD, is designed to provide reliable performance and an optimized user experience. Its EAN code, 2050002175976, allows for unique identification in distribution systems.
Features
This device has an operational temperature range of -40 to 125 °C, ensuring effective operation even in harsh environments. Outside of its operation, it can withstand temperatures ranging from -65 to 150 °C, demonstrating its robustness against extreme conditions. The product is packaged in a SOIC type package, providing enhanced protection during transport. With its 8 pins, it ensures adequate connectivity, although this configuration may limit certain functionalities compared to other models with a greater number of pins. Furthermore, the packaging contains 75 units, which can be considered a surplus for smaller scale projects.
Weight and Dimensions
The dimensions of the Texas Instruments SN65HVD230QD package are as follows: a depth of 507 mm, a width of 8 mm, and a height of 3.94 mm. As for the product itself, it measures 5 mm wide and 3.98 mm deep, with slightly larger dimensions when including the pins, measuring 6.19 mm deep and 1.75 mm high. These compact dimensions facilitate its integration into various systems, although they may present challenges during installation, especially for less experienced users.
