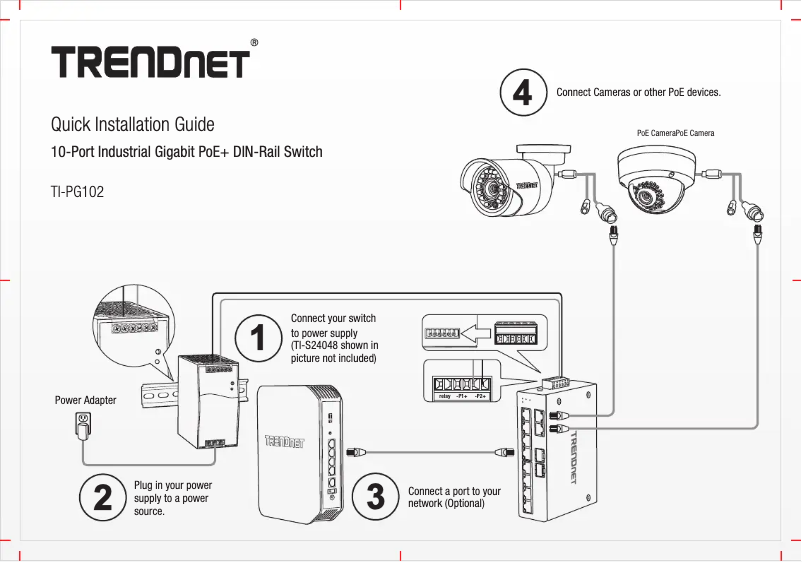

Manual of product TI-PG102
Technical Specifications TI-PG102
General Information
-
ModelTI-PG102
-
Brand
-
Category
-
SKU1927586
-
MPN1927586
Network
-
Support 10G-
-
Network standardsIEEE 802.3
-
Full duplexIEEE 802.3ab
-
Full duplexIEEE 802.3af
-
Full duplexIEEE 802.3at
-
Full duplexIEEE 802.3u
-
IEEE 802.3x
-
IEEE 802.3z
-
Yes
-
Yes
-
Yes
-
Yes
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Quantity of Power Over Ethernet plus (PoE+) ports8
-
Power over Ethernet (PoE) powered port30 W
-
Total Power over Ethernet (PoE) Budget240 W
Power
-
Input voltage48/56 V
-
Consumption (max)5.67 W
-
Redundant power supply (RPS)Yes
-
DC input voltage48 - 56 V
Weight and dimensions
-
Width155 mm
-
Depth120 mm
-
Height48 mm
-
Weight445 g
Management features
-
Switch typeUnmanaged
Design
-
Stackable-
-
Assembly gridNo
-
Product colorBlack
-
DIN rail assemblyYes
-
International Protection Code (IP)IP30
-
DIN rail assemblyYes
-
DIN rail assemblyYes
-
Material of the case/bodyMetal
Connectivity
-
Number of installed SFP modules-
-
Number of installed SFP+ modules-
-
Quantity of basic switching RJ-45 Ethernet ports10
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
-
Quantity of SFP module slots2
-
Power connectorDC-in jack
Representation / realization
-
Buffer size2048 KB
-
Mean time between failures510400 h
Data transmission
-
MAC Directory16000 entries
-
Switching capacity20 Gbit/s
-
Registration-and-reissueYes
-
Transfer rate14.8 Mpps
Environmental conditions
-
Operating temperature-40 - 75 °C
-
Operating relative humidity (H-H)0 - 95 %
Packaging information
-
Connection box includedYes
-
Connection box includedYes
Certificate
-
CertificationCE
-
FCC
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand TRENDnet
Other TRENDnet
Software TRENDnet
Phones TRENDnet
Tools TRENDnet
Audio TRENDnet
More product types from brand TRENDnet
Presentation of product TI-PG102 specifications from brand TRENDnet
PoE (Power over Ethernet)
Does the TRENDnet TI-PG102 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The Total Power over Ethernet (PoE) budget of the product TRENDnet TI-PG102 is 240 W. This budget allows for the efficient powering of multiple devices through a single network cable. The product TRENDnet TI-PG102 has a PoE (Power over Ethernet) power port of 30 W. This feature allows compatible devices to be powered through the same Ethernet cable, thereby simplifying installation and reducing the need for additional electrical outlets. The product TRENDnet TI-PG102 has 8 Power Over Ethernet plus (PoE+) ports, allowing for efficient and simplified power supply to connected devices.
Generalities
The brand of the product TRENDnet TI-PG102 is TRENDnet. This brand is known for its quality and innovation in the field of household appliances. The product model TRENDnet TI-PG102 is TI-PG102 | TI-PG102. This model ensures optimal performance and an enhanced user experience. The EAN code of the product TRENDnet TI-PG102 is 0710931160932. This code allows for the unique identification of the product in the distribution system.
Network
The network standards of the product TRENDnet TI-PG102 are IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. These standards ensure optimal compatibility with various equipment and protocols. Does the product TRENDnet TI-PG102 have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. Does the product TRENDnet TI-PG102 have automatic negotiation? Oui. This feature allows for optimizing exchanges by automating the negotiation process. Does the product TRENDnet TI-PG102 have an automatic MAC address update? Oui. This feature ensures smooth and efficient management of network connections. Does the product TRENDnet TI-PG102 have supported MAC address machine learning? Oui. This feature allows for optimized management of network connections. Does the product TRENDnet TI-PG102 have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges.
Power
The input voltage of the product TRENDnet TI-PG102 is 48/56 V. This feature ensures compatibility with standard electrical systems. The DC input voltage of the product TRENDnet TI-PG102 is 48 - 56 V. This DC input voltage ensures optimal performance and compatibility with various devices. Does the product TRENDnet TI-PG102 have redundant power supply (RPS)? No. This feature is essential to ensure service continuity in case of failure of the main power supply. The maximum consumption of the product TRENDnet TI-PG102 is 5.67 W. This specification allows for the assessment of the energy efficiency of the device.
Weight and dimensions
The depth of the product TRENDnet TI-PG102 is 120 mm. This dimension allows for optimal integration into your space. The width of the product TRENDnet TI-PG102 is 155 mm. This dimension is essential to ensure optimal integration into your space. The height of the product TRENDnet TI-PG102 is 48 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product TRENDnet TI-PG102 is 445 g. This weight is ideal for ensuring optimal use and easy handling.
Management features
The switch type of the product TRENDnet TI-PG102 is Non-géré. This type of switch allows for advanced management and optimal control of the network.
Connectivity
The number of SFP modules installed for the product TRENDnet TI-PG102 is -. This number helps optimize connectivity and ensure efficient network performance. The basic switching RJ-45 Ethernet port type of the product TRENDnet TI-PG102 is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices. The number of installed SFP+ modules for the product TRENDnet TI-PG102 is -. This number helps optimize connectivity and ensure high performance. The number of basic switching RJ-45 Ethernet ports of the product TRENDnet TI-PG102 is 10. These ports enable efficient and fast network connectivity. The number of SFP module slots for the TRENDnet TI-PG102 product is 2. These slots allow for increased flexibility in network connectivity. The power connector of the product TRENDnet TI-PG102 contains DC-in jack. This connector is essential for ensuring reliable and efficient power supply.
Representation / realization
The buffer size of the product TRENDnet TI-PG102 is 2048 Ko. This feature helps optimize data processing and improve overall performance. The average time between failures of the product TRENDnet TI-PG102 is 510400 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions.
Design
The color of the product TRENDnet TI-PG102 is Noir. This shade gives it a modern and elegant look. Does the product TRENDnet TI-PG102 have a mounting bracket? Non. This feature determines the compatibility and ease of installation of the product. Does the product TRENDnet TI-PG102 have indicators? Oui. These indicators allow you to visualize the operating status of the device. The International Protection Code (IP) for product TRENDnet TI-PG102 contains IP30. This code indicates the level of protection against solid objects and moisture. Does the product TRENDnet TI-PG102 have Wall Mounting? Oui. This feature allows the product to be mounted on the wall, thus providing space-saving and improved aesthetics. Does the product TRENDnet TI-PG102 have DIN rail mounting? Oui. This feature allows for easy and quick installation on standard DIN rails. Is the product TRENDnet TI-PG102 stackable? No. This product cannot be stacked. The material of the product case TRENDnet TI-PG102 is Métal. This material ensures both durability and elegance.
Environmental conditions
The product TRENDnet TI-PG102 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product TRENDnet TI-PG102 is -40 - 75 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Data transmission
The MAC directory of the product TRENDnet TI-PG102 contains 16000 entrées. This directory allows for precise identification of devices on the network. The transfer rate of the product TRENDnet TI-PG102 is 14.8 Mpps. This high rate ensures optimal performance for your networking needs. The switching capacity of the product TRENDnet TI-PG102 is 20 Gbit/s. This specification ensures efficient data transmission. Does the product TRENDnet TI-PG102 have Recording-and-rebroadcasting? Oui. This feature allows for efficient data capture and retransmission.
Packaging information
Does the product TRENDnet TI-PG102 come with a connection box included? Oui. This allows you to benefit from a simplified and quick installation. Does the TRENDnet TI-PG102 have a wall mounting kit? Oui. This kit allows for easy and secure installation of your product.
Certificate
The certification of the product TRENDnet TI-PG102 contains CE\nFCC. This certification guarantees compliance with the required safety and performance standards.
Logistics data
The Harmonized System code for the product TRENDnet TI-PG102 is 85176990. This code allows for the unique identification of goods in international trade.
