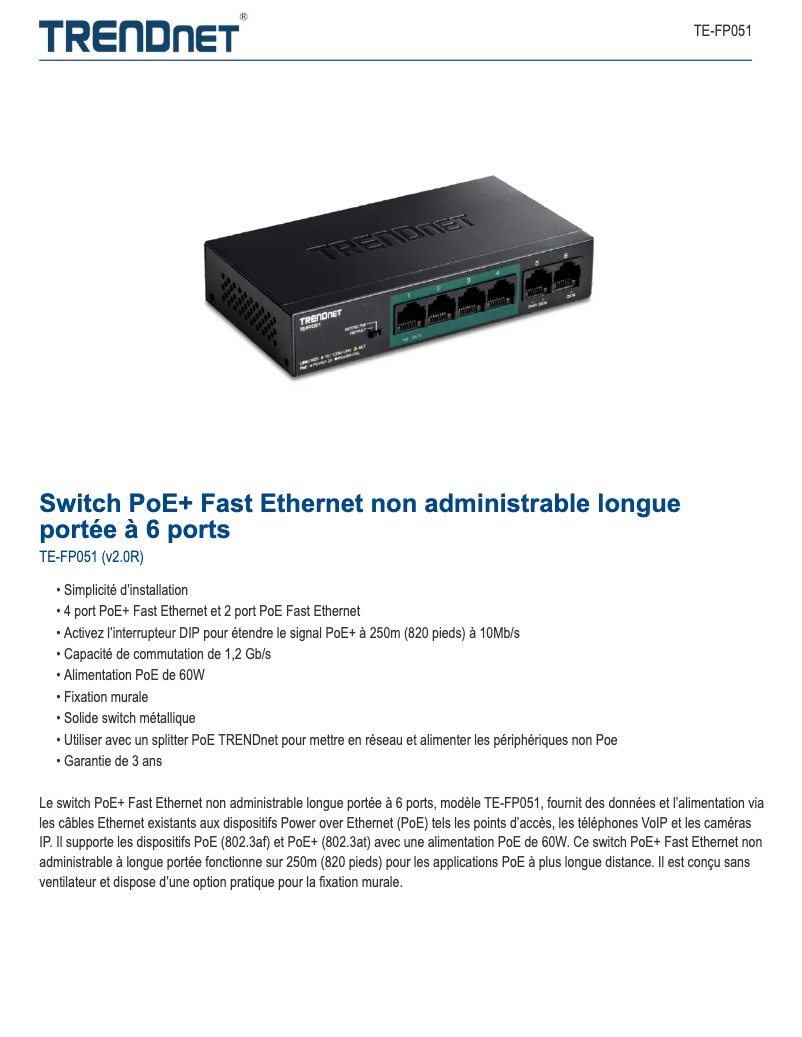

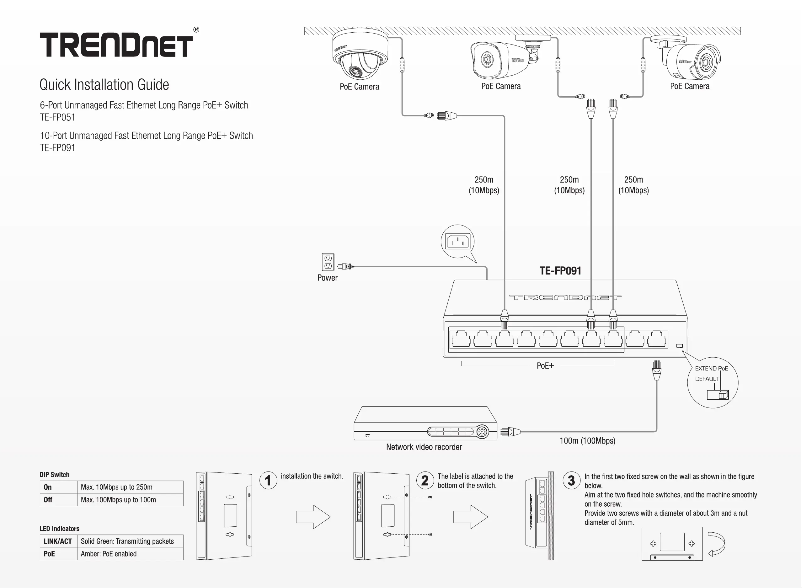

Manuals of product TE-FP051
Technical Specifications TE-FP051
General Information
-
ModelTE-FP051
-
Brand
-
Category
-
Type
-
SKU1927511
-
MPN1927511
Network
-
Support 10G-
-
Network standardsIEEE 802.3
-
Semi-duplexIEEE 802.3ab
-
Semi-duplexIEEE 802.3af
-
LAN Ethernet: data transfer rateIEEE 802.3at
-
IEEE 802.3u
-
IEEE 802.3x
-
IEEE 802.3z
-
Yes
-
Yes
-
10, 100 Mbit/s
Connectivity
-
Number of installed SFP+ modules-
-
Number of installed SFP modules-
-
Basic switching RJ-45 Ethernet port typeFast Ethernet (10/100)
-
Quantity of basic switching RJ-45 Ethernet ports5
Data transmission
-
Switching capacity1 Gbit/s
-
MAC Directory1000 entries
-
Transfer rate0.744 Mpps
Power
-
Input current1.35 A
-
Consumption (max)4.8 W
-
Electrical protection devicesOver current, Short circuit
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Power supply includedYes
-
Consumption (max)4.8 W
-
DC input voltage48 V
PoE (Power over Ethernet)
-
Total Power over Ethernet (PoE) Budget60 W
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Quantity of Power Over Ethernet plus (PoE+) ports4
Representation / realization
-
Mean time between failures612220 h
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Width105 mm
-
Depth83 mm
-
Height28 mm
-
Weight200 g
Certificate
-
CertificationCE
-
FCC
Management features
-
Switch typeUnmanaged
Design
-
Stackable-
-
Assembly grid-
-
Product colorBlack
-
Material of the case/bodyMetal
-
Wall mountingYes
-
Wall mountingYes
Packaging contents
-
Quick Start GuideYes
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand TRENDnet
Other TRENDnet
Software TRENDnet
Phones TRENDnet
Tools TRENDnet
Audio TRENDnet
More product types from brand TRENDnet
Presentation of product TE-FP051 specifications from brand TRENDnet
Connectivity
The number of SFP modules installed for the product TRENDnet TE-FP051 is -. This number helps optimize connectivity and ensure efficient network performance. The number of basic switching RJ-45 Ethernet ports of the product TRENDnet TE-FP051 is 5. These ports enable efficient and fast network connectivity. The number of installed SFP+ modules for the product TRENDnet TE-FP051 is -. This number helps optimize connectivity and ensure high performance. The basic switching RJ-45 Ethernet port type of the product TRENDnet TE-FP051 is Fast Ethernet (10/100). This port allows for a fast and reliable connection for your network devices.
Data transmission
The switching capacity of the product TRENDnet TE-FP051 is 1 Gbit/s. This specification ensures efficient data transmission. The MAC directory of the product TRENDnet TE-FP051 contains 1000 entrées. This directory allows for precise identification of devices on the network. The transfer rate of the product TRENDnet TE-FP051 is 0.744 Mpps. This high rate ensures optimal performance for your networking needs.
Generalities
The brand of the product TRENDnet TE-FP051 is TRENDnet. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product TRENDnet TE-FP051 is 0710931161984. This code allows for the unique identification of the product in the distribution system. The product model TRENDnet TE-FP051 is TE-FP051 | TE-FP051. This model ensures optimal performance and an enhanced user experience.
Network
The network standards of the product TRENDnet TE-FP051 are IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. These standards ensure optimal compatibility with various equipment and protocols. Does the product TRENDnet TE-FP051 have Semi-duplex? Oui. This feature allows for two-way communication, but not simultaneous, thus optimizing network efficiency. Does the product TRENDnet TE-FP051 have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. Does the product TRENDnet TE-FP051 have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges. The data transfer rate of the product TRENDnet TE-FP051 is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs.
Representation / realization
The average time between failures of the product TRENDnet TE-FP051 is 612220 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions.
Environmental conditions
The operating temperature of the product TRENDnet TE-FP051 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product TRENDnet TE-FP051 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
PoE (Power over Ethernet)
The Total Power over Ethernet (PoE) budget of the product TRENDnet TE-FP051 is 60 W. This budget allows for the efficient powering of multiple devices through a single network cable. Does the TRENDnet TE-FP051 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The product TRENDnet TE-FP051 has 4 Power Over Ethernet plus (PoE+) ports, allowing for efficient and simplified power supply to connected devices.
Power
The input current of the product TRENDnet TE-FP051 is 1.35 A. This input current ensures optimal performance and increased energy efficiency. The typical power consumption of the product TRENDnet TE-FP051 is 4.8 W. This feature allows for the assessment of the energy efficiency of the device. The electrical protection devices of the product TRENDnet TE-FP051 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The AC input voltage of the TRENDnet TE-FP051 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product TRENDnet TE-FP051 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. Does the TRENDnet TE-FP051 come with a power supply included? Oui. This ensures that you have everything you need for immediate use. The maximum consumption of the product TRENDnet TE-FP051 is 4.8 W. This specification allows for the assessment of the energy efficiency of the device. The DC input voltage of the product TRENDnet TE-FP051 is 48 V. This DC input voltage ensures optimal performance and compatibility with various devices.
Certificate
The certification of the product TRENDnet TE-FP051 contains CE, FCC. This certification guarantees compliance with the required safety and performance standards.
Management features
The switch type of the product TRENDnet TE-FP051 is Non-géré. This type of switch allows for advanced management and optimal control of the network.
Weight and dimensions
The width of the product TRENDnet TE-FP051 is 105 mm. This dimension is essential to ensure optimal integration into your space. The height of the product TRENDnet TE-FP051 is 28 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product TRENDnet TE-FP051 is 83 mm. This dimension allows for optimal integration into your space. The weight of the product TRENDnet TE-FP051 is 200 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging contents
Does the product TRENDnet TE-FP051 have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product.
Logistics data
The Harmonized System code for the product TRENDnet TE-FP051 is 85176990. This code allows for the unique identification of goods in international trade.
Design
Is the product TRENDnet TE-FP051 stackable? No. This product cannot be stacked. Does the product TRENDnet TE-FP051 have a mounting bracket? -. This feature determines the compatibility and ease of installation of the product. The material of the product case TRENDnet TE-FP051 is Métal. This material ensures both durability and elegance. The color of the product TRENDnet TE-FP051 is Noir. This shade gives it a modern and elegant look. Does the product TRENDnet TE-FP051 have indicators? Oui. These indicators allow you to visualize the operating status of the device. Does the product TRENDnet TE-FP051 have Wall Mounting? Oui. This feature allows the product to be mounted on the wall, thus providing space-saving and improved aesthetics.
