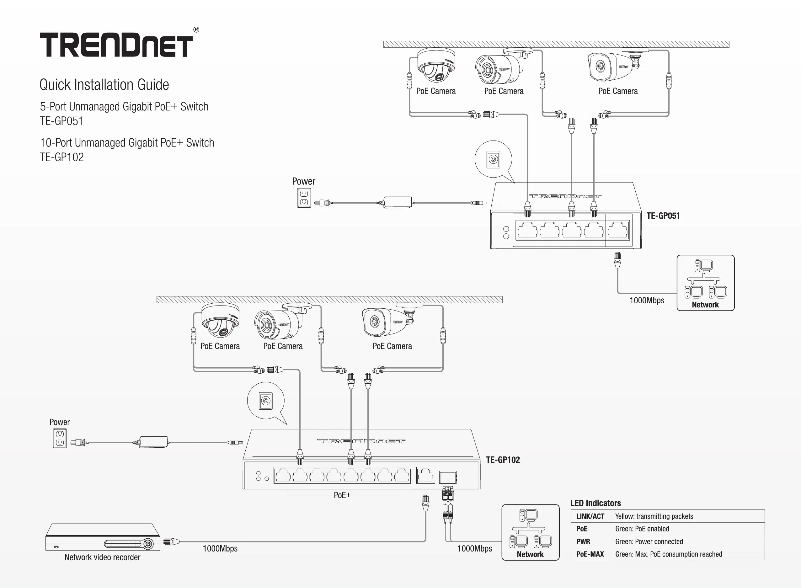

Manual of product TE-GP102
Technical Specifications TE-GP102
General Information
-
ModelTE-GP102
-
Brand
-
Category
-
Type
-
SKU1942911
-
MPN1942911
Management features
-
Switch typeUnmanaged
Connectivity
-
Number of installed SFP modules-
-
Number of installed SFP+ modules-
-
Quantity of SFP module slots1
-
Quantity of basic switching RJ-45 Ethernet ports9
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
Data transmission
-
Switching capacity20 Gbit/s
-
Transfer rate14.88 Mpps
-
Support for jumbo framesYes
-
Giant frames9000
-
MAC Directory4000 entries
PoE (Power over Ethernet)
-
Total Power over Ethernet (PoE) Budget58 W
-
Quantity of Power Over Ethernet plus (PoE+) ports8
-
Ethernet connection, supporting power over this port (PoE)Yes
Fiber optic
-
Ethernet cabling technology over fiber100BASE-FX
-
1000BASE-FX
Design
-
Stackable-
-
Assembly grid-
-
IndicatorsYes
-
Product colorBlack
-
Material of the case/bodyMetal
-
IndicatorsYes
Network
-
Support 10G-
-
Network standardsIEEE 802.3
-
Semi-duplexIEEE 802.3ab
-
Semi-duplexIEEE 802.3af
-
IEEE 802.3at
-
IEEE 802.3u
-
IEEE 802.3x
-
IEEE 802.3z
-
Yes
-
Yes
Power
-
Electrical protection devicesOver current
-
Power supply includedShort circuit
-
DC input voltageYes
-
Input current48 V
-
1.35 A
Representation / realization
-
Mean time between failures612220 h
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Width218 mm
-
Depth109 mm
-
Height28 mm
-
Weight650 g
Certificate
-
CertificationCE
-
FCC
-
UL
Packaging contents
-
Quick Start GuideYes
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand TRENDnet
Other TRENDnet
Software TRENDnet
Phones TRENDnet
Tools TRENDnet
Audio TRENDnet
More product types from brand TRENDnet
Presentation of product TE-GP102 specifications from brand TRENDnet
Management features
The switch type of the product TRENDnet TE-GP102 is Non-géré. This type of switch allows for advanced management and optimal control of the network.
Generalities
The brand of the product TRENDnet TE-GP102 is TRENDnet. This brand is known for its quality and innovation in the field of household appliances. The product model TRENDnet TE-GP102 is TE-GP102 | TE-GP102. This model ensures optimal performance and an enhanced user experience. The EAN code of the product TRENDnet TE-GP102 is 0710931162042. This code allows for the unique identification of the product in the distribution system.
Data transmission
The switching capacity of the product TRENDnet TE-GP102 is 20 Gbit/s. This specification ensures efficient data transmission. The product TRENDnet TE-GP102 supports jumbo frames. This feature allows for optimizing data transfer over the network, thereby improving overall performance. The transfer rate of the product TRENDnet TE-GP102 is 14.88 Mpps. This high rate ensures optimal performance for your networking needs. The product TRENDnet TE-GP102 contains 15000 giant frames. These giant frames allow for efficient data management within the network. The MAC directory of the product TRENDnet TE-GP102 contains 4000 entrées. This directory allows for precise identification of devices on the network.
Connectivity
The number of SFP modules installed for the product TRENDnet TE-GP102 is -. This number helps optimize connectivity and ensure efficient network performance. The number of SFP module slots for the TRENDnet TE-GP102 product is 1. These slots allow for increased flexibility in network connectivity. The number of installed SFP+ modules for the product TRENDnet TE-GP102 is -. This number helps optimize connectivity and ensure high performance. The basic switching RJ-45 Ethernet port type of the product TRENDnet TE-GP102 is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices. The number of basic switching RJ-45 Ethernet ports of the product TRENDnet TE-GP102 is 9. These ports enable efficient and fast network connectivity.
PoE (Power over Ethernet)
The Total Power over Ethernet (PoE) budget of the product TRENDnet TE-GP102 is 58 W. This budget allows for the efficient powering of multiple devices through a single network cable. The product TRENDnet TE-GP102 has 8 Power Over Ethernet plus (PoE+) ports, allowing for efficient and simplified power supply to connected devices. Does the TRENDnet TE-GP102 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Design
Does the product TRENDnet TE-GP102 have Wall Mounting? Oui. This feature allows the product to be mounted on the wall, thus providing space-saving and improved aesthetics. The color of the product TRENDnet TE-GP102 is Noir. This shade gives it a modern and elegant look. Does the product TRENDnet TE-GP102 have a mounting bracket? -. This feature determines the compatibility and ease of installation of the product. Is the product TRENDnet TE-GP102 stackable? No. This product cannot be stacked. The material of the product case TRENDnet TE-GP102 is Métal. This material ensures both durability and elegance. Does the product TRENDnet TE-GP102 have indicators? Oui. These indicators allow you to visualize the operating status of the device.
Fiber optic
The fiber Ethernet wiring of the TRENDnet TE-GP102 is of type 100BASE-FX, 1000BASE-FX. This technology allows for high-speed data transmissions over long distances, thus providing optimal performance for modern networks.
Network
The network standards of the product TRENDnet TE-GP102 are IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. These standards ensure optimal compatibility with various equipment and protocols. Does the product TRENDnet TE-GP102 have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. Does the product TRENDnet TE-GP102 have Semi-duplex? Oui. This feature allows for two-way communication, but not simultaneous, thus optimizing network efficiency. Does the product TRENDnet TE-GP102 have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges.
Power
The electrical protection devices of the product TRENDnet TE-GP102 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The input current of the product TRENDnet TE-GP102 is 1.35 A. This input current ensures optimal performance and increased energy efficiency. The DC input voltage of the product TRENDnet TE-GP102 is 48 V. This DC input voltage ensures optimal performance and compatibility with various devices. Does the TRENDnet TE-GP102 come with a power supply included? Oui. This ensures that you have everything you need for immediate use.
Representation / realization
The average time between failures of the product TRENDnet TE-GP102 is 612220 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions.
Certificate
The certification of the product TRENDnet TE-GP102 contains CE, FCC, UL. This certification guarantees compliance with the required safety and performance standards.
Weight and dimensions
The height of the product TRENDnet TE-GP102 is 28 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product TRENDnet TE-GP102 is 650 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product TRENDnet TE-GP102 is 218 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product TRENDnet TE-GP102 is 109 mm. This dimension allows for optimal integration into your space.
Packaging contents
Does the product TRENDnet TE-GP102 have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product.
Environmental conditions
The product TRENDnet TE-GP102 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product TRENDnet TE-GP102 is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Logistics data
The Harmonized System code for the product TRENDnet TE-GP102 is 85176990. This code allows for the unique identification of goods in international trade.
