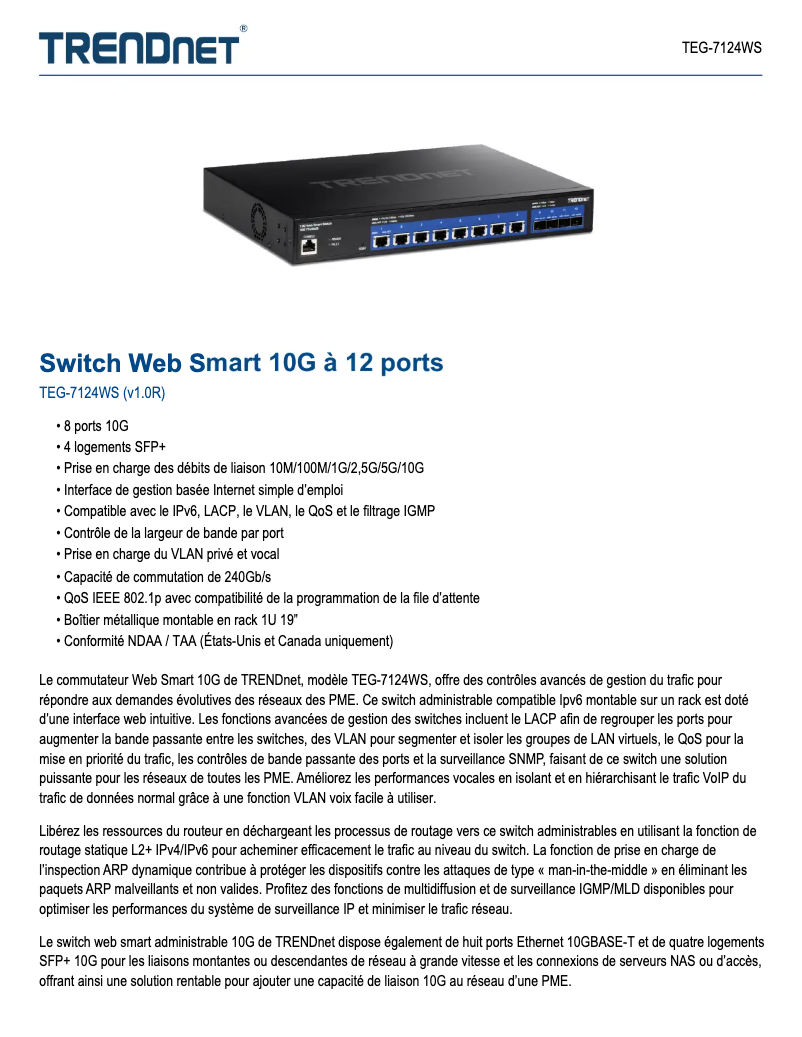

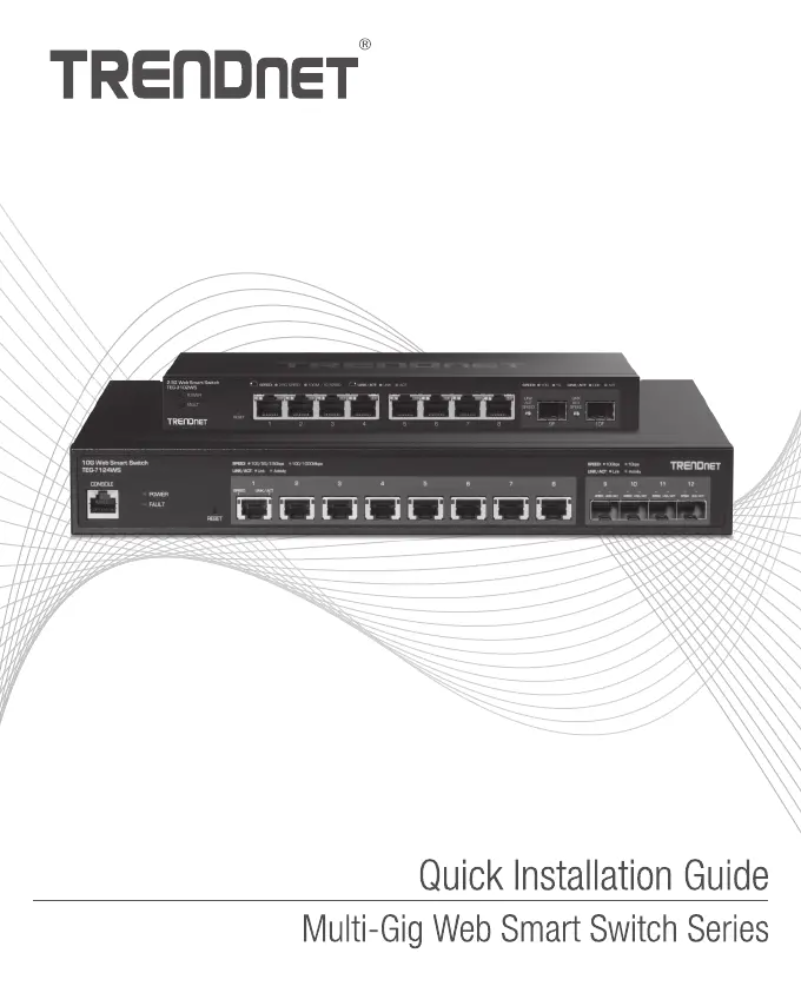

Manuals of product TEG-7124WS
Technical Specifications TEG-7124WS
General Information
-
ModelTEG-7124WS
-
Brand
-
Category
-
Type
-
SKU1942921
-
MPN1942921
Network
-
Network standardsIEEE 802.1D
-
VLAN SupportIEEE 802.1Q
-
VLAN SupportIEEE 802.1ab
-
VLAN SupportIEEE 802.1p
-
VLAN SupportIEEE 802.1s
-
VLAN SupportIEEE 802.1w
-
VLAN SupportIEEE 802.1x
-
VLAN SupportIEEE 802.3ab
-
VLAN SupportIEEE 802.3ad
-
Number of VLANsIEEE 802.3ae
-
IEEE 802.3af
-
IEEE 802.3an
-
IEEE 802.3at
-
IEEE 802.3az
-
IEEE 802.3bz
-
IEEE 802.3x
-
IEEE 802.3z
-
Yes
-
Yes
-
Yes
-
Yes
-
Yes
-
Yes
-
Yes
-
Yes
-
256
Management features
-
Switch typeManaged
-
Switching benchL2/L3/L4
-
Quality of Service (QoS)Yes
-
Quality of Service (QoS)Yes
-
Support MIBRMON MIB RFC 1271, LLDP MIB IEEE 802.1ab, RFC 1213 MIB II, RFC 1643 Ethernet intf MIB, RFC 1493 bridge MIB
Connectivity
-
Quantity of 10 G Ethernet ports (copper)8
-
Basic switching RJ-45 Ethernet port type10G Ethernet (100/1000/10000)
-
Quantity of 10 G Ethernet ports (copper)8
-
Number of installed SFP modules0
-
Number of installed SFP+ modules4
Data transmission
-
MAC Directory32000 entries
-
Switching capacity240 Gbit/s
-
Transfer rate178.56 Mpps
-
Support for jumbo framesYes
-
Support for jumbo framesYes
-
Giant frames1
-
Packet cache memory16 MB
-
Number of IP interfaces6
Security
-
IP-MAC port bindingYes
-
IP-MAC port bindingYes
-
IP-MAC port bindingYes
Multicast features
-
Multicast supportYes
-
Multicast MAC address table256 entries
-
MLD (Multicast Listener Discovery) espionagev1, v2
Protocols
-
Management protocolsHTTP/HTTPS
-
IPv4 and IPv6 FunctionsIPv4/IPv6 access-control list (ACL)
Design
-
StackableYes
-
StackableYes
-
StackableYes
-
Format1U
-
Product colorBlack
-
Material of the case/bodyMetal
-
Number of fans1 fan(s)
Weight and dimensions
-
Width325 mm
-
Depth230 mm
-
Height44 mm
-
Weight1960 g
Environmental conditions
-
Operating temperature0 - 50 °C
-
Operating relative humidity (H-H)0 - 90 %
Certificate
-
CertificationCE
-
FCC
-
UL
Representation / realization
-
Mean time between failures53900 h
-
Sound level39 dB
Similar products
More product categories from brand TRENDnet
Other TRENDnet
Software TRENDnet
Phones TRENDnet
Tools TRENDnet
Audio TRENDnet
More product types from brand TRENDnet
Presentation of product TEG-7124WS specifications from brand TRENDnet
Generalities
The brand of the product TRENDnet TEG-7124WS is TRENDnet. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product TRENDnet TEG-7124WS is 0710931140897, 710931140897. This code allows for the unique identification of the product in the distribution system. The product model TRENDnet TEG-7124WS is TEG-7124WS | TEG-7124WS. This model ensures optimal performance and an enhanced user experience.
Connectivity
The number of basic switching RJ-45 Ethernet ports of the product TRENDnet TEG-7124WS is 8. These ports enable efficient and fast network connectivity. The number of SFP modules installed for the product TRENDnet TEG-7124WS is 0. This number helps optimize connectivity and ensure efficient network performance. The basic switching RJ-45 Ethernet port type of the product TRENDnet TEG-7124WS is 10G Ethernet (100/1000/10000). This port allows for a fast and reliable connection for your network devices. The TRENDnet TEG-7124WS has 2 10 G Ethernet ports (copper). These ports provide fast and efficient connectivity for your network devices. The number of installed SFP+ modules for the product TRENDnet TEG-7124WS is 4. This number helps optimize connectivity and ensure high performance.
Management features
The switch type of the product TRENDnet TEG-7124WS is Géré. This type of switch allows for advanced management and optimal control of the network. The TRENDnet TEG-7124WS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The switchboard of the product TRENDnet TEG-7124WS contains L2/L3/L4. This switchboard allows for efficient and optimized network management. Does the product TRENDnet TEG-7124WS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The MIB support of the product TRENDnet TEG-7124WS contains RMON MIB RFC 1271, LLDP MIB IEEE 802.1ab, RFC 1213 MIB II, RFC 1643 Ethernet intf MIB, RFC 1493 bridge MIB. This support allows for efficient and standardized management of network equipment.
Network
Does the product TRENDnet TEG-7124WS have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges. The network standards of the product TRENDnet TEG-7124WS are IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z. These standards ensure optimal compatibility with various equipment and protocols. Does the product TRENDnet TEG-7124WS have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. Does the product TRENDnet TEG-7124WS have Port mirroring? Oui. This feature allows for duplicating traffic from one port to another, thus facilitating network analysis and monitoring. Does the product TRENDnet TEG-7124WS have IP Routing? Oui. This feature allows for efficient network traffic management. Does the product TRENDnet TEG-7124WS have Link Aggregation? Oui. This feature allows for optimizing network connection management for enhanced performance. Does the product TRENDnet TEG-7124WS have Spanning Tree Protocols (STP)? Oui. This protocol is essential to prevent loops in networks. Does the product TRENDnet TEG-7124WS have the HOL Function against head-of-line blocking? Oui. This feature helps optimize queue management, thereby ensuring improved network performance. Does the product TRENDnet TEG-7124WS support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The number of VLANs for the product TRENDnet TEG-7124WS is 256. This high number allows for effective network segmentation for better management and security.
Data transmission
The MAC directory of the product TRENDnet TEG-7124WS contains 32000 entrées. This directory allows for precise identification of devices on the network. The transfer rate of the product TRENDnet TEG-7124WS is 178.56 Mpps. This high rate ensures optimal performance for your networking needs. Does the product TRENDnet TEG-7124WS have a static Route? Oui. This feature allows for the definition of fixed data paths within the network, thus ensuring efficient traffic management. The switching capacity of the product TRENDnet TEG-7124WS is 240 Gbit/s. This specification ensures efficient data transmission. The product TRENDnet TEG-7124WS supports jumbo frames. This feature allows for optimizing data transfer over the network, thereby improving overall performance. The product TRENDnet TEG-7124WS contains 15000 giant frames. These giant frames allow for efficient data management within the network. The packet cache memory of the product TRENDnet TEG-7124WS contains 16 Mo. This memory helps optimize data transmission by temporarily storing packets for faster access. The number of IP interfaces of the product TRENDnet TEG-7124WS is 6. This feature allows for efficient management of network connections.
Security
Does the product TRENDnet TEG-7124WS have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. Does the product TRENDnet TEG-7124WS have an IP-MAC port binding? Oui. This feature enhances network security by associating IP addresses with specific MAC addresses. Does the product TRENDnet TEG-7124WS have Loop Protection? Oui. This feature ensures enhanced security for optimal use.
Multicast features
Does the product TRENDnet TEG-7124WS support multicast? Oui. This support allows for efficient data transmission to multiple recipients simultaneously. The MLD (Multicast Listener Discovery) spying of the product TRENDnet TEG-7124WS contains v1, v2. This specification allows for the detection of multicast groups to which devices are subscribed, thereby optimizing network traffic management. The multicast MAC address table of the TRENDnet TEG-7124WS product contains 256 entrées. This table allows for efficient management of MAC addresses for multicast transmissions.
Protocols
The product TRENDnet TEG-7124WS has IPv4 and IPv6 Functions. These functions include essential tools such as ping, tracert, and Telnet in IPv6, allowing for efficient management of modern networks. The product management protocol TRENDnet TEG-7124WS contains HTTP/HTTPS. This protocol allows for efficient and centralized management of network devices.
Certificate
The certification of the product TRENDnet TEG-7124WS contains CE, FCC, UL. This certification guarantees compliance with the required safety and performance standards.
Design
Does the product TRENDnet TEG-7124WS have indicators? Oui. These indicators allow you to visualize the operating status of the device. Does the product TRENDnet TEG-7124WS have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. The format of the product TRENDnet TEG-7124WS is a bar. This format allows for practical and efficient use in various contexts. Is the product TRENDnet TEG-7124WS stackable? No. This product cannot be stacked. The color of the product TRENDnet TEG-7124WS is Noir. This shade gives it a modern and elegant look. The material of the product case TRENDnet TEG-7124WS is Métal. This material ensures both durability and elegance. The number of fans of the product TRENDnet TEG-7124WS is 1 ventilateur(s). This design allows for better air circulation and optimal performance.
Weight and dimensions
The width of the product TRENDnet TEG-7124WS is 325 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product TRENDnet TEG-7124WS is 230 mm. This dimension allows for optimal integration into your space. The height of the product TRENDnet TEG-7124WS is 44 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product TRENDnet TEG-7124WS is 1960 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The product TRENDnet TEG-7124WS has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product TRENDnet TEG-7124WS is 0 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Representation / realization
The noise level of the product TRENDnet TEG-7124WS is 39 dB. This noise level allows for pleasant use without excessive noise disturbances. The average time between failures of the product TRENDnet TEG-7124WS is 53900 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions.
