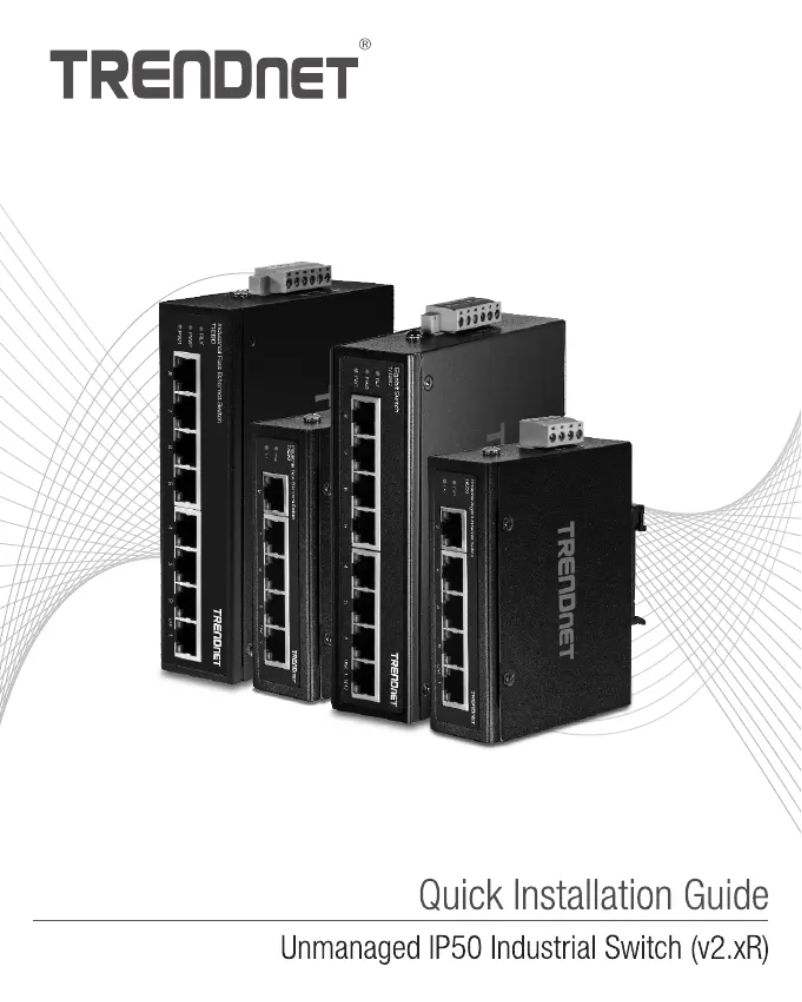

Manuals of product TI-E50
Technical Specifications TI-E50
General Information
-
ModelTI-E50
-
Brand
-
Category
-
Type
-
SKU1927568
-
MPN1927568
Management features
-
Switch typeUnmanaged
Network
-
Network standardsIEEE 802.3
-
Full duplexIEEE 802.3ab
-
IEEE 802.3u
-
IEEE 802.3x
-
Yes
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports5
-
Basic switching RJ-45 Ethernet port typeFast Ethernet (10/100)
-
Number of installed SFP+ modules0
-
Number of installed SFP+ modules0
Design
-
Stackable-
-
DIN rail assemblyYes
-
Product colorBlack
-
Assembly gridNo
-
DIN rail assemblyYes
-
DIN rail assemblyYes
-
International Protection Code (IP)IP30
Data transmission
-
MAC Directory1000 entries
-
Packet cache memory0.056 MB
-
Switching capacity1 Gbit/s
-
Transfer rate0.744 Mpps
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)No
Power
-
Power supply included-
-
Redundant power supply (RPS)Yes
-
DC input voltage12 - 56 V
-
Consumption (max)2.24 W
Representation / realization
-
Mean time between failures510304 h
Environmental conditions
-
Operating temperature-40 - 75 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Width104 mm
-
Depth82 mm
-
Height32 mm
-
Weight486 g
Certificate
-
CertificationCE
-
FCC
-
IEC 60068-2-27
-
IEC 60068-2-32
-
IEC 60068-2-6
-
IEC 61000-4-2
-
IEC 61000-4-4
-
IEC 61000-4-5
Packaging contents
-
Quick Start GuideYes
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand TRENDnet
Other TRENDnet
Software TRENDnet
Phones TRENDnet
Tools TRENDnet
Audio TRENDnet
More product types from brand TRENDnet
Presentation of product TI-E50 specifications from brand TRENDnet
Management features
The switch type of the product TRENDnet TI-E50 is Non-géré. This type of switch allows for advanced management and optimal control of the network.
Network
The network standards of the product TRENDnet TI-E50 are IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. Does the product TRENDnet TI-E50 have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges.
Connectivity
The number of installed SFP+ modules for the product TRENDnet TI-E50 is 0. This number helps optimize connectivity and ensure high performance. The basic switching RJ-45 Ethernet port type of the product TRENDnet TI-E50 is Fast Ethernet (10/100). This port allows for a fast and reliable connection for your network devices. The number of basic switching RJ-45 Ethernet ports of the product TRENDnet TI-E50 is 5. These ports enable efficient and fast network connectivity. The number of SFP modules installed for the product TRENDnet TI-E50 is 0. This number helps optimize connectivity and ensure efficient network performance.
Generalities
The EAN code of the product TRENDnet TI-E50 is 0710931161755. This code allows for the unique identification of the product in the distribution system. The brand of the product TRENDnet TI-E50 is TRENDnet. This brand is known for its quality and innovation in the field of household appliances. The product model TRENDnet TI-E50 is TI-E50 | TI-E50. This model ensures optimal performance and an enhanced user experience.
Data transmission
The packet cache memory of the product TRENDnet TI-E50 contains 0.056 Mo. This memory helps optimize data transmission by temporarily storing packets for faster access. The switching capacity of the product TRENDnet TI-E50 is 1 Gbit/s. This specification ensures efficient data transmission. The transfer rate of the product TRENDnet TI-E50 is 0.744 Mpps. This high rate ensures optimal performance for your networking needs. The MAC directory of the product TRENDnet TI-E50 contains 1000 entrées. This directory allows for precise identification of devices on the network.
Design
Does the product TRENDnet TI-E50 have indicators? Oui. These indicators allow you to visualize the operating status of the device. Does the product TRENDnet TI-E50 have a mounting bracket? Non. This feature determines the compatibility and ease of installation of the product. The color of the product TRENDnet TI-E50 is Noir. This shade gives it a modern and elegant look. Is the product TRENDnet TI-E50 stackable? No. This product cannot be stacked. Does the product TRENDnet TI-E50 have Wall Mounting? Oui. This feature allows the product to be mounted on the wall, thus providing space-saving and improved aesthetics. The International Protection Code (IP) for product TRENDnet TI-E50 contains IP30. This code indicates the level of protection against solid objects and moisture. Does the product TRENDnet TI-E50 have DIN rail mounting? Oui. This feature allows for easy and quick installation on standard DIN rails.
PoE (Power over Ethernet)
Does the TRENDnet TI-E50 have an Ethernet connection, supporting power over this port (PoE)? Non. This feature allows for simplified and efficient power supply to connected devices.
Power
The maximum consumption of the product TRENDnet TI-E50 is 2.24 W. This specification allows for the assessment of the energy efficiency of the device. Does the TRENDnet TI-E50 come with a power supply included? -. This ensures that you have everything you need for immediate use. The DC input voltage of the product TRENDnet TI-E50 is 12 - 56 V. This DC input voltage ensures optimal performance and compatibility with various devices. Does the product TRENDnet TI-E50 have redundant power supply (RPS)? No. This feature is essential to ensure service continuity in case of failure of the main power supply.
Representation / realization
The average time between failures of the product TRENDnet TI-E50 is 510304 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions.
Environmental conditions
The product TRENDnet TI-E50 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product TRENDnet TI-E50 is -40 - 75 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The width of the product TRENDnet TI-E50 is 104 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product TRENDnet TI-E50 is 486 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product TRENDnet TI-E50 is 82 mm. This dimension allows for optimal integration into your space. The height of the product TRENDnet TI-E50 is 32 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Certificate
The certification of the product TRENDnet TI-E50 contains CE\nFCC\nIEC 60068-2-27\nIEC 60068-2-32\nIEC 60068-2-6\nIEC 61000-4-2\nIEC 61000-4-4\nIEC 61000-4-5. This certification guarantees compliance with the required safety and performance standards.
Packaging contents
Does the product TRENDnet TI-E50 have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product.
Logistics data
The Harmonized System code for the product TRENDnet TI-E50 is 85176990. This code allows for the unique identification of goods in international trade.
