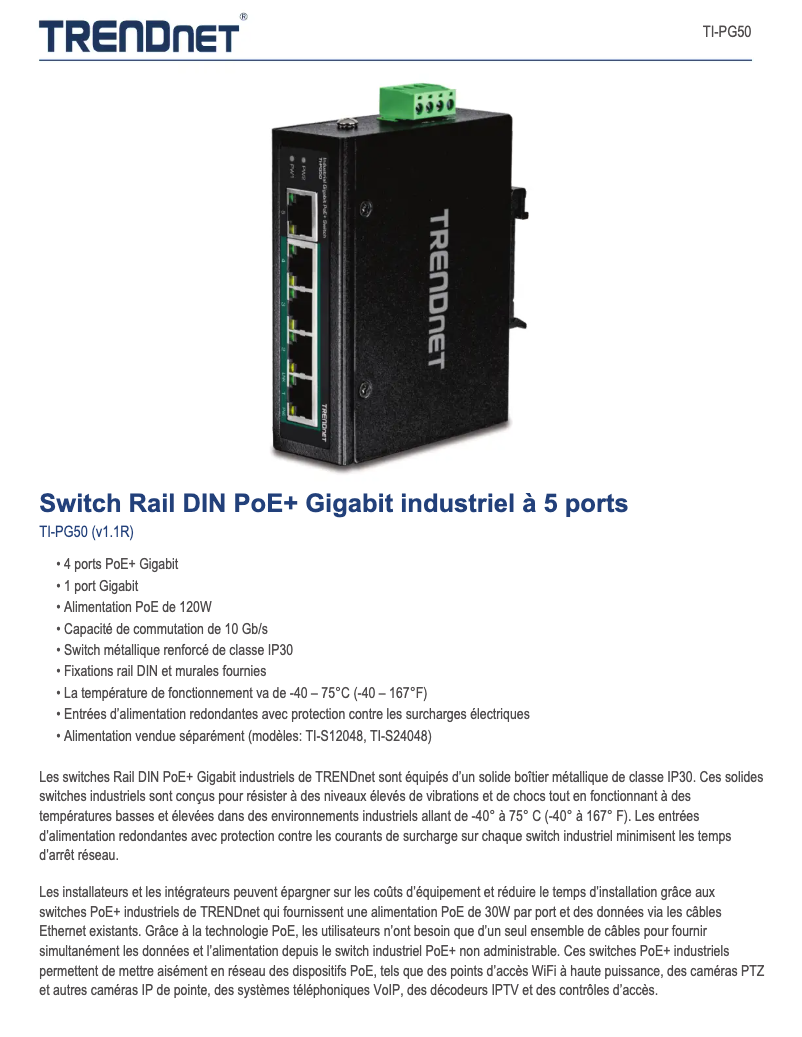

Manuals of product TI-PG50
Technical Specifications TI-PG50
General Information
-
ModelTI-PG50
-
Brand
-
Category
-
Type
-
SKU1942923
-
MPN1942923
Management features
-
Switching bench-
-
Web-based management-
-
Switch typeUnmanaged
-
User operation logYes
-
User operation logYes
-
User operation logYes
-
User operation logYes
Connectivity
-
Number of installed SFP modules-
-
Number of installed SFP+ modules-
-
Quantity of basic switching RJ-45 Ethernet ports4
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
Network
-
Support 10GNo
-
Network standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
-
Copper Ethernet cabling technology1000BASE-T
-
VLAN SupportYes
-
VLAN SupportYes
-
VLAN SupportYes
-
VLAN SupportYes
-
VLAN SupportYes
-
VLAN SupportYes
-
VLAN SupportYes
-
LAN Ethernet: data transfer rate10,100,480,800,1000 Mbit/s
-
VLAN SupportYes
-
VLAN SupportYes
Data transmission
-
MAC Directory2000 entries
-
Switching capacity10 Gbit/s
-
Transfer rate7.44 Mpps
-
Static routeYes
-
Static routeYes
-
Giant frames9000
-
Static routeYes
-
Packet cache memory0.128 MB
Security
-
DHCP FunctionsDHCP client
-
Password protectionDHCP server
-
Password protectionYes
-
Password protectionYes
-
Password protectionYes
-
Yes
Certificate
-
CertificationCE
-
FCC
-
UL
-
Shock (IEC 60068-2-27)
-
Freefall (IEC 60068-2-32)
-
Vibration (IEC 60068-2-6)
-
IEC 61000-4-2
-
IEC 61000-4-4
-
IEC 61000-4-5
Design
-
Format-
-
Wall mountingYes
-
StackableNo
-
Product colorBlack
-
Wall mountingYes
-
Wall mountingYes
Representation / realization
-
Mean time between failures538451 h
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Total Power over Ethernet (PoE) Budget120 W
-
Power over Ethernet (PoE) powered port30 W
-
Type Power over Ethernet (PoE) supportedActive PoE
-
Quantity of Power Over Ethernet plus (PoE+) ports4
Power
-
Power supply includedNo
-
DC input voltage48 - 56 V
-
Consumption (max)2.24 W
Environmental conditions
-
Operating temperature-40 - 75 °C
-
Operating relative humidity (H-H)10 - 95 %
Weight and dimensions
-
Width104 mm
-
Depth32 mm
-
Height82 mm
-
Weight190 g
Packaging contents
-
Rack mounting kitYes
-
Rack mounting kitYes
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand TRENDnet
Other TRENDnet
Software TRENDnet
Phones TRENDnet
Tools TRENDnet
Audio TRENDnet
More product types from brand TRENDnet
Presentation of product TI-PG50 specifications from brand TRENDnet
Generalities
The brand of the product TRENDnet TI-PG50 is TRENDnet. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product TRENDnet TI-PG50 is 0710931161717. This code allows for the unique identification of the product in the distribution system. The product model TRENDnet TI-PG50 is TI-PG50 | TI-PG50. This model ensures optimal performance and an enhanced user experience.
Connectivity
The basic switching RJ-45 Ethernet port type of the product TRENDnet TI-PG50 is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices. The number of SFP modules installed for the product TRENDnet TI-PG50 is -. This number helps optimize connectivity and ensure efficient network performance. The number of installed SFP+ modules for the product TRENDnet TI-PG50 is -. This number helps optimize connectivity and ensure high performance. The number of basic switching RJ-45 Ethernet ports of the product TRENDnet TI-PG50 is 4. These ports enable efficient and fast network connectivity.
Management features
The switchboard of the product TRENDnet TI-PG50 contains -. This switchboard allows for efficient and optimized network management. The switch type of the product TRENDnet TI-PG50 is Non-géré. This type of switch allows for advanced management and optimal control of the network. Does the product TRENDnet TI-PG50 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The TRENDnet TI-PG50 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product TRENDnet TI-PG50 have System Event Log? Oui. This log allows tracking and recording all system activities and events to ensure optimal security. Does the product TRENDnet TI-PG50 have the location settings configuration (CLI)? Oui. This feature allows for precise and tailored management of geographical settings. Does the product TRENDnet TI-PG50 have a user operation log? Oui. This log allows tracking all actions performed by the user, thus ensuring better management and traceability of operations.
Certificate
The certification of the product TRENDnet TI-PG50 contains CE, FCC, UL, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5. This certification guarantees compliance with the required safety and performance standards.
Security
Does the product TRENDnet TI-PG50 have IGMP Snooping? Oui. This feature allows for efficient management of multicast traffic, thereby enhancing network security and performance. Does the product TRENDnet TI-PG50 have an IP-MAC port binding? Oui. This feature enhances network security by associating IP addresses with specific MAC addresses. Does the product TRENDnet TI-PG50 have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. The product TRENDnet TI-PG50 has DHCP functions. These functions allow for efficient management of IP addresses within a network, thus facilitating the connection of devices. Does the product TRENDnet TI-PG50 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access.
Network
Does the product TRENDnet TI-PG50 have Port mirroring? Oui. This feature allows for duplicating traffic from one port to another, thus facilitating network analysis and monitoring. Does the product TRENDnet TI-PG50 have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. The network standards of the product TRENDnet TI-PG50 are IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. The copper Ethernet wiring of the product TRENDnet TI-PG50 contains 1000BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. Does the product TRENDnet TI-PG50 have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges. Does the product TRENDnet TI-PG50 have IP Routing? Oui. This feature allows for efficient network traffic management. Does the product TRENDnet TI-PG50 have Routing on policy? Oui. This feature allows for optimizing data routing based on specific rules, thereby ensuring efficient network traffic management. Does the product TRENDnet TI-PG50 have Link Aggregation? Oui. This feature allows for optimizing network connection management for enhanced performance. The data transfer rate of the product TRENDnet TI-PG50 is 10,100,480,800,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the product TRENDnet TI-PG50 have Auto MDI/MDI-X? Oui. This specification allows for automatic detection of network connections, thus facilitating use and configuration. Does the product TRENDnet TI-PG50 have Flow Control Assistance? Oui. This feature allows for efficient management of data flows and optimization of system performance. Does the product TRENDnet TI-PG50 have automatic negotiation? Oui. This feature allows for optimizing exchanges by automating the negotiation process. Does the product TRENDnet TI-PG50 support VLAN? Oui. This feature allows for optimized network management by segmenting traffic.
Data transmission
The MAC directory of the product TRENDnet TI-PG50 contains 2000 entrées. This directory allows for precise identification of devices on the network. The product TRENDnet TI-PG50 supports jumbo frames. This feature allows for optimizing data transfer over the network, thereby improving overall performance. The switching capacity of the product TRENDnet TI-PG50 is 10 Gbit/s. This specification ensures efficient data transmission. The transfer rate of the product TRENDnet TI-PG50 is 7.44 Mpps. This high rate ensures optimal performance for your networking needs. Does the product TRENDnet TI-PG50 have Recording-and-rebroadcasting? Oui. This feature allows for efficient data capture and retransmission. The product TRENDnet TI-PG50 contains 15000 giant frames. These giant frames allow for efficient data management within the network. Does the product TRENDnet TI-PG50 have a static Route? Oui. This feature allows for the definition of fixed data paths within the network, thus ensuring efficient traffic management. The packet cache memory of the product TRENDnet TI-PG50 contains 0.128 Mo. This memory helps optimize data transmission by temporarily storing packets for faster access.
Representation / realization
The average time between failures of the product TRENDnet TI-PG50 is 538451 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions.
PoE (Power over Ethernet)
Does the TRENDnet TI-PG50 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The Total Power over Ethernet (PoE) budget of the product TRENDnet TI-PG50 is 120 W. This budget allows for the efficient powering of multiple devices through a single network cable. The product TRENDnet TI-PG50 has a PoE (Power over Ethernet) power port of 30 W. This feature allows compatible devices to be powered through the same Ethernet cable, thereby simplifying installation and reducing the need for additional electrical outlets. The Power over Ethernet (PoE) type of the product TRENDnet TI-PG50 supports Active PoE. This feature allows for efficient and simplified power supply via the network cable. The product TRENDnet TI-PG50 has 4 Power Over Ethernet plus (PoE+) ports, allowing for efficient and simplified power supply to connected devices.
Design
The color of the product TRENDnet TI-PG50 is Noir. This shade gives it a modern and elegant look. Does the product TRENDnet TI-PG50 have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. The format of the product TRENDnet TI-PG50 is a bar. This format allows for practical and efficient use in various contexts. Is the product TRENDnet TI-PG50 stackable? No. This product cannot be stacked. Does the product TRENDnet TI-PG50 have indicators? Oui. These indicators allow you to visualize the operating status of the device. Does the product TRENDnet TI-PG50 have Wall Mounting? Oui. This feature allows the product to be mounted on the wall, thus providing space-saving and improved aesthetics.
Power
The DC input voltage of the product TRENDnet TI-PG50 is 48 - 56 V. This DC input voltage ensures optimal performance and compatibility with various devices. Does the TRENDnet TI-PG50 come with a power supply included? Non. This ensures that you have everything you need for immediate use. The maximum consumption of the product TRENDnet TI-PG50 is 2.24 W. This specification allows for the assessment of the energy efficiency of the device.
Environmental conditions
The operating temperature of the product TRENDnet TI-PG50 is -40 - 75 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product TRENDnet TI-PG50 has an operating relative humidity (H-H) of 10 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging contents
Does the product TRENDnet TI-PG50 have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. Does the product TRENDnet TI-PG50 have a rack mounting kit? Oui. This kit allows for easy and secure installation in a standard rack.
Weight and dimensions
The width of the product TRENDnet TI-PG50 is 104 mm. This dimension is essential to ensure optimal integration into your space. The height of the product TRENDnet TI-PG50 is 82 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product TRENDnet TI-PG50 is 32 mm. This dimension allows for optimal integration into your space. The weight of the product TRENDnet TI-PG50 is 190 g. This weight is ideal for ensuring optimal use and easy handling.
Logistics data
The Harmonized System code for the product TRENDnet TI-PG50 is 85176990. This code allows for the unique identification of goods in international trade.
