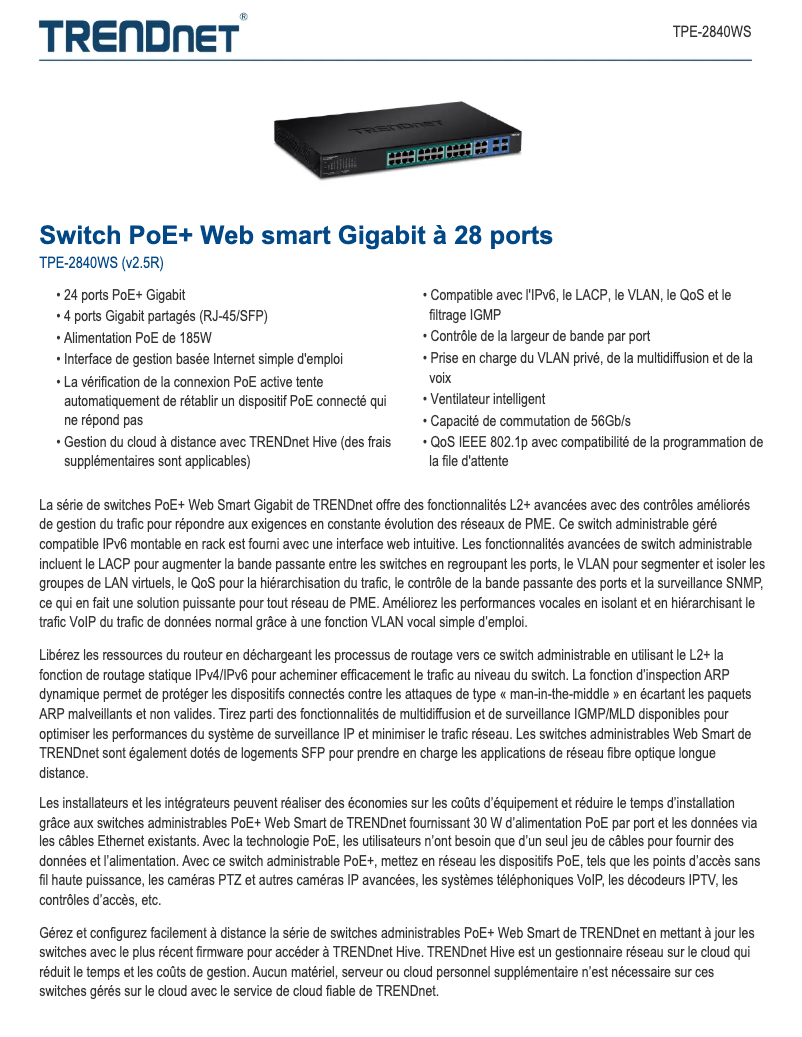

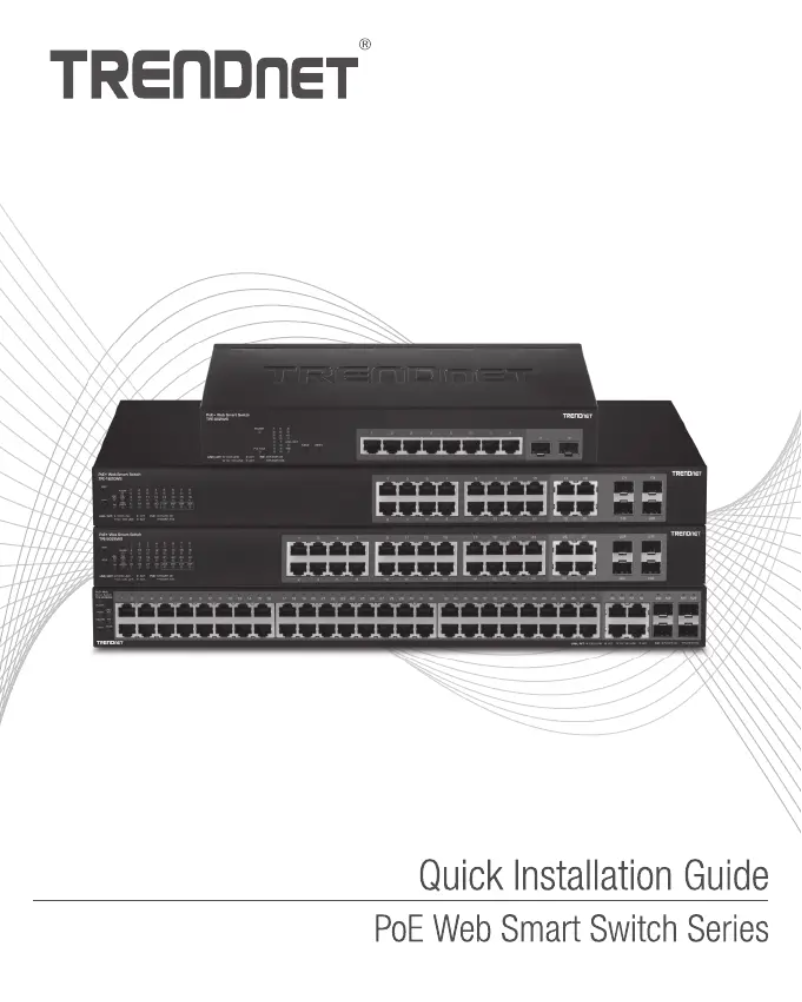

Manuals of product TPE-2840WS
Technical Specifications TPE-2840WS
General Information
-
ModelTPE-2840WS
-
Brand
-
Category
-
Type
-
SKU1942963
-
MPN1942963
Management features
-
Switching bench-
-
Switch typeManaged
-
Support MIBMIB, MIB II
-
Web-based managementYes
-
Web-based managementYes
Multicast features
-
Multicast supportYes
Connectivity
-
Number of ports .Gigabit Ethernet (copper)24
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
-
Number of ports .Gigabit Ethernet (copper)24
-
Quantity of SFP module slots4
Network
-
Copper Ethernet cabling technology1000BASE-T
-
Network standards100BASE-TX
-
VLAN Support10BASE-T
-
VLAN SupportIEEE 802.1ab
-
VLAN SupportIEEE 802.1D
-
VLAN SupportIEEE 802.1p
-
VLAN SupportIEEE 802.1Q
-
Support 10GIEEE 802.1s
-
VLAN SupportIEEE 802.1w
-
Number of VLANsIEEE 802.3
-
IEEE 802.3ab
-
IEEE 802.3ad
-
IEEE 802.3af
-
IEEE 802.3at
-
IEEE 802.3az
-
IEEE 802.3u
-
IEEE 802.3x
-
IEEE 802.3z
-
Yes
-
Yes
-
Yes
-
Yes
-
Yes
-
No
-
Yes
-
256
Security
-
SSH/SSL SupportYes
-
Security-supported algorithm802.1x RADIUS, SSL/TLS
-
SSH/SSL SupportYes
-
SSH/SSL SupportYes
-
SSH/SSL SupportYes
Data transmission
-
MAC Directory16000 entries
-
Switching capacity56 Gbit/s
-
Flow41.7 Mpps
Protocols
-
Management protocolsSNMP v1/v2c/v3
-
RMON v1
-
HTTP/HTTPS
Design
-
Stackable-
-
IndicatorsYes
-
Product colorBlack
-
Format1U
-
IndicatorsYes
-
Number of fans3 fan(s)
Certificate
-
CertificationCE
-
FCC
Representation / realization
-
Sound level54 dB
-
Buffer size1024 Ko
-
Mean time between failures257362 h
Power
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption240.2 W
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power over Ethernet (PoE) Number of ports20
-
Quantity of Power Over Ethernet plus (PoE+) ports4
-
Total Power over Ethernet (PoE) Budget185 W
Environmental conditions
-
Operating temperature-5 - 50 °C
-
Operating relative humidity (H-H)0 - 90 %
Weight and dimensions
-
Width440 mm
-
Depth250 mm
-
Height44.45 mm
-
Weight3800 g
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand TRENDnet
Other TRENDnet
Software TRENDnet
Phones TRENDnet
Tools TRENDnet
Audio TRENDnet
More product types from brand TRENDnet
Presentation of product TPE-2840WS specifications from brand TRENDnet
Multicast features
Does the product TRENDnet TPE-2840WS support multicast? Oui. This support allows for efficient data transmission to multiple recipients simultaneously.
Generalities
The brand of the product TRENDnet TPE-2840WS is TRENDnet. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product TRENDnet TPE-2840WS is 0710931160208, 0710931160215, 0818279198652, 0818285603843, 5054629210994, 710931160208. This code allows for the unique identification of the product in the distribution system. The product model TRENDnet TPE-2840WS is TPE-2840WS | TPE-2840WS. This model ensures optimal performance and an enhanced user experience.
Connectivity
The number of basic switching RJ-45 Ethernet ports of the product TRENDnet TPE-2840WS is 24. These ports enable efficient and fast network connectivity. The number of SFP module slots for the TRENDnet TPE-2840WS product is 4. These slots allow for increased flexibility in network connectivity. The number of Gigabit Ethernet (copper) ports of the product TRENDnet TPE-2840WS is 24. These ports provide fast and reliable connectivity for your devices. The basic switching RJ-45 Ethernet port type of the product TRENDnet TPE-2840WS is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices.
Management features
The MIB support of the product TRENDnet TPE-2840WS contains MIB, MIB II. This support allows for efficient and standardized management of network equipment. The switchboard of the product TRENDnet TPE-2840WS contains -. This switchboard allows for efficient and optimized network management. Does the product TRENDnet TPE-2840WS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The switch type of the product TRENDnet TPE-2840WS is Géré. This type of switch allows for advanced management and optimal control of the network. The TRENDnet TPE-2840WS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Protocols
The product management protocol TRENDnet TPE-2840WS contains SNMP v1/v2c/v3, RMON v1, HTTP/HTTPS. This protocol allows for efficient and centralized management of network devices.
Data transmission
The MAC directory of the product TRENDnet TPE-2840WS contains 16000 entrées. This directory allows for precise identification of devices on the network. The switching capacity of the product TRENDnet TPE-2840WS is 56 Gbit/s. This specification ensures efficient data transmission. The flow rate of the product TRENDnet TPE-2840WS is 41.7 Mpps. This high flow rate ensures exceptional sound quality and precision in capturing audio details.
Network
The copper Ethernet wiring of the product TRENDnet TPE-2840WS contains 1000BASE-T, 100BASE-TX, 10BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. Does the product TRENDnet TPE-2840WS have Flow Control Assistance? Oui. This feature allows for efficient management of data flows and optimization of system performance. The network standards of the product TRENDnet TPE-2840WS are IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. These standards ensure optimal compatibility with various equipment and protocols. Does the product TRENDnet TPE-2840WS have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges. Does the product TRENDnet TPE-2840WS have Port mirroring? Oui. This feature allows for duplicating traffic from one port to another, thus facilitating network analysis and monitoring. Does the product TRENDnet TPE-2840WS have Link Aggregation? Oui. This feature allows for optimizing network connection management for enhanced performance. Does the product TRENDnet TPE-2840WS have Spanning Tree Protocols (STP)? Oui. This protocol is essential to prevent loops in networks. Does the product TRENDnet TPE-2840WS have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. Does the product TRENDnet TPE-2840WS support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The number of VLANs for the product TRENDnet TPE-2840WS is 256. This high number allows for effective network segmentation for better management and security.
Security
Does the product TRENDnet TPE-2840WS have MAC Address Filtering? Oui. This feature allows you to control network access by only allowing devices with specified MAC addresses. Does the product TRENDnet TPE-2840WS have IGMP Snooping? Oui. This feature allows for efficient management of multicast traffic, thereby enhancing network security and performance. The supported security algorithm of the product TRENDnet TPE-2840WS contains 802.1x RADIUS, SSL/TLS. This algorithm ensures optimal protection of your data. Does the product TRENDnet TPE-2840WS have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights. Does the TRENDnet TPE-2840WS support SSH/SSL? Oui. This support ensures secure and encrypted communication to protect your data.
Certificate
The certification of the product TRENDnet TPE-2840WS contains CE, FCC. This certification guarantees compliance with the required safety and performance standards.
Design
The format of the product TRENDnet TPE-2840WS is a bar. This format allows for practical and efficient use in various contexts. Does the product TRENDnet TPE-2840WS have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. The color of the product TRENDnet TPE-2840WS is Noir. This shade gives it a modern and elegant look. Does the product TRENDnet TPE-2840WS have indicators? Oui. These indicators allow you to visualize the operating status of the device. The number of fans of the product TRENDnet TPE-2840WS is 3 ventilateur(s). This design allows for better air circulation and optimal performance. Is the product TRENDnet TPE-2840WS stackable? No. This product cannot be stacked.
Representation / realization
The noise level of the product TRENDnet TPE-2840WS is 54 dB. This noise level allows for pleasant use without excessive noise disturbances. The average time between failures of the product TRENDnet TPE-2840WS is 257362 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The buffer size of the product TRENDnet TPE-2840WS is 1024 Ko. This feature helps optimize data processing and improve overall performance.
Power
The AC input frequency of the product TRENDnet TPE-2840WS is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the TRENDnet TPE-2840WS is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The typical power consumption of the product TRENDnet TPE-2840WS is 240.2 W. This feature allows for the assessment of the energy efficiency of the device.
Weight and dimensions
The width of the product TRENDnet TPE-2840WS is 440 mm. This dimension is essential to ensure optimal integration into your space. The height of the product TRENDnet TPE-2840WS is 44.45 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product TRENDnet TPE-2840WS is 250 mm. This dimension allows for optimal integration into your space. The weight of the product TRENDnet TPE-2840WS is 3800 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The operating temperature of the product TRENDnet TPE-2840WS is -5 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product TRENDnet TPE-2840WS has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
PoE (Power over Ethernet)
Does the TRENDnet TPE-2840WS have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The Total Power over Ethernet (PoE) budget of the product TRENDnet TPE-2840WS is 185 W. This budget allows for the efficient powering of multiple devices through a single network cable. The product TRENDnet TPE-2840WS has 4 Power Over Ethernet plus (PoE+) ports, allowing for efficient and simplified power supply to connected devices. The number of Power over Ethernet (PoE) ports of the product TRENDnet TPE-2840WS is 20. This number of ports allows for efficient and simplified connectivity to power your network devices.
Logistics data
The Harmonized System code for the product TRENDnet TPE-2840WS is 85176990. This code allows for the unique identification of goods in international trade.
