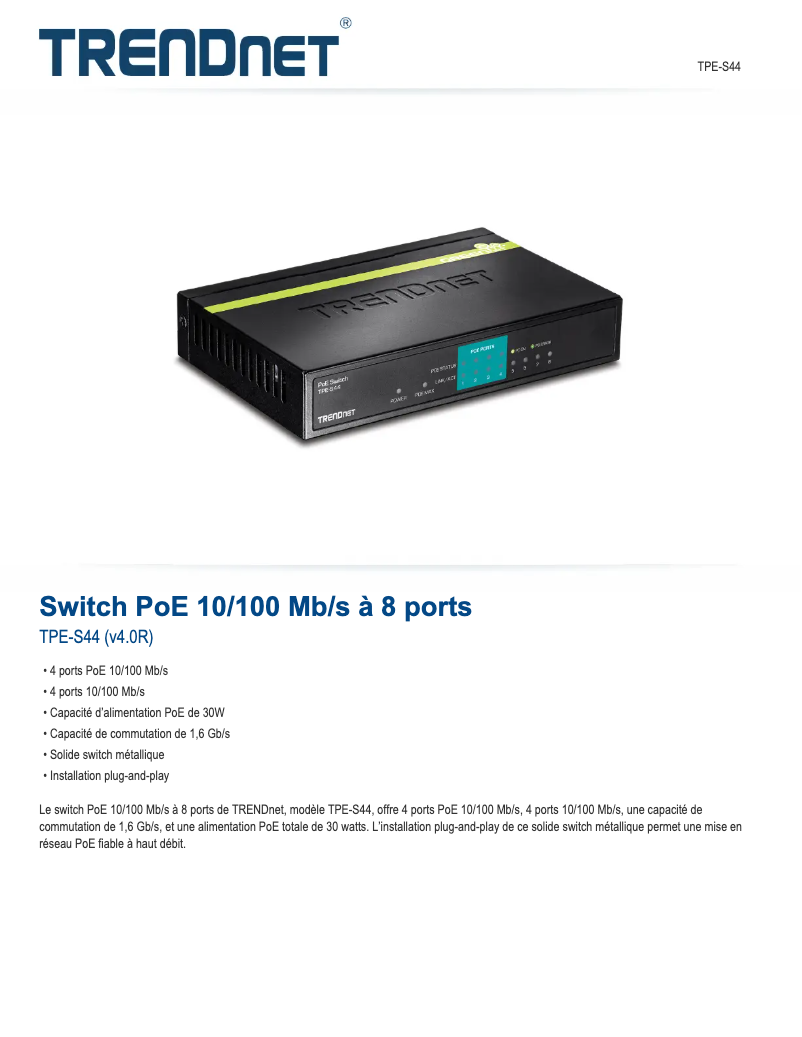

Manuals of product TPE-S44
Technical Specifications TPE-S44
General Information
-
ModelTPE-S44
-
Brand
-
Category
-
Type
-
SKU1927598
-
MPN1927598
Data transmission
-
Maximum data transfer rate0.1 Gbit/s
-
Data transfer rate10/100 Mbps
Network
-
Auto MDI/MDI-XYes
-
Auto MDI/MDI-XYes
-
Copper Ethernet cabling technology100Base-TX, 10Base-T
-
Network standardsIEEE 802.3, IEEE 802.3af
Other features
-
Network featuresEthernet, Fast Ethernet
-
Connectivity technologyWired
-
Dimensions (LxWxH)171 x 98 x 29 mm
-
Connectivity LEDsYes
-
Power requirements48V DC, 0.8A
Management features
-
Switch typeUnmanaged
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports8
-
Power connectorDC-in jack
Weight and dimensions
-
Weight430 g
Design
-
Assembly gridNo
-
Product colorBlue
-
Assembly gridNo
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
Certificate
-
CertificationFCC
-
CE
Environmental conditions
-
Operating relative humidity (H-H)10 - 90 %
-
Operating temperature0 - 40 °C
-
Temperature out of operation-10 - 70 °C
Protocols
-
Supported protocolsCSMA/CD
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand TRENDnet
Other TRENDnet
Software TRENDnet
Phones TRENDnet
Tools TRENDnet
Audio TRENDnet
More product types from brand TRENDnet
Presentation of product TPE-S44 specifications from brand TRENDnet
Network
Does the product TRENDnet TPE-S44 have Full duplex? Oui. This feature allows simultaneous communication in both directions, thereby improving the efficiency of data exchanges. The copper Ethernet wiring of the product TRENDnet TPE-S44 contains 100Base-TX, 10Base-T. This type of technology enables fast and reliable network connections, suitable for various environments. The network standards of the product TRENDnet TPE-S44 are IEEE 802.3, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the product TRENDnet TPE-S44 have Auto MDI/MDI-X? Oui. This specification allows for automatic detection of network connections, thus facilitating use and configuration.
Other features
The TRENDnet TPE-S44 network has Ethernet, Fast Ethernet network features. These features ensure a fast and reliable connection for all your digital needs. The dimensions (LxWxH) of the product TRENDnet TPE-S44 are 171 x 98 x 29 mm. These dimensions ensure an optimal fit in your space. Does the product TRENDnet TPE-S44 have connectivity LEDs? Oui. These LEDs provide a visual connection and facilitate interaction with the user. The product TRENDnet TPE-S44 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The power requirements of the product TRENDnet TPE-S44 are 48V DC, 0.8A. These requirements ensure optimal operation of the device.
Generalities
The product model TRENDnet TPE-S44 is TPE-S44 | TPE-S44. This model ensures optimal performance and an enhanced user experience. The EAN code of the product TRENDnet TPE-S44 is 0078667255200, 0132018278680, 0168141531286, 0172302746785, 0172304263310, 0191120081298, 0521375293045, 0662705127071, 0666674962787, 0710931505061, 0710931981391, 0734911303645, 0763616001792, 0766150031713, 0803982830876, 0809185304466, 0809385153970, 0882230529861, 0898029627168, 0956257172437, 0971472917830, 4054842143230, 5052883261677, 5053313856326, 5053460342826, 5054565203593, 5054629203590, 5125889662097, 5399997917251, 5554442244973, 5711045760013, 7109315050618, 7109319813912, 7123290478342, 7197200194288, 7448748819486. This code allows for the unique identification of the product in the distribution system. The brand of the product TRENDnet TPE-S44 is TRENDnet. This brand is known for its quality and innovation in the field of household appliances.
Data transmission
The maximum data transfer rate of the product TRENDnet TPE-S44 is 0.1 Gbit/s. This rate ensures fast and efficient information transmission. The data transfer rate of the product TRENDnet TPE-S44 is 10/100 Mbps. This rate allows for efficient and fast communication, tailored to modern needs.
Management features
The switch type of the product TRENDnet TPE-S44 is Non-géré. This type of switch allows for advanced management and optimal control of the network.
Connectivity
The number of basic switching RJ-45 Ethernet ports of the product TRENDnet TPE-S44 is 8. These ports enable efficient and fast network connectivity. The power connector of the product TRENDnet TPE-S44 contains DC-in jack. This connector is essential for ensuring reliable and efficient power supply.
Weight and dimensions
The weight of the product TRENDnet TPE-S44 is 430 g. This weight is ideal for ensuring optimal use and easy handling.
Design
The color of the product TRENDnet TPE-S44 is Bleu. This shade gives it a modern and elegant look. Does the product TRENDnet TPE-S44 have a mounting bracket? Non. This feature determines the compatibility and ease of installation of the product. Is the product TRENDnet TPE-S44 stackable? No. This product cannot be stacked.
PoE (Power over Ethernet)
Does the TRENDnet TPE-S44 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Certificate
The certification of the product TRENDnet TPE-S44 contains FCC, CE. This certification guarantees compliance with the required safety and performance standards.
Environmental conditions
The product TRENDnet TPE-S44 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product TRENDnet TPE-S44 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product TRENDnet TPE-S44 is -10 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Protocols
The support for the TRENDnet TPE-S44 product protocols includes CSMA/CD. This wide range of protocols ensures optimal compatibility and flexibility for your networking needs.
Logistics data
The Harmonized System code for the product TRENDnet TPE-S44 is 85176990. This code allows for the unique identification of goods in international trade.
