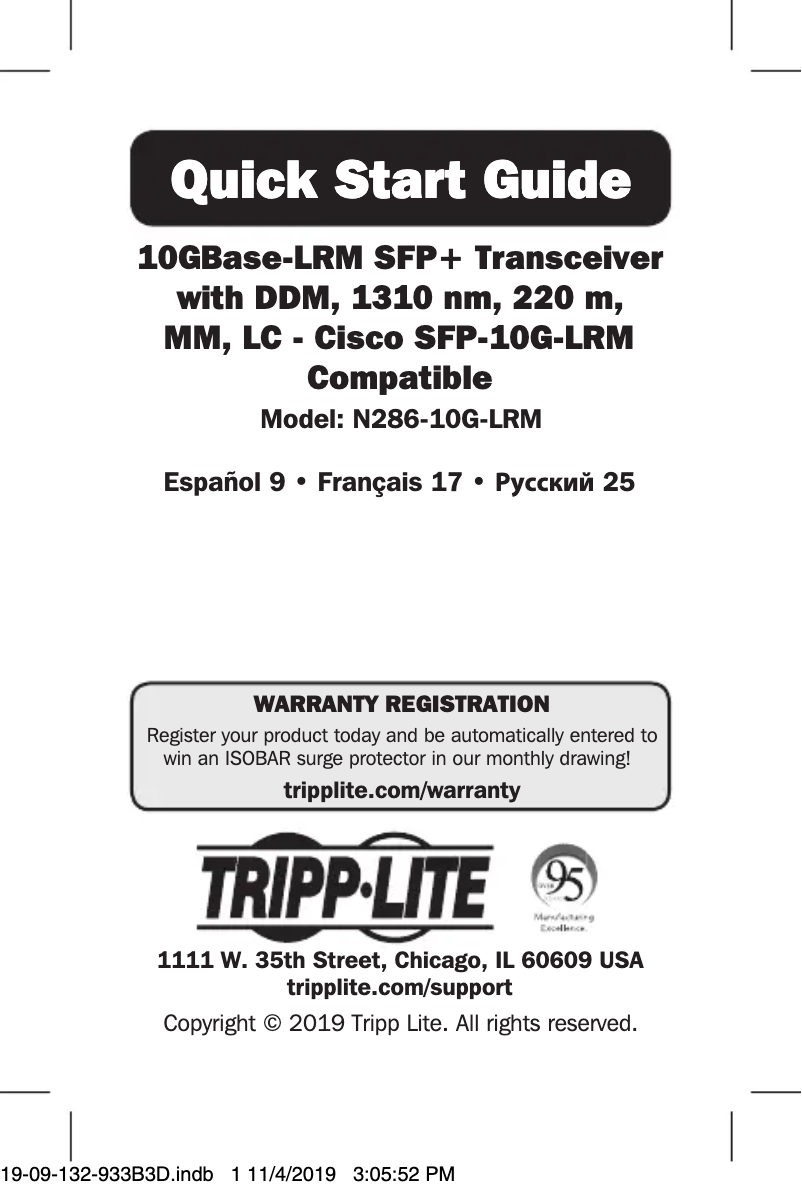

Manual of product N286-10G-LRM
Editorial note
The Tripp Lite N286-10G-LRM is a high-performance SFP transceiver that stands out for its high transfer rate of 10 Gbit/s, ensuring fast and efficient connections, particularly suited for demanding applications. Its compatibility with single-mode and multi-mode fiber offers flexibility of use in various network environments, while the hot-swappable feature allows for component replacement without service interruption, thus ensuring operational continuity. However, the product has some drawbacks. The lack of digital diagnostic monitoring (DDM) functionality limits the ability to track network performance, which may be a drawback for some users. Additionally, the maximum transfer distance of 220 meters may not be sufficient for certain applications requiring connectivity over longer distances. Although lightweight, its small size may make it more susceptible to mechanical damage if not installed carefully. Finally, the fact that the product is manufactured in China may raise concerns regarding perceived quality and authenticity. In terms of evaluation, user experience is deemed satisfactory, particularly due to the hot-swappable feature. Performance is also well-rated thanks to its high transfer rate. On the other hand, the lack of certain features, such as digital diagnostic monitoring, and uncertainties regarding technical support may affect the perception of value for money. The modern and sleek design, while attractive, must also be considered in the context of its installation and use.Score details
User experience
The user experience is satisfactory thanks to a hot-swappable feature that allows for uninterrupted operations.
Performance
The transfer rate of 10 Gbit/s provides fast and efficient connections, ideal for demanding applications.
Robustness
The robust design and wide operating temperature range ensure use in various climatic environments.
Features
Although it offers many features, the lack of digital diagnostic monitoring (DDM) limits the ability to track network performance.
Value for money
The product is competitively priced, but the lack of information on warranty or technical support may raise concerns for some users.
Design
The design is modern and sleek, although the small size may make it more susceptible to mechanical damage if not installed carefully.
Advantages
10 Gbit/s throughput for fast connections
Compatible with single-mode and multi-mode fiber
Hot-swappable without service interruption
Robust, operating range of -5 °C to 85 °C
RoHS certification for environmental sustainability
Disadvantages
No DDM monitoring for performance
Maximum distance limited to 220 meters
Small size, more fragile to damage
Manufacturing in China raises doubts
Lack of information on the warranty
Technical Specifications N286-10G-LRM
General Information
-
ModelN286-10G-LRM
-
Brand
-
Category
-
Type
-
SKU1642446
-
MPN1642446
Representation / realization
-
Digital Diagnostics Monitoring (DDM)-
-
SFP transceiver typeFiber optic
-
Maximum data transfer rate10000 Mbit/s
-
Type of interfaceSFP+
-
Compatible single-mode fiber (SMF)No
-
Multimode fiber compatible (MMF)Yes
-
Fiber optic connectorLC
-
Maximum transfer distance220 m
-
Wavelength1310 nm
-
SFP transceiver standardLRM
-
Supported wire cable diameters50/125 µm
Environmental conditions
-
Minimum operating temperature-5 °C
-
Maximum operating temperature85 °C
-
Operating temperature-5 - 85 °C
-
Temperature out of operation-40 - 85 °C
-
Relative humidity rate (storage)5 - 85 %
-
Relative humidity rate (storage)5 - 85 %
Features
-
Product colorMoney
-
Hot exchangeYes
-
Brand compatibilityCisco
Weight and dimensions
-
Weight50 g
-
Height8.4 mm
-
Width13.5 mm
-
Depth56.6 mm
Sustainability
-
Sustainability certificatesRoHS
Packaging information
-
Package height21.6 mm
-
Package weight30 g
-
Package width114 mm
-
Package depth45.2 mm
Logistics data
-
Product by main locker (external)10 piece(s)
-
Height of the main locker (external)74.9 mm
-
Gross weight of the main locker (external)430 g
-
GTIN of the main carton (EAN/UPC)10037332249279
-
Country of originChina
-
Harmonized System Code8517.62.0090
-
Width of the main locker (external)230.1 mm
-
Length of the main locker (external)130 mm
Frequently Asked Questions
What is the weight of the Tripp Lite N286-10G-LRM?
What is the height of the Tripp Lite N286-10G-LRM?
What is the width of the Tripp Lite N286-10G-LRM?
What is the depth of the Tripp Lite N286-10G-LRM?
Is the manual for the Tripp Lite N286-10G-LRM available in French?
Similar products
More product categories from brand Tripp Lite
Other Tripp Lite
Audio Tripp Lite
Interior Tripp Lite
Software Tripp Lite
Phones Tripp Lite
Tools Tripp Lite
More product types from brand Tripp Lite
Presentation of product N286-10G-LRM specifications from brand Tripp Lite
General Information
The Tripp Lite N286-10G-LRM is a product from the Tripp Lite brand, known for its commitment to quality and innovation in the field of electronic equipment. This model is designed to deliver optimal performance, thereby enhancing the user experience. The EAN code 0037332249272 allows for unique identification in distribution systems, facilitating tracking.
Representation / Implementation
This model is an SFP transceiver using fiber optic, ensuring reliable and high-performance network connectivity. With a data transfer rate of up to 10,000 Mbit/s, it provides fast connections suitable for applications requiring high bandwidth. It uses a SFP+ interface, allowing for efficient integration with various devices.
The Tripp Lite N286-10G-LRM is compatible with single-mode fiber (SMF) and multi-mode fiber (MMF), offering great flexibility of use. The LC type connector ensures fast and reliable transmission. It allows for transfer over a maximum distance of 220 meters, with a wavelength of 1310 nm to ensure accurate digitization. This model complies with the SFP LRM standard, promoting efficient transmission over short distances. It also supports 50/125 µm fiber cables. However, it does not have the Digital Diagnostic Monitoring (DDM) feature, limiting the ability to analyze network performance.
Environmental Conditions
Designed to withstand various environments, the Tripp Lite N286-10G-LRM operates within a temperature range of -5 °C to 85 °C. Outside of its operation, it can withstand extreme temperatures of -40 °C to 85 °C. It operates reliably with a relative humidity of 5 to 85 %, ensuring its durability in varied ambient conditions.
Features
This product has a silver finish, adding a modern touch to its design. It allows for hot swapping, facilitating maintenance without service interruption. Additionally, it is compatible with all brands, making it a versatile choice for various equipment.
Weight and Dimensions
With a weight of 50 g, it is lightweight and easy to handle. Its dimensions are designed for optimal integration: height of 8.4 mm, width of 13.5 mm, and depth of 56.6 mm.
Durability
The Tripp Lite N286-10G-LRM is RoHS certified, attesting to its compliance with strict standards for energy efficiency and environmental respect, making it a sustainable choice.
Packaging Information
The product package has a height of 21.6 mm, a weight of 30 g, a width of 114 mm, and a depth of 45.2 mm, ensuring adequate protection during transport.
Logistical Data
The Tripp Lite N286-10G-LRM is offered in a pack of 10 pieces, facilitating stock management. The dimensions of the outer master carton are 74.9 mm in height, 230.1 mm in width, and 130 mm in length, with a gross weight of 430 g. The GTIN of the master carton is 10037332249279, and the product is manufactured in China, which may influence the perception of its quality.
