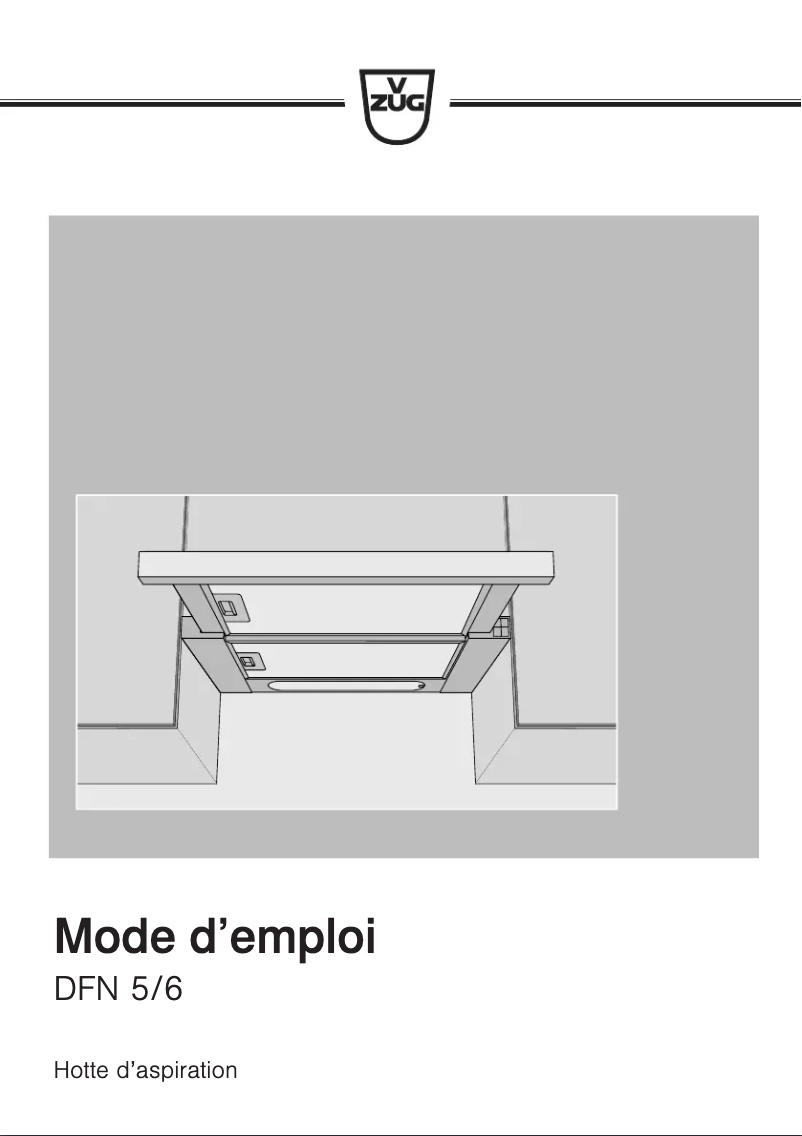

Manual of product DFN6w
Technical Specifications DFN6w
General Information
-
ModelDFN6W
-
Brand
-
Category
-
Type
-
SKU800175
-
MPN800175
Lighting
-
Number of bulbs2 bulb(s)
-
Type of bulbLED
-
Power of the bulb6 W
-
Lighting54 lux
Design
-
Order typeButtons
-
Cable length1.5 m
-
Number of engines1
-
Built-in screenNo
-
Product colorWhite
-
TypeSemi-integrated
-
Diameter of the exhaust duct150 mm
-
Check valveYes
-
Escape locationHigh
Filtering
-
Number of filters2 piece(s)
-
Type of grease filterFleece
-
Washable filterYes
-
Washable filterYes
-
Washable filterYes
Power
-
Energy efficiency classA
-
Annual energy consumption40 kWh
-
AC input voltage220-240 V
-
AC input frequency50 - 60 Hz
-
Connected charge206 W
-
Current10 A
-
Engine power200 W
Representation / realization
-
Number of speeds-
-
Dynamic fluid efficiency classA
-
Lighting efficiency classE
-
Grease filtration efficiency classD
-
Sound level (fast speed)67 dB
-
Sound level (slow speed)46 dB
-
Sound level (fast speed)67 dB
-
Intensive speedNo
-
The maximum recirculation power490 m³/h
-
Type of extractionDuct / Recirculation
-
Maximum extraction power647 m³/h
-
Pressure (Pa)434
-
Minimum distance of an electric plate430 mm
-
Minimum distance from a gas plate750 mm
Weight and dimensions
-
Installation compartment width600 mm
-
Installation compartment depth305 mm
-
Height396 mm
-
Width598 mm
-
Depth302 mm
-
Weight12500 g
Similar products
More product categories from brand V-Zug
More product types from brand V-Zug
Presentation of product DFN6w specifications from brand V-Zug
Lighting
The illumination level of the product V-Zug DFN6w is 54 lux. This level ensures adequate brightness for various applications. The power of the bulb of the product V-Zug DFN6w is 6 W. This specification ensures optimal lighting for your needs. The type of bulb for the product V-Zug DFN6w is LED. This bulb offers intense brightness and an extended lifespan. The number of bulbs in the product V-Zug DFN6w is 2 ampoule(s). This detail is essential to ensure adequate brightness in your space.
Generalities
The EAN code of the product V-Zug DFN6w is 7630029417324. This code allows for the unique identification of the product in the distribution system. The product model V-Zug DFN6w is DFN6w | 6102700001. This model ensures optimal performance and an enhanced user experience. The brand of the product V-Zug DFN6w is V-Zug. This brand is known for its quality and innovation in the field of household appliances.
Filtering
The grease filter type of the product V-Zug DFN6w is made of Toison. This aluminum filter ensures excellent performance in capturing fats and residues, thus guaranteeing a clean and healthy cooking environment. Does the product V-Zug DFN6w have a waterproof dishwasher filter? Oui. This filter ensures optimal protection against leaks, thus ensuring efficient operation of your dishwasher. The number of filters for the product V-Zug DFN6w is 2 pièce(s). These filters ensure optimal purification for effective use. Does the product V-Zug DFN6w have a removable filter? Oui. This filter allows for easy and quick maintenance, thus ensuring optimal use of your device. Does the product V-Zug DFN6w have a washable filter? Oui. This filter is designed to be easily cleaned and reused, ensuring optimal performance and increased durability.
Design
The product V-Zug DFN6w order type consists of Boutons. This order type allows for intuitive and practical use. The V-Zug DFN6w has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device. The cable of the product V-Zug DFN6w has a length of 1.5 m. This length allows for flexible and practical use in various environments. The number of engines of the product V-Zug DFN6w is 1. This unique engine ensures optimal performance and increased efficiency. The color of the product V-Zug DFN6w is Blanc. This shade gives it a modern and elegant look. The diameter of the exhaust duct for the product V-Zug DFN6w is 150 mm. This diameter is essential for ensuring effective evacuation of smoke or gases. The type of product V-Zug DFN6w is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The exhaust location of the product V-Zug DFN6w is Haut. This exhaust location ensures efficient gas evacuation, thus contributing to optimal operation. Does the product V-Zug DFN6w have a check valve? Oui. This valve helps prevent unwanted backflows in the system.
Power
The annual energy consumption of the product V-Zug DFN6w is 40 kWh. This specification allows you to assess energy efficiency and the impact on your electricity bill. The AC input voltage of the V-Zug DFN6w is 220-240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product V-Zug DFN6w is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The energy efficiency class of the product V-Zug DFN6w is A. This class indicates the level of energy performance of the product, thereby contributing to energy savings and reducing environmental impact. The product V-Zug DFN6w has a connected charge of 206 W. This specification ensures optimal performance and increased energy efficiency. The current of the product V-Zug DFN6w is 10 A. This current ensures optimal performance and safe use. The engine power of the product V-Zug DFN6w is 200 W. This power ensures optimal performance for efficient use.
Weight and dimensions
The height of the product V-Zug DFN6w is 396 mm. This dimension is essential to ensure that the product fits perfectly in your space. The installation compartment of the product V-Zug DFN6w has a width of 600 mm. This dimension is essential to ensure optimal integration into your space. The installation compartment depth of the product V-Zug DFN6w is 305 mm. This dimension is essential to ensure proper installation and a perfect fit in your space. The width of the product V-Zug DFN6w is 598 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product V-Zug DFN6w is 302 mm. This dimension allows for optimal integration into your space. The weight of the product V-Zug DFN6w is 12500 g. This weight is ideal for ensuring optimal use and easy handling.
Representation / realization
The noise level of the product V-Zug DFN6w is 67 dB. This noise level allows for pleasant use without excessive noise disturbances. The grease filtering efficiency class of the product V-Zug DFN6w is D. This class ensures optimal grease filtration, thus providing a healthier cooking environment and better performance of your appliance. The dynamic efficiency class of the fluid of the product V-Zug DFN6w is A. This class indicates the energy performance of the fluid in question. The lighting efficiency class of the product V-Zug DFN6w is E. This class allows for the assessment of the energy performance of the proposed lighting. The sound level of the product V-Zug DFN6w is 46 dB. This sound level allows for discreet and pleasant use, ideal for quiet environments. The sound level of the product V-Zug DFN6w is 67 dB. This sound level ensures a pleasant user experience without being too intrusive. The intensive speed of the product V-Zug DFN6w is Non. This feature allows for optimizing performance and improving efficiency during its use. The maximum recirculation power of the product V-Zug DFN6w is 490 m³/h. This feature ensures optimal efficiency in air treatment, thus providing a pleasant and healthy environment. The extraction type of the product V-Zug DFN6w is Conduit / Recirculation. This extraction type determines the method used to obtain the essential elements of the product. The number of speeds of the product V-Zug DFN6w is -. This number of speeds allows for easy adjustment of performance according to the user's needs. The maximum extraction power of the product V-Zug DFN6w is 647 m³/h. This feature ensures optimal efficiency in eliminating odors and particles from the air. The pressure of the product V-Zug DFN6w is 434. This specification ensures optimal performance and efficient use. The minimum distance of an electric plate from the product V-Zug DFN6w is 430 mm. This specification ensures safe and optimal use of the device. The minimum distance of a gas plate from the product V-Zug DFN6w is 750 mm. This specification ensures safe and efficient use of the device.
