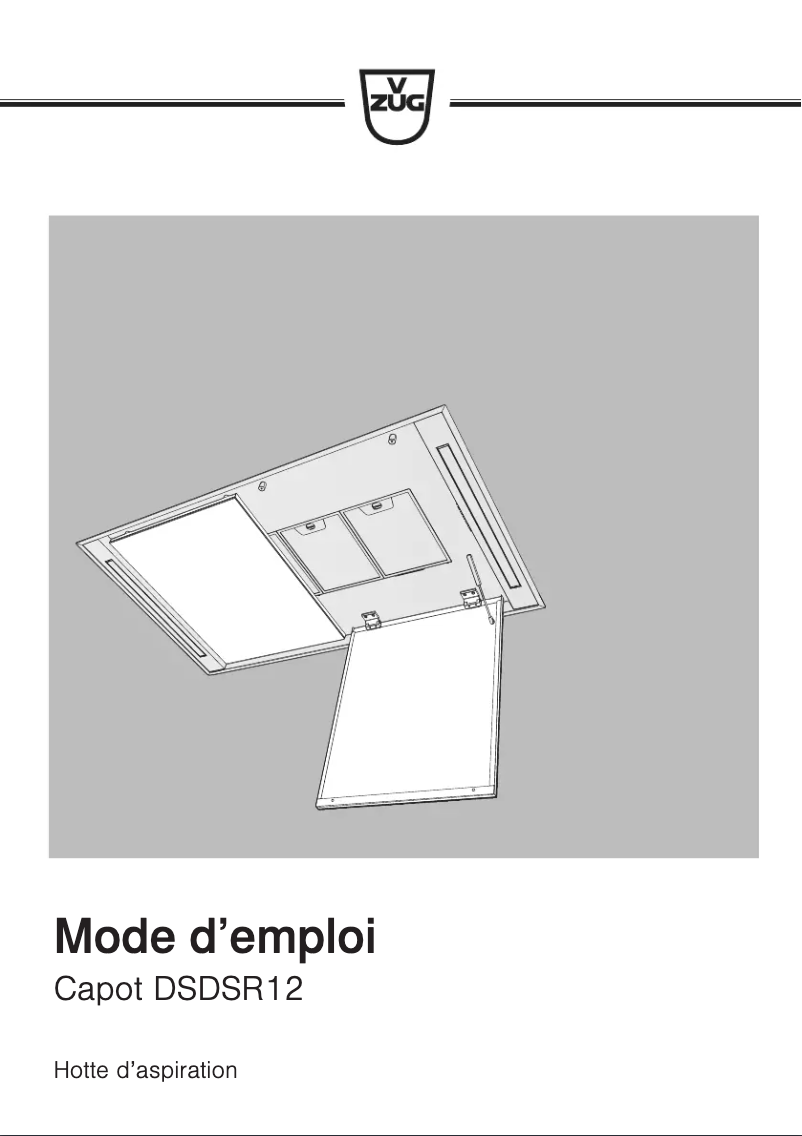

Manual of product DSDSR12c
Technical Specifications DSDSR12c
General Information
-
ModelDSDSR12C
-
Brand
-
Category
-
Type
-
SKU800182
-
MPN800182
Power
-
Energy efficiency classA
-
Annual energy consumption60 kWh
-
Automatic power cut-offYes
-
AC input voltage220-240 V
-
AC input frequency50 Hz
-
Connected charge284 W
-
Current10 A
-
Engine power270 W
Representation / realization
-
Dynamic fluid efficiency classA
-
Lighting efficiency classD
-
Grease filtration efficiency classE
-
Sound level (fast speed)68 dB
-
Maximum extraction power830 m³/h
-
Sound level (intensive speed)74 dB
-
Sound level (fast speed)68 dB
-
Sound level (slow speed)43 dB
-
The maximum recirculation power295 m³/h
-
Number of speeds3
-
Intensive speedYes
-
Type of extractionDuct / Recirculation
-
Minimum distance of an electric plate800 mm
-
Minimum distance from a gas plate1300 mm
-
Pressure (Pa)500
Design
-
Product colorChrome
-
TypeCeiling-mounted
-
Order typeButtons
-
Cable length1.5 m
-
Diameter of the exhaust duct150 mm
-
Built-in screenNo
-
Number of engines1
-
Check valveYes
-
Escape locationHigh
Lighting
-
Type of bulbLED
-
Number of bulbs2 bulb(s)
-
Power of the bulb14 W
-
Lighting170 lux
Filtering
-
Dishwasher waterproof filterYes
-
Type of grease filterFleece
-
Number of filters4 piece(s)
-
Dishwasher waterproof filterYes
-
Dishwasher waterproof filterYes
-
Dishwasher waterproof filterYes
Weight and dimensions
-
Height318 mm
-
Installation compartment width1200 mm
-
Installation compartment depth700 mm
-
Weight33000 g
-
Installation compartment width1200 mm
-
Installation compartment depth700 mm
Similar products
More product categories from brand V-Zug
More product types from brand V-Zug
Presentation of product DSDSR12c specifications from brand V-Zug
Generalities
The EAN code of the product V-Zug DSDSR12c is 7630029408537. This code allows for the unique identification of the product in the distribution system. The brand of the product V-Zug DSDSR12c is V-Zug. This brand is known for its quality and innovation in the field of household appliances. The product model V-Zug DSDSR12c is DSDSR12c | 6400300003. This model ensures optimal performance and an enhanced user experience.
Design
The type of product V-Zug DSDSR12c is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The color of the product V-Zug DSDSR12c is Chrome. This shade gives it a modern and elegant look. The cable of the product V-Zug DSDSR12c has a length of 1.5 m. This length allows for flexible and practical use in various environments. The product V-Zug DSDSR12c order type consists of Boutons. This order type allows for intuitive and practical use. The diameter of the exhaust duct for the product V-Zug DSDSR12c is 150 mm. This diameter is essential for ensuring effective evacuation of smoke or gases. The V-Zug DSDSR12c has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device. The number of engines of the product V-Zug DSDSR12c is 1. This unique engine ensures optimal performance and increased efficiency. Does the product V-Zug DSDSR12c have a check valve? Oui. This valve helps prevent unwanted backflows in the system. The exhaust location of the product V-Zug DSDSR12c is Haut. This exhaust location ensures efficient gas evacuation, thus contributing to optimal operation.
Power
The energy efficiency class of the product V-Zug DSDSR12c is A. This class indicates the level of energy performance of the product, thereby contributing to energy savings and reducing environmental impact. The annual energy consumption of the product V-Zug DSDSR12c is 60 kWh. This specification allows you to assess energy efficiency and the impact on your electricity bill. The AC input voltage of the V-Zug DSDSR12c is 220-240 V. This specification ensures optimal compatibility with standard electrical systems. Does the product V-Zug DSDSR12c have an automatic power cut-off? Oui. This feature ensures increased safety by turning off the device when necessary. The AC input frequency of the product V-Zug DSDSR12c is 50 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The product V-Zug DSDSR12c has a connected charge of 284 W. This specification ensures optimal performance and increased energy efficiency. The current of the product V-Zug DSDSR12c is 10 A. This current ensures optimal performance and safe use. The engine power of the product V-Zug DSDSR12c is 270 W. This power ensures optimal performance for efficient use.
Representation / realization
The dynamic efficiency class of the fluid of the product V-Zug DSDSR12c is A. This class indicates the energy performance of the fluid in question. The lighting efficiency class of the product V-Zug DSDSR12c is D. This class allows for the assessment of the energy performance of the proposed lighting. The noise level of the product V-Zug DSDSR12c is 68 dB. This noise level allows for pleasant use without excessive noise disturbances. The grease filtering efficiency class of the product V-Zug DSDSR12c is E. This class ensures optimal grease filtration, thus providing a healthier cooking environment and better performance of your appliance. The maximum extraction power of the product V-Zug DSDSR12c is 830 m³/h. This feature ensures optimal efficiency in eliminating odors and particles from the air. The noise level (intensive speed) of the product V-Zug DSDSR12c is 74 dB. This noise level ensures efficient performance while maintaining user comfort. The sound level of the product V-Zug DSDSR12c is 68 dB. This sound level ensures a pleasant user experience without being too intrusive. The sound level of the product V-Zug DSDSR12c is 43 dB. This sound level allows for discreet and pleasant use, ideal for quiet environments. The maximum recirculation power of the product V-Zug DSDSR12c is 295 m³/h. This feature ensures optimal efficiency in air treatment, thus providing a pleasant and healthy environment. The number of speeds of the product V-Zug DSDSR12c is 3. This number of speeds allows for easy adjustment of performance according to the user's needs. The intensive speed of the product V-Zug DSDSR12c is Oui. This feature allows for optimizing performance and improving efficiency during its use. The extraction type of the product V-Zug DSDSR12c is Conduit / Recirculation. This extraction type determines the method used to obtain the essential elements of the product. The minimum distance of an electric plate from the product V-Zug DSDSR12c is 800 mm. This specification ensures safe and optimal use of the device. The minimum distance of a gas plate from the product V-Zug DSDSR12c is 1300 mm. This specification ensures safe and efficient use of the device. The pressure of the product V-Zug DSDSR12c is 500. This specification ensures optimal performance and efficient use.
Filtering
Does the product V-Zug DSDSR12c have a Filter Clean Indicator? Oui. This indicator allows you to quickly know if the filter needs cleaning or replacement, thus ensuring optimal performance of the device. The grease filter type of the product V-Zug DSDSR12c is made of Toison. This aluminum filter ensures excellent performance in capturing fats and residues, thus guaranteeing a clean and healthy cooking environment. The number of filters for the product V-Zug DSDSR12c is 4 pièce(s). These filters ensure optimal purification for effective use. Does the product V-Zug DSDSR12c have a removable filter? Oui. This filter allows for easy and quick maintenance, thus ensuring optimal use of your device. Does the product V-Zug DSDSR12c have a washable filter? Oui. This filter is designed to be easily cleaned and reused, ensuring optimal performance and increased durability. Does the product V-Zug DSDSR12c have a waterproof dishwasher filter? Oui. This filter ensures optimal protection against leaks, thus ensuring efficient operation of your dishwasher.
Lighting
The type of bulb for the product V-Zug DSDSR12c is LED. This bulb offers intense brightness and an extended lifespan. The number of bulbs in the product V-Zug DSDSR12c is 2 ampoule(s). This detail is essential to ensure adequate brightness in your space. The power of the bulb of the product V-Zug DSDSR12c is 14 W. This specification ensures optimal lighting for your needs. The illumination level of the product V-Zug DSDSR12c is 170 lux. This level ensures adequate brightness for various applications.
Weight and dimensions
The height of the product V-Zug DSDSR12c is 318 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product V-Zug DSDSR12c is 700 mm. This dimension allows for optimal integration into your space. The width of the product V-Zug DSDSR12c is 1200 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product V-Zug DSDSR12c is 33000 g. This weight is ideal for ensuring optimal use and easy handling. The installation compartment of the product V-Zug DSDSR12c has a width of 1200 mm. This dimension is essential to ensure optimal integration into your space. The installation compartment depth of the product V-Zug DSDSR12c is 700 mm. This dimension is essential to ensure proper installation and a perfect fit in your space.
