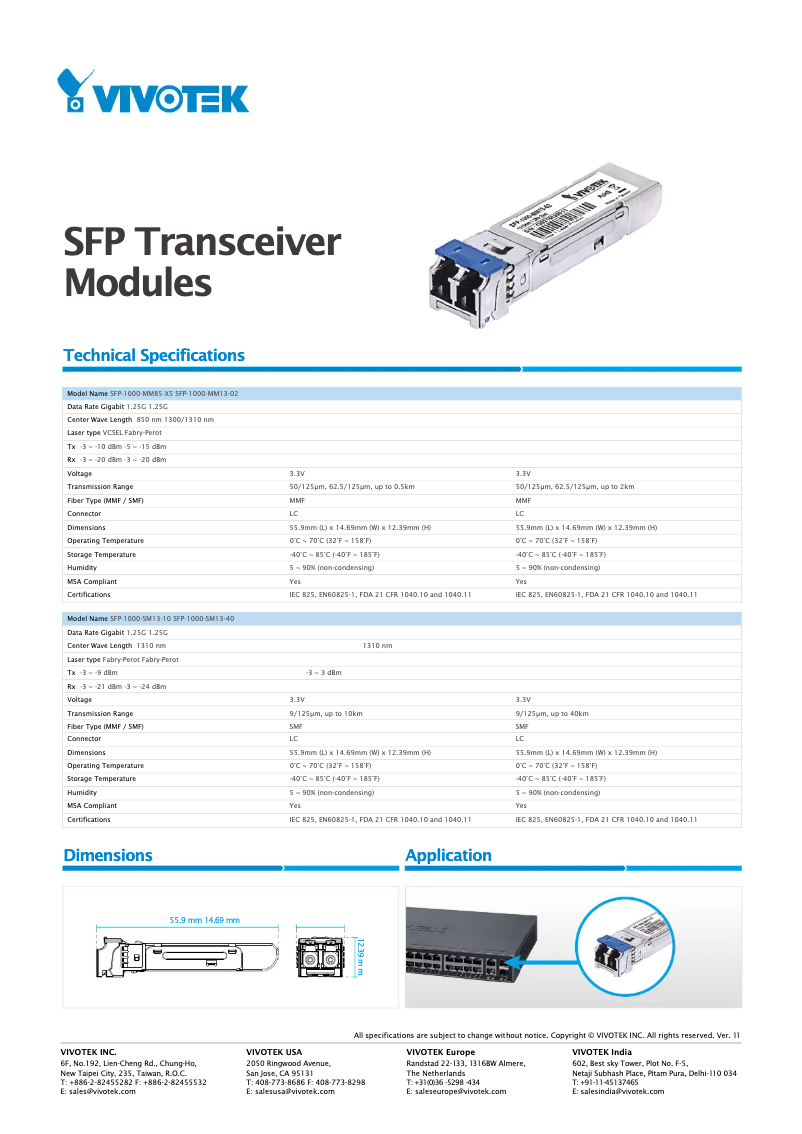

Manual of product SFP-1000-MM13-02
Editorial note
The Vivotek SFP-1000-MM13-02 is an SFP transceiver that stands out for its exceptional performance, offering a maximum data transfer rate of 1250 Mbit/s. This speed ensures an efficient connection, suited to the growing needs of modern networks. Additionally, its long-distance transmission capability, up to 2000 m, makes it a wise choice for extensive infrastructures. However, the product also has some drawbacks. Its cost can be relatively high compared to other options available on the market, which may not suit all budgets. Furthermore, limited compatibility with certain older equipment may require additional investments for upgrades, which could complicate its integration for some users. In terms of robustness, the Vivotek SFP-1000-MM13-02 is designed to withstand various environmental conditions, with an operating range of 0 to 70 °C and a relative humidity of 5 to 90%. These features ensure durability and reliability in diverse environments. Finally, the lack of an intuitive user interface may make the configuration and use of the product more difficult for less experienced users, which could detract from the overall experience. Despite these negative points, the features offered and the RoHS durability certifications add value to the product, making it appealing to professionals seeking a reliable and high-performing solution.Score details
User experience
The user experience is mixed; the lack of an intuitive interface can complicate setup for less experienced users.
Performance
Performance is excellent with a transfer rate of 1250 Mbit/s, ensuring a fast and efficient connection for networking needs.
Robustness
The product is designed to withstand extreme environmental conditions, with an operating temperature range of 0 to 70 °C and a humidity capacity of 5 to 90%.
Value for money
The cost of the product may be high compared to other options on the market, which may not suit all budgets.
Features
Features such as the ability to transmit over long distances up to 2000 m and RoHS durability certifications add value to the product.
Usability
Limited compatibility with some older equipment may require updates, complicating integration for some users.
Advantages
Fast connection via SFP interface
Maximum speed of 1250 Mbit/s
Transmission up to 2000 m
Operates from 0 to 70 °C
Humidity of 5 to 90 %
RoHS certified and safety standards
Disadvantages
High cost compared to other options
Limited compatibility with older equipment
Dimensions may pose integration issues
Reduced performance in extreme temperatures
User interface is not intuitive and complicated
Technical Specifications SFP-1000-MM13-02
General Information
-
ModelSFP-1000-MM13-02
-
Brand
-
Category
-
Type
-
SKU1567938
-
MPN1567938
Representation / realization
-
Auto MDI/MDI-X-
-
Type of interfaceSFP
-
Maximum data transfer rate1250 Mbit/s
-
Fiber optic connectorLC
-
Maximum transfer distance2000 m
-
Wavelength1310 nm
-
SFP transceiver typeFiber optic
-
Supported wire cable diameters9/125 µm
-
Power Tx (min)-15 dBmW
-
Power Tx (max)-5 dBmW
-
Power Rx (min)-20 dBmW
Power
-
Maximum tension3.3 V
Environmental conditions
-
Operating temperature0 - 70 °C
-
Temperature out of operation-40 - 85 °C
-
Relative humidity rate (storage)5 - 90 %
-
Relative humidity rate (storage)5 - 90 %
Weight and dimensions
-
Width55.9 mm
-
Depth14.69 mm
-
Height12.39 mm
Sustainability
-
Sustainability certificatesRoHS
Certificate
-
CertificationIEC 825
-
EN60825-1
-
FDA 21 CFR 1040.10
-
1040.11
Frequently Asked Questions
What certifications does the Vivotek SFP-1000-MM13-02 have?
What is the height of the Vivotek SFP-1000-MM13-02?
What is the width of the Vivotek SFP-1000-MM13-02?
What is the depth of the Vivotek SFP-1000-MM13-02?
Is the manual for the Vivotek SFP-1000-MM13-02 available in French?
Similar products
More product categories from brand Vivotek
More product types from brand Vivotek
Presentation of product SFP-1000-MM13-02 specifications from brand Vivotek
General Information
The Vivotek SFP-1000-MM13-02 is a product from the Vivotek brand, which is renowned for its reliability and innovation in the communication device sector. This model, identified by the EAN code 4712123674896, offers optimal performance, aiming to enhance the user experience in various environments.
Representation / Implementation
Equipped with an SFP interface, the Vivotek SFP-1000-MM13-02 ensures a fast and efficient connection with other equipment. With a maximum transfer rate of 1250 Mbit/s, this device perfectly meets the demands of modern networks. The LC type fiber optic connector guarantees reliable data transmission.
The automatic detection capability of network connections through the Auto MDI/MDI-X feature facilitates its use. This model allows for a maximum transfer distance of 2000 m, ideal for installations covering long distances. It operates at a wavelength of 1310 nm, which is crucial for ensuring high-quality accurate scanning.
With a cable diameter of 9/125 µm, it optimizes data transmission. The minimum and maximum Tx powers of -15 dBmW and -5 dBmW, along with a minimum Rx power of -20 dBmW, ensure effective performance.
Power
The Vivotek SFP-1000-MM13-02 operates with a maximum voltage of 3.3 V, thus ensuring safe and efficient use.
Environmental Conditions
Designed to operate within a temperature range of 0 to 70 °C, it is suitable for various environments. Outside of its operation, it can withstand extreme temperatures ranging from -40 to 85 °C. It also supports a relative humidity of operation ranging from 5 to 90 %, ensuring optimal performance in varied conditions.
For storage, the product maintains a relative humidity of 5 to 90 %, thus ensuring its durability.
Weight and Dimensions
With a width of 55.9 mm, a depth of 14.69 mm, and a height of 12.39 mm, the Vivotek SFP-1000-MM13-02 is designed for easy integration into various spaces.
Durability
This model is RoHS certified, ensuring that it meets high standards for energy efficiency and environmental protection.
Certificate
The Vivotek SFP-1000-MM13-02 complies with the required safety and performance standards, as evidenced by the IEC 825, EN60825-1, and FDA 21 CFR 1040.10, 1040.11 certifications.
