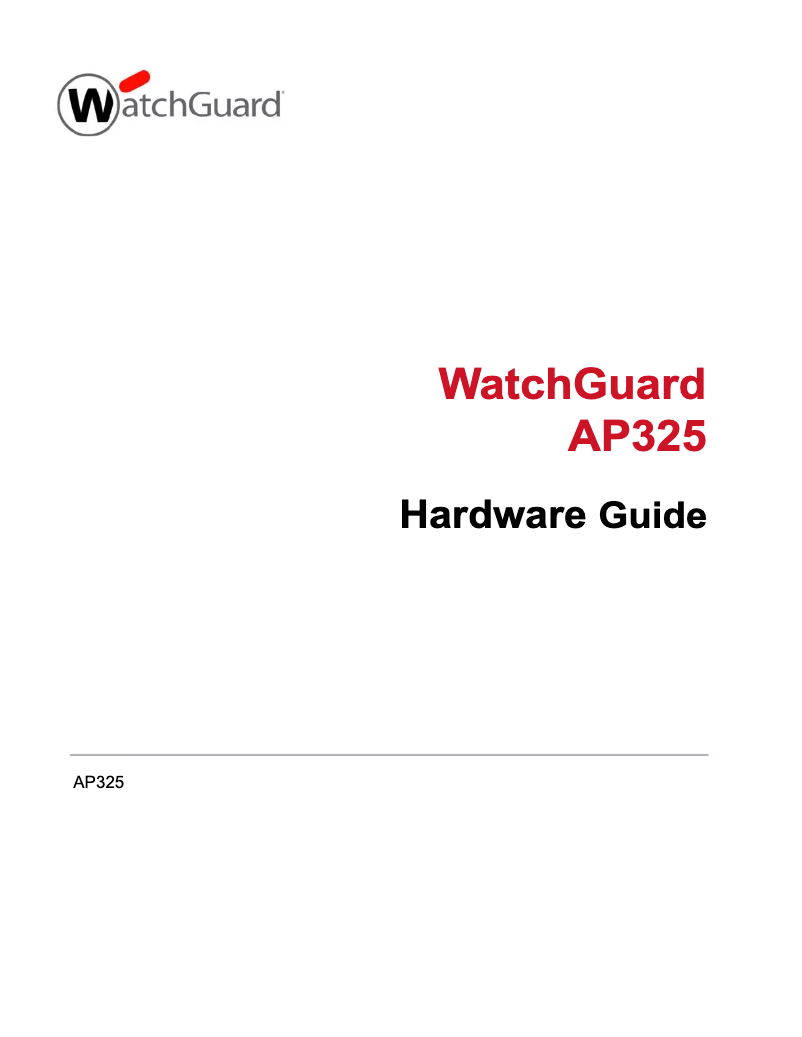

Manual of product AP325
Technical Specifications AP325
General Information
-
ModelAP325
-
Brand
-
Category
-
Type
-
SKU1450776
-
MPN1450776
Design
-
Product colorWhite
-
PositioningCeiling, Floor, Table, Wall
-
Cable anti-theft lockYes
-
InternalNo
-
Cable anti-theft lockYes
-
Cable lock location typeKensington
-
IndicatorsLAN, Power
Features
-
Maximum data transfer rate1000 Mbit/s
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Dynamic Frequency Selection (DFS)Yes
-
Dynamic Frequency Selection (DFS)Yes
-
Frequency band2.4 - 2.4835 GHz, 4.9 - 5.0GHz, 5.15 - 5.25 GHz, 5.25 - 5.35 GHz, 5.47 - 5.6 GHz, 5.650 - 5.725 GHz, 5.725 - 5.85 GHz GHz
-
Dynamic Frequency Selection (DFS)Yes
-
MIMO typeMulti User MIMO
-
ModulationDSSS, OFDM
-
Transmission power20 dBmW
-
Network standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
-
Dynamic Frequency Selection (DFS)Yes
-
Maximum data transfer rate (5 GHz)867 Mbit/s
Representation / realization
-
Flash memory64 MB
-
Internal memory256 MB
-
Integrated into the processorYes
Certificate
-
CertificationFCC
-
IC
-
CE
-
MIC
-
NRTL/C
-
CB
-
CE
-
WEEE
-
RoHS
Connectivity
-
Number of Ethernet LAN ports (RJ-45)2
-
DC InputYes
-
Quantity of USB 2.0 Ports0
Security
-
Security-supported algorithm-
-
Number of SSID support cases8
Antenna
-
Antenna gain level (max)3.5 dBi
-
Antenna quantity6
-
Antenna functionsIntegrated antenna
Power
-
Typical electricity consumption16 W
-
Consumption (max)19 W
-
AC input voltage12 V
-
Input current1.5 A
-
Ethernet connection, supporting power over this port (PoE)Yes
Other features
-
Memory and processorQualcomm IPQ4028 717 MHz quad-core ARM
Weight and dimensions
-
Depth196 mm
-
Depth196 mm
-
Height43 mm
-
Weight850 g
Packaging information
-
Package width241.3 mm
-
Package depth254 mm
-
Package height76.2 mm
-
Package weight1360 g
Environmental conditions
-
Operating relative humidity (H-H)5 - 95 %
-
Operating temperature0 - 45 °C
-
Temperature out of operation-20 - 65 °C
Logistics data
-
Harmonized System Code85176990
Similar products
More product categories from brand WatchGuard
More product types from brand WatchGuard
Presentation of product AP325 specifications from brand WatchGuard
Representation / realization
The product WatchGuard AP325 has a flash memory of 64 Mo. This memory provides an ideal storage capacity for your files, photos, and videos. The technical detail "Integrated into the processor" of the product WatchGuard AP325 is Oui. This essential component ensures optimal performance and increased efficiency. The internal memory of the product WatchGuard AP325 contains 256 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use.
Generalities
The brand of the product WatchGuard AP325 is WatchGuard. This brand is known for its quality and innovation in the field of household appliances. The product model WatchGuard AP325 is AP325 | WGA35733. This model ensures optimal performance and an enhanced user experience. The EAN code of the product WatchGuard AP325 is 0654522028198, 0654522028204, 0654522028105. This code allows for the unique identification of the product in the distribution system.
Features
Does the WatchGuard AP325 have 5 GHz? Oui. This feature allows for a faster and more stable wireless connection. The data transfer rate of the product WatchGuard AP325 is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The maximum data transfer rate of the product WatchGuard AP325 is 1000 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. Is the WatchGuard AP325 product 2.4 GHz? Oui. This specification ensures effective and stable wireless connectivity. The frequency band of the product WatchGuard AP325 is 2.4 - 2.4835 GHz, 4.9 - 5.0GHz, 5.15 - 5.25 GHz, 5.25 - 5.35 GHz, 5.47 - 5.6 GHz, 5.650 - 5.725 GHz, 5.725 - 5.85 GHz GHz. This feature allows for effective communication within the specified frequency range. Does the product WatchGuard AP325 have MIMO (multiple inputs, multiple outputs)? Oui. This specification allows for efficient signal management by providing multiple inputs and outputs simultaneously. The MIMO Type of the product WatchGuard AP325 contains Multi User MIMO. This MIMO Type allows for optimizing wireless communication by supporting multiple users simultaneously. The modulation of the product WatchGuard AP325 is DSSS, OFDM. This feature allows for the operation of the product to be adapted according to the specific needs of the user. The transmission power of the product WatchGuard AP325 is 20 dBmW. This feature ensures optimal performance for your connectivity needs. The network standards of the product WatchGuard AP325 are IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. Does the product WatchGuard AP325 have Dynamic Frequency Selection (DFS)? Oui. This feature allows for optimizing the use of frequency bands for a more stable and faster connection. The maximum data transfer rate (5 GHz) of the product WatchGuard AP325 is 867 Mbit/s. This high speed ensures a fast and smooth connection for your devices.
Certificate
The certification of the product WatchGuard AP325 contains FCC, IC, CE, MIC, NRTL/C, CB, CE, WEEE, RoHS. This certification guarantees compliance with the required safety and performance standards.
Design
Does the product WatchGuard AP325 have a Reset Button? Oui. This button allows you to easily reset the product settings. The positioning of the product WatchGuard AP325 is Ceiling, Floor, Table, Wall. This positioning allows for optimizing its use and ensuring an optimal user experience. Does the product WatchGuard AP325 have an Internal? No. This product does not have any internal components. Does the product WatchGuard AP325 have a cable lock port? No. This product does not have this security feature. The color of the product WatchGuard AP325 is Blanc. This shade gives it a modern and elegant look. The type of cable lock location for the product WatchGuard AP325 is Kensington. This type of lock provides optimal security to protect your device against theft. Does the product WatchGuard AP325 have indicators? LAN, Power. These indicators allow you to visualize the operating status of the device.
Security
The number of SSID supports for the product WatchGuard AP325 is 8. This feature allows for the management of multiple wireless networks simultaneously, thus providing increased flexibility and security. The supported security algorithm of the product WatchGuard AP325 contains -. This algorithm ensures optimal protection of your data.
Connectivity
Does the product WatchGuard AP325 have a DC Input? Oui. This specification ensures compatibility with DC power supplies. The number of USB 2.0 ports on the WatchGuard AP325 is 0. These ports allow for a fast and efficient connection for your devices. The number of Ethernet LAN (RJ-45) ports of the product WatchGuard AP325 is 2. These ports provide a stable and fast network connection for your devices.
Antenna
The maximum gain level of the antenna for the product WatchGuard AP325 is 3.5 dBi. This gain level helps optimize the reception and transmission of signals. The operation of the WatchGuard AP325 product's antenna is integrated. This feature allows for better reception and transmission of signals. The number of antennas of the product WatchGuard AP325 is 6. This product thus offers improved connectivity and better reception.
Power
The AC input voltage of the WatchGuard AP325 is 12 V. This specification ensures optimal compatibility with standard electrical systems. The maximum consumption of the product WatchGuard AP325 is 19 W. This specification allows for the assessment of the energy efficiency of the device. The typical power consumption of the product WatchGuard AP325 is 16 W. This feature allows for the assessment of the energy efficiency of the device. The input current of the product WatchGuard AP325 is 1.5 A. This input current ensures optimal performance and increased energy efficiency. Does the WatchGuard AP325 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Other features
The processor and memory of the product WatchGuard AP325 contain Qualcomm IPQ4028 717 MHz quad-core ARM. This configuration ensures optimal performance for your daily tasks.
Packaging information
The weight of the WatchGuard AP325 package is 1360 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product WatchGuard AP325 is 76.2 mm. This dimension is essential to ensure optimal transport and storage. The width of the package of the product WatchGuard AP325 is 241.3 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package WatchGuard AP325 is 254 mm. This dimension is essential to ensure proper packaging and secure transport.
Weight and dimensions
The weight of the product WatchGuard AP325 is 850 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product WatchGuard AP325 is 196 mm. This dimension allows for optimal integration into your space. The height of the product WatchGuard AP325 is 43 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product WatchGuard AP325 is 196 mm. This dimension is essential to ensure optimal integration into your space.
Environmental conditions
The product WatchGuard AP325 has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product WatchGuard AP325 is 0 - 45 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product WatchGuard AP325 is -20 - 65 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Logistics data
The Harmonized System code for the product WatchGuard AP325 is 85176990. This code allows for the unique identification of goods in international trade.
