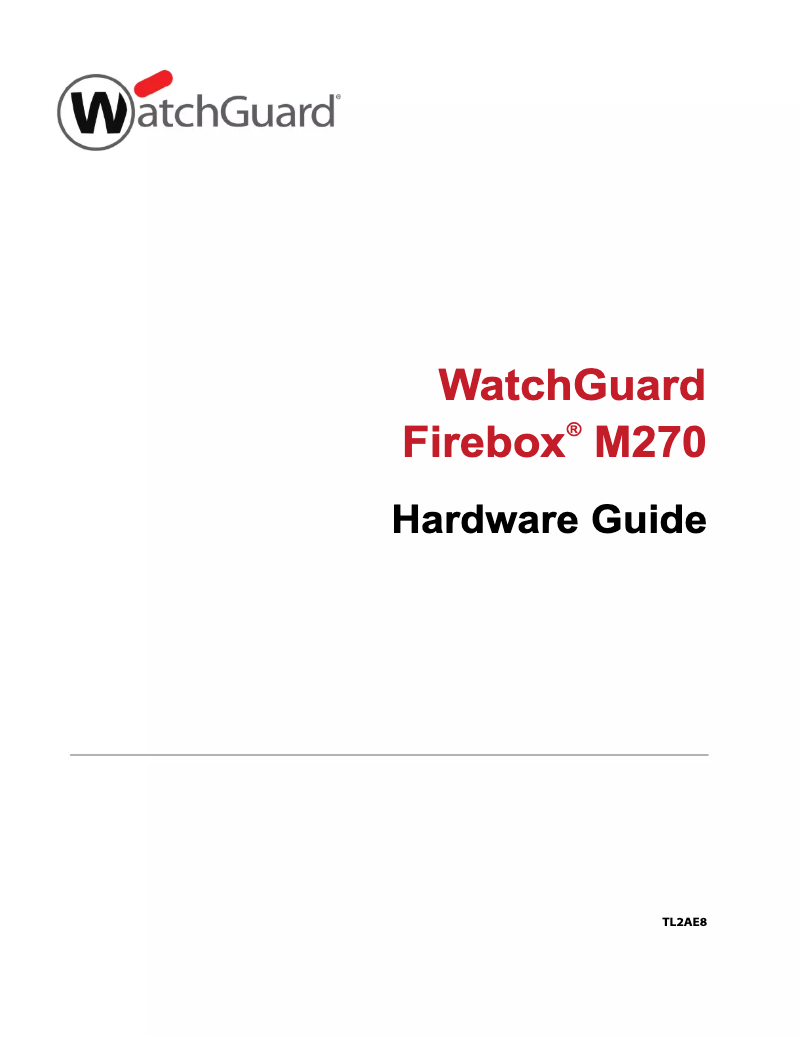

Manual of product Firebox M270
Technical Specifications Firebox M270
General Information
-
ModelFIREBOX M270
-
Brand
-
Category
-
Type
-
SKU1450763
-
MPN1450763
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)10 - 85 %
-
Relative humidity rate (storage)10 - 95 %
-
Operating altitude0 - 3000 m
-
Non-operating altitude0 - 4570 m
Weight and dimensions
-
Width438 mm
-
Depth320 mm
-
Height44 mm
Packaging information
-
Package width560 mm
-
Package height540 mm
-
Package depth130 mm
-
Package weight8500 g
Protocols
-
Management protocolsSNMP v2/v3
-
Supported network protocols
-
Routing protocolHTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S, IPv6
-
-
BGP4, OSPF, RIP-1, RIP-2
Security
-
DDoS ProtectionYes
-
DDoS ProtectionYes
-
DDoS ProtectionYes
-
Security-supported algorithm3DES, 128-bit AES, 256-bit AES, DES, SHA-2
Network
-
Quality of Service (QoS)Yes
-
Network standardsIEEE 802.3ad
-
Number of users500 user(s)
-
Number of VLANs100
-
Quality of Service (QoS)Yes
-
Quality of Service (QoS)Yes
-
Quality of Service (QoS)Yes
Design
-
Assembly gridYes
-
Format1U
Power
-
AC input voltage100-240 V
-
Typical electricity consumption75 W
Certificate
-
CertificationWEEE
-
RoHS
-
REACH
Representation / realization
-
Mean time between failures51644 h
-
SyslogYes
-
Processor familyIntel Atom®
-
Number of processor cores4
-
Thermal dissipation256 BTU/h
-
Simultaneous connections2000000
-
SyslogYes
-
Internal memory4096 MB
Data transmission
-
Maximum firewall connections per second40000
-
VPN Branch Office50
-
Firewall throughput (IMIX)1.8 Gbit/s
-
VPN throughput (UDP 1518)1.6 Gbit/s
-
VPN Throughput (IMIX)480 Mbit/s
-
Gateway antivirus throughput2.1 Gbit/s
-
IPS throughput (fast/full scan)2.3/0.9 Gbit/s
-
Current connections (proxy)200000
-
Host TDR sensor capacity60
-
Quantity of WSM licenses4 licence(s)
-
Firewall throughput4.9 Gbit/s
Connectivity
-
Connectivity technologyWith cable
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports2
-
Number of Ethernet LAN ports (RJ-45)8
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Console portRJ-45
Other features
-
Firewall throughput4900 Mbit/s
Similar products
More product categories from brand WatchGuard
More product types from brand WatchGuard
Presentation of product Firebox M270 specifications from brand WatchGuard
Generalities
The brand of the product WatchGuard Firebox M270 is WatchGuard. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product WatchGuard Firebox M270 is 0654522029522. This code allows for the unique identification of the product in the distribution system. The product model WatchGuard Firebox M270 is Firebox M270 | WGM27023. This model ensures optimal performance and an enhanced user experience.
Packaging information
The width of the package of the product WatchGuard Firebox M270 is 560 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package WatchGuard Firebox M270 is 130 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product WatchGuard Firebox M270 is 540 mm. This dimension is essential to ensure optimal transport and storage. The weight of the WatchGuard Firebox M270 package is 8500 g. This weight ensures optimal protection during transport and delivery.
Weight and dimensions
The width of the product WatchGuard Firebox M270 is 438 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product WatchGuard Firebox M270 is 320 mm. This dimension allows for optimal integration into your space. The height of the product WatchGuard Firebox M270 is 44 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Environmental conditions
The operating temperature of the product WatchGuard Firebox M270 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product WatchGuard Firebox M270 is 10 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The product WatchGuard Firebox M270 has an operating relative humidity (H-H) of 10 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product WatchGuard Firebox M270 is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating altitude of the product WatchGuard Firebox M270 is 0 - 3000 m. This specification ensures optimal performance across a wide range of altitudes. The altitude of non-operation for the product WatchGuard Firebox M270 is 0 - 4570 m. This specification ensures that the product can operate efficiently across a wide range of altitudes.
Protocols
The supported network protocols of the product WatchGuard Firebox M270 are HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S, IPv6. These protocols ensure efficient and reliable communication for your networking needs. The product management protocol WatchGuard Firebox M270 contains SNMP v2/v3. This protocol allows for efficient and centralized management of network devices. The routing protocol of the product WatchGuard Firebox M270 is BGP, OSPF, RIP, VRRP. This routing protocol allows for efficient management of data paths in a network.
Security
Does the product WatchGuard Firebox M270 have Stateful Packet Inspection (SPI)? Oui. This feature allows monitoring and controlling network traffic by analyzing the state of connections. Does the product WatchGuard Firebox M270 have DDoS Protection? Oui. This feature ensures the security of your site by protecting it against denial of service attacks. The supported security algorithm of the product WatchGuard Firebox M270 contains 3DES, 128-bit AES, 256-bit AES, DES, SHA-2. This algorithm ensures optimal protection of your data. Does the product WatchGuard Firebox M270 have Deep Packet Inspection (DPI)? Oui. This feature allows for detailed analysis of the data flowing through the network, thereby enhancing security and traffic management.
Design
Does the product WatchGuard Firebox M270 have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. The format of the product WatchGuard Firebox M270 is a bar. This format allows for practical and efficient use in various contexts.
Network
The number of users of the product WatchGuard Firebox M270 is 500 utilisateur(s). This product is ideal for several people. The network standards of the product WatchGuard Firebox M270 are IEEE 802.3ad. These standards ensure optimal compatibility with various equipment and protocols. Does the product WatchGuard Firebox M270 have Point-to-Point Protocol over Ethernet (PPPoE)? Oui. This protocol allows for the establishment of a point-to-point network connection over an Ethernet infrastructure, thus providing an efficient method for managing Internet connections. The number of VLANs for the product WatchGuard Firebox M270 is 100. This high number allows for effective network segmentation for better management and security. The DHCP server of the product WatchGuard Firebox M270 is Oui. This server allows for the dynamic assignment of IP addresses to devices on a network, thus facilitating the management of connections. The DHCP client of the product WatchGuard Firebox M270 is Oui. This client allows for dynamic management of IP addresses, thus facilitating the connection of devices to the network. Does the product WatchGuard Firebox M270 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Power
The typical power consumption of the product WatchGuard Firebox M270 is 75 W. This feature allows for the assessment of the energy efficiency of the device. The AC input voltage of the WatchGuard Firebox M270 is 100-240 V. This specification ensures optimal compatibility with standard electrical systems.
Certificate
The certification of the product WatchGuard Firebox M270 contains WEEE, RoHS, REACH. This certification guarantees compliance with the required safety and performance standards.
Representation / realization
The average time between failures of the product WatchGuard Firebox M270 is 51644 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The processor family of the product WatchGuard Firebox M270 contains Intel Atom®. This specification is essential for determining the performance and compatibility of the product. The technical detail "Integrated into the processor" of the product WatchGuard Firebox M270 is Oui. This essential component ensures optimal performance and increased efficiency. The number of processor cores of the product WatchGuard Firebox M270 is 4. This feature allows for optimizing performance and managing multiple tasks simultaneously with efficiency. The thermal dissipation of the product WatchGuard Firebox M270 is 256 BTU/h. This thermal dissipation ensures optimal operation and prevents overheating, thereby guaranteeing the durability and performance of the device. The number of simultaneous connections for the product WatchGuard Firebox M270 is 2000000. This product allows for optimal use by supporting a large number of connected devices. Does the product WatchGuard Firebox M270 have Syslog? Oui. This feature allows for the centralization and analysis of event logs for better network management. The internal memory of the product WatchGuard Firebox M270 contains 4096 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use.
Other features
The throughput of the WatchGuard Firebox M270 firewall is 4900 Mbit/s. This high throughput ensures effective protection while maintaining optimal performance for your network connections.
Connectivity
The product WatchGuard Firebox M270 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The number of Ethernet LAN (RJ-45) ports of the product WatchGuard Firebox M270 is 8. These ports provide a stable and fast network connection for your devices. The product WatchGuard Firebox M270 has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The data transfer rate of the product WatchGuard Firebox M270 is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The console port of the product WatchGuard Firebox M270 contains RJ-45. This port allows for effective communication with other devices.
Data transmission
The maximum number of firewall connections per second for the product WatchGuard Firebox M270 is 40000. This specification ensures efficient network traffic management. The firewall throughput (IMIX) of the product WatchGuard Firebox M270 is 1.8 Gbit/s. This throughput ensures efficient data transmission, essential for maintaining the performance and security of your network. The product WatchGuard Firebox M270 has a VPN Branch Office of 50. This feature ensures a secure and reliable connection between different offices, thus facilitating data sharing and remote collaboration. The VPN throughput (UDP 1518) of the product WatchGuard Firebox M270 is 1.6 Gbit/s. This high throughput ensures fast and efficient data transmission. The VPN throughput (IMIX) of the product WatchGuard Firebox M270 is 480 Mbit/s. This throughput ensures efficient data transmission for an optimal user experience. The gateway antivirus throughput of the product WatchGuard Firebox M270 is 2.1 Gbit/s. This throughput ensures effective protection against threats while maintaining fast data transmission. The IPS throughput (fast/complete scan) of the product WatchGuard Firebox M270 is 2.3/0.9 Gbit/s. This throughput allows for efficient data transmission, thus ensuring optimal performance. The throughput of the WatchGuard Firebox M270 firewall is 4.9 Gbit/s. This high throughput ensures effective protection while maintaining optimal performance for your network connections. The number of current connections (proxy) for the product WatchGuard Firebox M270 is 200000. This specification ensures efficient data transmission. The capacity of the TDR host sensors of the product WatchGuard Firebox M270 is 60. This specification ensures efficient and accurate data transmission. The number of WSM licenses for the product WatchGuard Firebox M270 is 4 licence(s). This specification allows for determining the usage capacity of the product based on the available licenses.
