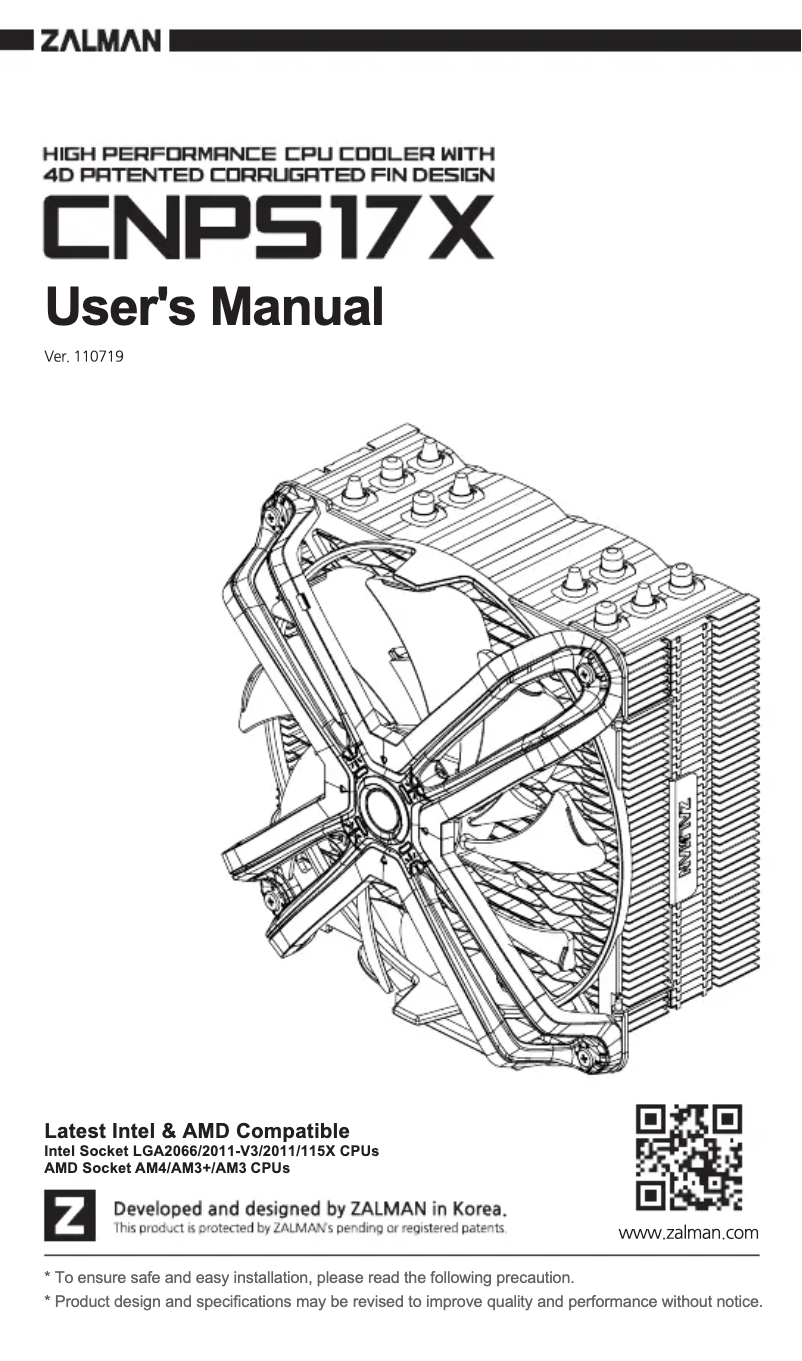

Manual of product CNPS17X
Technical Specifications CNPS17X
General Information
-
ModelCNPS17X
-
Brand
-
Category
-
SKU1906441
-
MPN1906441
Representation / realization
-
Appropriate locationProcessor
-
Bearing typeFluid Dynamic Bearing (FDB)
-
Support for pulse width modulationYes
-
Maximum air pressure1.1 mmH2O
-
Sound level (fast speed)29 dB
-
TypeCooler
-
Fan diameter140 mm
-
Support for processor socketsLGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket FM2, Socket FM2+
-
Compatible processorsAMD A, AMD Ryzen, Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i7 Extreme Edition, Intel Core i9, Intel Core i9 Extreme Edition, Intel Pentium
-
Rotation speed (max)1500 rpm
-
Rotation speed (min)800 rpm
-
Maximum draft61 cfm
Design
-
Number of fans1 fan(s)
-
Product colorBlack, Grey
-
MaterialAluminium, Copper
-
Fan connector3-pin + 4-pin
-
Radiator materialAluminium
-
Number of heat pipes5
-
Illumination indicatorYes
-
Color of the lightingBlue, Green, Red
Weight and dimensions
-
Width100 mm
-
Depth140 mm
-
Height160 mm
-
Weight700 g
-
Fan dimensions (l x w x h)140 x 140 x 26 mm
Packaging contents
-
Included screwsYes
-
Included screwsYes
-
Number of screws4
Other features
-
Thermal conductive pasteYes
-
Nominal voltage of the fan5 - 12 V
Power
-
Nominal voltage12 V
-
Thermal envelope (TDP, Thermal Design Power)200 W
Similar products
More product categories from brand Zalman
More product types from brand Zalman
Presentation of product CNPS17X specifications from brand Zalman
Weight and dimensions
The weight of the product Zalman CNPS17X is 700 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Zalman CNPS17X is 140 mm. This dimension allows for optimal integration into your space. The height of the product Zalman CNPS17X is 160 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Zalman CNPS17X is 100 mm. This dimension is essential to ensure optimal integration into your space. The fan of the product Zalman CNPS17X has fan dimensions (l x w x h) of 140 x 140 x 26 mm. These dimensions make it an ideal choice for various spaces.
Generalities
The product model Zalman CNPS17X is CNPS17X | CNPS17X. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Zalman CNPS17X is 8809213769658. This code allows for the unique identification of the product in the distribution system. The brand of the product Zalman CNPS17X is Zalman. This brand is known for its quality and innovation in the field of household appliances.
Design
The color of the product Zalman CNPS17X is Black, Grey. This shade gives it a modern and elegant look. The fan connector of the product Zalman CNPS17X contains 3-pin + 4-pin. This connector is essential for ensuring a reliable and efficient connection between the fan and the system. The material of the product Zalman CNPS17X is made of Aluminium, Copper. This material is both lightweight and durable, providing excellent wear resistance. The number of fans of the product Zalman CNPS17X is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The radiator material of the product Zalman CNPS17X is made of Aluminium. This choice of material ensures excellent thermal conductivity and increased durability. The number of heat pipes in the product Zalman CNPS17X is 5. This number contributes to better heat dissipation and optimizes performance. Does the Zalman CNPS17X have an illumination indicator? Oui. This indicator shows the operating status of the device. The color of the lighting of the product Zalman CNPS17X is multi. This feature allows you to create a personalized and dynamic atmosphere according to your desires.
Representation / realization
Does the Zalman CNPS17X support pulse width modulation? No. This feature is not available on this model. The maximum air pressure of the product Zalman CNPS17X is 1.1 mmH2O. This specification ensures optimal performance and increased efficiency during its use. The bearing type of the product Zalman CNPS17X is Palier à dynamique des fluides (FDB). This type of bearing ensures optimal performance and increased durability. The product Zalman CNPS17X has a suitable location: Processeur. This product fits perfectly in this space, offering both functionality and aesthetics. The sound level of the product Zalman CNPS17X is 29 dB. This sound level ensures a pleasant user experience without being too intrusive. The type of product Zalman CNPS17X is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The diameter of the Zalman CNPS17X fan is 140 mm. This diameter is essential for ensuring optimal air circulation. The support for the processor sockets of the product Zalman CNPS17X contains LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket FM2, Socket FM2+. This support allows for optimal compatibility with various processors. The compatible processor of the product Zalman CNPS17X contains AMD A, AMD Ryzen, Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i7 Extreme Edition, Intel Core i9, Intel Core i9 Extreme Edition, Intel Pentium. This processor ensures optimal performance for your computing needs. The maximum rotation speed of the product Zalman CNPS17X is 1500 tr/min. This feature allows for optimizing performance and ensuring maximum efficiency during its use. The rotation speed of the product Zalman CNPS17X is 800 tr/min. This feature ensures optimal performance and increased efficiency during its use. The maximum airflow of the product Zalman CNPS17X is 61 cfm. This airflow ensures optimal performance for efficient use.
Other features
The nominal voltage of the Zalman CNPS17X fan is 5 - 12 V. This feature is essential for ensuring optimal operation and energy efficiency. Does the product Zalman CNPS17X have thermal conductive paste? Oui. This feature ensures excellent heat dissipation, which is essential for the proper functioning of electronic components.
Packaging contents
Does the Zalman CNPS17X product come with a mounting kit? Oui. This kit will allow you to easily assemble your product. The number of screws for the product Zalman CNPS17X is 4. This product is therefore delivered with everything needed for easy installation. Does the product Zalman CNPS17X come with screws included? Oui. This allows you to enjoy a simplified and quick installation.
Power
The TDP (Thermal Design Power) of the product is 200 W. This specification indicates the maximum amount of heat that the processor can dissipate, thus ensuring optimal and stable operation. The nominal voltage of the product Zalman CNPS17X is 12 V. This specification ensures compatibility with a wide range of power supplies.
