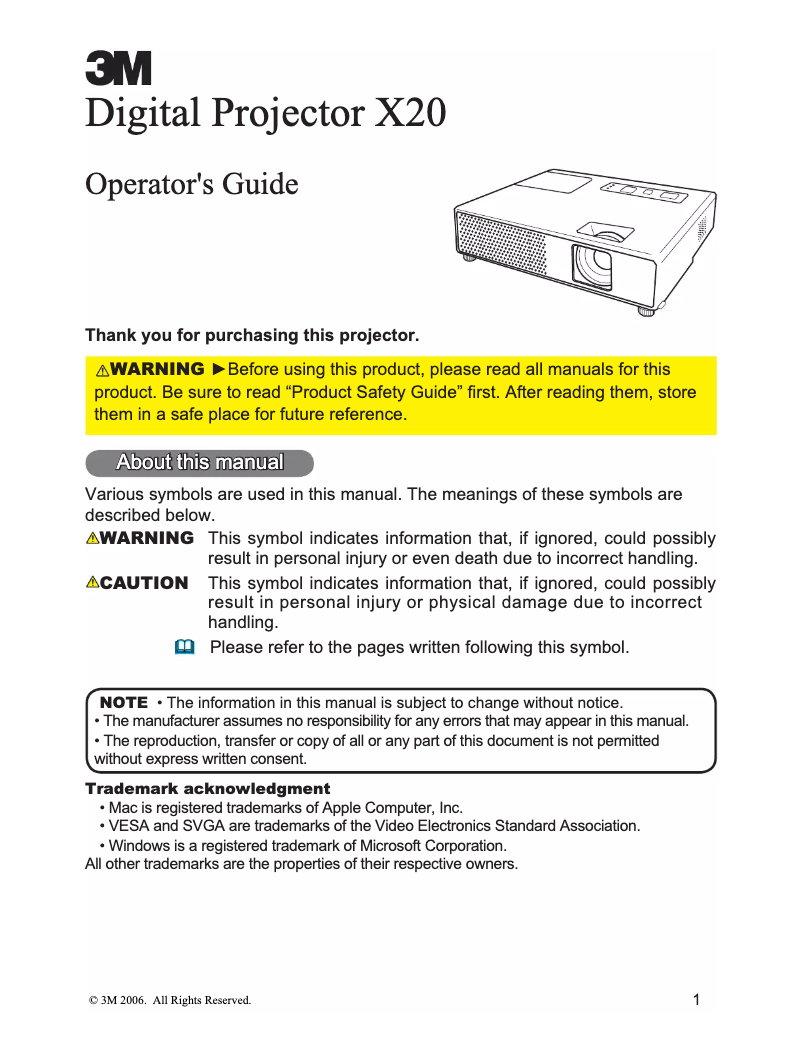

Manual of product X20
Technical Specifications X20
General Information
-
ModelX20
-
Brand
-
Category
-
Type
-
SKU59823
-
MPN59823
Projector
-
Projector brightness2000 ANSI lumens
-
Projection technologyLCD
-
Native resolution of the projectorXGA (1024x768)
-
Contrast ratio500:1
-
Number of colors16.78 million colors
-
Correction of the trapezium, vertical-30 - 30 °
-
Compatible screen size300 "
-
Vertical scanning frequency56 - 120 Hz
-
Horizontal scanning domain31.5 - 106 kHz
Other features
-
Image format4:3, 16:9
-
Audio output1
-
Audio output1
-
Dimensions (LxWxH)274 x 205 x 59 mm
-
Power requirements100 - 120 V, 220 - 240 V, 50/60 Hz
Objective system
-
Zoom ratio1.2:1
-
Focal length16.4 - 19.7 mm
-
TuningManual
Light source
-
Lifespan of the light source2000 h
-
Power of the lamp160 W
-
Type of lampUHB
-
Lifespan of the light source (eco mode)3000 h
-
Type of light sourceLamp
Video
-
Analog signal format systemNTSC
-
NTSC 4.43
-
PAL
-
SECAM
Multimedia
-
Number of built-in speakers1
-
Rated power of RMS1 W
Connectivity
-
Quantity of USB 2.0 Ports1
-
Quantity of USB 2.0 Ports1
-
Quantity of USB 2.0 Ports1
-
Number of VGA (D-Sub) ports2
Weight and dimensions
-
Weight1784 g
Features
-
Sound level36 dB
-
CertificationUL, cUL, FCC Part 15 Class B, CE, EN60950, WEEE
Power
-
Typical electricity consumption250 W
Environmental conditions
-
Temperature out of operation-20 - 60 °C
-
Operating temperature5 - 35 °C
Packaging contents
-
Remote control providedYes
Similar products
More product categories from brand 3M
More product types from brand 3M
Presentation of product X20 specifications from brand 3M
Generalities
The brand of the product 3M X20 is 3M. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product 3M X20 is 5902658066160. This code allows for the unique identification of the product in the distribution system. The product model 3M X20 is X20 | X20. This model ensures optimal performance and an enhanced user experience.
Objective system
The zoom ratio of the product 3M X20 is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The focal length of the product 3M X20 is 16.4 - 19.7 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The adjustment of the 3M X20 is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Other features
The image format of the product 3M X20 is 4:3, 16:9. This format is ideal for an immersive visual experience. The product 3M X20 has an audio input. This feature allows you to connect various audio devices for an enhanced sound experience. The product 3M X20 has an audio output of 1. This feature allows for easy connection to audio devices for an optimal sound experience. The dimensions (LxWxH) of the product 3M X20 are 274 x 205 x 59 mm. These dimensions ensure an optimal fit in your space. The power requirements of the product 3M X20 are 100 - 120 V, 220 - 240 V, 50/60 Hz. These requirements ensure optimal operation of the device.
Projector
The projector 3M X20 features a LCD projection technology. This technology ensures optimal image quality and an immersive visual experience. The brightness of the product 3M X20 is 2000 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The contrast ratio of the product 3M X20 is 500:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The native resolution of the product 3M X20 is XGA (1024x768). This feature ensures optimal image quality for your presentations and entertainment. The number of colors of the product 3M X20 is 16,78 millions de couleurs. This wide range of colors allows for the creation of varied and immersive atmospheres. The product 3M X20 features trapezoidal correction, vertical of -30 - 30 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The compatible screen size of the product 3M X20 is 300 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The vertical scanning frequency of the product 3M X20 is 56 - 120 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal scanning range of the product 3M X20 is 31.5 - 106 kHz. This range allows for excellent display quality and optimal image smoothness.
Light source
The lifespan of the light source of the product 3M X20 is 2000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The type of lamp of the product 3M X20 is UHB. This lamp offers intense brightness and excellent lighting quality. The power of the lamp of the product 3M X20 is 160 W. This power ensures optimal lighting for your needs. The lifespan of the light source (eco mode) of the product 3M X20 is 3000 h. This longevity ensures prolonged and economical use. The type of light source of the product 3M X20 is Lampe. This light source ensures effective illumination tailored to your needs.
Multimedia
The number of built-in speakers of the product 3M X20 is 1. These speakers provide immersive audio quality for an optimal listening experience. The RMS rated power of the product 3M X20 is 1 W. This specification ensures optimal sound quality for an enriching multimedia experience.
Video
The analog signal format system of the product 3M X20 contains NTSC, NTSC 4.43, PAL, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience.
Connectivity
The product 3M X20 has an S-Video input. This input allows you to connect video devices with enhanced image quality. The number of VGA (D-Sub) ports on the 3M X20 is 2. This port allows for easy connection with various devices and monitors. The number of USB 2.0 ports on the 3M X20 is 1. These ports allow for a fast and efficient connection for your devices. The product 3M X20 has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience.
Weight and dimensions
The weight of the product 3M X20 is 1784 g. This weight is ideal for ensuring optimal use and easy handling.
Power
The typical power consumption of the product 3M X20 is 250 W. This feature allows for the assessment of the energy efficiency of the device.
Packaging contents
Does the product 3M X20 come with a remote control? Oui.
Features
The certification of the product 3M X20 contains UL, cUL, FCC Part 15 Class B, CE, EN60950, WEEE. This certification guarantees compliance with the required safety and performance standards. The noise level of the product 3M X20 is 36 dB. This noise level allows for pleasant use without excessive noise disturbances.
Environmental conditions
The non-operating temperature of the product 3M X20 is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product 3M X20 is 5 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
