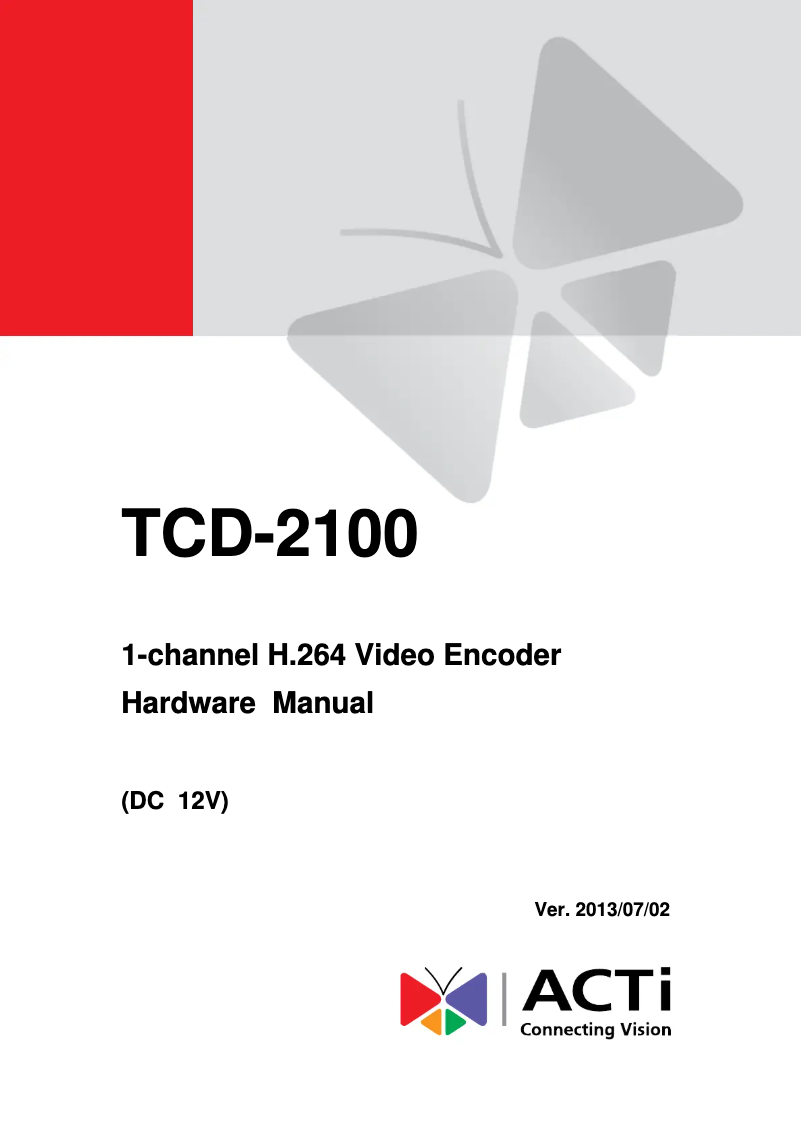

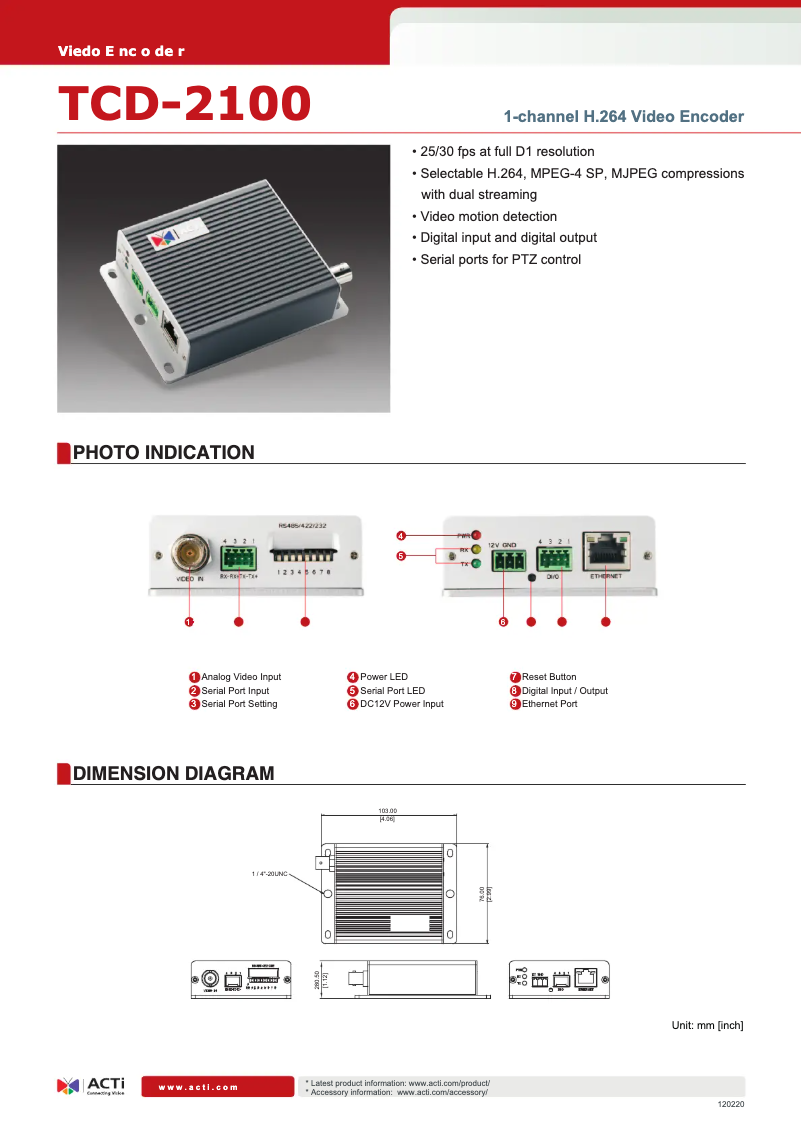

Manuals of product TCD-2100
Technical Specifications TCD-2100
General Information
-
ModelTCD-2100
-
Brand
-
Category
-
Type
-
SKU332506
-
MPN332506
Video
-
Visual compression formatsH.264
-
Maximum video resolutionM-JPEG
-
Maximum cadenceMPEG4
-
Number of channels720 x 480 pixels
-
30 fps
-
1 channels
Representation / realization
-
PTZ Control-
-
Resolution720 x 480 pixels
Design
-
Product colorBlack
-
Silver
Security
-
Security-supported algorithm802.1x RADIUS
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Password protectionUser
Network
-
Supported network protocolsTCP
-
Copper Ethernet cabling technologyUDP
-
HTTP
-
HTTPS
-
DHCP
-
PPPoE
-
RTP
-
RTSP
-
IPv4
-
IPv6
-
DNS
-
DDNS
-
NTP
-
ICMP
-
ARP
-
IGMP
-
SMTP
-
FTP
-
UPnP
-
SNMP
-
Bonjour
-
100BASE-T
-
10BASE-T
Connectivity
-
RS-422 Ports1
-
RS-422 Ports1
-
RS-422 Ports1
-
Input/Output terminal ports2
Weight and dimensions
-
Dimensions (LxWxH)103 x 76 x 28.5 mm
-
Weight195 g
Power
-
Typical electricity consumption3.6 W
Environmental conditions
-
Operating temperature-10 - 50 °C
-
Operating relative humidity (H-H)10 - 85 %
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product TCD-2100 specifications from brand ACTi
Design
The color of the product ACTi TCD-2100 is Noir, argent. This shade gives it a modern and elegant look.
Representation / realization
The resolution of the product ACTi TCD-2100 is 720 x 480 pixels. This resolution ensures exceptional image quality, allowing for precise details and remarkable clarity. The PTZ control of the product ACTi TCD-2100 is -. This control allows for precise and efficient management of pan, tilt, and zoom.
Generalities
The brand of the product ACTi TCD-2100 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product ACTi TCD-2100 is 410254440000, 0410254440000. This code allows for the unique identification of the product in the distribution system. The product model ACTi TCD-2100 is TCD-2100 | TCD-2100. This model ensures optimal performance and an enhanced user experience.
Video
The quantity of channels of the product ACTi TCD-2100 is 1 canaux. This specification determines the number of communication paths available for optimal use. The product ACTi TCD-2100 has visual compression formats: H.264, M-JPEG, MPEG4. These formats ensure optimal image quality for your videos. The maximum frame rate of the product ACTi TCD-2100 is 30 ips. This specification ensures optimal image smoothness for your recordings. The maximum video resolution of the product ACTi TCD-2100 is 720 x 480 pixels. This specification ensures optimal image quality for your videos.
Security
The supported security algorithm of the product ACTi TCD-2100 contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. Does the product ACTi TCD-2100 have Password Protection? Utilisateur. This feature ensures the security of your personal data. Does the ACTi TCD-2100 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product ACTi TCD-2100 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Connectivity
The RS-485 port of the ACTi TCD-2100 contains 1. This port allows for robust serial communication and is ideal for industrial applications. The BNC input port of the ACTi TCD-2100 contains 1. This port allows for a reliable and quality connection for your equipment. The RS-422 port of the ACTi TCD-2100 contains 1. This port allows for reliable serial communication over long distances. The input/output terminal ports of the product ACTi TCD-2100 contain 2. These ports allow optimal connectivity with various devices.
Weight and dimensions
The weight of the product ACTi TCD-2100 is 195 g. This weight is ideal for ensuring optimal use and easy handling. The dimensions (LxWxH) of the product ACTi TCD-2100 are 103 x 76 x 28.5 mm. These dimensions ensure an optimal fit in your space.
Network
The supported network protocols of the product ACTi TCD-2100 are TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The copper Ethernet wiring of the product ACTi TCD-2100 contains 100BASE-T, 10BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments.
Power
The typical power consumption of the product ACTi TCD-2100 is 3.6 W. This feature allows for the assessment of the energy efficiency of the device.
Environmental conditions
The product ACTi TCD-2100 has an operating relative humidity (H-H) of 10 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product ACTi TCD-2100 is -10 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
