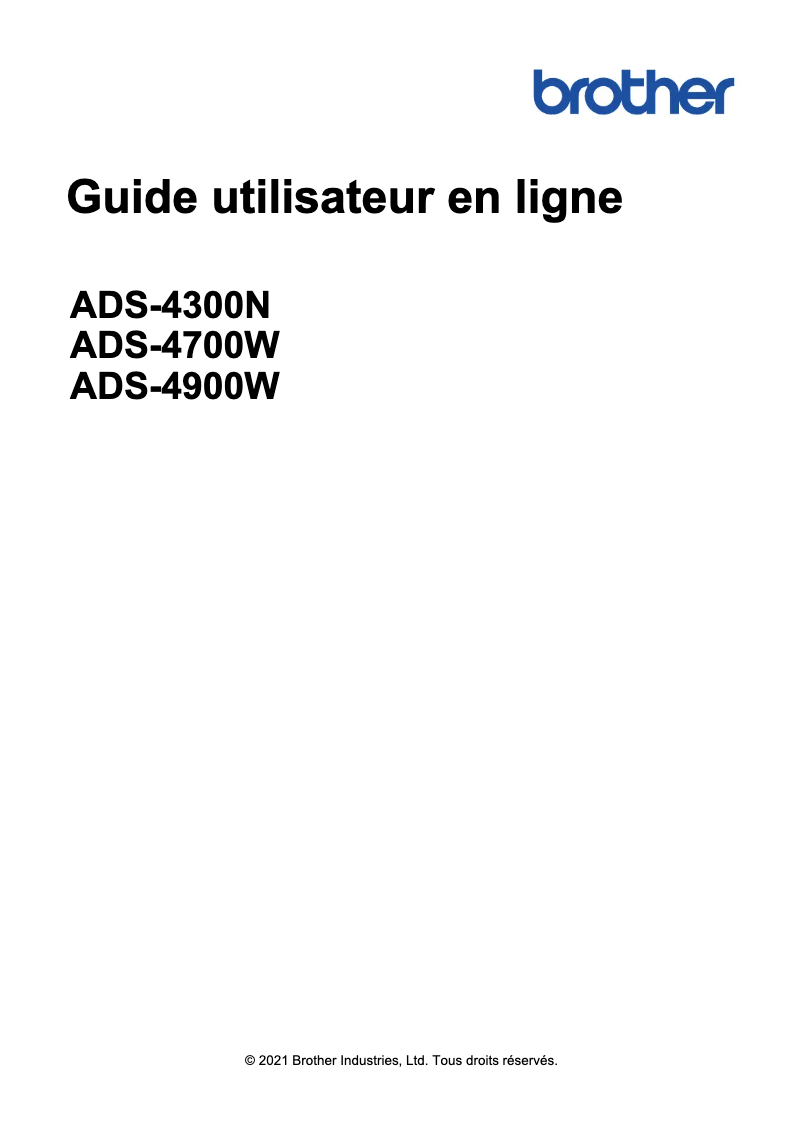

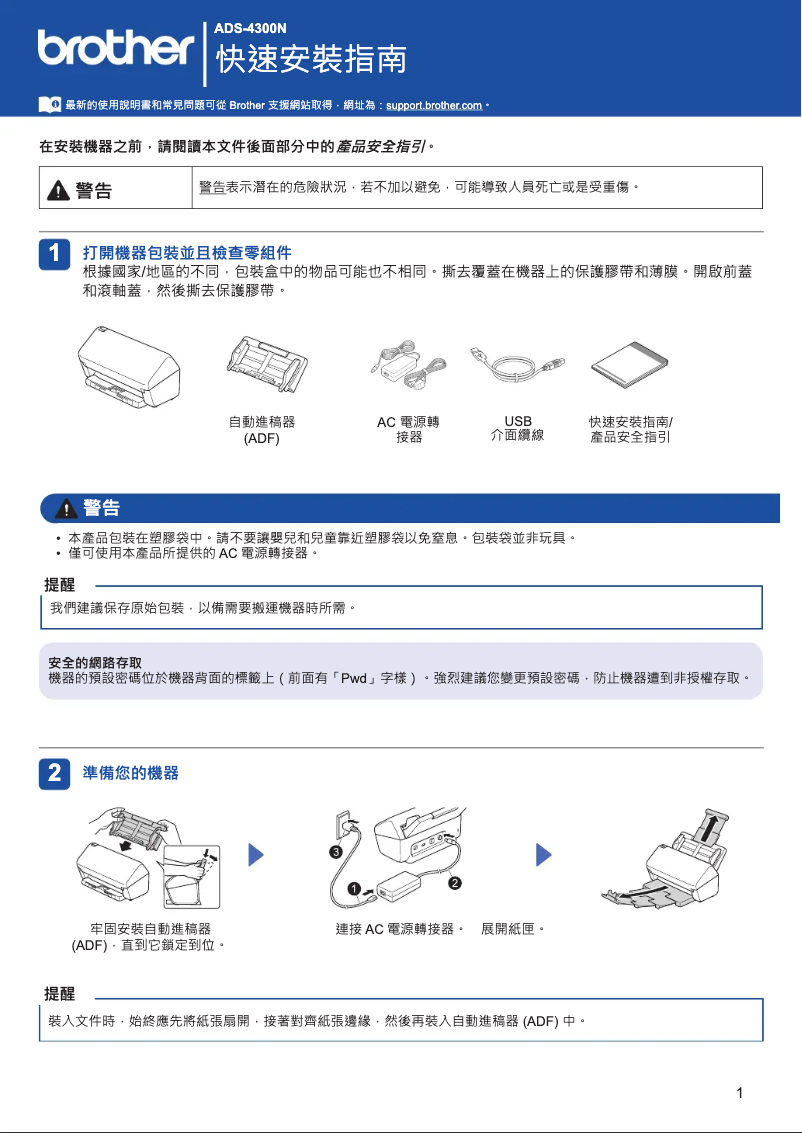

Manuals of product ADS-4300N
Technical Specifications ADS-4300N
General Information
-
ModelADS-4300N
-
Brand
-
Category
-
Type
-
SKU1578266
-
MPN1578266
Digitization
-
Maximum scanning area215.9 x 355.6 mm
-
Optical scanning resolution600 x 600 DPI
-
Enhanced scanning resolution1200 x 1200 DPI
-
Double-sided scanningYes
-
Double-sided scanningYes
-
Gray levels256
-
ADF scanning speed (color, A4)40 ppm
-
ADF scanning speed (color, A4)40 ppm
-
ADF duplex scanning speed (color, A4)80 ipm
-
ADF duplex scanning speed (color, A4)80 ipm
-
Input color display depth48 bit
-
Output color display depth24 bit
-
Output grayscale resolution8 bit
Power
-
Type of power supplySector
-
Typical electricity consumption24 W
-
Energy consumption (standby mode)6.8 W
-
Electricity consumption (stop)0.1 W
-
Energy consumption (in standby mode)1.7 W
-
AC input frequency50 - 60 Hz
-
Output voltage24 V
-
Output current1.9 A
Network
-
IPv6 supportYes
-
Security-supported algorithmEAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS
-
IPv6 supportYes
-
Supported network protocolsDHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
-
Support for network protocols (IPv4)DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP
-
Support for network protocols (IPv6)RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Packaging information
-
Quantity1 piece(s)
-
Package width391 mm
-
Package depth320 mm
-
Package height243 mm
-
Package weight3320 g
Design
-
Type of scannerScanner ADF
-
Built-in screenNo
-
Product colorBlack, White
-
Order typeButtons
Minimum system requirements
-
Support for the Linux operating systemYes
-
Support for the Linux operating systemYes
-
Support for the Linux operating systemYes
-
Support for the server operating systemWindows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Environmental conditions
-
Operating temperature5 - 35 °C
-
Temperature out of operation-20 - 60 °C
-
Operating relative humidity (H-H)20 - 80 %
-
Relative humidity rate (storage)10 - 90 %
Representation / realization
-
Sensor typeDual CIS
-
Operating cycle per day (max)6000 pages
-
Service cycle (Maximum)120000 pages per month
-
Scan toFTP, Image, PC, SMB, USB
-
Scan driversICA, SANE, TWAIN, WIA
-
Sound level of the scanner, in operation59 dB
-
Light sourceLED
-
Formats of scanned filesJPEG, PDF, TIFF
Weight and dimensions
-
Width299.5 mm
-
Depth215.9 mm
-
Height190.5 mm
-
Weight2640 g
Packaging contents
-
Cables includedAC
-
USB
Input capacity
-
Automatic document feeder capacity80 sheets
Paper management
-
Maximum ISO A series paper sizeA4
-
Support for media scanning typesBusiness Card
-
Card thickness (max)Plain paper
-
Weight of the media, automatic document feederPlastic Card
-
Weight of the media, automatic document feederRecycled paper
-
Maximum sweep widthThick paper
-
Maximum sweep lengthThin paper
-
1.1 mm
-
40 - 200 g/m²
-
40 - 200 g/m²
-
215.9 mm
-
5000 mm
Connectivity
-
USB portYes
-
USB Version2.0/3.2 Gen 1 (3.1 Gen 1)
Technical details
-
Sustainability certificatesRoHS
Certificate
-
CertificationGS Mark
-
ISIS
-
WHQL KofaxTM 5, 10
-
VRS Elite 5.2.0
-
Kofax Express 3.3.0
Logistics data
-
Harmonized System Code84716070
Similar products
More product categories from brand Brother
Home appliances Brother
Other Brother
Tools Brother
Phones Brother
Interior Brother
More product types from brand Brother
Presentation of product ADS-4300N specifications from brand Brother
Generalities
The brand of the product Brother ADS-4300N is Brother. This brand is known for its quality and innovation in the field of household appliances. The product model Brother ADS-4300N is ADS-4300N | ADS4300NZU1. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Brother ADS-4300N is 4977766814621. This code allows for the unique identification of the product in the distribution system.
Power
The typical power consumption of the product Brother ADS-4300N is 24 W. This feature allows for the assessment of the energy efficiency of the device. The power supply type of the product Brother ADS-4300N is Secteur. This specification ensures reliable and efficient use of the device. The power consumption (standby) of the product Brother ADS-4300N is 0.1 W. This feature helps to minimize energy consumption when the device is in standby mode. The energy consumption in standby mode of the product Brother ADS-4300N is 6.8 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The energy consumption in standby mode of the product Brother ADS-4300N is 1.7 W. This feature helps to reduce the energy impact when the device is not in use. The AC input frequency of the product Brother ADS-4300N is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The output voltage of the Brother ADS-4300N is 24 V. This specification ensures optimal performance for your electrical needs. The output current of the product Brother ADS-4300N is 1.9 A. This current ensures optimal performance for your electrical needs.
Network
Does the product Brother ADS-4300N have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Brother ADS-4300N are DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6. These protocols ensure efficient and reliable communication for your networking needs. Does the product Brother ADS-4300N support IPv6? Oui. This feature ensures modern and efficient network connectivity. The supported security algorithm of the product Brother ADS-4300N contains EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS. This algorithm ensures optimal protection of your data. The network protocol support (IPv4) of the product Brother ADS-4300N includes DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP. This support ensures optimal connectivity and efficient print management. The support for network protocols (IPv6) of the product Brother ADS-4300N includes RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6. This support ensures optimal connectivity and efficient management of IP addresses in modern environments.
Packaging information
The width of the package of the product Brother ADS-4300N is 391 mm. This dimension is essential to ensure optimal transport and storage. The quantity of the product Brother ADS-4300N is 1 pièce(s). This specification allows you to know the number of units included in the packaging. The depth of the product package Brother ADS-4300N is 320 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Brother ADS-4300N is 243 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Brother ADS-4300N package is 3320 g. This weight ensures optimal protection during transport and delivery.
Minimum system requirements
The server operating system support for the product Brother ADS-4300N includes Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019. This support ensures optimal compatibility with modern server environments. Does the product Brother ADS-4300N support the Linux operating system? Oui. This feature allows for optimal compatibility with Linux environments, thus providing increased usability flexibility. Does the product Brother ADS-4300N support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users. Does the product Brother ADS-4300N support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Digitization
The maximum scanning surface of the product Brother ADS-4300N is 215.9 x 355.6 mm. This feature allows for the precise and efficient scanning of large documents. The product Brother ADS-4300N has an optical scanning resolution of 600 x 600 DPI. This specification ensures high-quality images and precise details during scanning. The product Brother ADS-4300N has an enhanced scanning resolution of 1200 x 1200 DPI. This specification ensures images of exceptional clarity, ideal for professional documents and photos. Does the product Brother ADS-4300N have color scanning? Oui. This feature allows capturing images with vibrant and accurate colors, thus providing superior image quality. Does the product Brother ADS-4300N have Duplex scanning? No. This feature would allow scanning documents on both sides, but this product does not offer it. The grayscale levels of the product Brother ADS-4300N contain 256. This specification allows for detailed and precise shades in scanned images. The product Brother ADS-4300N has an ADF scanning speed (b/w, A4) of 40 ppm. This performance ensures fast and efficient scanning for all your documents. The product Brother ADS-4300N has a duplex ADF scanning speed (b/w, A4) of 80 ipm. This performance ensures fast and efficient scanning of your documents. The product Brother ADS-4300N has a duplex ADF scanning speed (color, A4) of 80 ipm. This specification allows for fast and efficient scanning of your documents. The product Brother ADS-4300N has an ADF scanning speed (color, A4) of 40 ppm. This feature allows for optimizing efficiency when scanning color documents in A4 format. The color input display depth of the product Brother ADS-4300N is 48 bit. This specification ensures accurate color reproduction for an optimal visual experience. The output color display depth of the product Brother ADS-4300N is 24 bit. This feature ensures accurate and rich color reproduction for an optimal visual experience. The output grayscale resolution of the Brother ADS-4300N is 8 bit. This specification allows for precise and detailed shades in scanned images.
Design
The type of scanner of the product Brother ADS-4300N is a Scanner ADF. This type of scanner allows for fast and efficient scanning of multiple documents at once. The Brother ADS-4300N has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device. The color of the product Brother ADS-4300N is Black, White. This shade gives it a modern and elegant look. The product Brother ADS-4300N order type consists of Boutons. This order type allows for intuitive and practical use.
Environmental conditions
The operating temperature of the product Brother ADS-4300N is 5 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Brother ADS-4300N is 10 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Brother ADS-4300N is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Brother ADS-4300N has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Weight and dimensions
The width of the product Brother ADS-4300N is 299.5 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Brother ADS-4300N is 190.5 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Brother ADS-4300N is 2640 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Brother ADS-4300N is 215.9 mm. This dimension allows for optimal integration into your space.
Packaging contents
The included cable of the product Brother ADS-4300N contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Input capacity
The capacity of the automatic document feeder of the product Brother ADS-4300N is 80 feuilles. This capacity allows for the efficient processing of a large volume of documents at once.
Representation / realization
The sensor type of the product Brother ADS-4300N is Dual CIS. This type of sensor ensures optimal image quality for your needs. The daily operating cycle (max) of the product Brother ADS-4300N is 6000 pages. This cycle allows for intensive use while ensuring optimal performance. The scanning mode of the product Brother ADS-4300N contains FTP, Image, PC, SMB, USB. This mode allows flexibility in the choice of scanning protocols. The maximum service cycle of the product Brother ADS-4300N is 120000 pages par mois. This cycle allows for intensive use and meets the needs of demanding users. The scan driver for the product Brother ADS-4300N contains ICA, SANE, TWAIN, WIA. This scan driver ensures optimal compatibility with various scanning systems. The noise level of the scanner Brother ADS-4300N is 59 dB. This noise level ensures discreet use, ideal for noise-sensitive work environments. The product Brother ADS-4300N has a light source LED. This light source offers energy efficiency and a long lifespan, ensuring optimal lighting. The format of the scanned files of the product Brother ADS-4300N contains JPEG, PDF, TIFF. This format allows for great flexibility in storing and sharing documents.
Connectivity
Does the Brother ADS-4300N have a USB Port? Oui. This feature allows for easy and quick connection to various devices. The USB Version of the product Brother ADS-4300N is 2.0/3.2 Gen 1 (3.1 Gen 1). This USB Version allows for a fast and efficient connection with various devices.
Technical details
The product Brother ADS-4300N has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Certificate
The certification of the product Brother ADS-4300N contains GS Mark\nISIS\nWHQL KofaxTM 5, 10\nVRS Elite 5.2.0\nKofax Express 3.3.0. This certification guarantees compliance with the required safety and performance standards.
Paper management
The product Brother ADS-4300N has a maximum ISO A series paper size of A4. This specification ensures optimal compatibility with standard printers and office equipment. The support for the scanning types of the product Brother ADS-4300N is suitable for business cards, envelopes, and plastic cards. This varied support allows for optimal flexibility for all your scanning needs. The weight of the paper tray support of the product Brother ADS-4300N is 40 - 200 g/m². This specification ensures optimal quality for your prints. The product Brother ADS-4300N has a card thickness (max) of 1.1 mm. This specification ensures optimal quality for your printing projects. The weight of the product support Brother ADS-4300N is 40 - 200 g/m². This weight allows for optimal use with the automatic document feeder, thus ensuring efficient and reliable performance. The maximum sweep width of the product Brother ADS-4300N is 215.9 mm. This specification allows for optimized paper management for various formats. The maximum sweep length of the product Brother ADS-4300N is 5000 mm. This feature helps optimize efficiency when using the device.
Logistics data
The Harmonized System code for the product Brother ADS-4300N is 84716070. This code allows for the unique identification of goods in international trade.
